Toyota CAMRY 后视镜 — Figure 8701

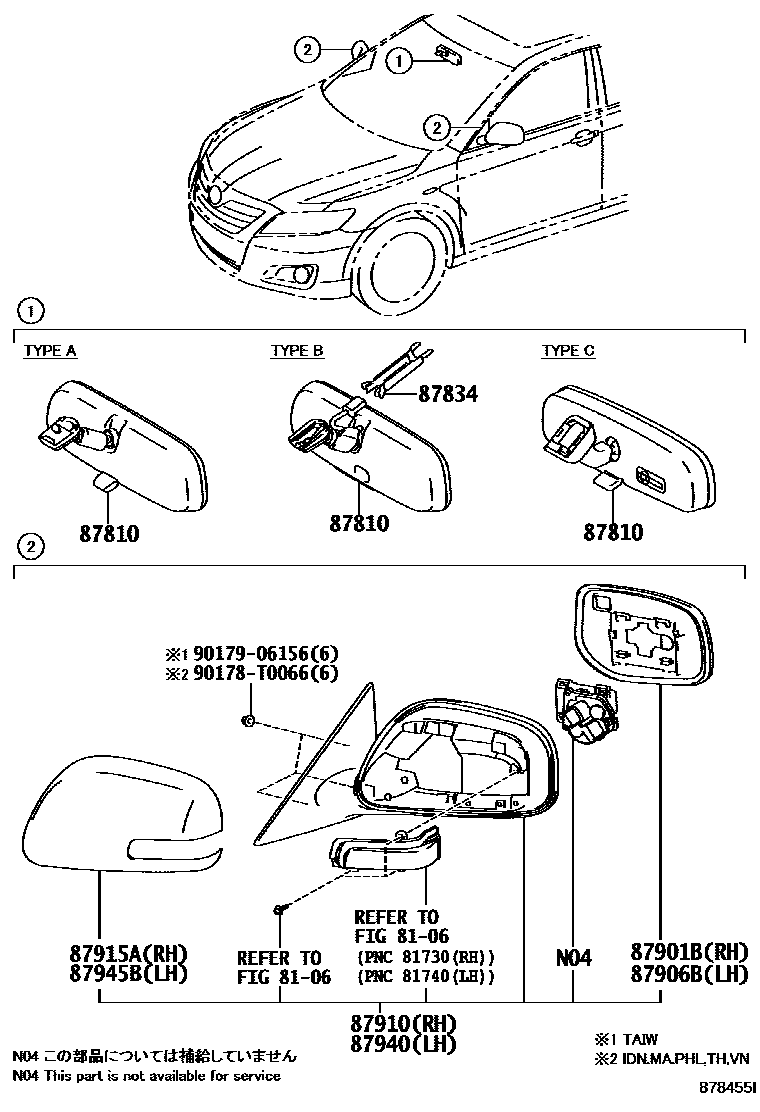

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06030 · 87810-06070 · 87810-06071 · 87810-06100 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-06231 · 87931-06241 · 87931-06271 · 87931-06281 · 87931-8C007 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-06231 · 87961-06241 · 87961-06271 · 87961-06281 · 87961-8C007 |
| 87910 | Right exterior rearview mirror assembly | 87910-06910 · 87910-06911 · 87910-06912 · 87910-06913 · 87910-06914 · 87910-06915 · 87910-06917 |
| 87915A | Right exterior rearview mirror cover | 87915-06901 · 87915-06903 |
| 87940 | Left exterior rearview mirror assembly | 87940-06910 · 87940-06911 · 87940-06912 · 87940-06913 · 87940-06914 · 87940-06915 · 87940-06916 |
| 87945B | Left exterior rearview mirror cap | 87945-06901 · 87945-06903 |
