Toyota CAMRY 车载电话和呼救装置 — Figure 8615

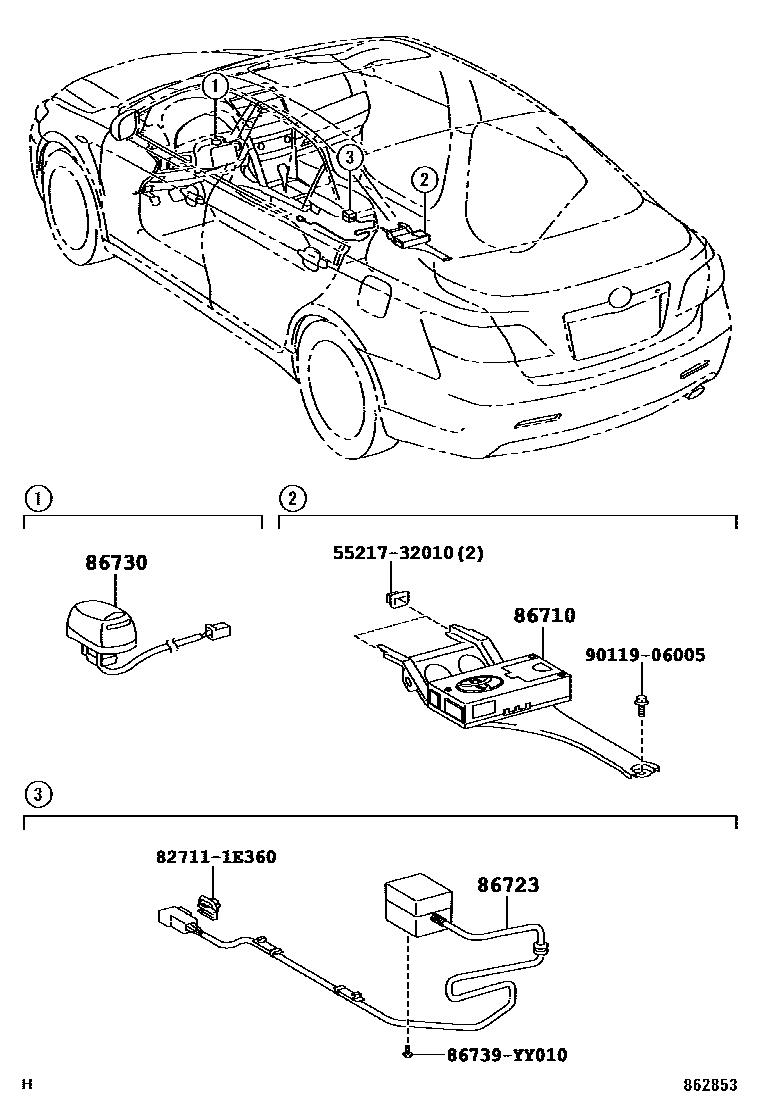

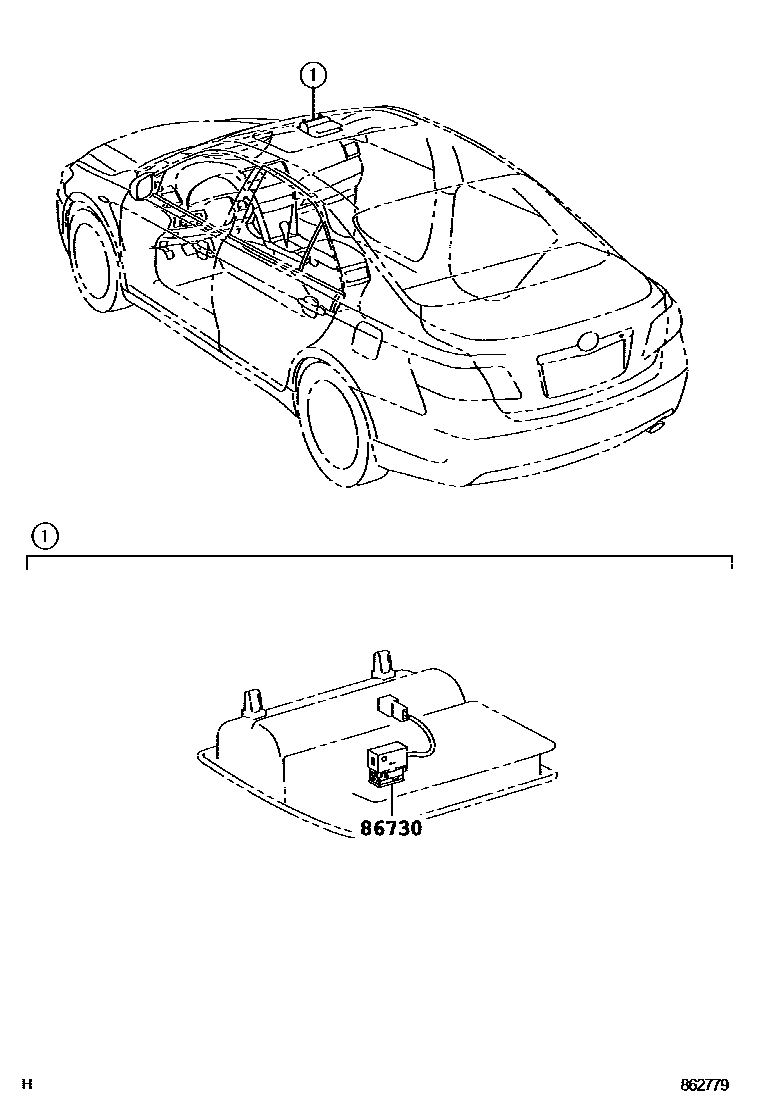

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86710 | Telephone ECU assembly | 86710-YY090 · 86710-YY091 · 86710-YY100 · 86710-YY101 |
| 86723 | Mobile phone wiring harness | 86723-YY090 |
| 86730 | Telephone amplifier assembly | 86730-33040 · 86730-33050 · 86730-33080 |
