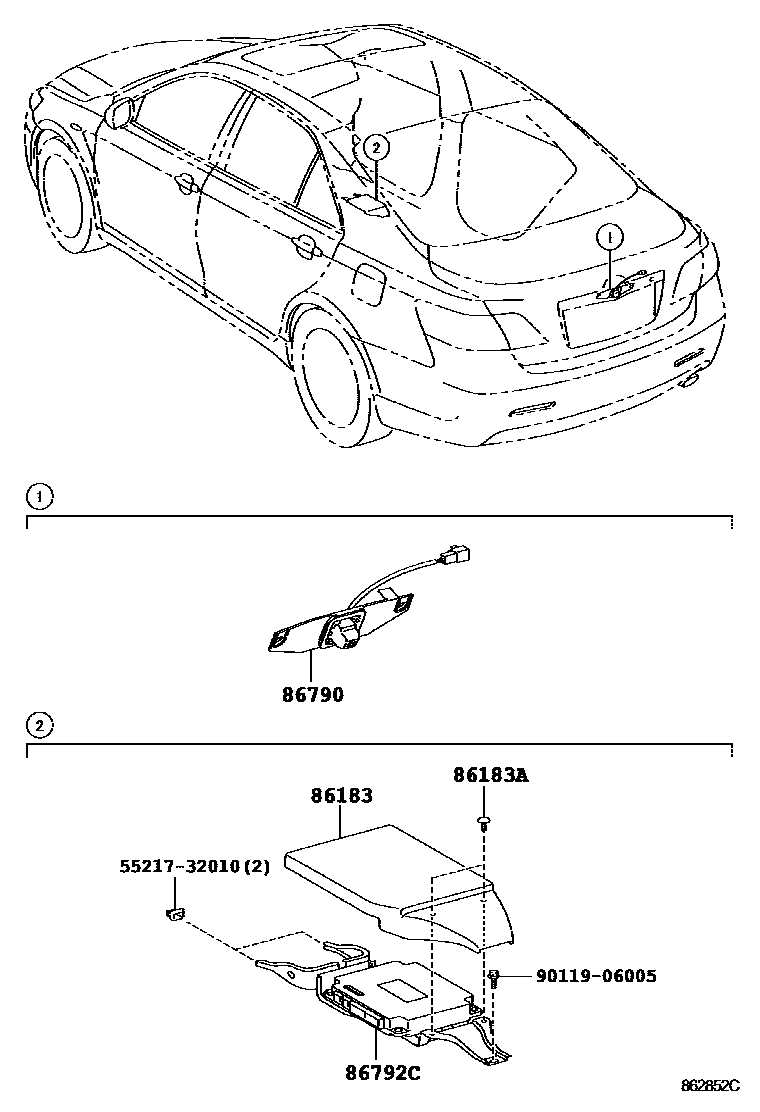

Toyota CAMRY 倒车影像和摄像头 — Figure 8606
Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86183 | Audio stand cover | 86183-33020 |
| 86790 | Reversing image camera assembly | 86790-33040 · 86790-33041 |
| 86792C | Parking assist ECU | 86792-33020 |
