Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 3 PNC and OE references.

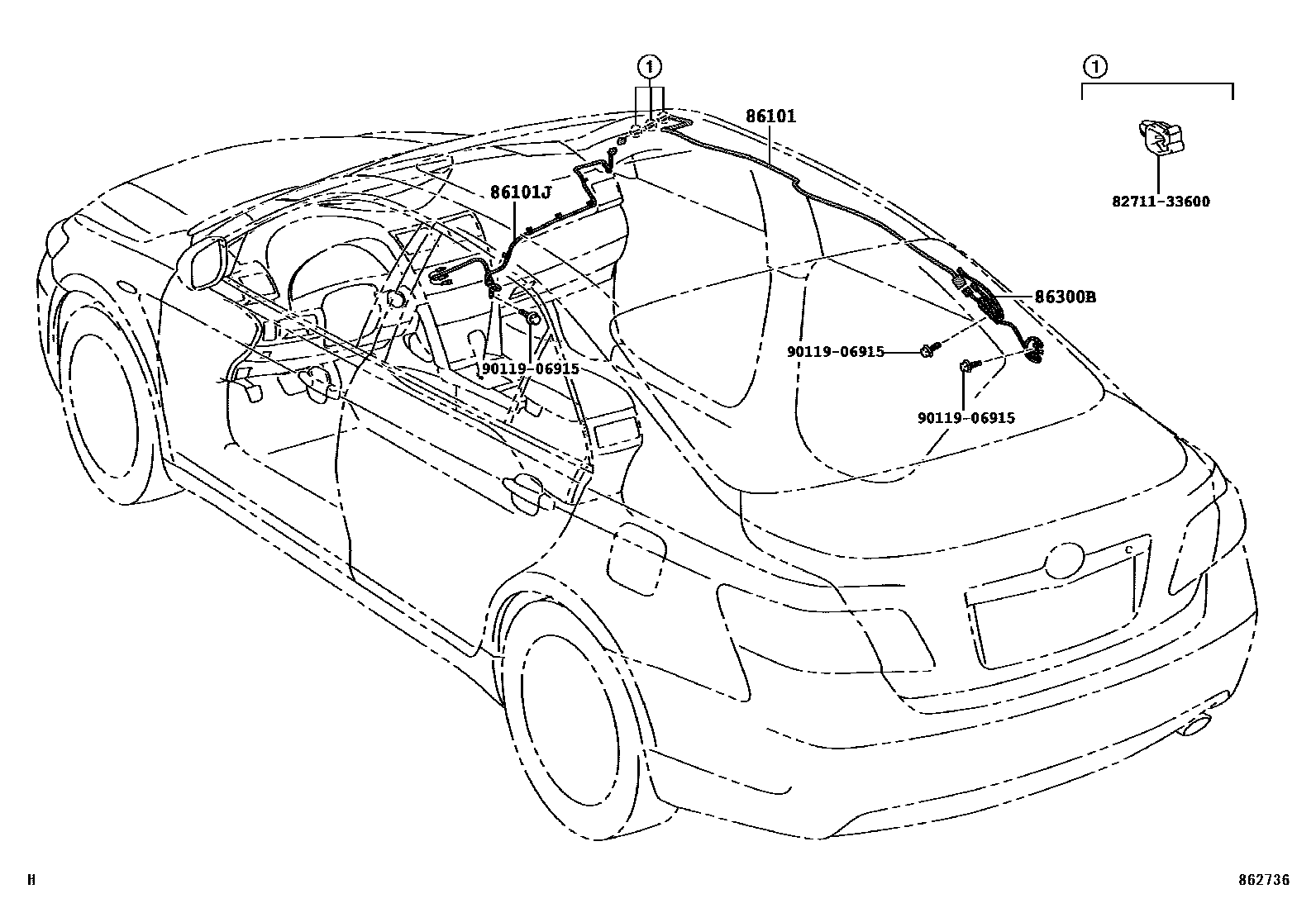

Toyota CAMRY antenna EPC diagram — 862736
antenna — 862736 (200605 – 999999)

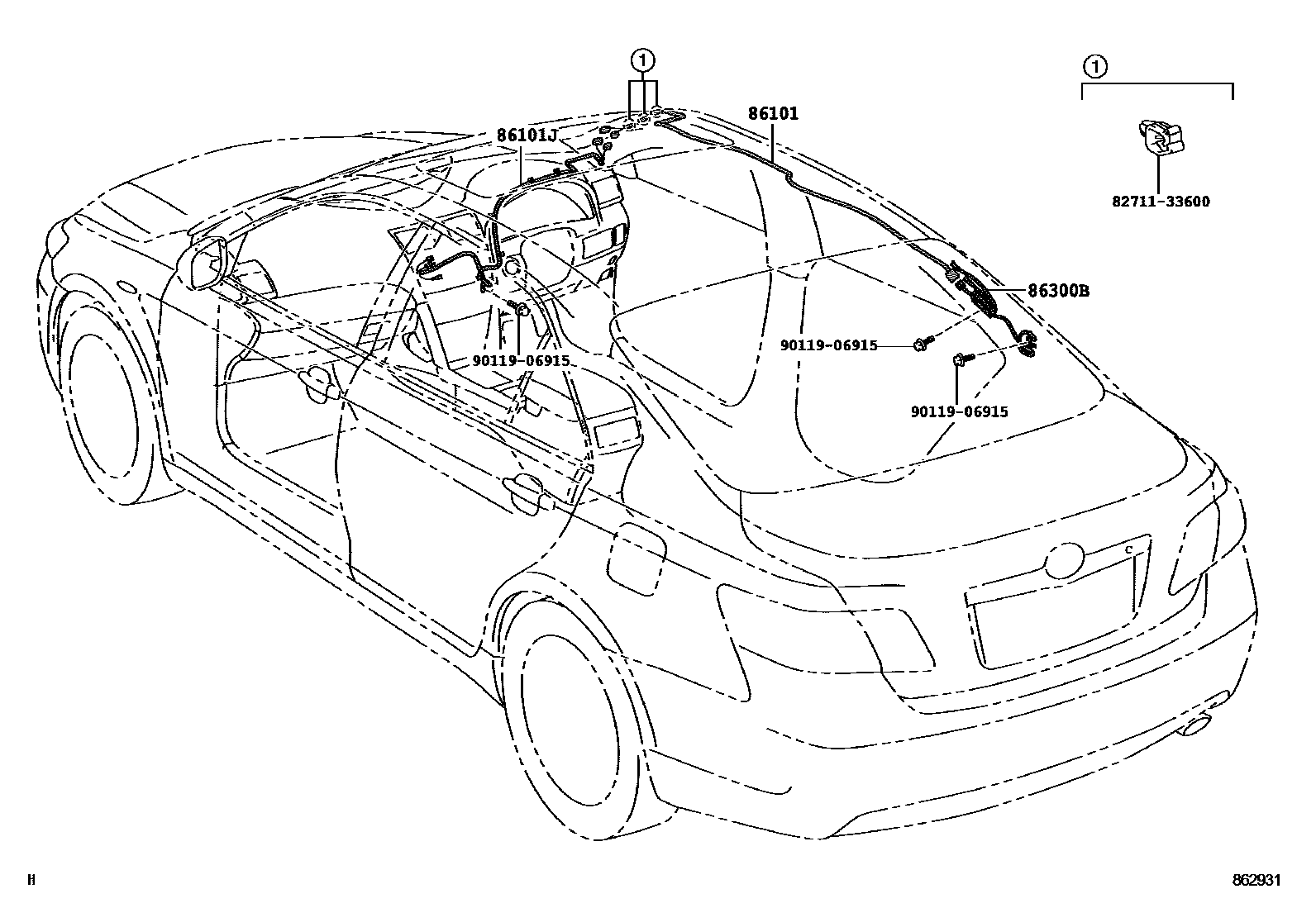

Toyota CAMRY antenna EPC diagram — 862931
antenna — 862931 (200608 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-06320 · 86101-06330 · 86101-06350 · 86101-06420 · 86101-33570 · 86101-33650 · 86101-33690 · 86101-33760
86101JAntenna No. 2 wire sub-assembly86101-06360 · 86101-06370 · 86101-06430 · 86101-33590 · 86101-33630
86300BNo. 1 amplifier antenna assembly86300-06140 · 86300-06141 · 86300-33310 · 86300-33311
