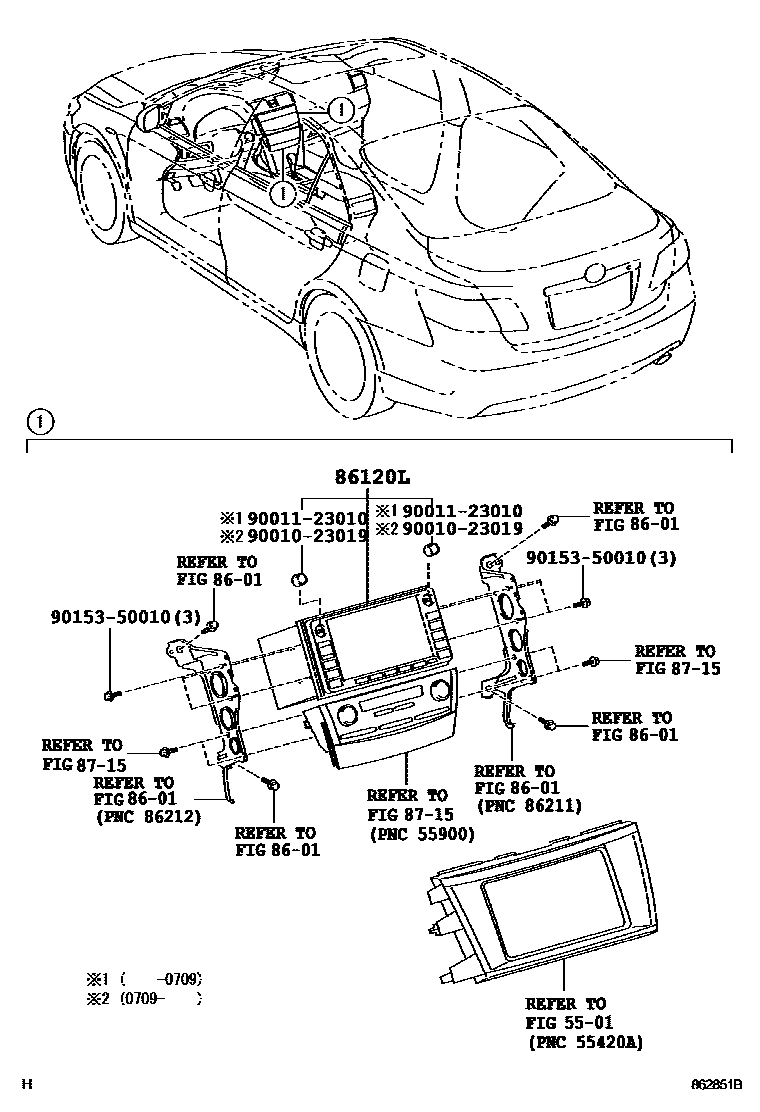

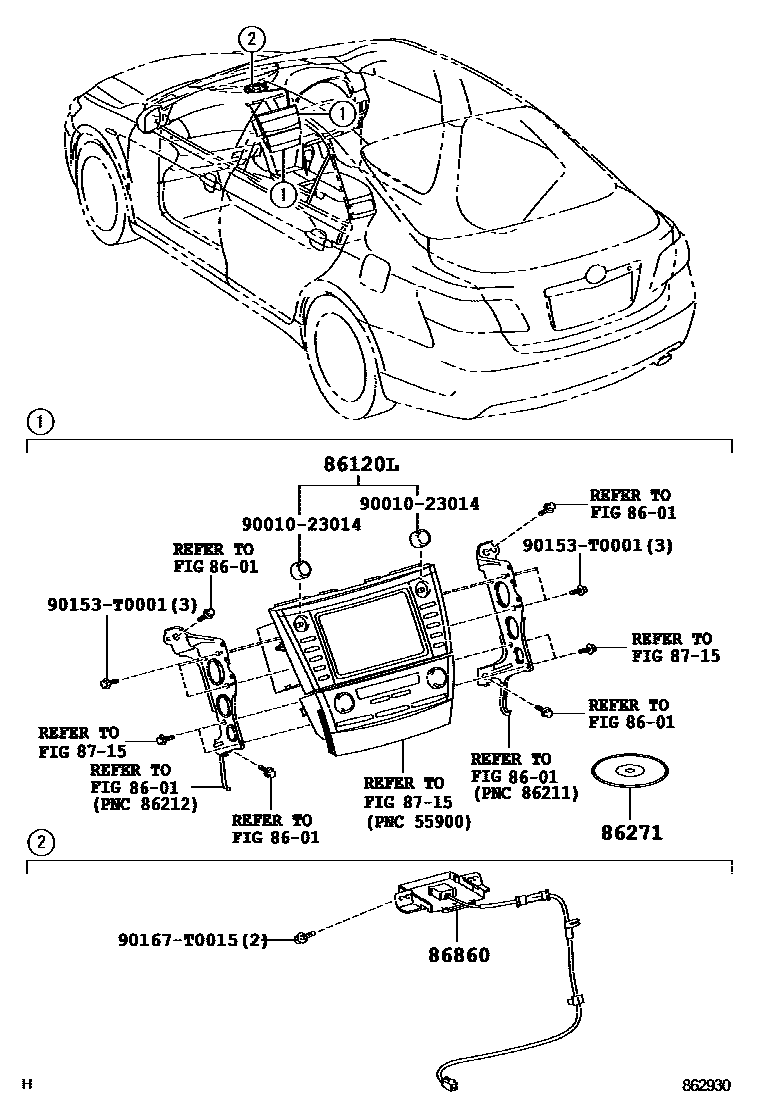

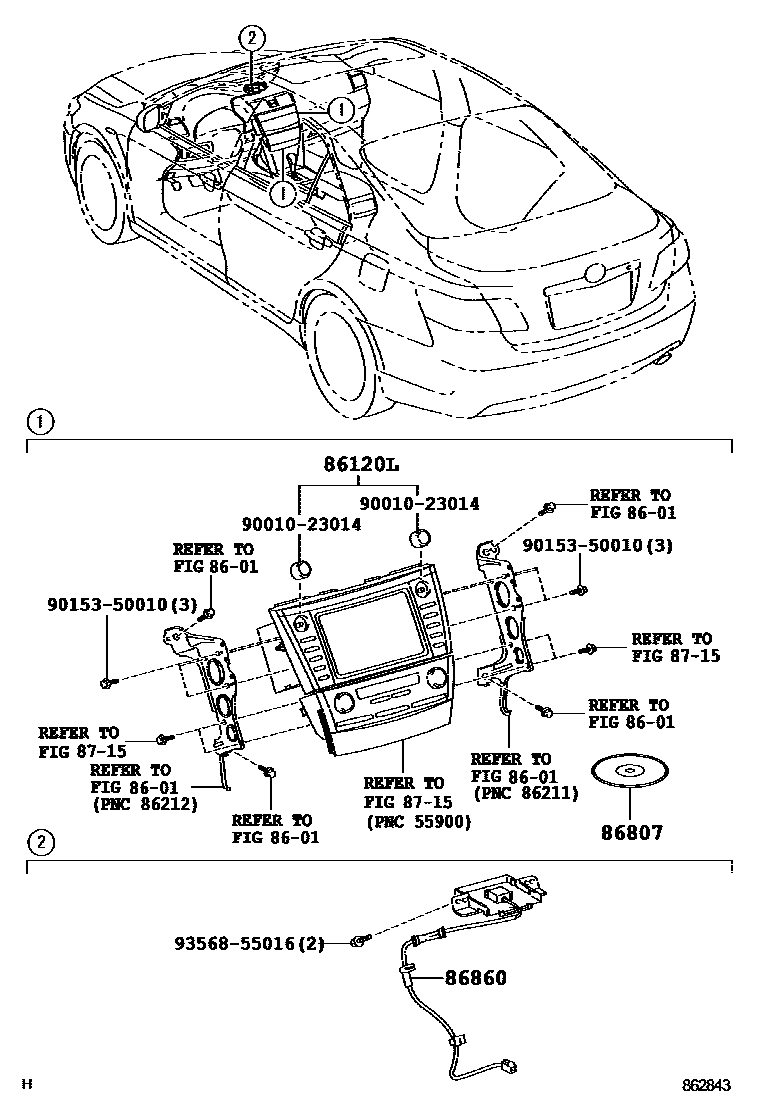

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-33A50 · 86120-33B40 · 86120-33C40 · 86120-33C60 · 86120-33C80 · 86120-52720 |
| 86271 | CD | 86271-33100 · 86271-33101 · 86271-33102 · 86271-33103 · 86271-33104 · 86271-48221 |
| 86807 | CD-ROM disc repair kit | 86807-06040 · 86807-0W030 · 86807-0W031 · 86807-0W032 · 86807-0W033 · 86807-0W035 · 86807-0W036 · 86807-0W071 |
| 86860 | Navigation antenna assembly | 86860-33140 · 86860-33150 |
