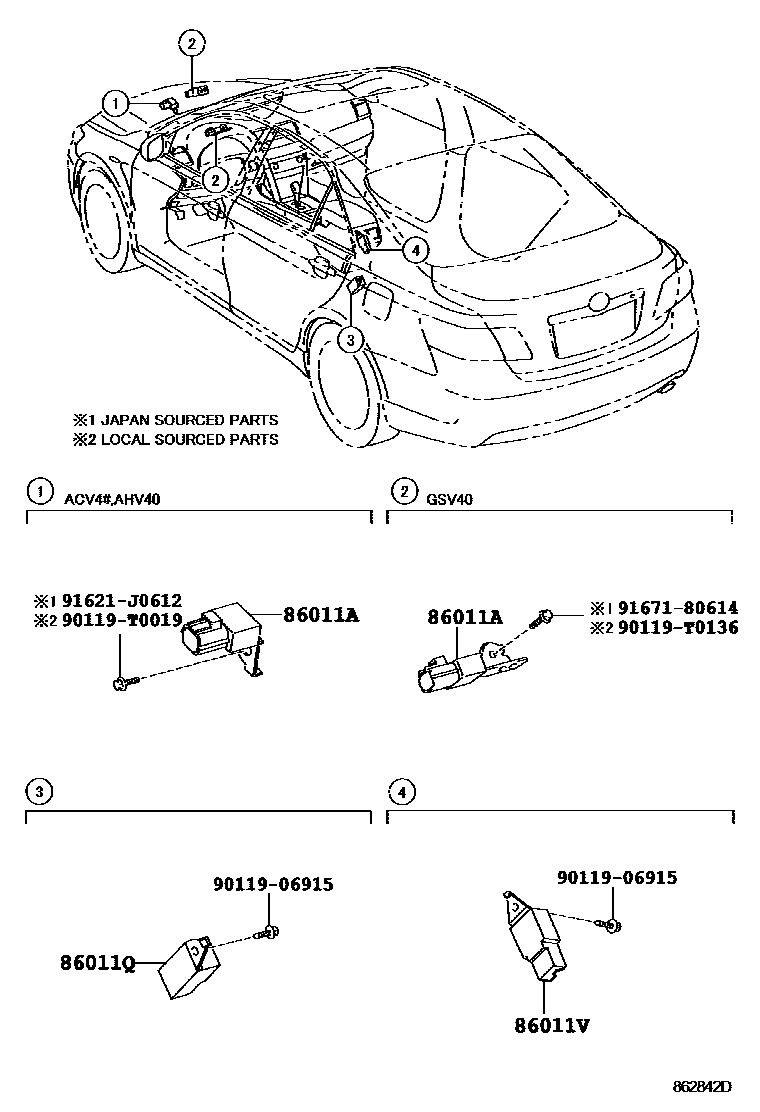

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04157 · 90980-04182 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86011V | radio settings phase modulator | 90980-04198 |
| 86120 | Radio assembly | 86120-06200 · 86120-06220 · 86120-06230 · 86120-06240 · 86120-06310 · 86120-06320 · 86120-06520 · 86120-06530 · 86120-06540 · 86120-06550 · 86120-06560 · 86120-06570 |
| 86120A | Radio switch knob | 90011-23013 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-48010 |
| 86211 | No. 1 radio bracket | 86211-06060 · 86211-06080 |
| 86212 | No. 2 radio bracket | 86212-06060 · 86212-06080 |
