Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.

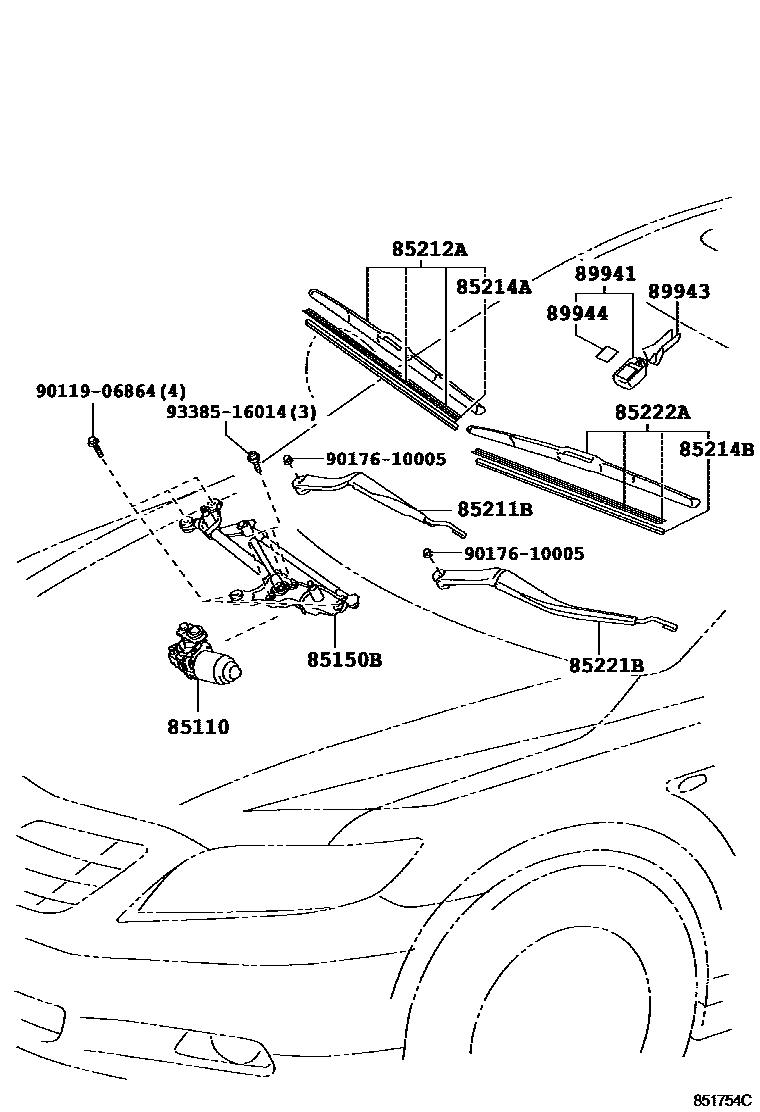

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 851754C
挡风玻璃刮水器 — 851754C (200605 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-06070 · 85110-06080
85150BWiper connecting rod assembly85150-06070 · 85150-06080
85211BRight front wiper arm85211-06060 · 85211-06070
85212ARight front wiper blade85212-33240 · 85212-53080 · 85212-53081
85214ARight wiper rubber strip85214-30380 · 85214-53090
85214BLeft wiper rubber strip85214-30380 · 85214-53090
85221BLeft front wiper arm85221-06060 · 85221-06070
85222ALeft front wiper blade85222-33250 · 85222-53060
89941rain sensor89941-42010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
