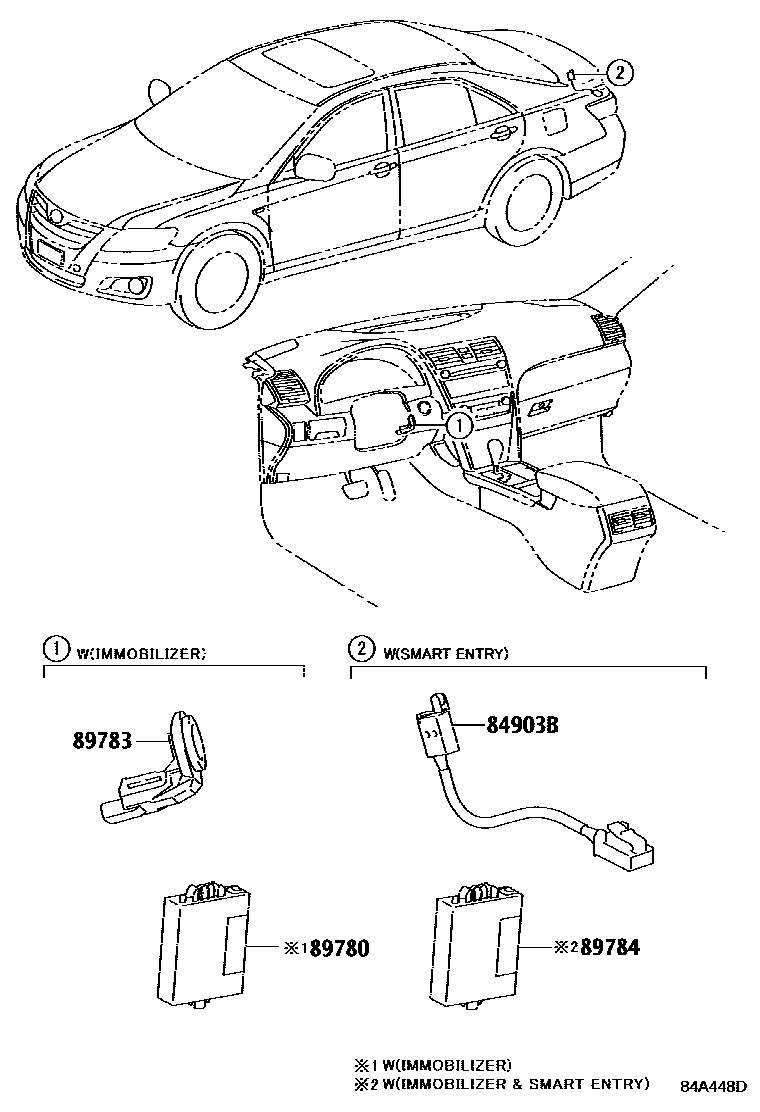

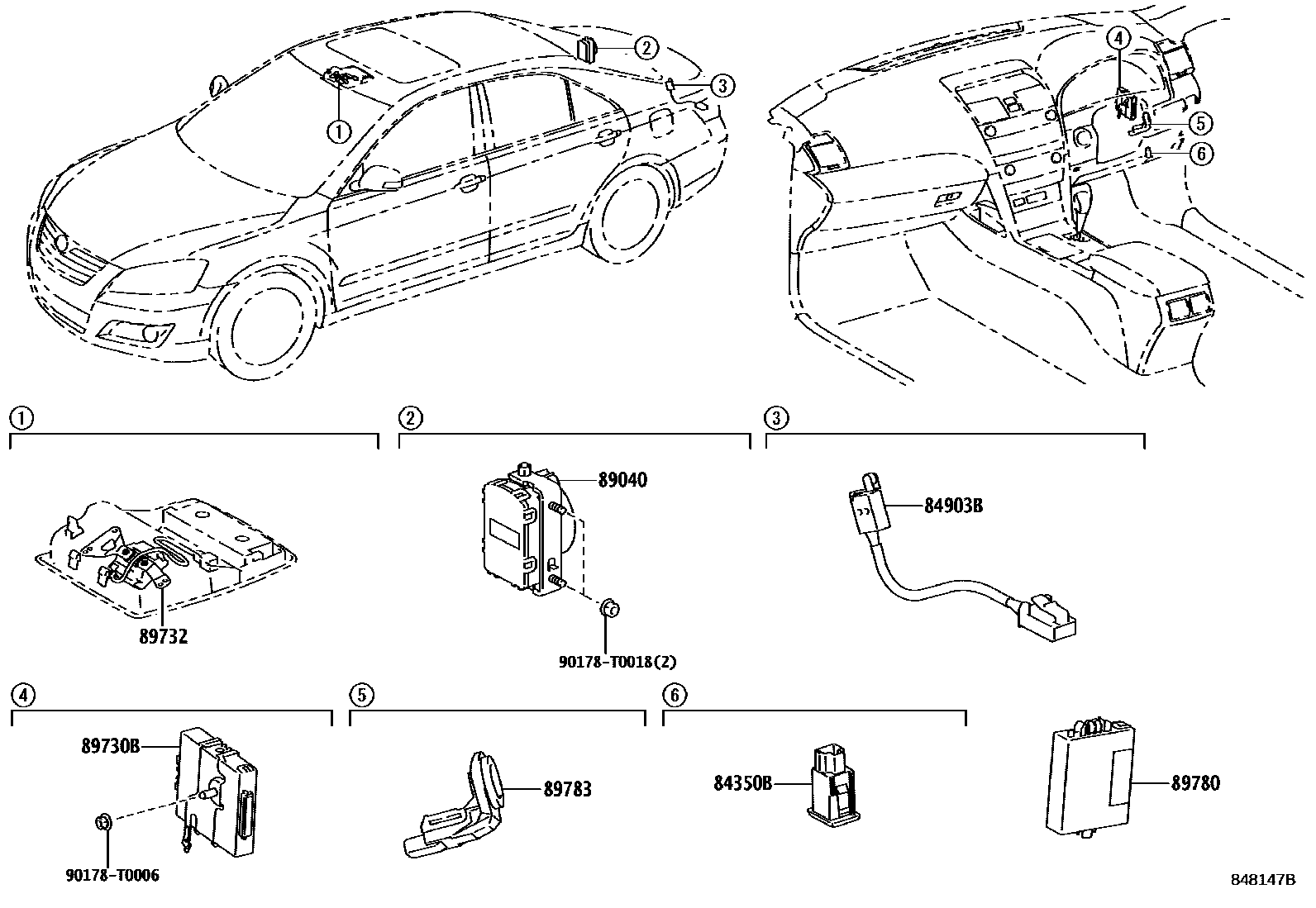

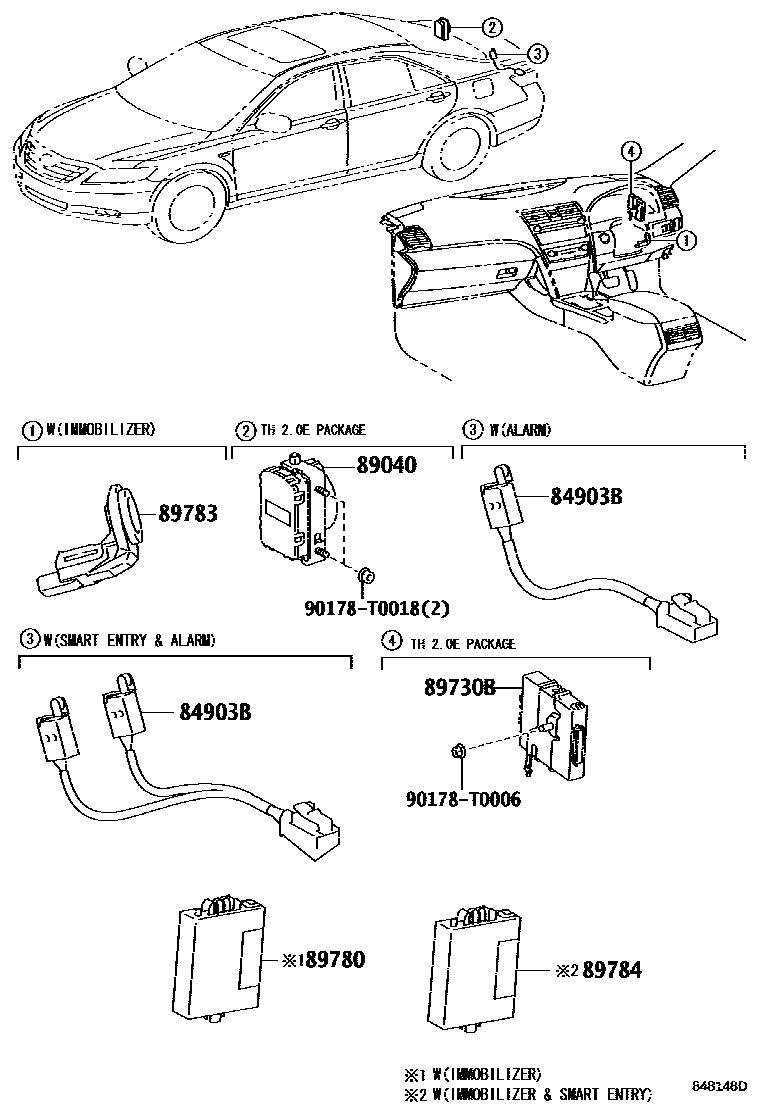

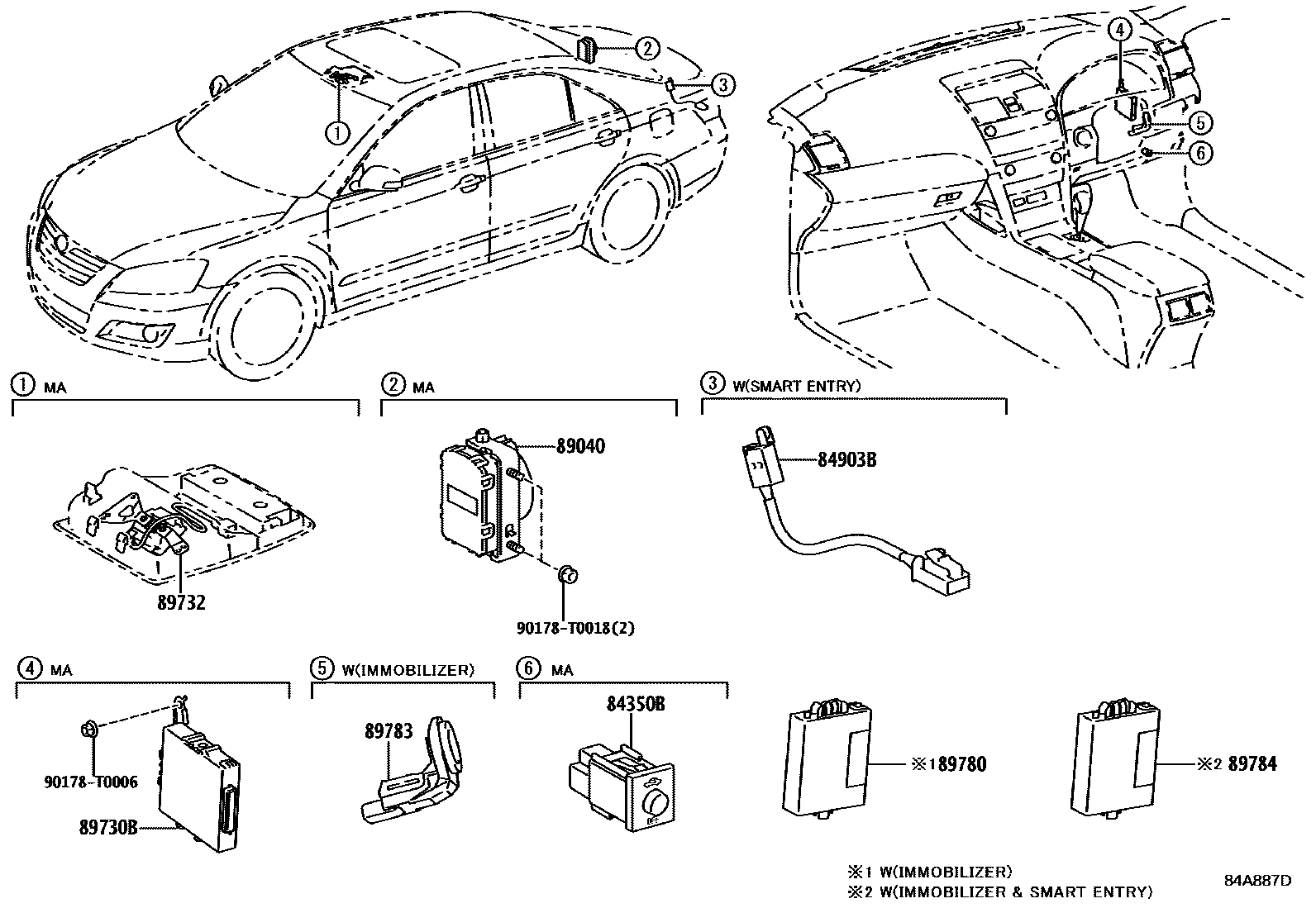

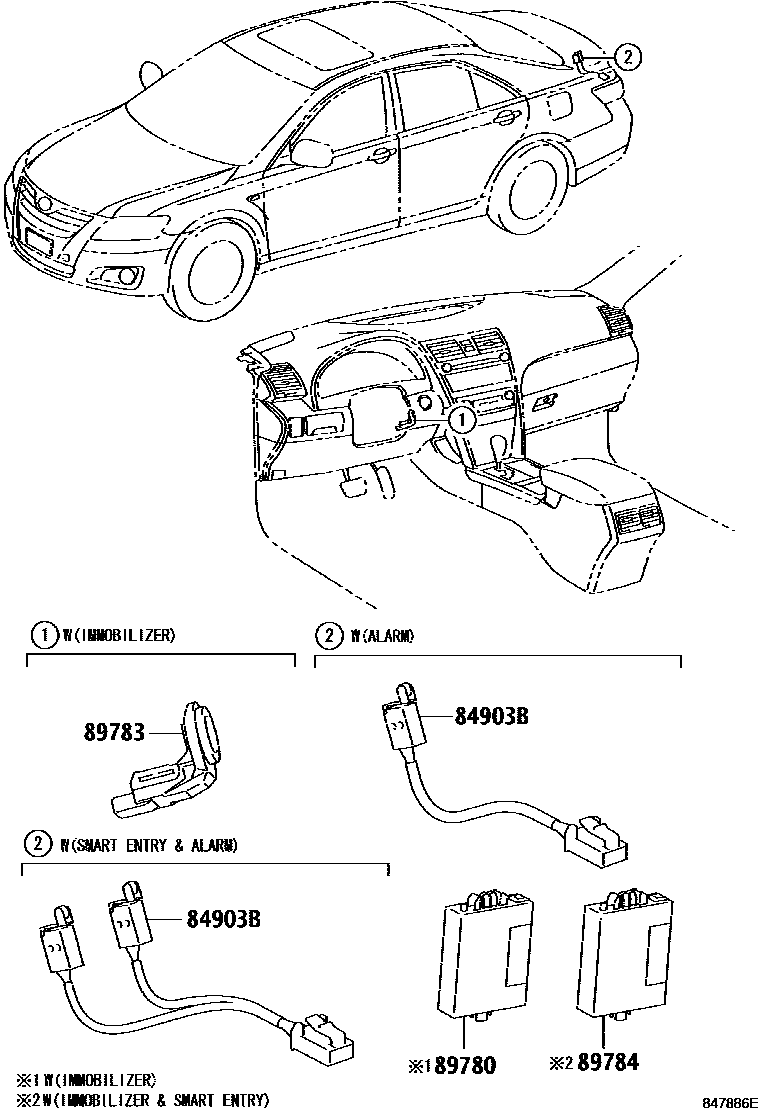

Toyota CAMRY 防盗装置 — Figure 8424
Toyota CAMRY EPC diagram 8424, 防盗装置, with 5 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84350B | Anti-theft warning sensor switch assembly | 84350-33010 |
| 84903B | Door unlock switch sub-assembly | 84903-06010 · 84903-33160 · 84903-33170 · 84903-33180 |
| 89040 | Anti-theft alarm assembly | 89040-48020 |
| 89730B | Anti-theft warning ECU assembly | 89730-06100 · 89730-06102 · 89730-06110 |
| 89732 | Anti-theft warning radar sensor | 89732-33011 · 89732-33012 |
| 89780 | Transceiver key ECU assembly | 89780-33160 · 89780-33190 |
| 89783 | transceiver key amplifier | 89783-06040 · 89783-06041 |
| 89784 | Shutdown code system ECU | 89784-33010 · 89784-33011 |
