Toyota CAMRY 空气囊 — Figure 8421

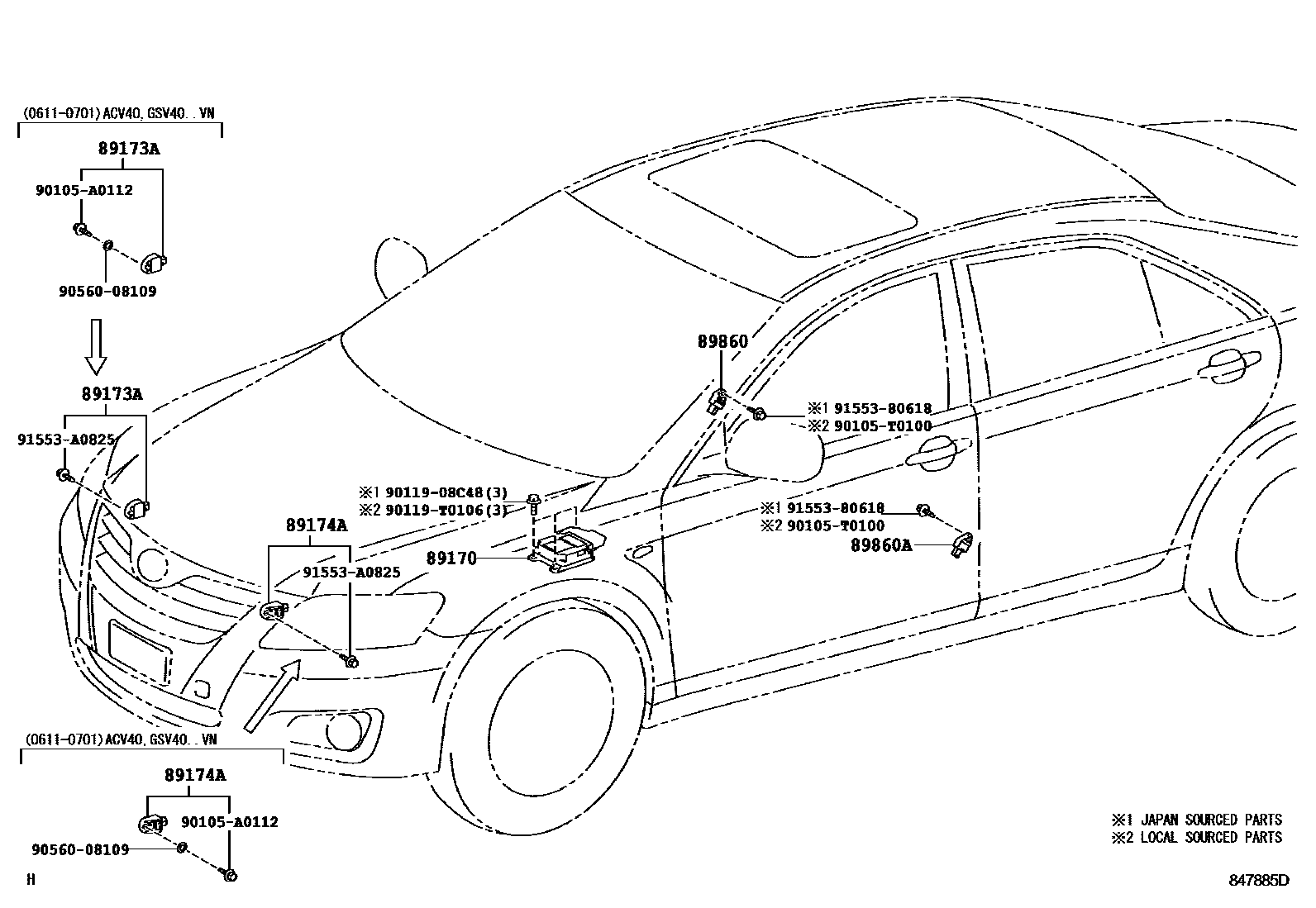

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-06210 · 89170-06280 · 89170-06290 · 89170-06350 |
| 89173A | Right front air bag sensor | 89173-09390 · 89173-09460 · 89173-39365 |
| 89174A | Left front air bag sensor | 89173-09390 · 89173-09460 · 89173-39365 |
| 89860 | Right side airbag sensor assembly | 89831-06030 · 89831-0W050 · 89831-22010 · 89831-28020 |
| 89860A | Left side air bag sensor assembly | 89831-06030 · 89831-0W050 · 89831-22010 · 89831-28020 |
