Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417

Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 3 PNC and OE references.

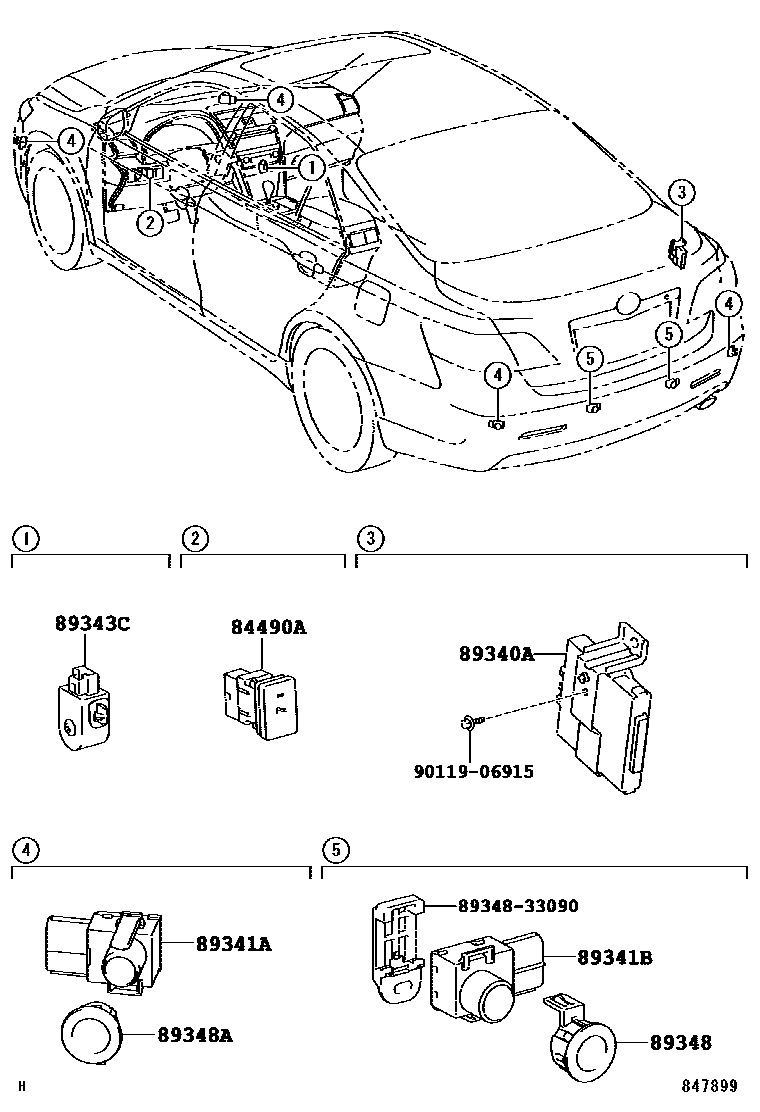

Toyota CAMRY 测距雷达和倒车雷达 EPC diagram — 847899
测距雷达和倒车雷达 — 847899 (200605 – 999999)

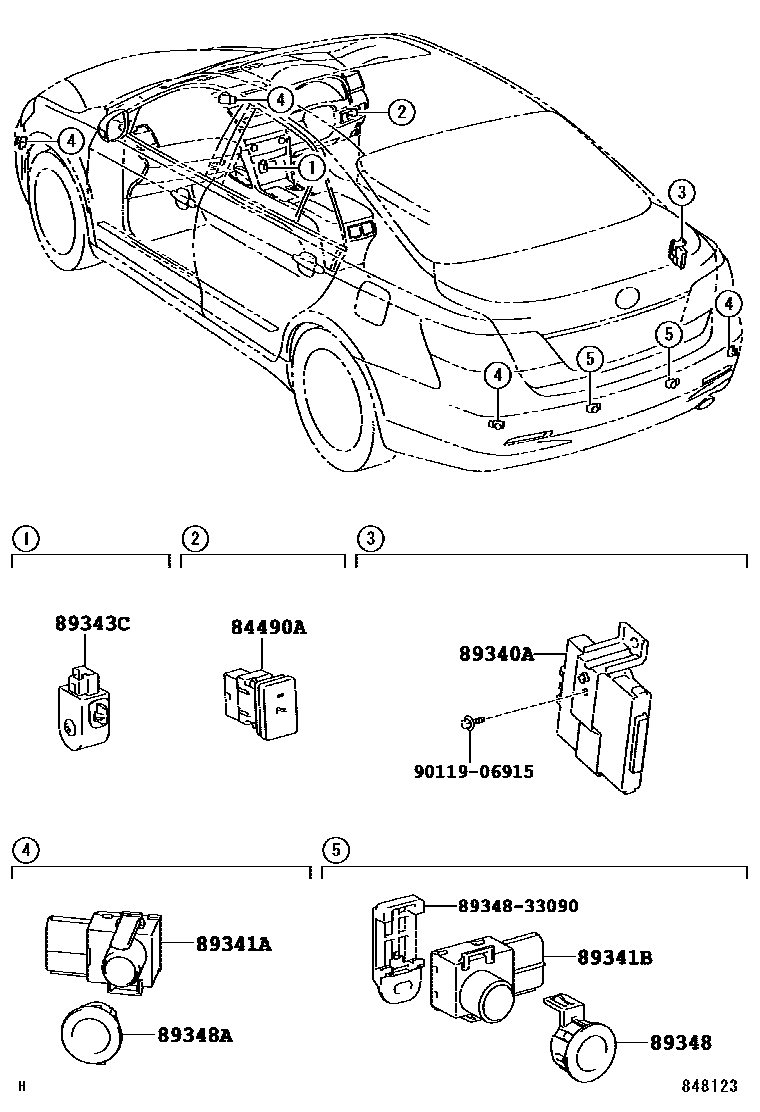

Toyota CAMRY 测距雷达和倒车雷达 EPC diagram — 848123
测距雷达和倒车雷达 — 848123 (200608 – 999999)

PNC and OE references

PNCPart nameOE numbers
84490AReversing radar or ranging radar switch assembly84490-06010 · 84490-33020
89340ADistance warning ECU assembly89340-33070 · 89340-33080 · 89340-33090
89343CNo. 1 distance warning buzzer89343-30010
