Toyota CAMRY ABS 和 VSC — Figure 8414

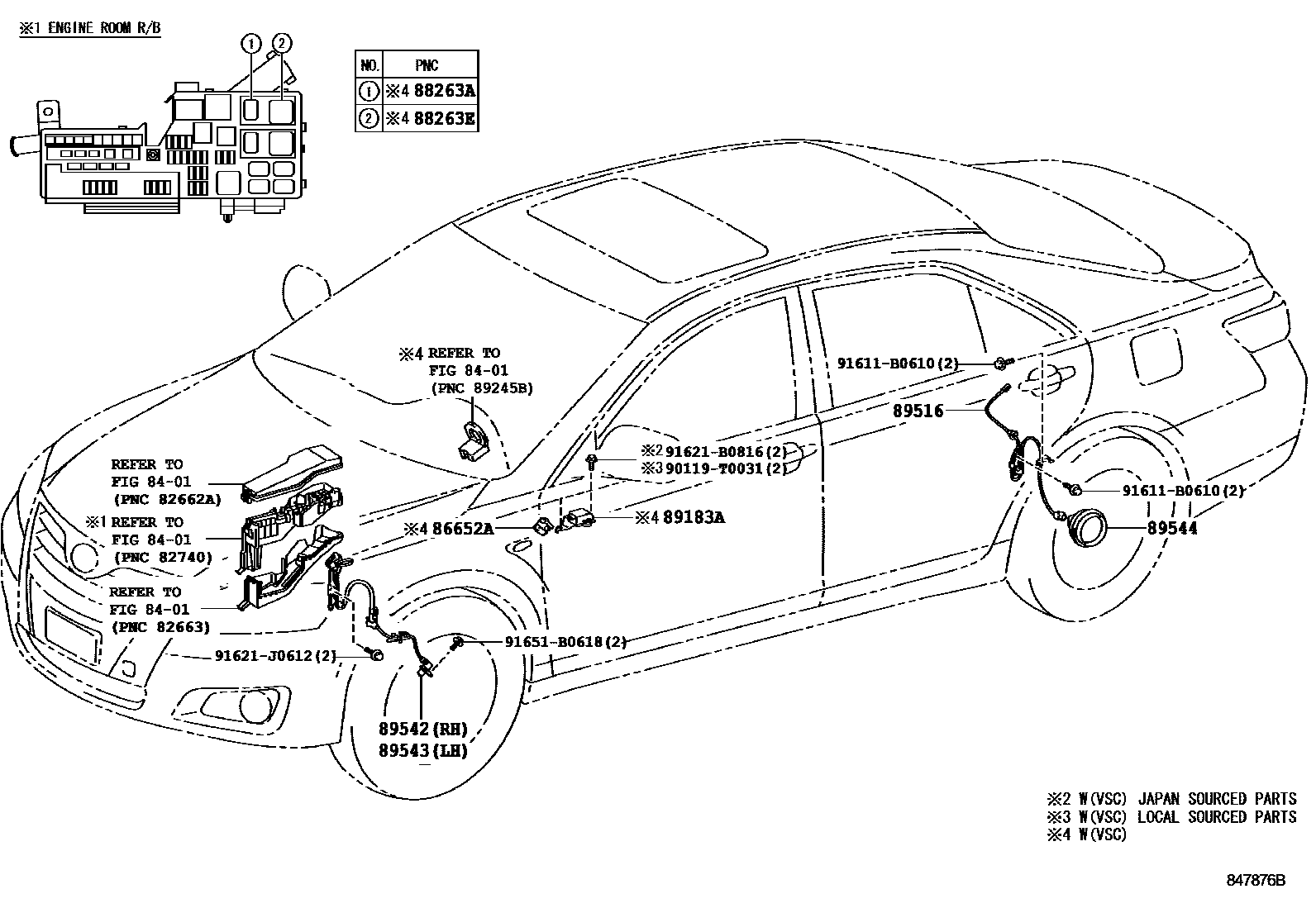

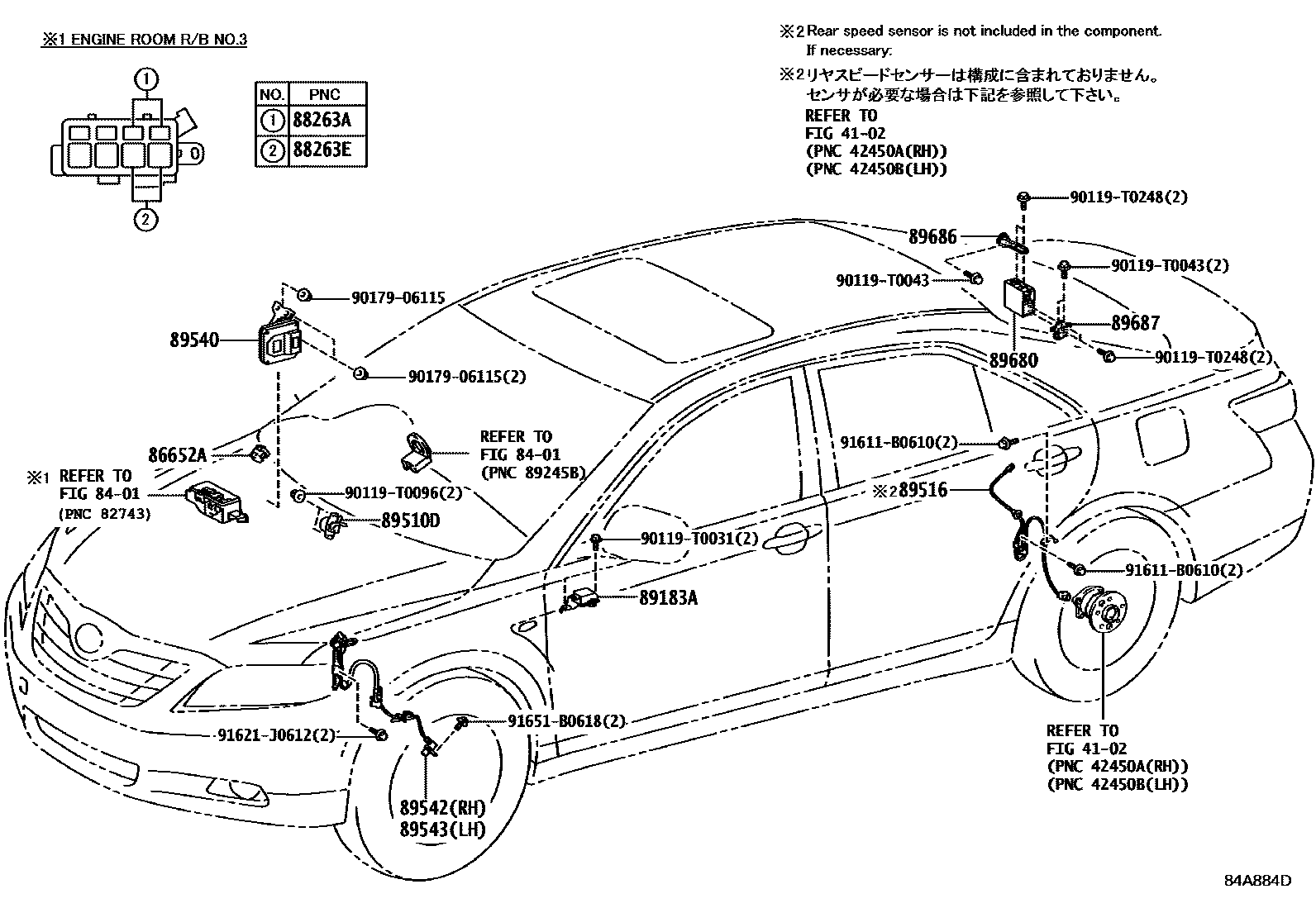

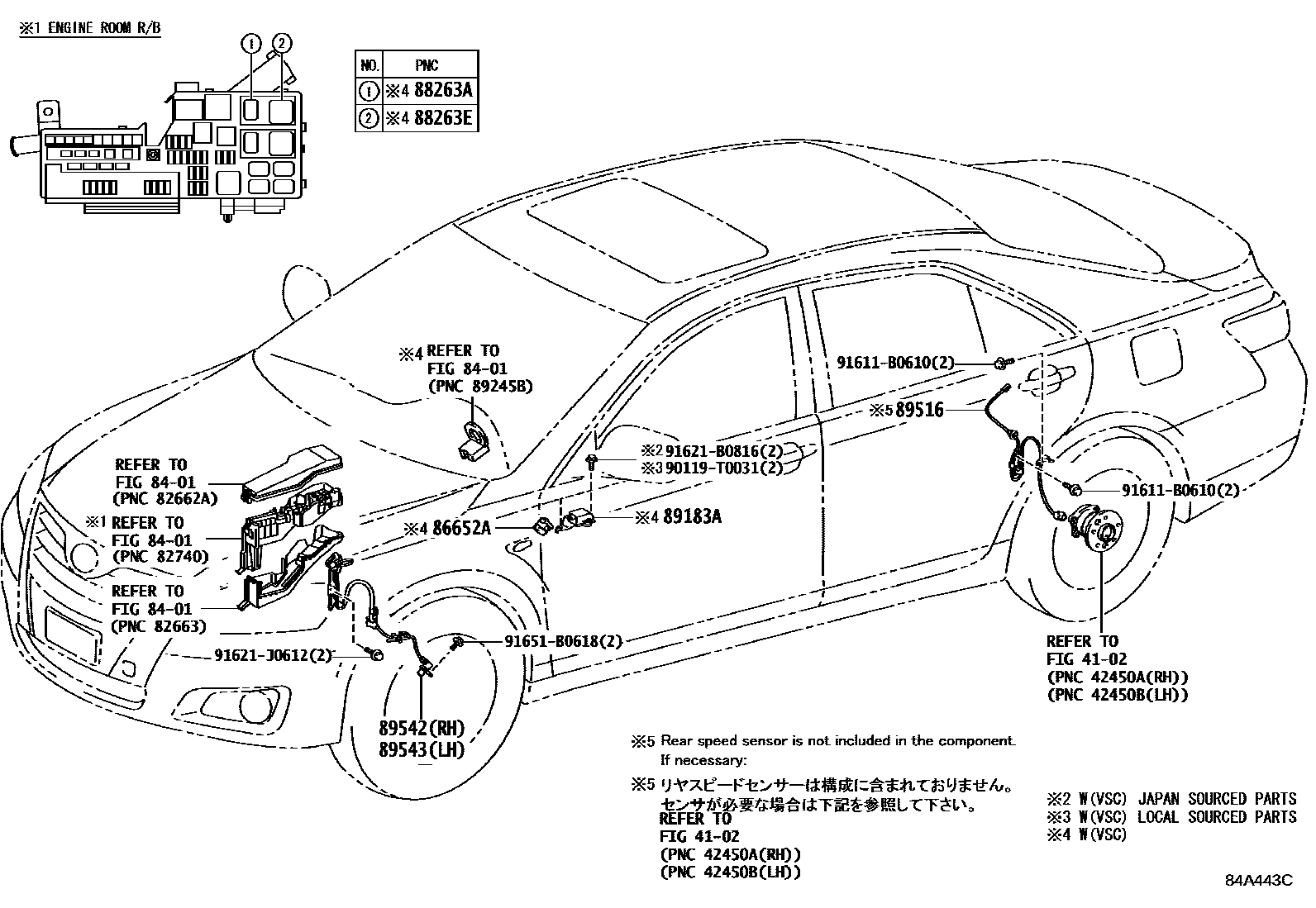

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86652A | Anti-skid control buzzer assembly | 86652-48010 |
| 88263A | Anti-skid control relay | 88263-32070 |
| 88263E | No. 2 anti-skid control relay | 88263-21010 |
| 89183A | Yaw rate sensor | 89180-33050 · 89180-33060 |
| 89510D | Brake pedal stroke sensor assembly | 89510-47020 |
| 89516 | Anti-skid control sensor wiring harness | 89516-06070 · 89516-06080 · 89516-06110 · 89516-06120 · 89516-33030 · 89516-33040 · 89516-33050 · 89516-33060 |
| 89540 | Anti-skid control ECU assembly | 89540-33410 |
| 89542 | Right front wheel speed sensor | 89542-33090 |
| 89543 | Left front wheel speed sensor | 89543-33080 |
| 89544 | Anti-skid control sensor | 89544-48010 |
| 89680 | Brake control power supply assembly | 89680-33010 |
| 89686 | No. 1 brake control power bracket | 89686-33010 |
| 89687 | No. 2 brake control power bracket | 89687-33010 |
