Toyota CAMRY 超速档和电子控制变速器 — Figure 8410

Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 5 PNC and OE references.

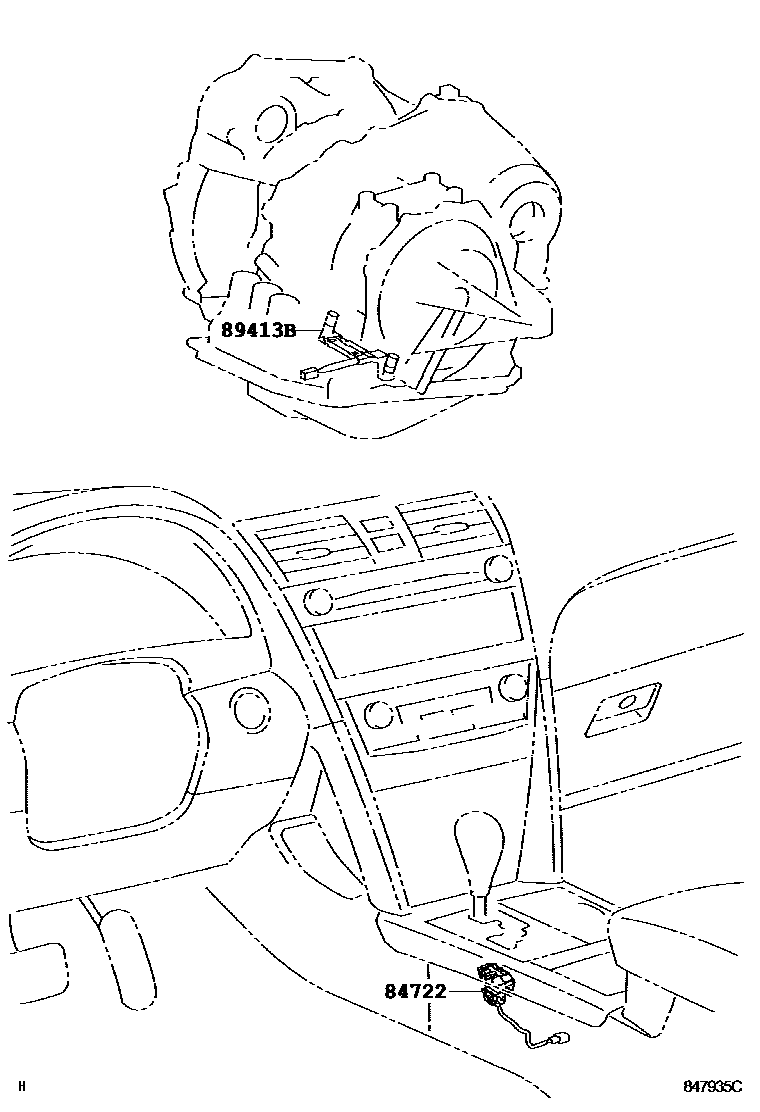

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 847935C
超速档和电子控制变速器 — 847935C (200605 – 999999)

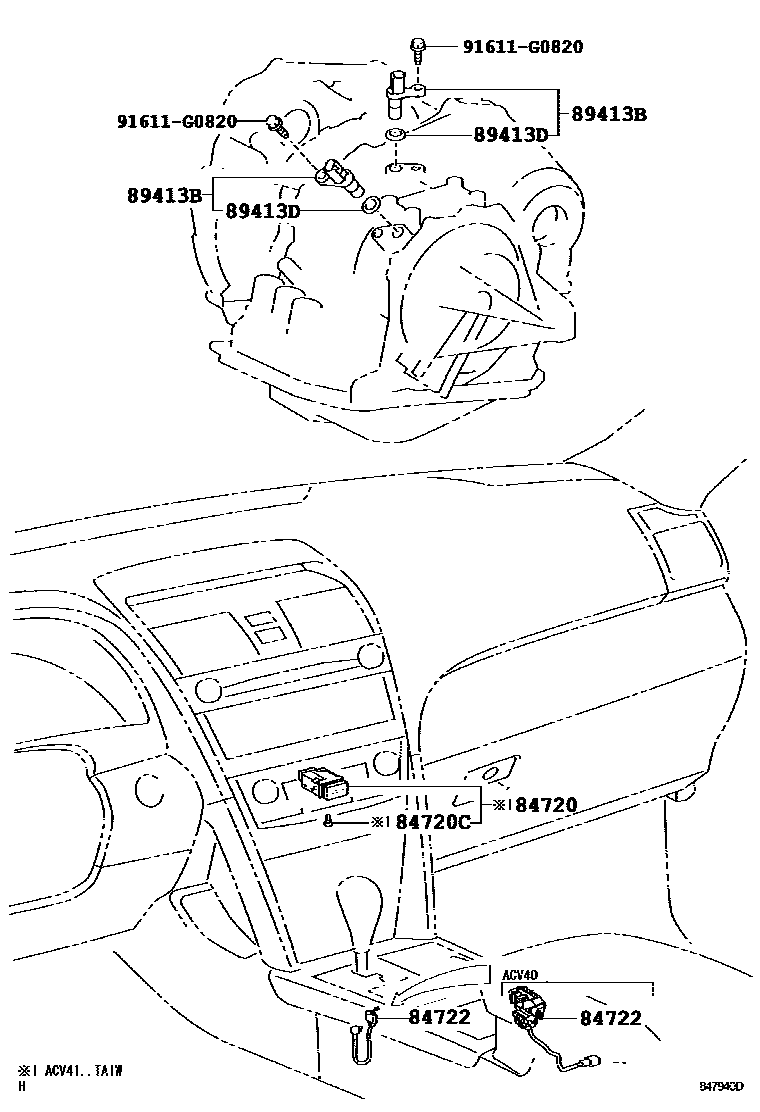

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 847940D
超速档和电子控制变速器 — 847940D (200605 – 999999)

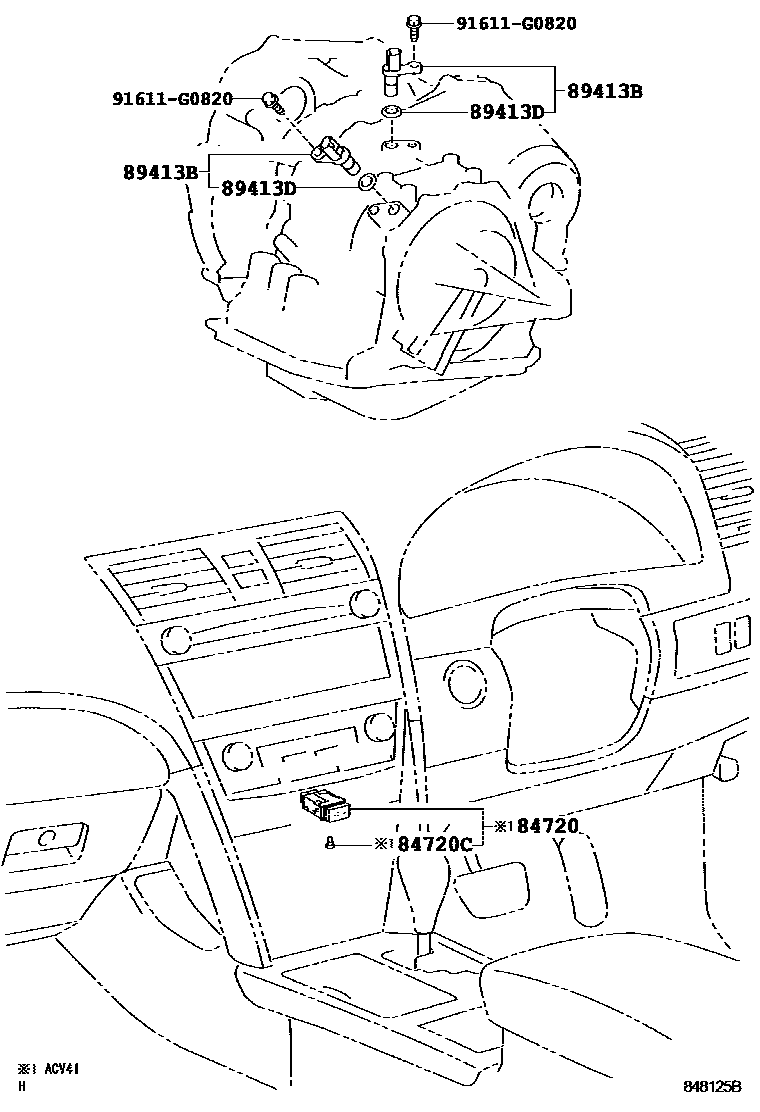

Toyota CAMRY 超速档和电子控制变速器 EPC diagram — 848125B
超速档和电子控制变速器 — 848125B (200608 – 999999)

PNC and OE references

PNCPart nameOE numbers
84720Mode selection switch assembly84720-06010 · 84720-33070
84720CLight bulb (for mode selector switch)90010-01121
84722transmission control switch84722-06110 · 84722-06120
89413BTransmission speed sensor89413-24010 · 89413-33030
89413DO-ring (for transmission speed sensor)90301-11008
