Toyota CAMRY 巡航控制(自动行驶) — Figure 8408

Toyota CAMRY EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 5 PNC and OE references.

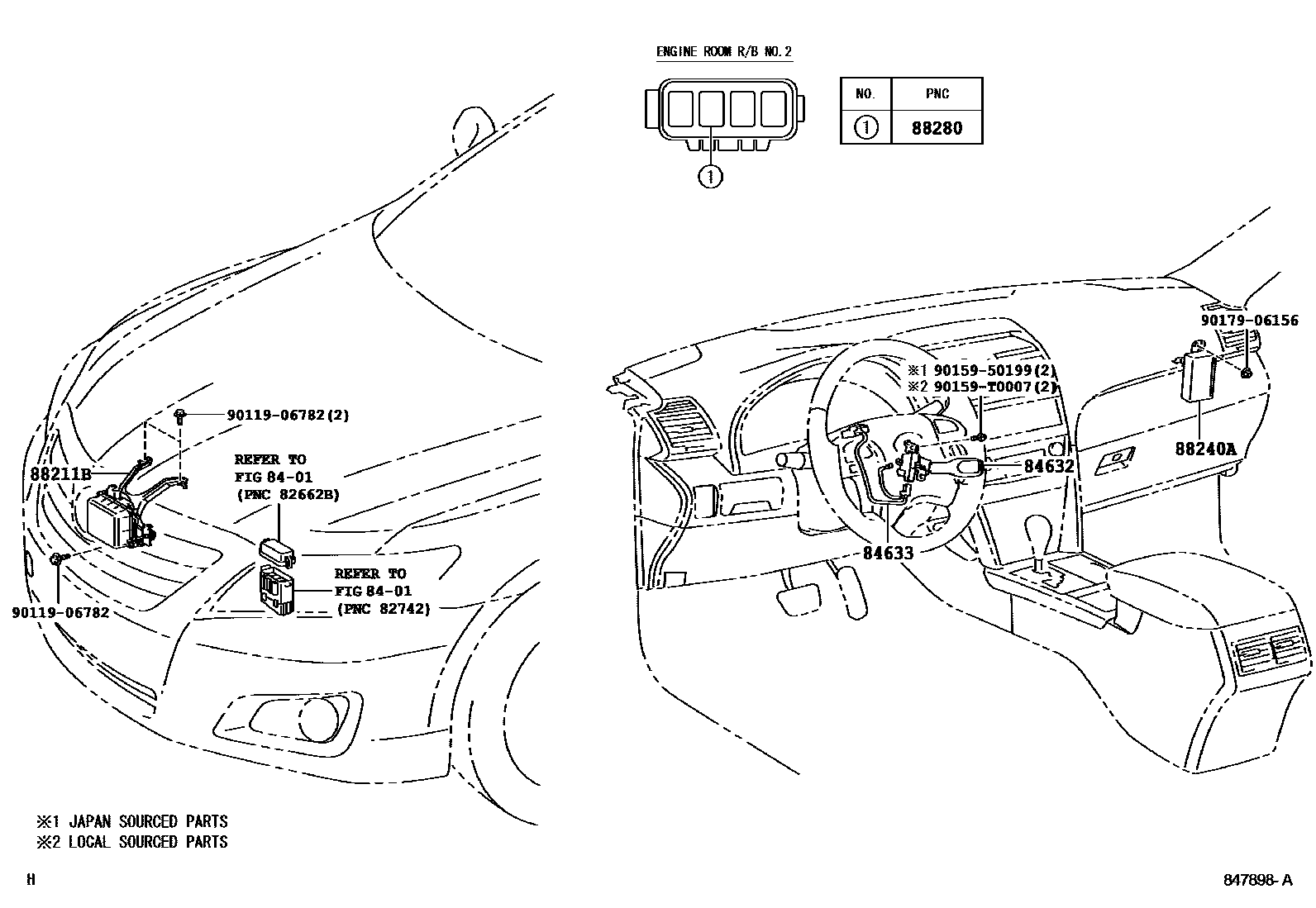

Toyota CAMRY 巡航控制(自动行驶) EPC diagram — 847898A
巡航控制(自动行驶) — 847898A (200605 – 999999)

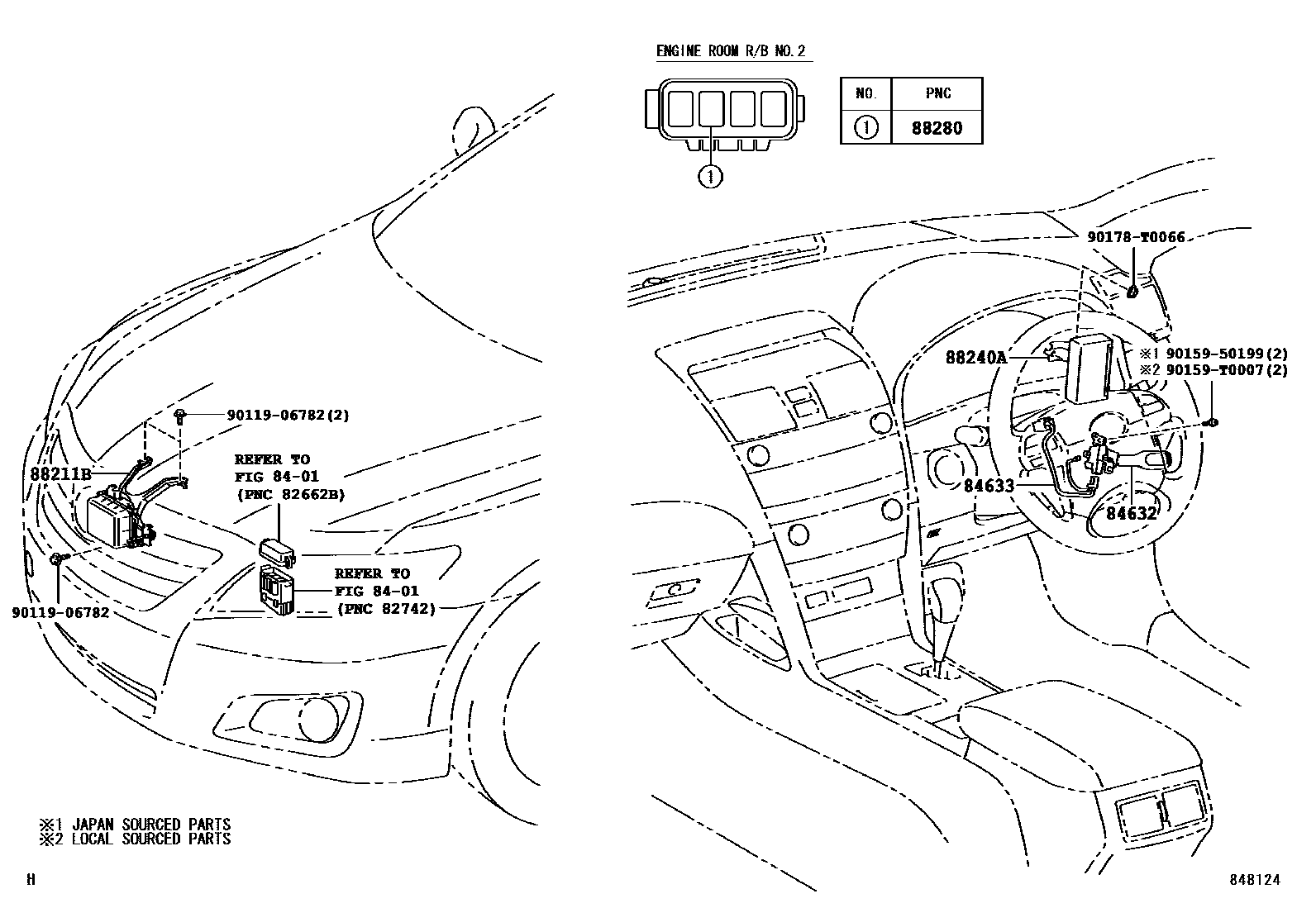

Toyota CAMRY 巡航控制(自动行驶) EPC diagram — 848124
巡航控制(自动行驶) — 848124 (200608 – 999999)

PNC and OE references

PNCPart nameOE numbers
84632cruise control master switch84632-34011 · 84632-58011
84633cruise control switch wiring harness84633-48010 · 84633-48020
88211BMillimeter wave radar sensor assembly88210-33010 · 88210-33030
88240ADistance control ECU assembly88240-33240 · 88240-33250
88280Cruise control (automatic driving) relay assembly B90987-04004
