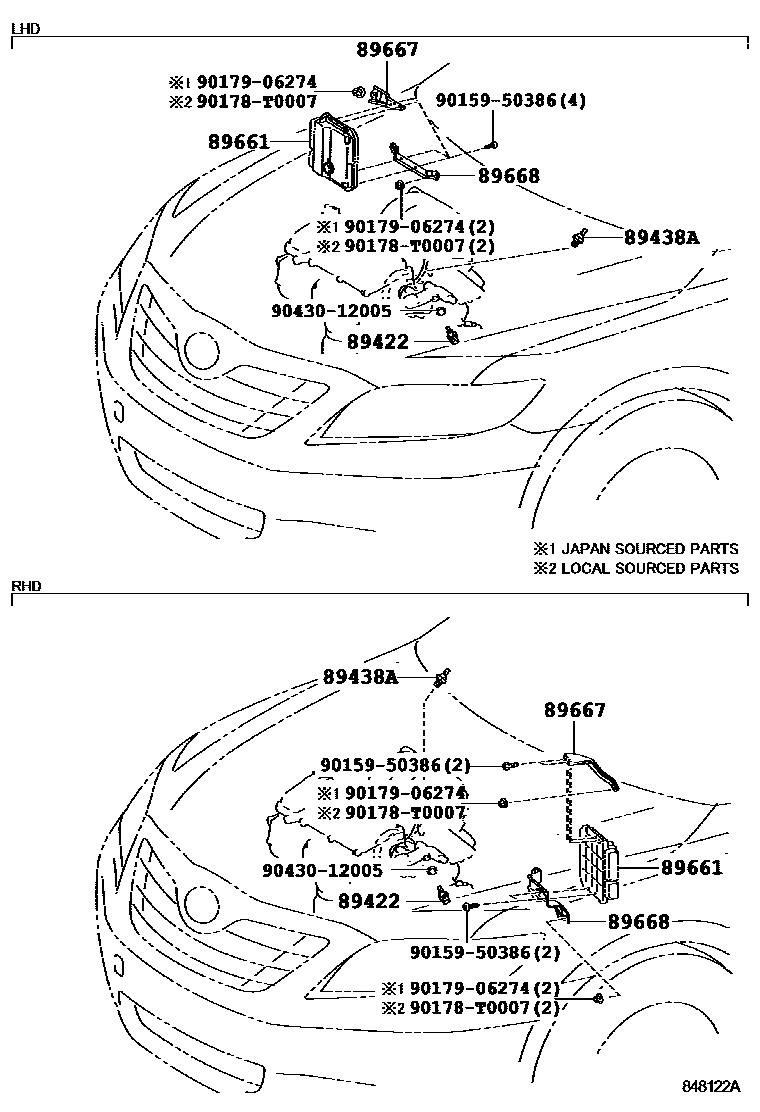

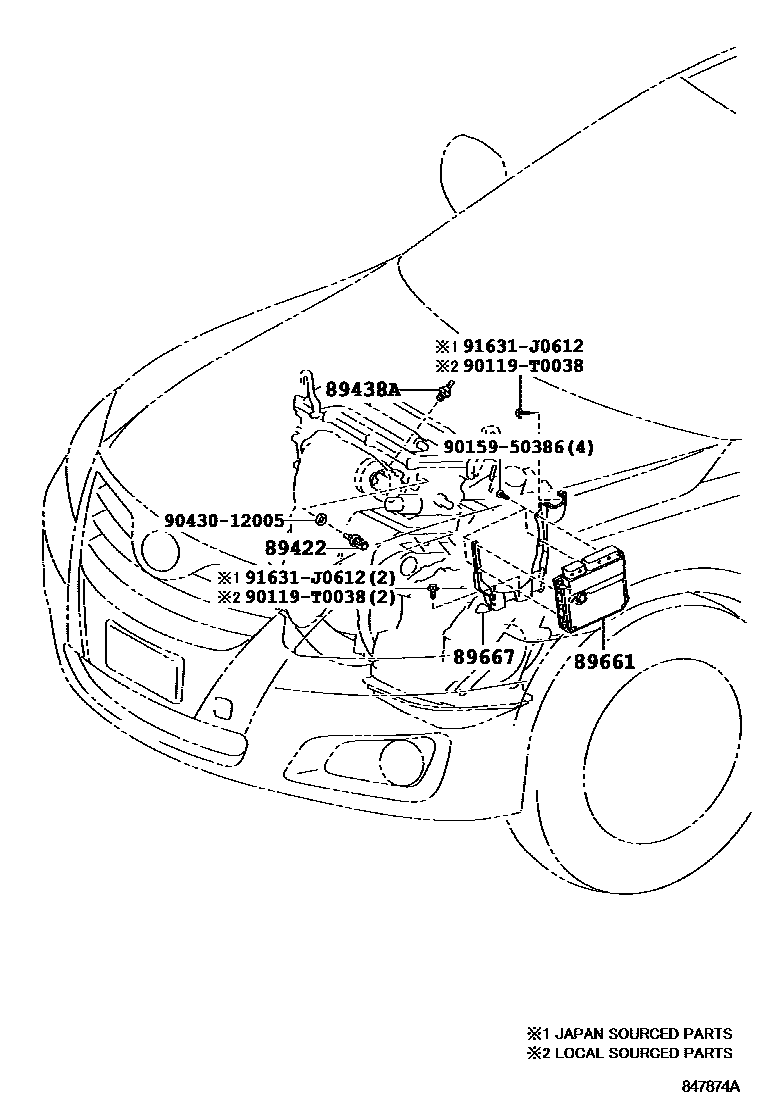

Toyota CAMRY 电子燃油喷射系统 — Figure 8404
Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89438A | Power steering oil pressure switch | 89438-33010 |
| 89661 | Engine control ECU | 89661-06D00 · 89661-06D10 · 89661-06D40 · 89661-06D50 · 89661-06D70 · 89661-06E10 · 89661-06G80 · 89661-06K00 · 89661-06K10 · 89666-06260 · 89666-06270 |
| 89667 | Engine control ECU bracket | 89667-33140 · 89667-33170 · 89667-33180 |
| 89668 | No. 2 engine control ECU bracket | 89668-33190 · 89668-33200 |
