Toyota CAMRY 车内灯 — Figure 8121

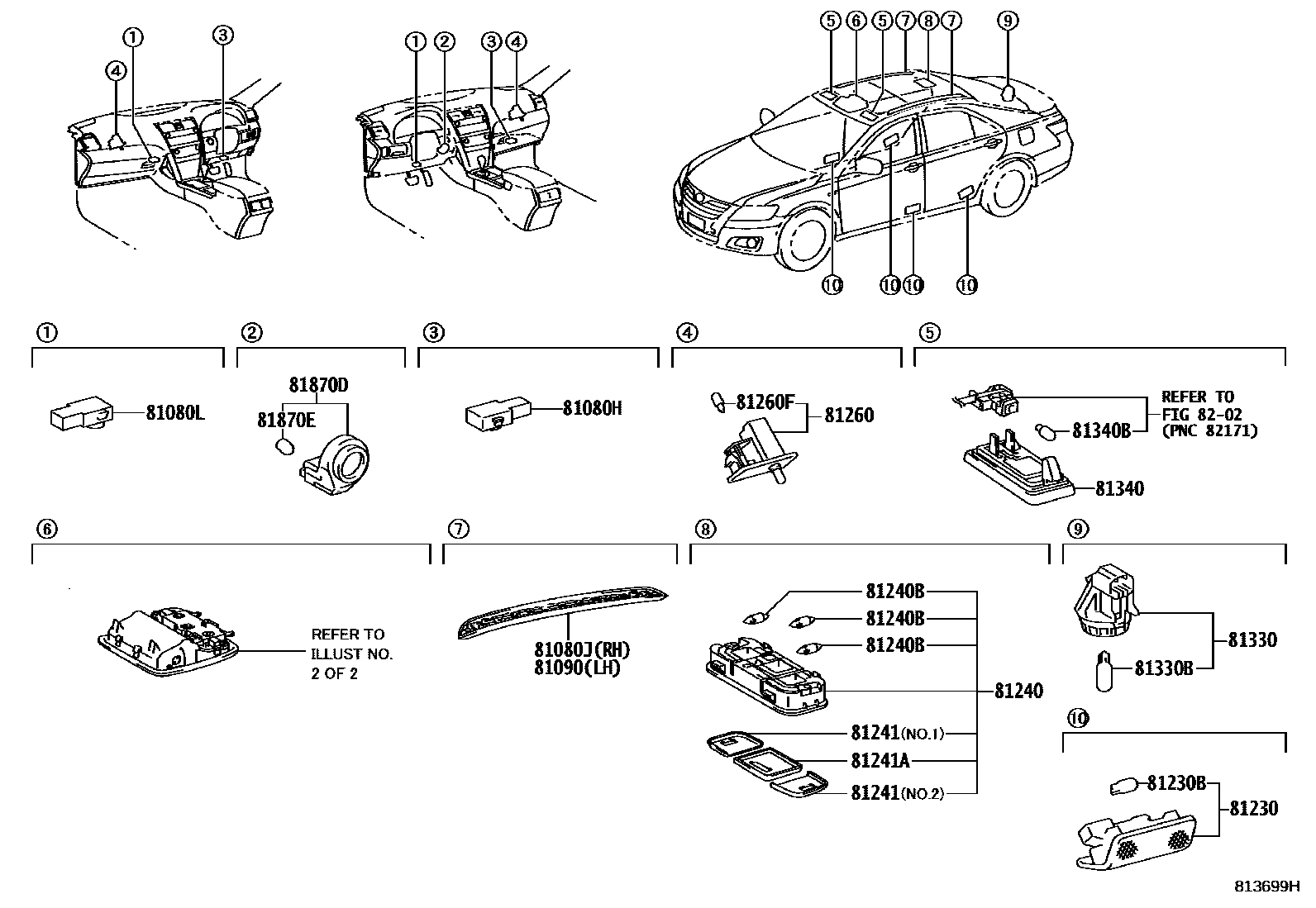

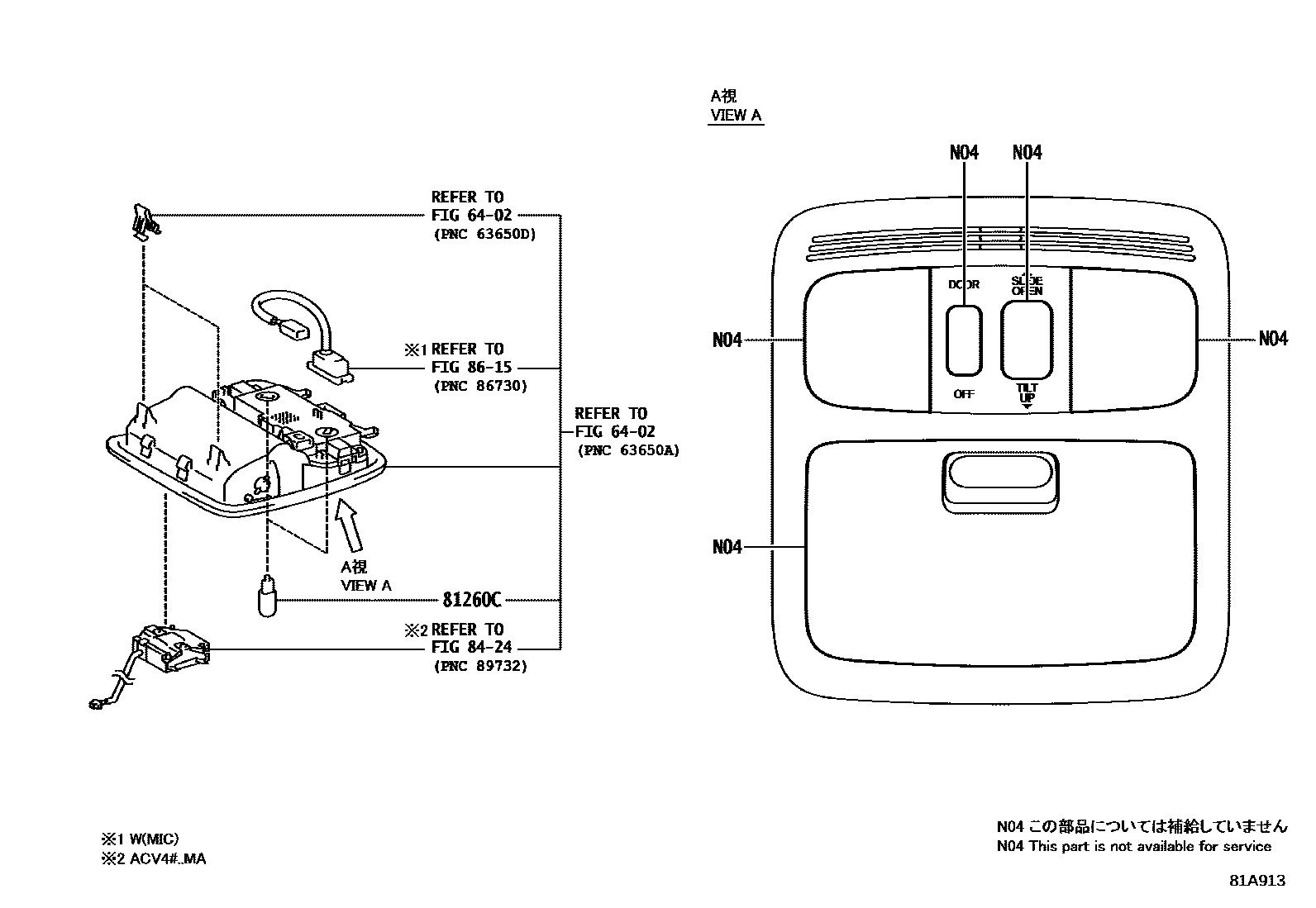

Toyota CAMRY EPC diagram 8121, 车内灯, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080H | Right No. 1 interior lighting assembly | 81080-48010 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-48010 |
| 81230 | Door control light assembly | 81230-06030 · 81230-47010 |
| 81230B | Bulb (for gated lights) | 90981-12010 |
| 81240B | Interior light bulb No. 1 | 90981-14004 |
| 81241 | Interior light cover No. 1 | 81241-8C002 · 81241-8C004 |
| 81241A | Interior light cover No. 2 | 81241-8C003 |
| 81260 | Glove box light assembly | 81260-06030 · 81260-33030 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81260F | Bulb (for glove box light) | 90981-11018 |
| 81330 | No. 1 trunk light assembly | 81330-02030 · 81330-0D020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81870D | Lock core lighting assembly | 81870-22130 |
| 81870E | Lock cylinder lighting bulb | 84999-10250 |
