Toyota CAMRY 后防护条 — Figure 7504

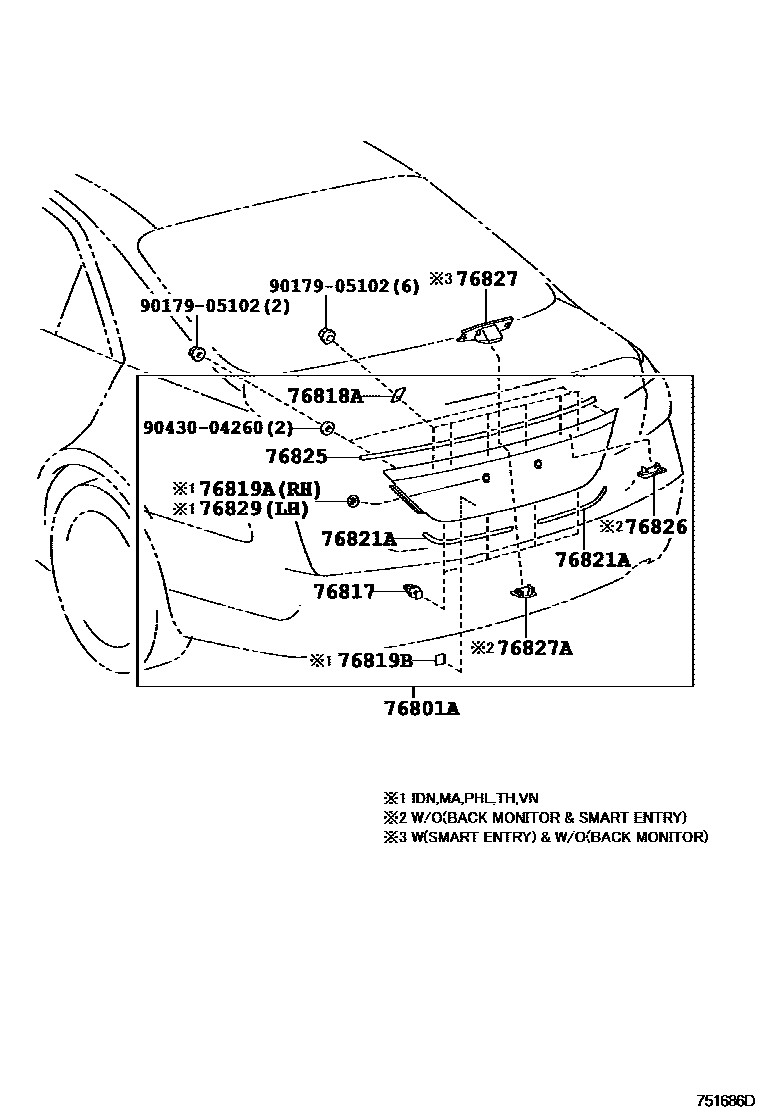

Toyota CAMRY EPC diagram 7504, 后防护条, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-06904 · 76801-06905 · 76801-06906 · 76801-06907 · 76801-06909 |
| 76817 | Rear door exterior decorative strip clip | 76817-60030 |
| 76818A | Luggage trim strip lining No. 1 | 76818-06010 · 76818-06030 |
| 76819A | Luggage door right protective strip seal | 76819-06010 |
| 76819B | No. 2 luggage compartment door trim strip lining | 76819-06020 |
| 76821A | Luggage door outer decorative strip protective cover | 76825-06100 · 76825-06150 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-06050 · 76825-06140 |
| 76826 | No. 1 rear door trim strip fixing | 76829-06010 · 76829-06020 |
| 76827 | No. 2 rear door trim strip fixings | 76827-06010 · 76827-06050 |
| 76827A | No. 2 rear door trim strip fixings | 76828-06010 · 76828-06020 |
| 76829 | Luggage door left protective strip seal | 76819-06010 |
