Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 9 PNC and OE references.

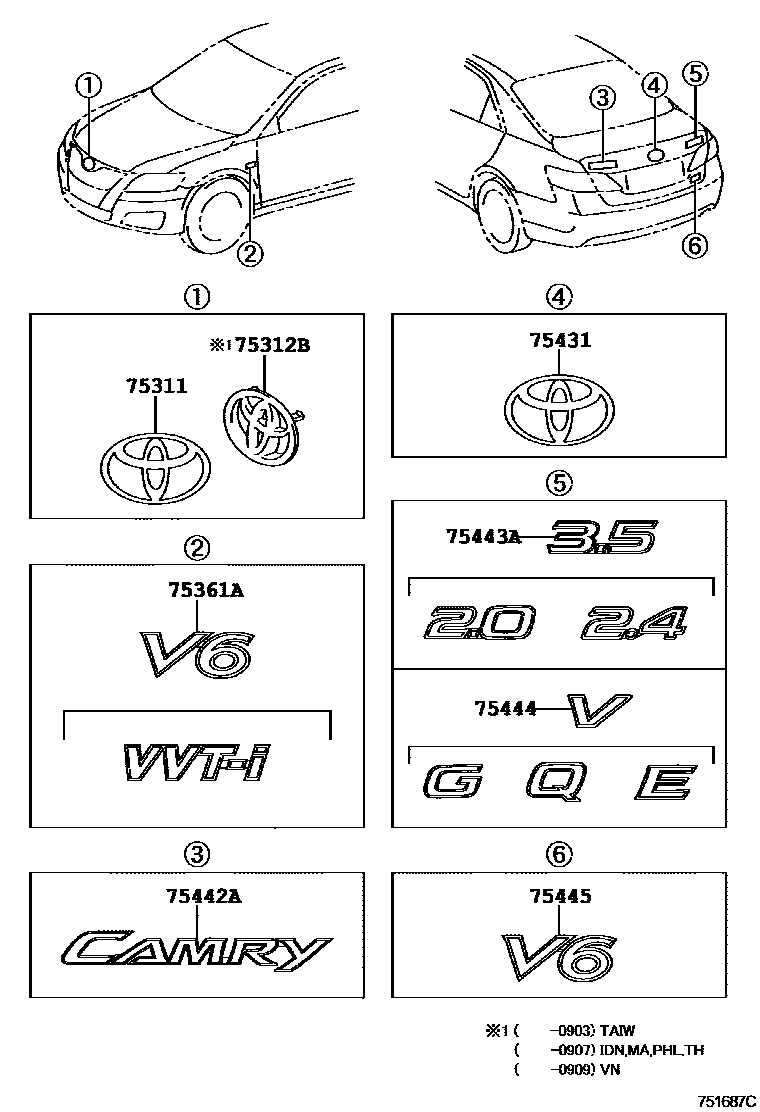

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 751687C
丰田徽标和铭牌(车外和车内) — 751687C (200605 – 999999)

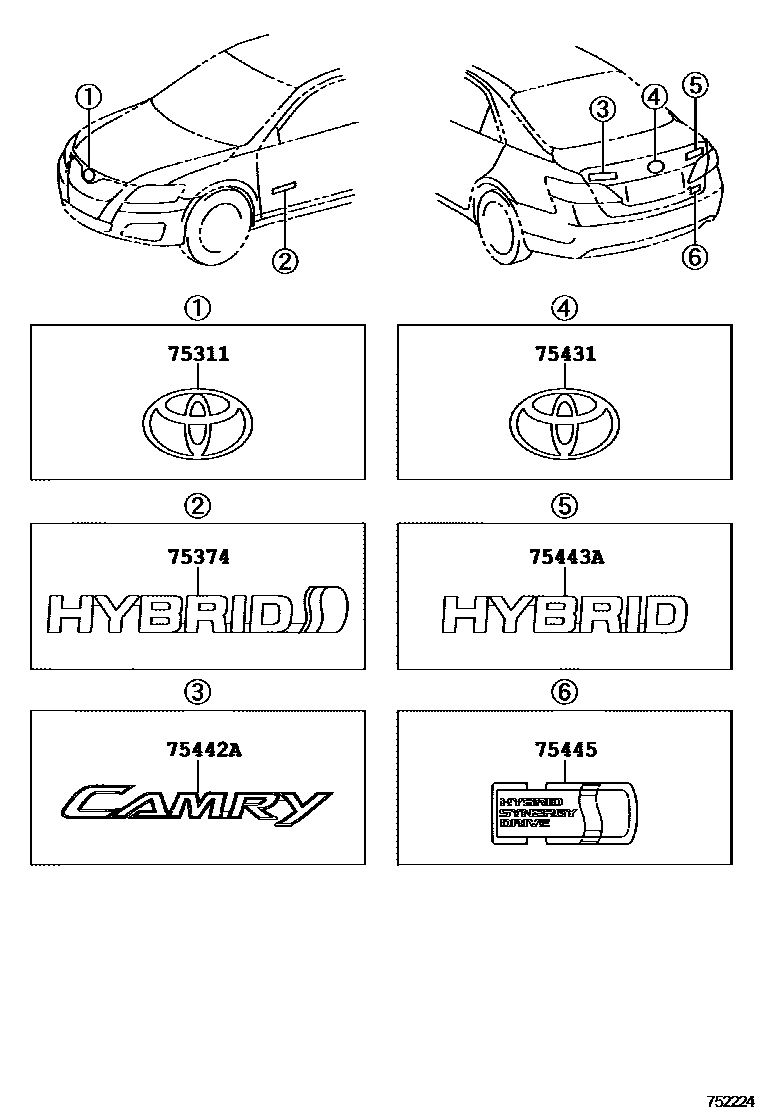

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752224
丰田徽标和铭牌(车外和车内) — 752224 (200907 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-02190 · 90975-02064 · 90975-02176
75312BRadiator grille number 2 plate75311-06070
75361AFront fender No. 1 nameplate75443-06260 · 75443-06270 · 75443-06530 · 75443-06540
75374side panel sign75374-33030 · 75374-33031 · 75374-33040 · 75374-33041
75431luggage compartment door sign90975-02064
75442ANo. 2 nameplate on back door75442-06060 · 75442-06180
75443ATrunk door No. 3 nameplate75443-06210 · 75443-06220 · 75443-06230 · 75443-06590 · 75443-06610
75444Trunk door No. 4 nameplate75444-06110 · 75444-06120 · 75444-06130 · 75444-06170 · 75444-06200 · 75444-06210
75445Trunk door No. 5 name plate75443-06520 · 75444-28100 · 75444-28101
