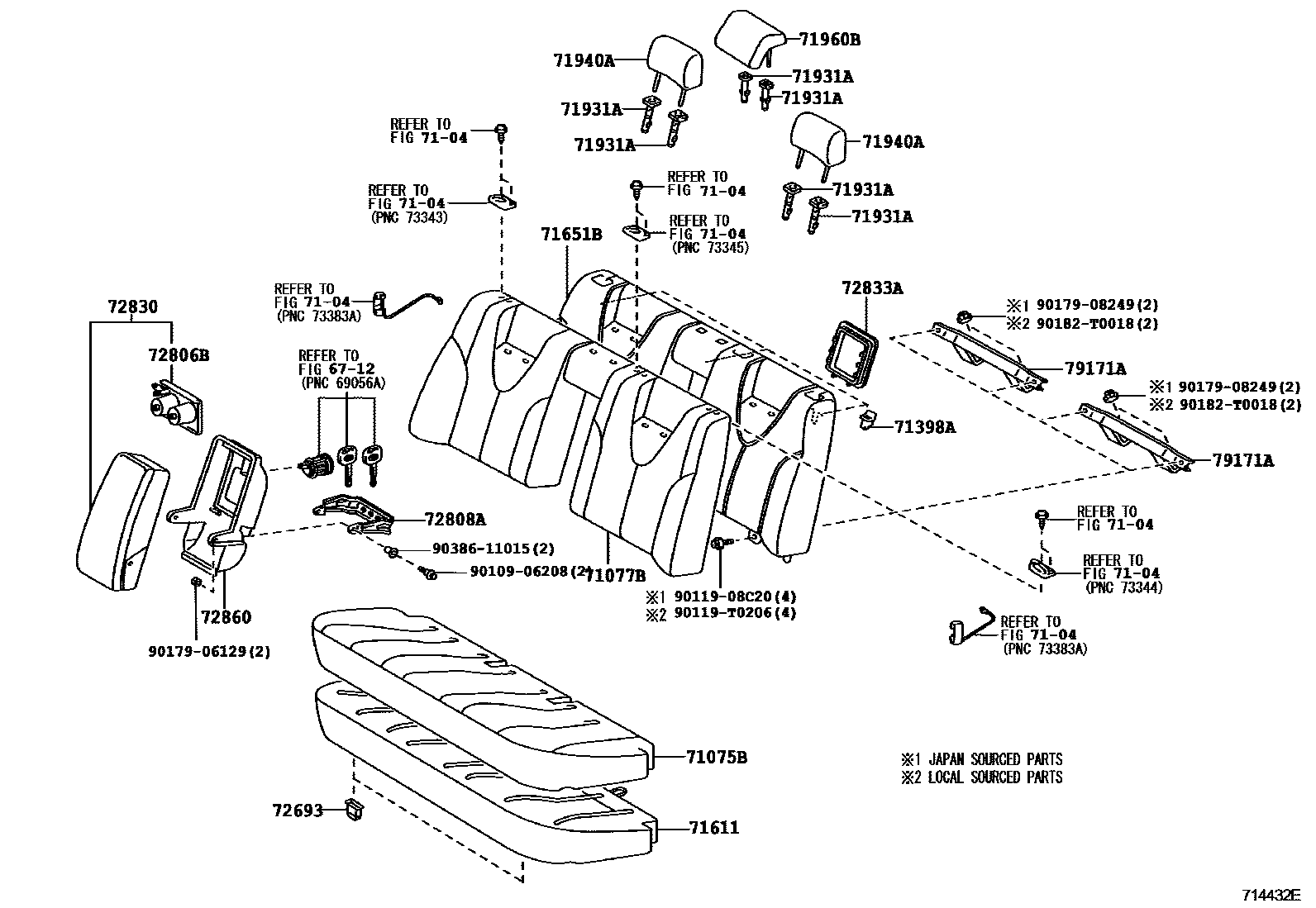

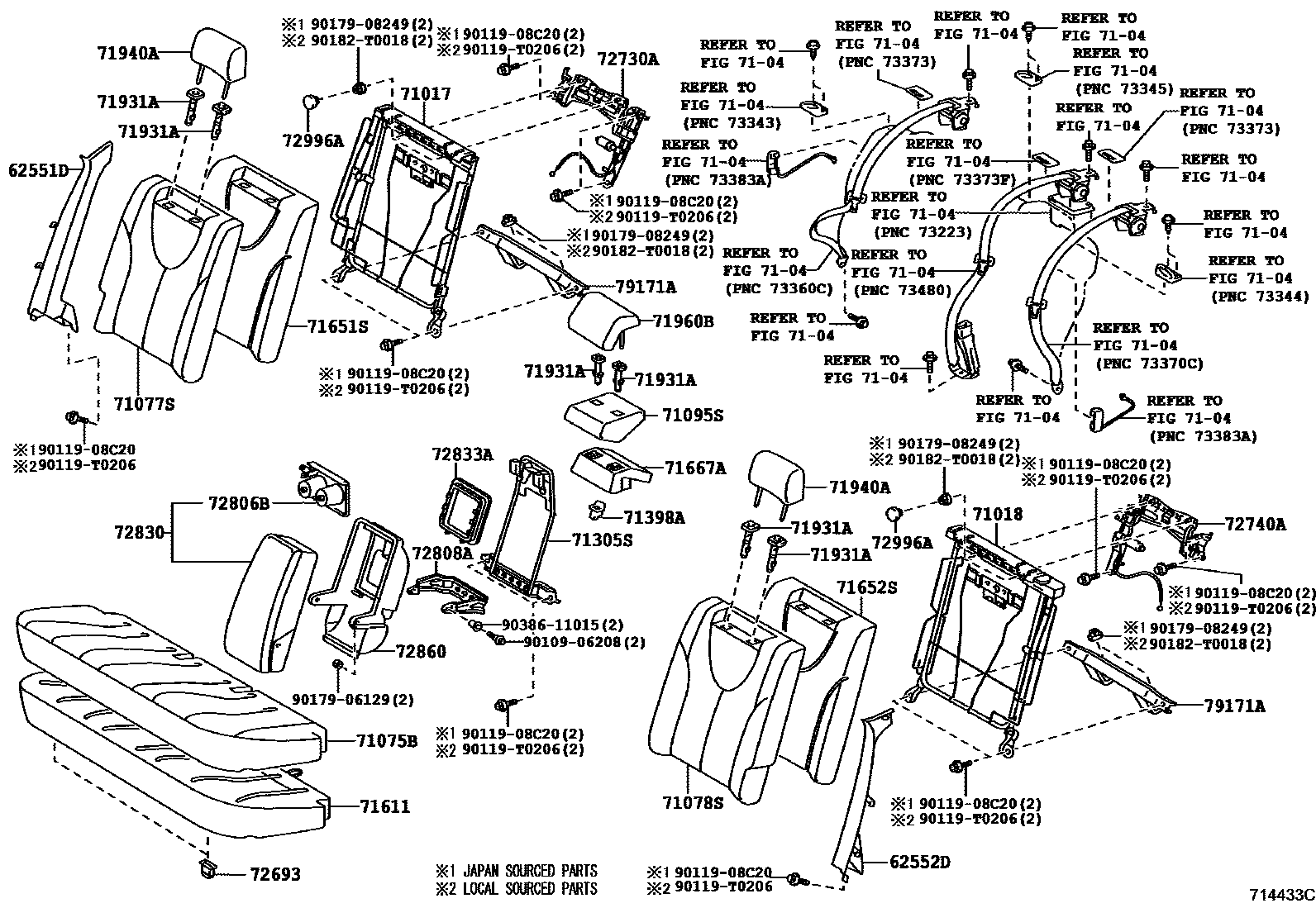

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06110 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06070 |
| 71305S | Center seat back frame sub-assembly | 71305-06030 |
| 71398A | Rear seat back retainer | 71398-02040 |
| 71611 | Rear seat cushion cushion | 71503-06120 · 71503-06190 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-06130 · 71651-06230 · 71651-06270 · 71651-06280 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06120 · 71651-06260 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06080 · 71652-06140 |
| 71667A | Rear center A seat back cushion | 71507-06050 · 71507-06080 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-33030 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-33020 |
| 72806B | Rear seat center armrest cup holder sub-assembly | 72806-06060 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06030 · 72883-06060 · 72883-06080 |
| 72833A | Seat center armrest inner panel | 72831-06040 · 72831-06090 |
| 79171A | Seat bracket No. 1 | 79001-06020 · 79002-06020 |
