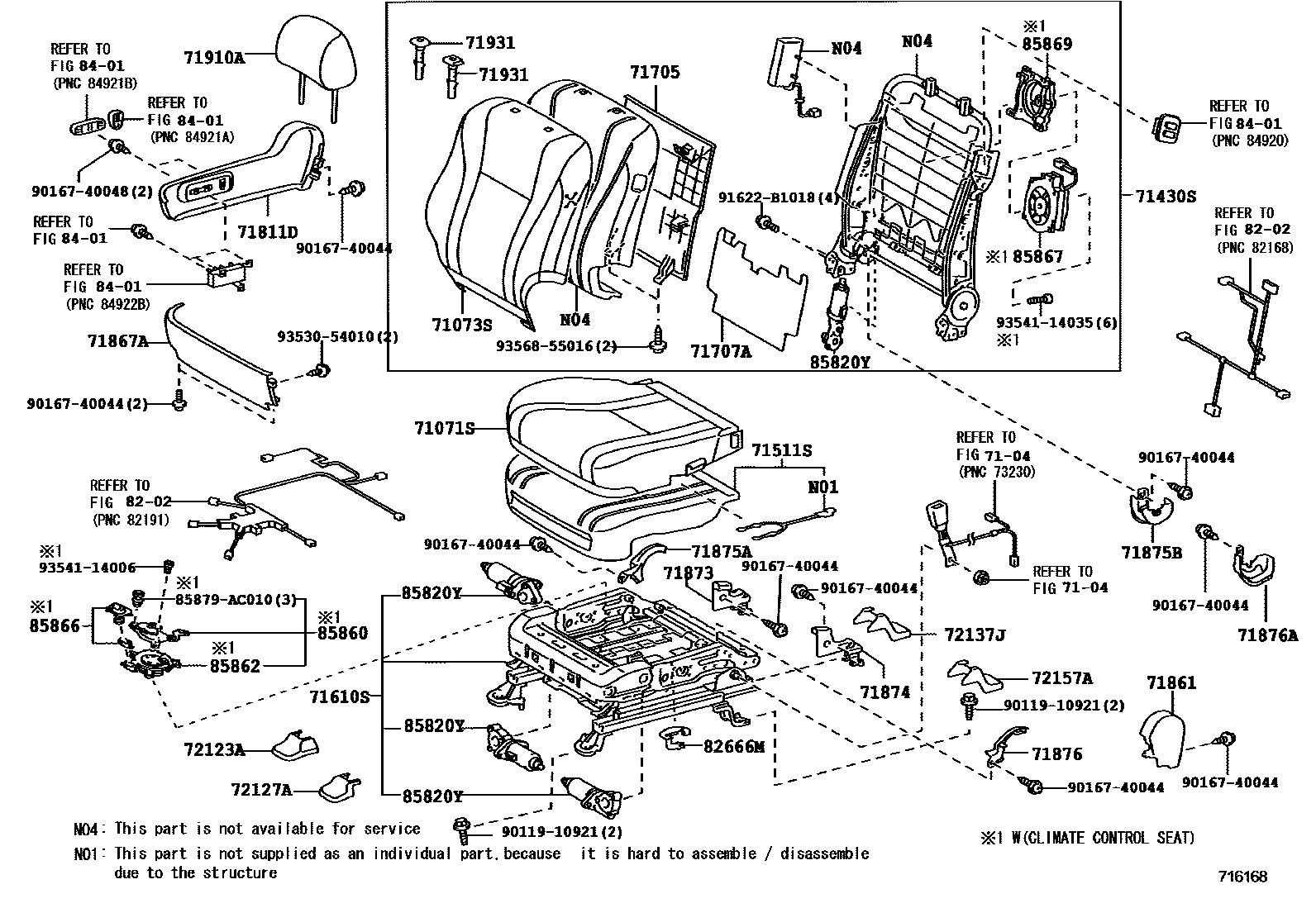

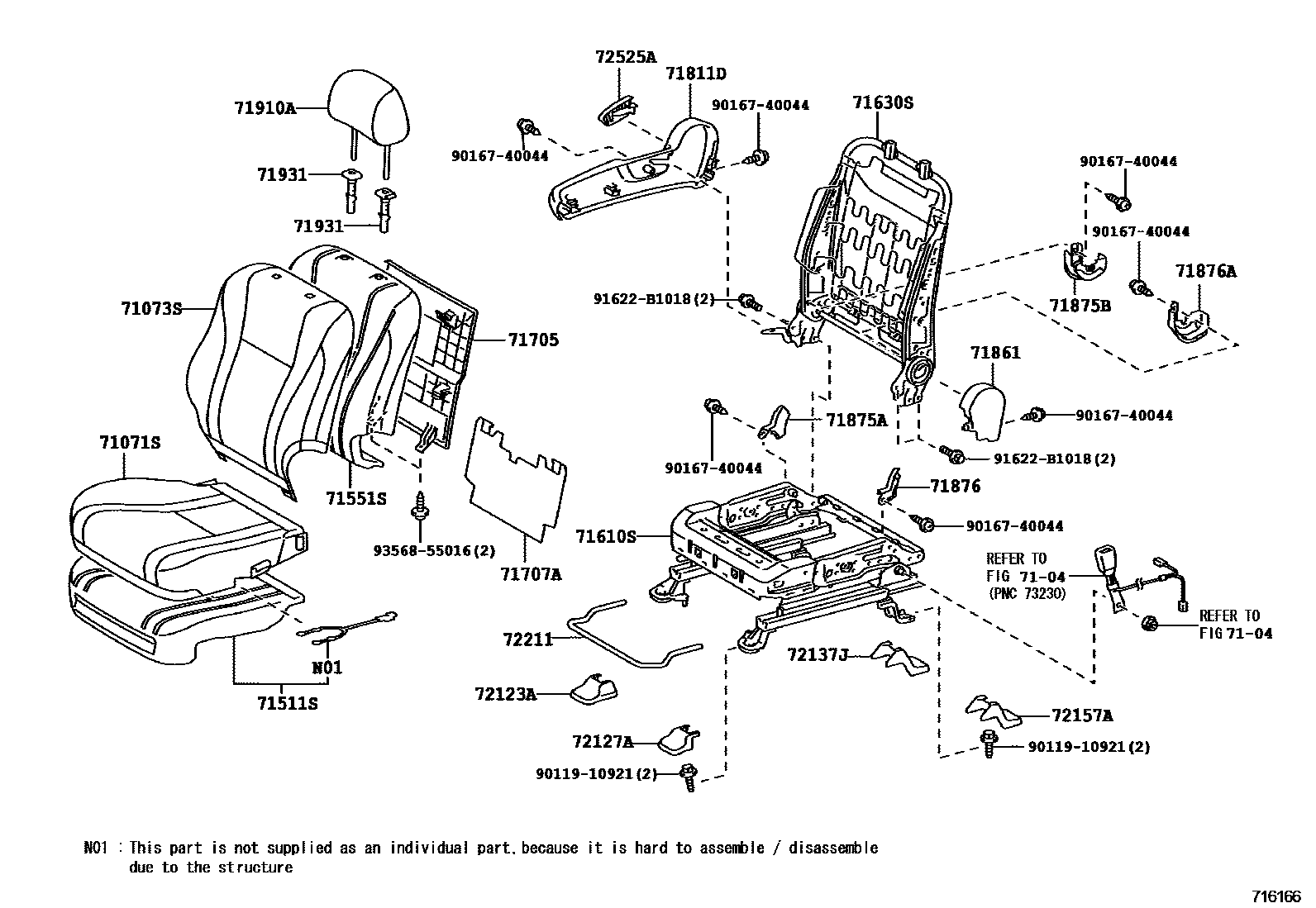

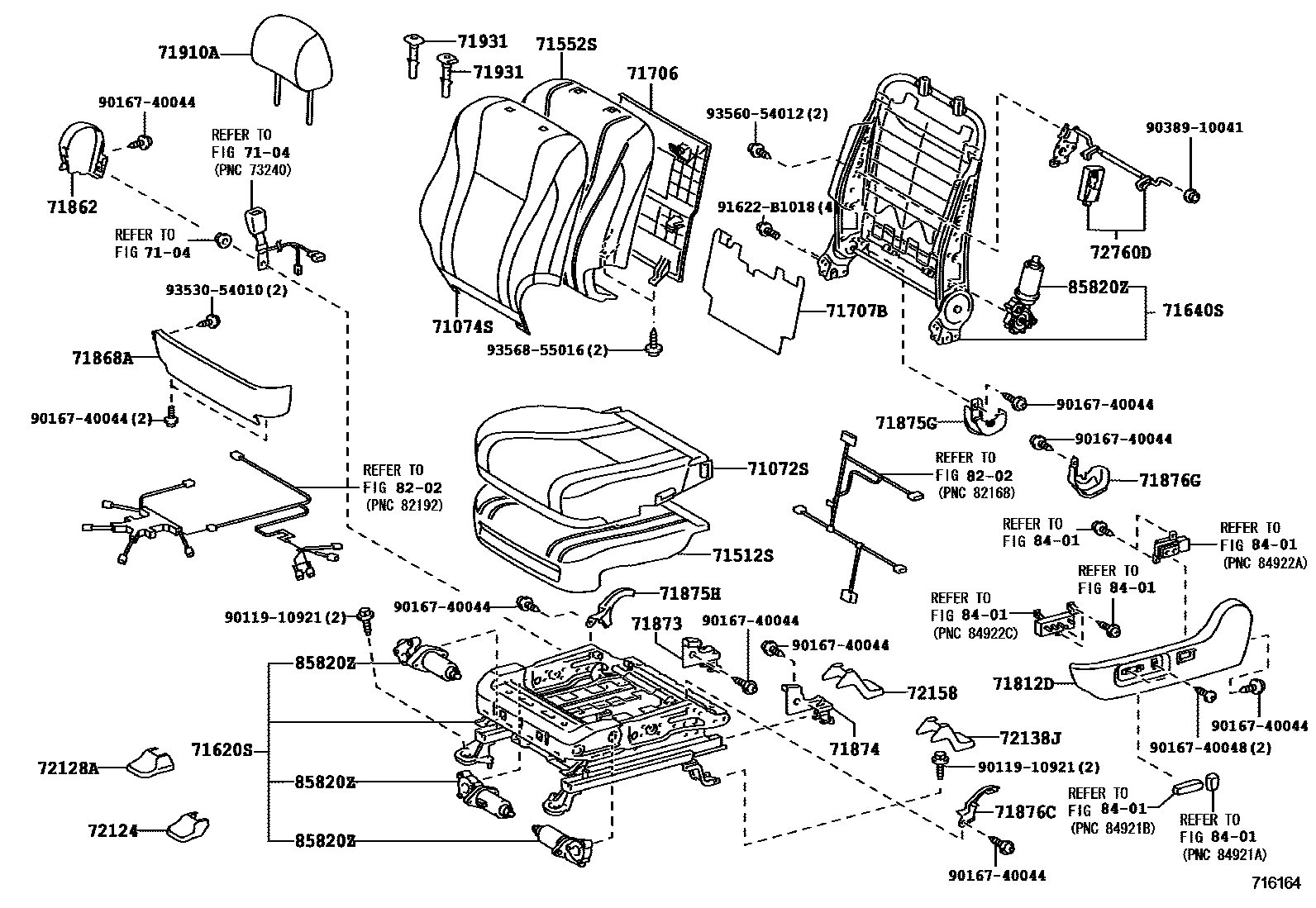

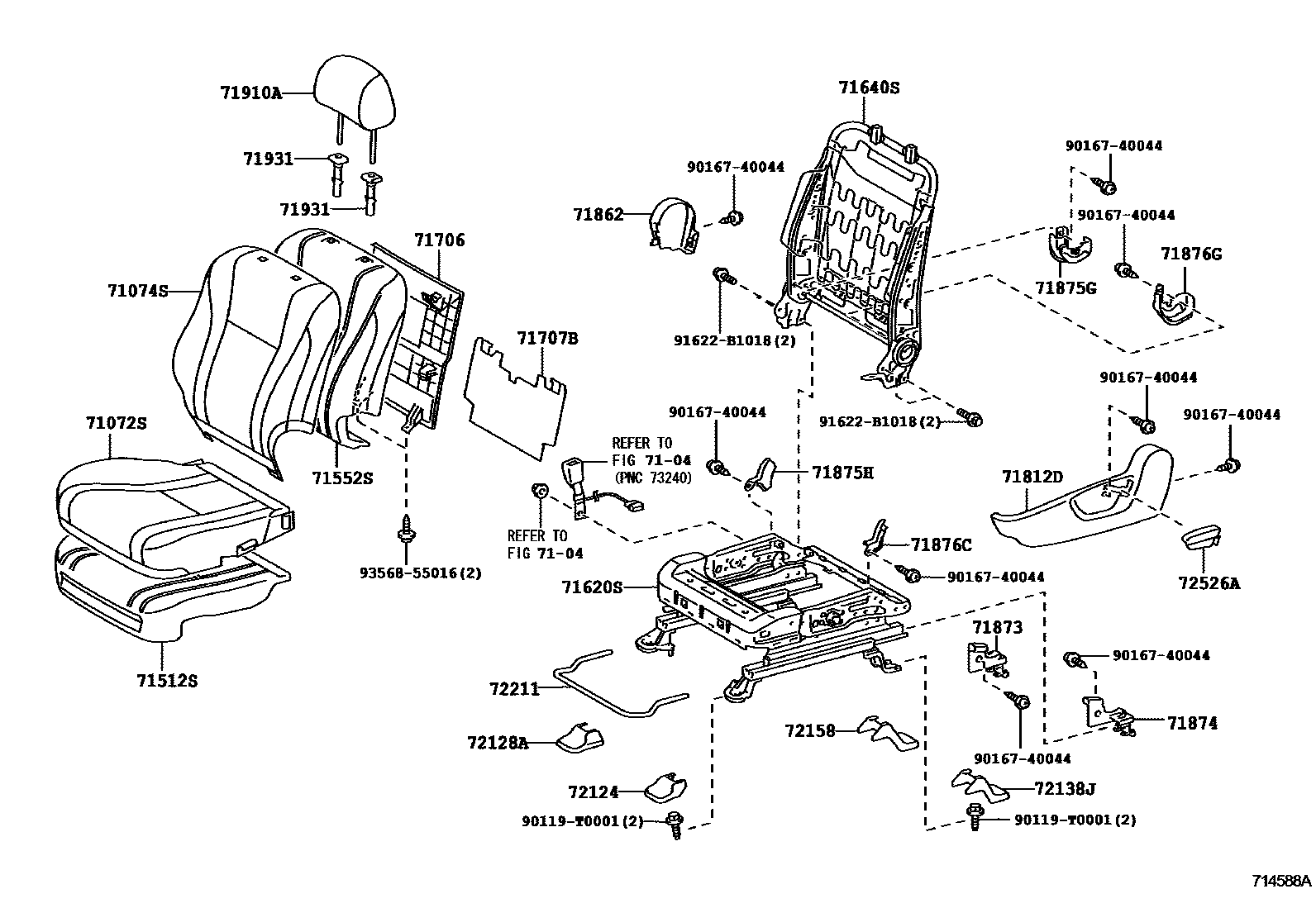

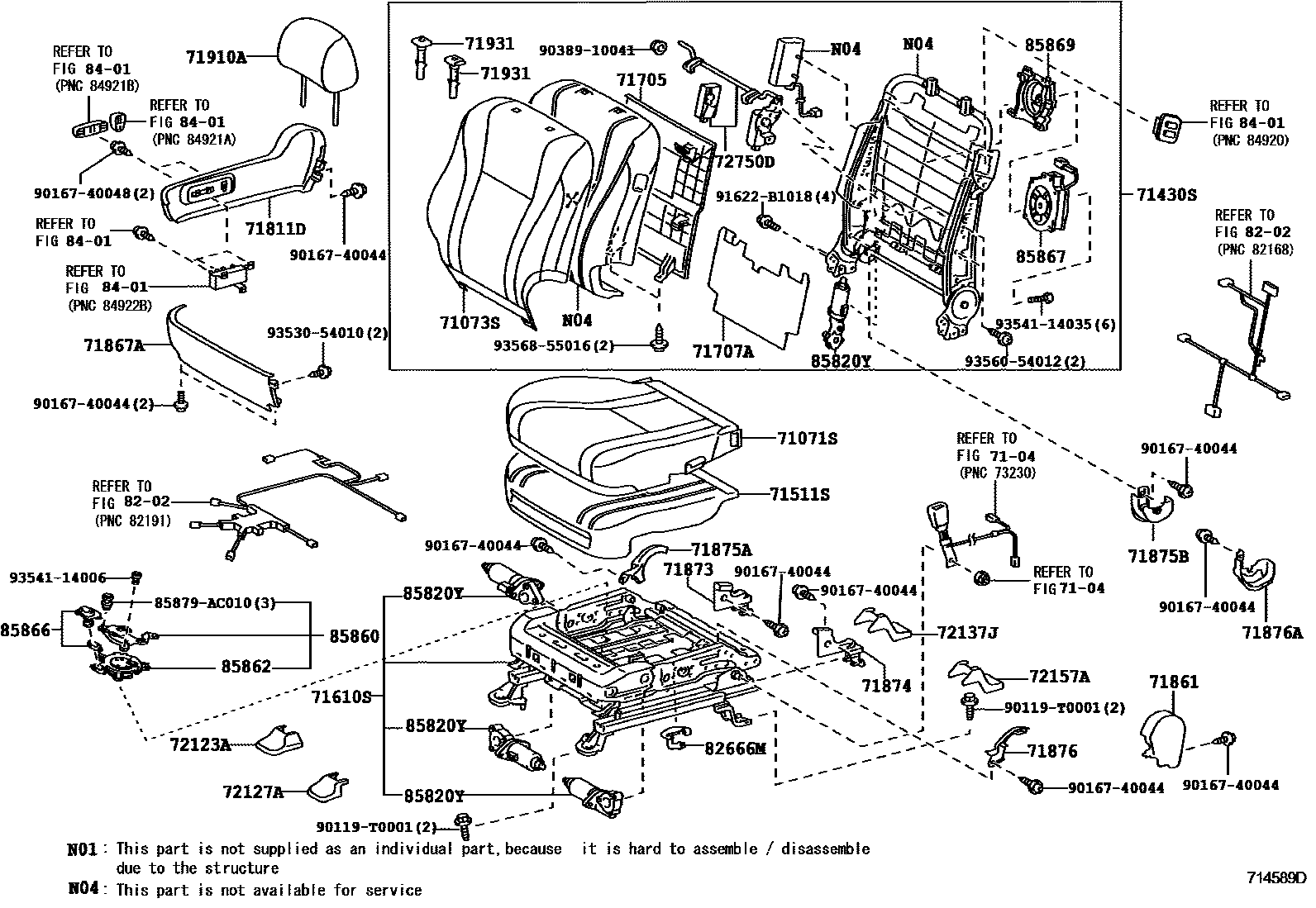

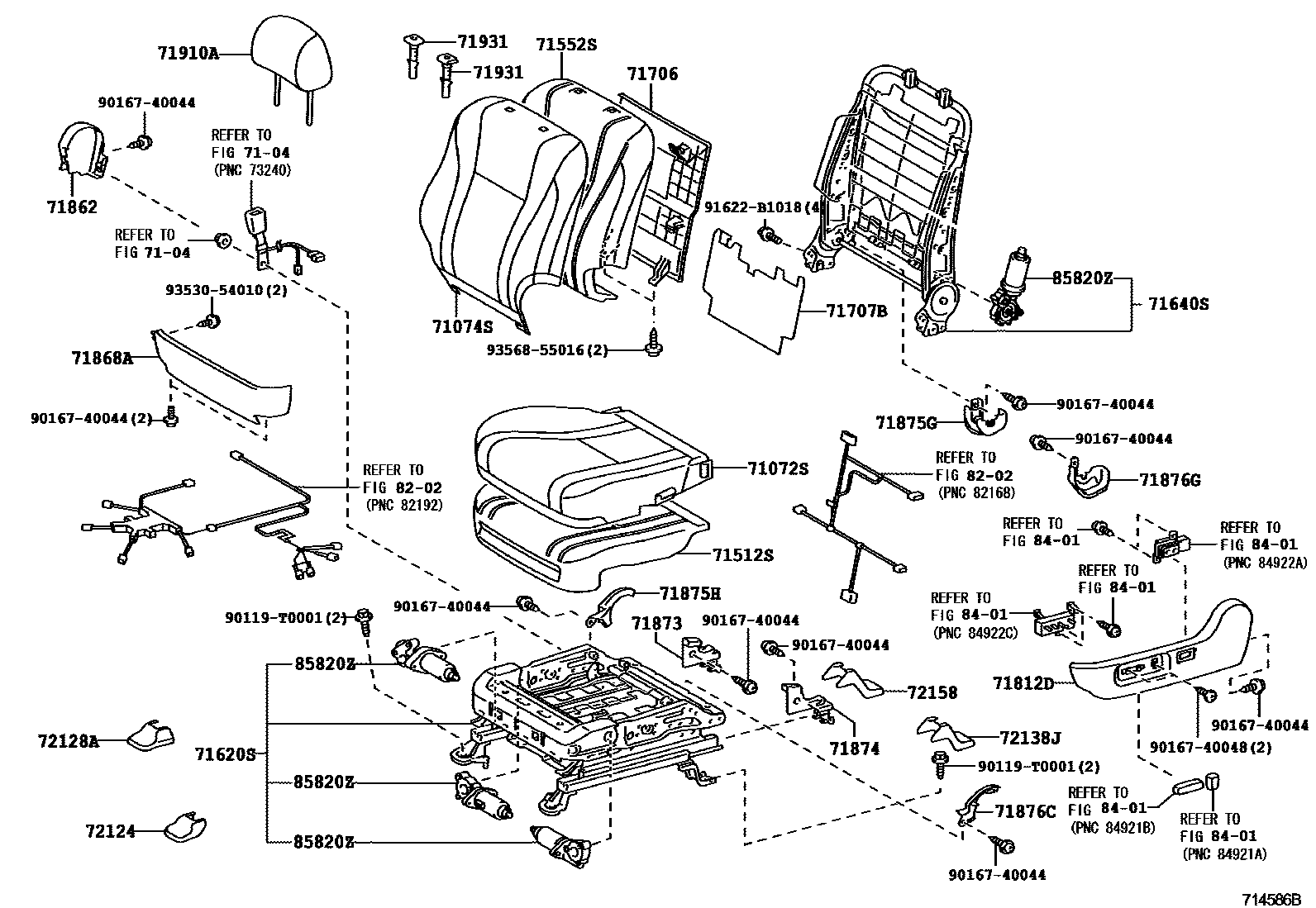

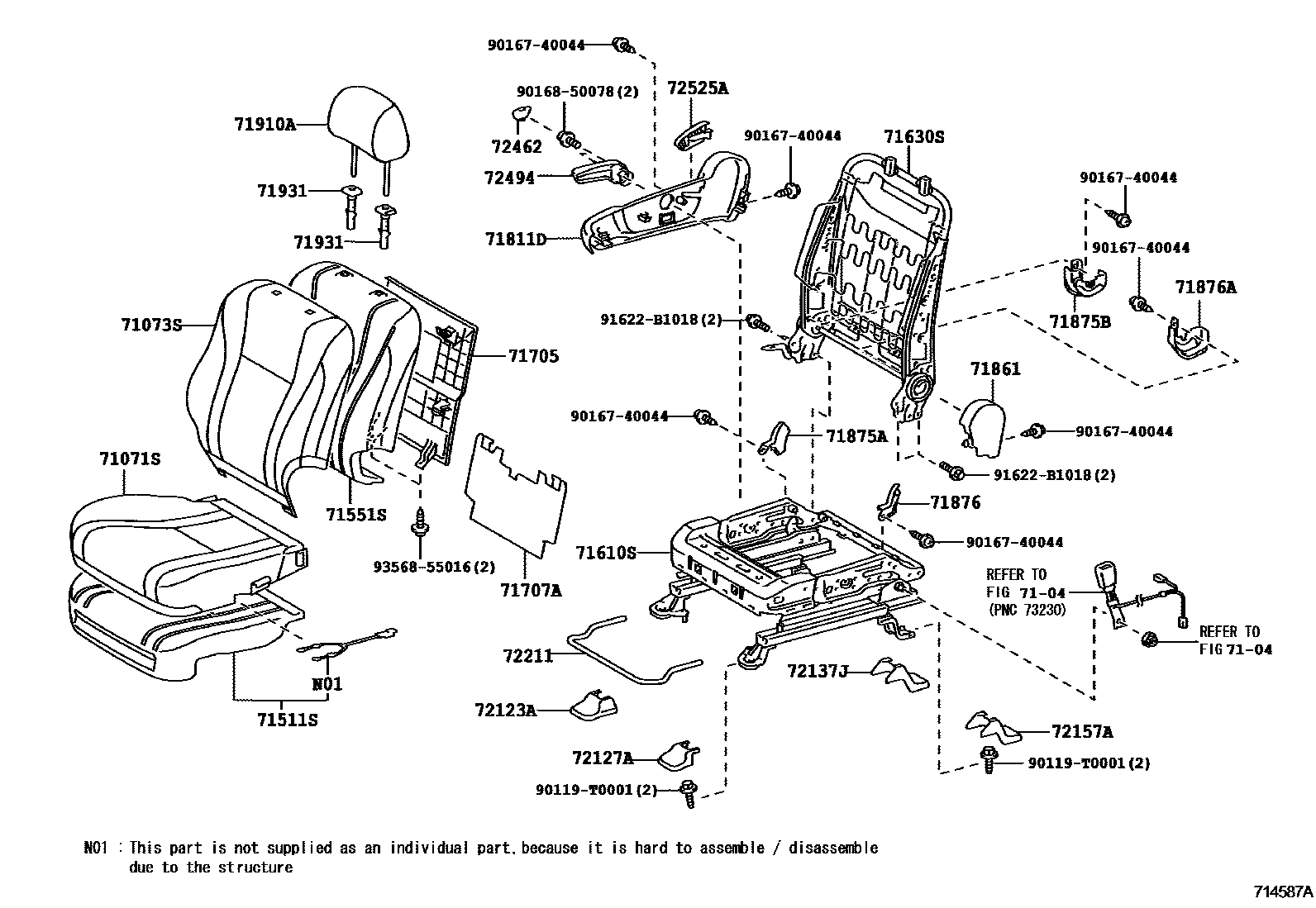

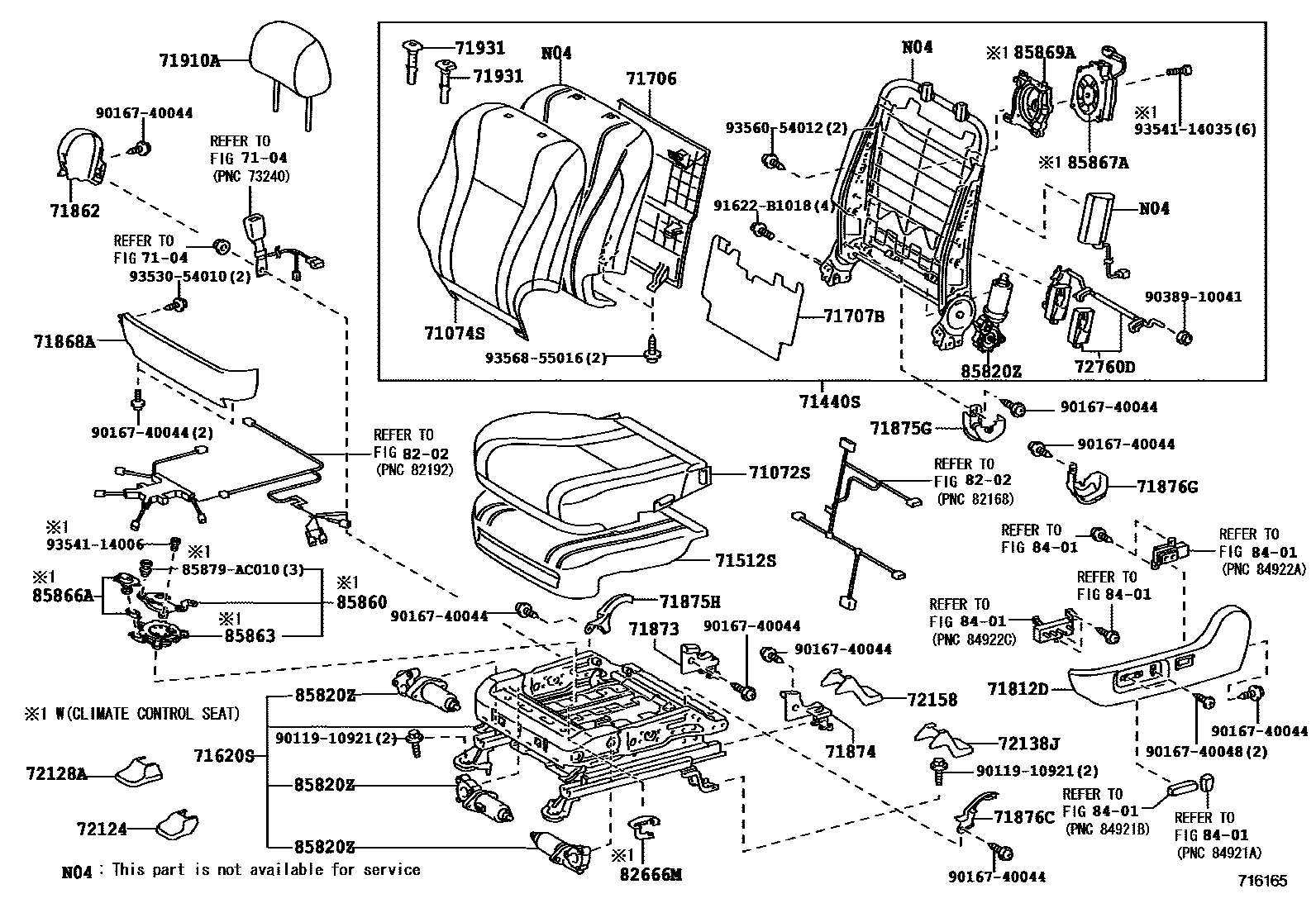

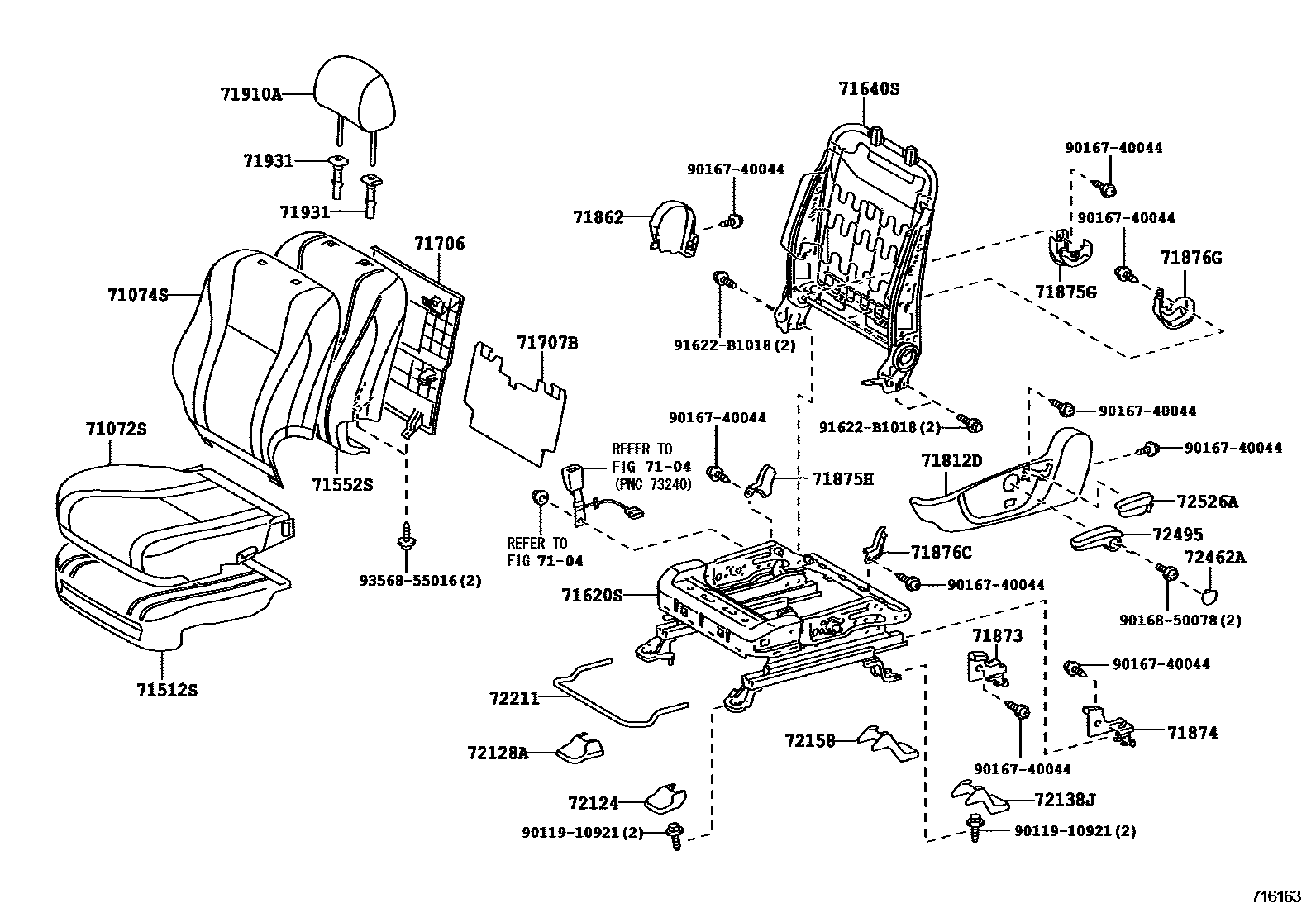

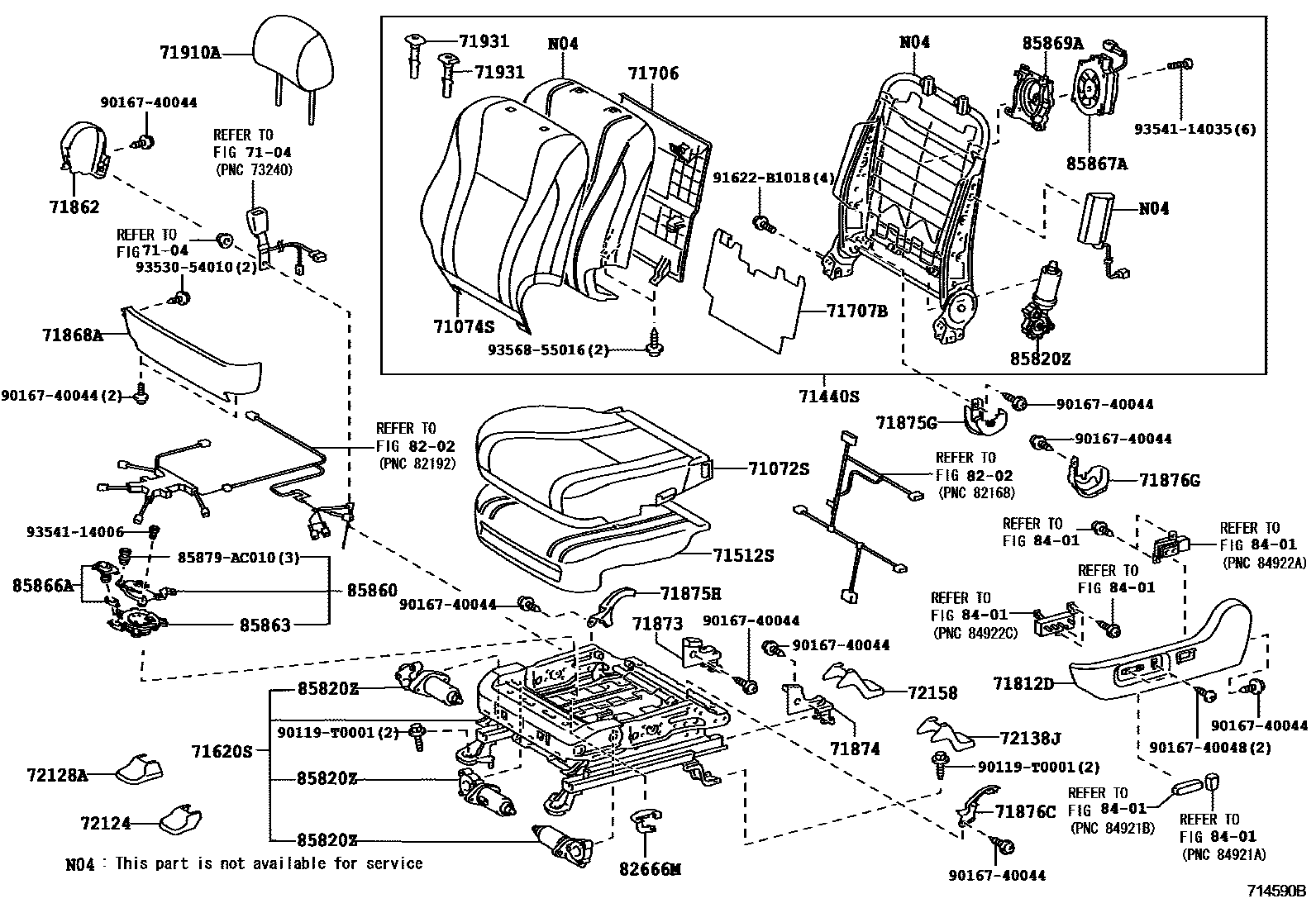

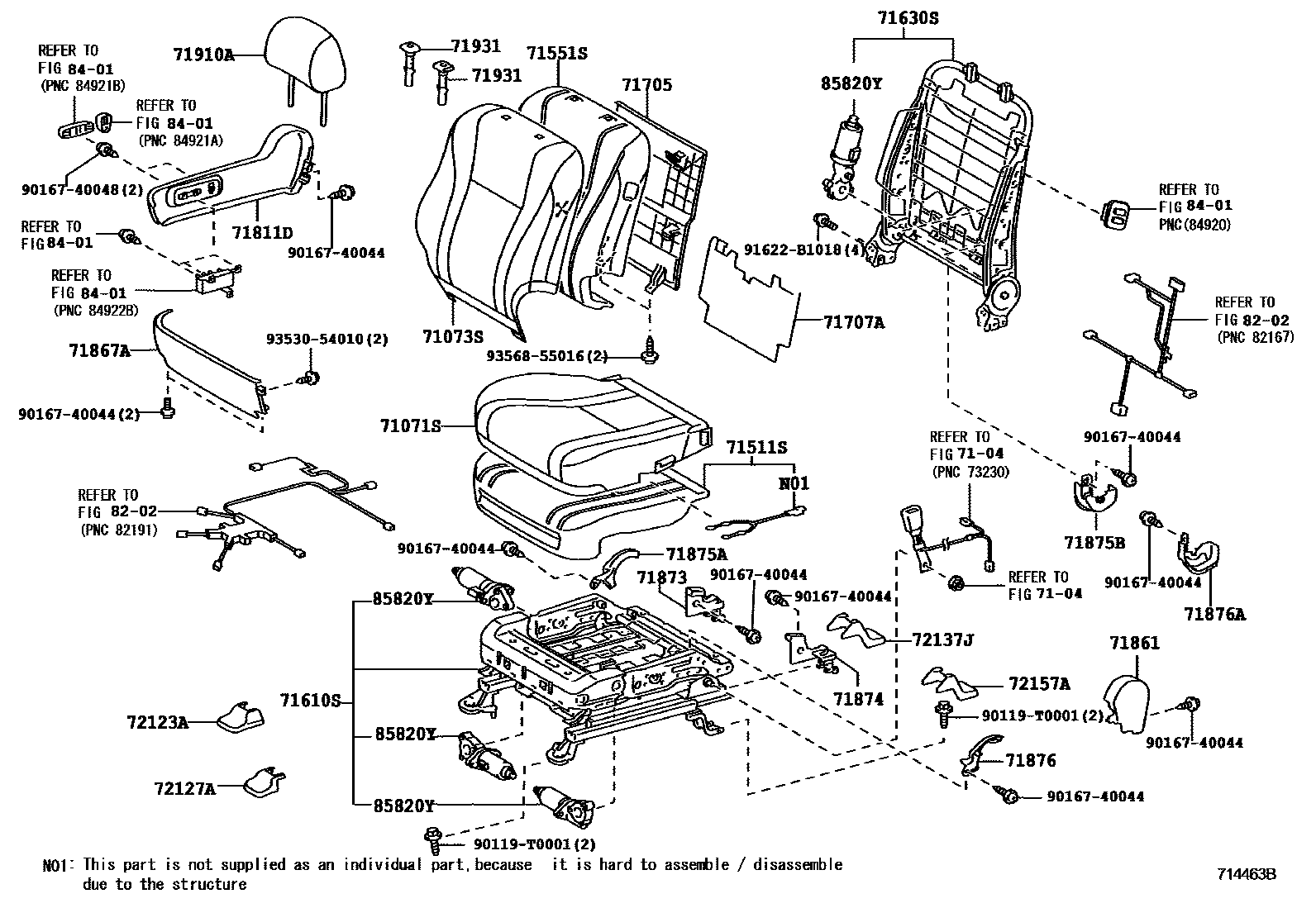

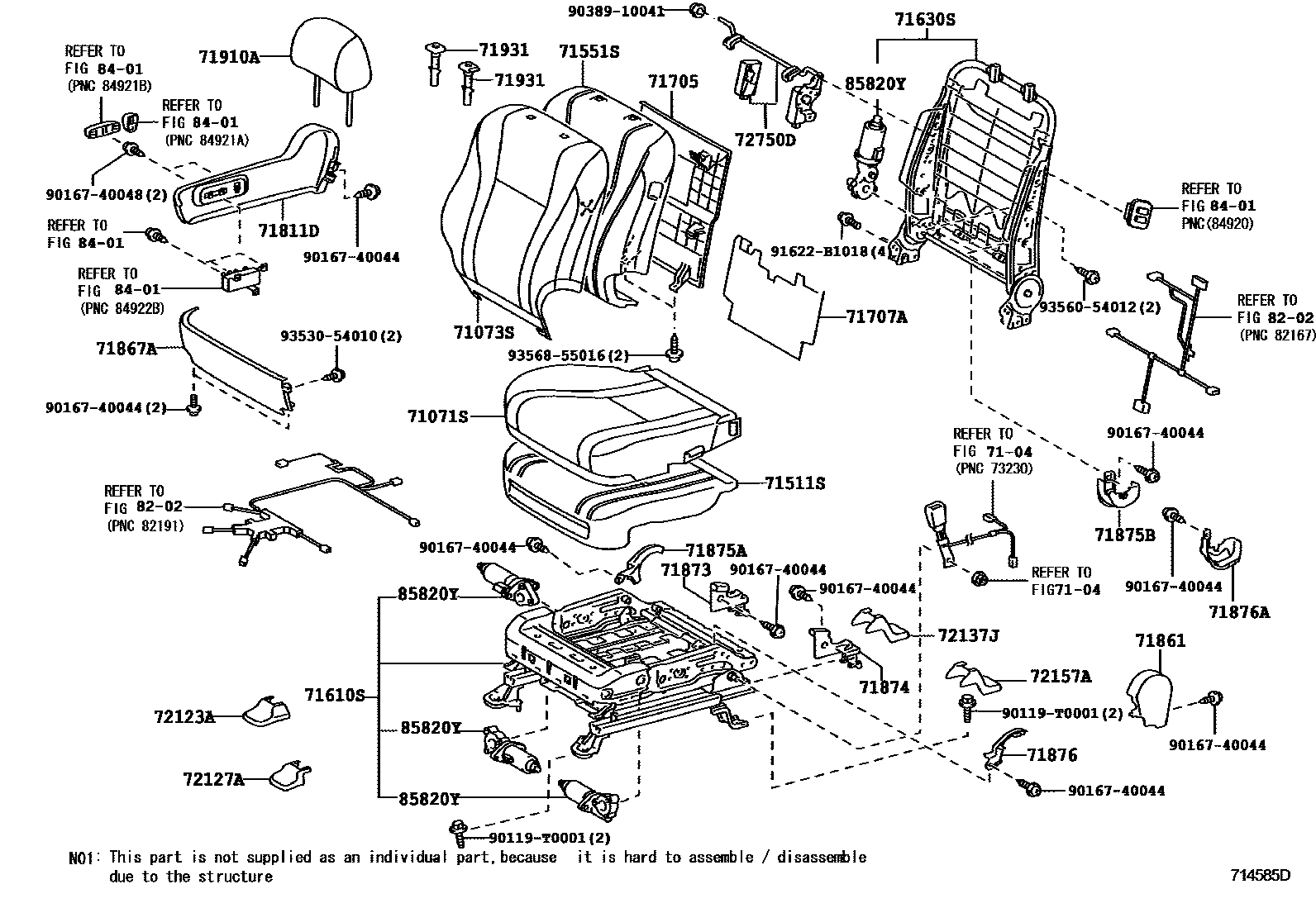

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 18 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06040 · 71501-06050 · 71501-06060 · 71501-06110 · 71501-06120 · 71511-06300 · 71511-06310 · 71511-06320 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-06070 · 71502-06080 · 71502-06090 · 71512-06100 · 71512-06110 · 71512-06120 · 71512-06330 · 71512-06340 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06170 · 71551-06220 · 71551-06320 · 71551-06340 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06110 · 71552-06160 · 71552-06250 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06050 · 71610-06060 · 71610-06070 · 71610-06160 · 71610-06170 · 71610-06180 · 71610-06190 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06060 · 71620-06070 · 71620-06080 · 71620-06170 · 71620-06180 · 71620-06190 · 71620-06200 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06190 · 71630-06200 · 71630-06230 · 71630-06240 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06140 · 71640-06170 · 71640-06180 · 71640-06340 |
| 71873 | Front right seat cushion lower guard panel | 71873-06250 |
| 71874 | Front left seat cushion lower guard | 71874-06260 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-06310 · 71875-06370 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06370 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-06400 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06080 · 71876-06400 |
| 72211 | Seat slide adjustment handle | 72211-06020 |
| 72750D | Right lumbar support adjuster assembly | 72750-06020 |
| 72760D | Left lumbar support adjuster assembly | 72760-06030 |
| 82666M | Connector holder | 82666-33270 |
| 85820Y | Electric seat motor assembly | 85801-06010 · 85801-06030 · 85801-06050 · 85801-06070 |
| 85820Z | Electric seat motor assembly | 85801-06020 · 85801-06040 · 85801-06060 · 85801-06080 |
| 85860 | Seat cushion temperature control blower assembly | 85860-33010 |
| 85862 | Right seat temperature control blower | 85862-33020 |
| 85863 | Left-hand seat temperature control blower | 85862-33020 |
| 85866 | Right seat cushion temperature control air duct | 85866-30010 |
| 85866A | Left seat cushion temperature control duct | 85866-30010 |
| 85867 | Right seat back temperature control blower | 85867-33010 |
| 85867A | Left-hand seat back temperature control blower | 85867-33010 |
| 85869 | Right seat back temperature control cover | 85869-30010 |
| 85869A | Left seat back temperature control cover | 85869-30010 |
