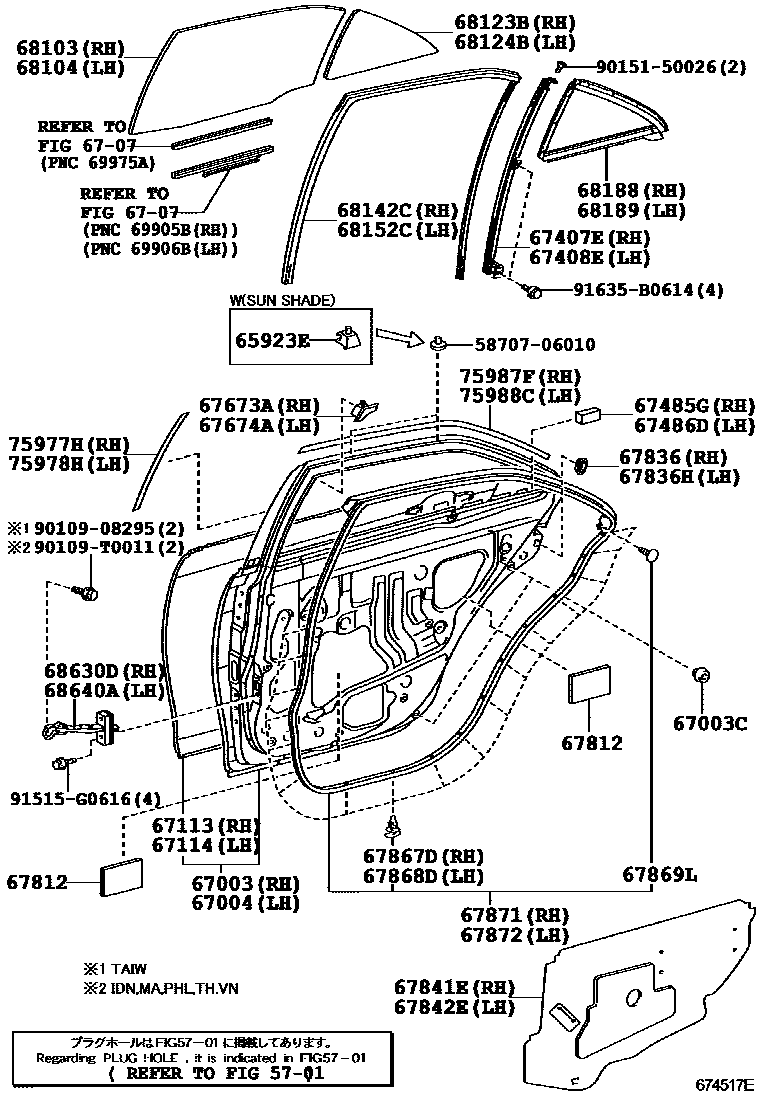

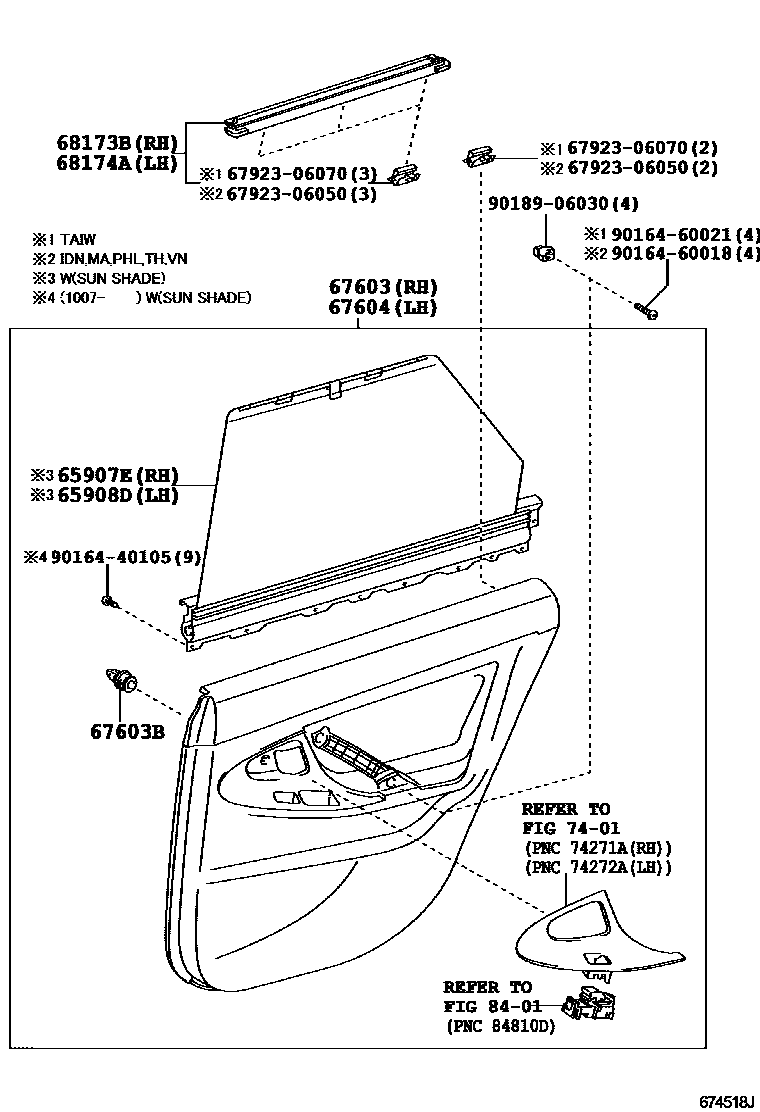

Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65907E | Right rear curtain sub-assembly | 65907-06020 · 65907-06030 |
| 65908D | Left rear curtain sub-assembly | 65908-06020 · 65908-06030 |
| 65923E | curtain hooks | 65923-06020 |
| 67003 | Right rear door panel sub-assembly | 67003-06090 · 67003-06091 · 67003-06110 · 67003-06111 |
| 67003C | Rear door panel cushion | 90541-09117 |
| 67004 | Left rear door panel sub-assembly | 67004-06090 · 67004-06091 · 67004-06110 · 67004-06111 |
| 67113 | Right rear door outer panel | 67113-06050 · 67113-06060 |
| 67114 | Left rear door outer panel | 67114-06050 · 67114-06060 |
| 67407E | Right rear door window divider sub-assembly | 67407-06040 · 67407-33090 |
| 67408E | Left rear door window divider sub-assembly | 67408-06040 · 67408-33090 |
| 67485G | Right rear door rear lower door frame seal | 67482-06030 · 67482-06050 |
| 67486D | Left rear door rear lower door frame seal | 67482-06030 · 67482-06050 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 · 90467-T0019 |
| 67673A | Right rear door frame decorative strip | 67673-06030 · 67673-06040 |
| 67674A | Left rear door frame decorative strip | 67674-06030 · 67674-06040 |
| 67812 | Rear door silencer pad | 67811-33040 |
| 67836 | Right rear door lock child restraint cover | 67836-02030 · 67836-06030 |
| 67836H | Left rear door lock child restraint cover | 67836-02030 · 67836-06030 |
| 67841E | Right rear door access hole cover | 67841-06080 · 67841-06090 · 67841-06100 · 67841-06110 |
| 67842E | Left rear door access hole cover | 67842-06080 · 67842-06090 · 67842-06100 · 67842-06110 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-06050 · 67871-06060 |
| 67872 | Left rear door sealing strip | 67872-06050 · 67872-06060 |
| 68103 | Right rear door glass sub-assembly | 68113-06100 · 68113-06120 · 68113-06121 · 68113-06130 |
| 68104 | Left rear door glass sub-assembly | 68114-06100 · 68114-06120 · 68114-06121 · 68114-06130 |
| 68123B | Right rear door corner window glass | 68123-06060 · 68123-06080 · 68123-06081 · 68123-06090 |
| 68124B | Left rear door corner window glass | 68124-06060 · 68124-06080 · 68124-06081 · 68124-06090 |
| 68142C | Right rear door glass lift slot | 68142-06040 · 68142-06050 |
| 68152C | Left rear door glass lift slot | 68152-06040 · 68152-06050 |
| 68173B | Right rear door glass inner sealing strip | 68173-06030 · 68173-06050 |
| 68174A | Left rear door glass inner sealing strip | 68174-06030 · 68174-06050 |
| 68188 | Right rear door corner window seal | 68188-06030 · 68188-06031 · 68188-06040 · 68188-06041 |
| 68189 | Left rear door corner window seal | 68189-06030 · 68189-06031 · 68189-06040 · 68189-06041 |
| 68630D | Right rear door opening limiter assembly | 68630-06040 · 68630-06050 |
| 68640A | Left rear door opening limiter assembly | 68640-06040 · 68640-06050 |
| 75977H | Right rear door outer lower trim strip | 75977-06020 · 75977-06021 |
| 75978H | Left rear door outer lower trim strip | 75978-06020 · 75978-06021 |
| 75987F | Right rear door outer trim | 75987-06050 · 75987-06051 |
| 75988C | Left rear door outer trim | 75988-06050 · 75988-06051 |
