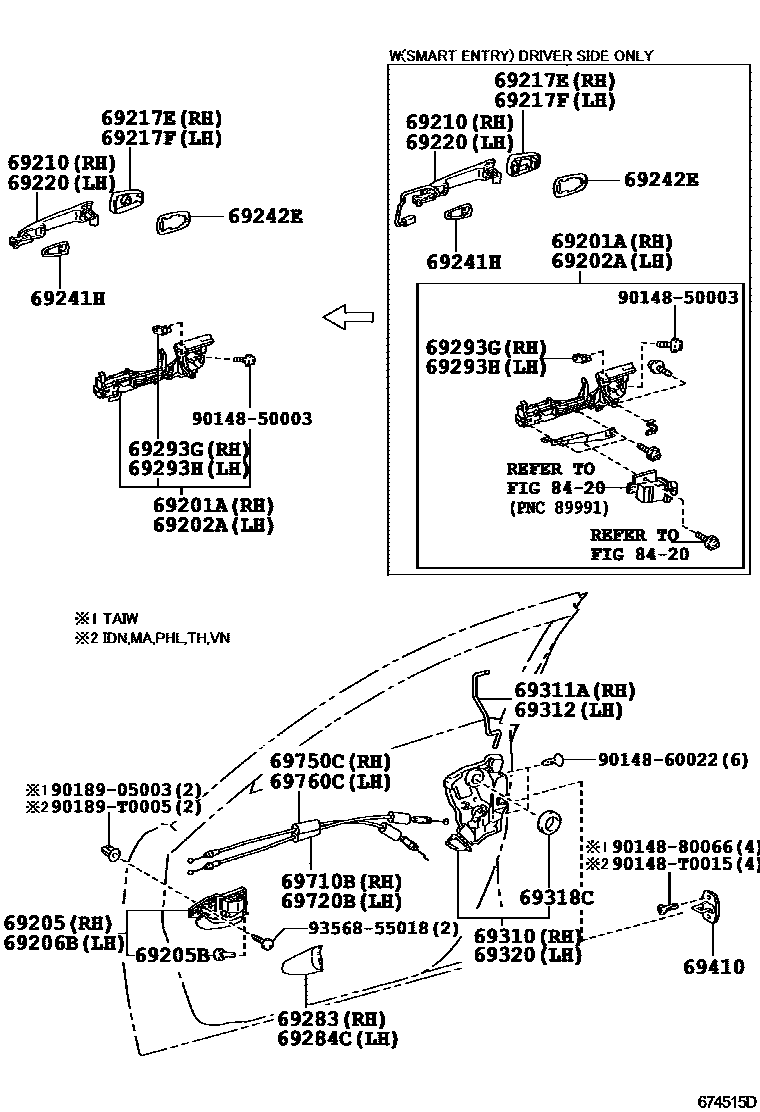

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-28010 · 69201-33040 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-28010 · 69202-33040 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-58010 · 69211-28906 |
| 69217E | Right front door outer handle cover | 69217-30040 · 69217-58010 · 69217-60010 · 69217-60030 |
| 69217F | Left front door outer handle cover | 69217-30040 · 69217-58010 · 69217-60010 · 69217-60030 |
| 69220 | Left front door outer handle assembly | 69210-58010 · 69211-28906 |
| 69241H | Front door exterior handle pad | 69241-28060 |
| 69242E | Front door rear outer handle pad | 69242-33020 · 69242-AC031 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69293H | Left front door outer handle buckle | 69293-12040 |
| 69310 | Right front door lock assembly | 69030-06110 · 69030-06120 · 69030-06130 |
| 69311A | Right front door lock opening lever | 69311-06060 · 69311-06070 |
| 69312 | Left front door lock opening lever | 69312-06060 · 69312-06070 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-06100 · 69040-06110 · 69040-06120 |
| 69410 | Front door lock plate assembly | 69410-06010 · 69410-0K010 |
| 69710B | Right front door lock remote control cable assembly | 69710-06060 · 69710-06070 |
| 69720B | Left front door lock remote control cable assembly | 69710-06060 · 69710-06070 |
| 69750C | Right front door inner lock cable assembly | 69750-06050 · 69750-06060 |
| 69760C | Left front door inner lock cable assembly | 69750-06050 · 69750-06060 |
