Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 36 PNC and OE references.

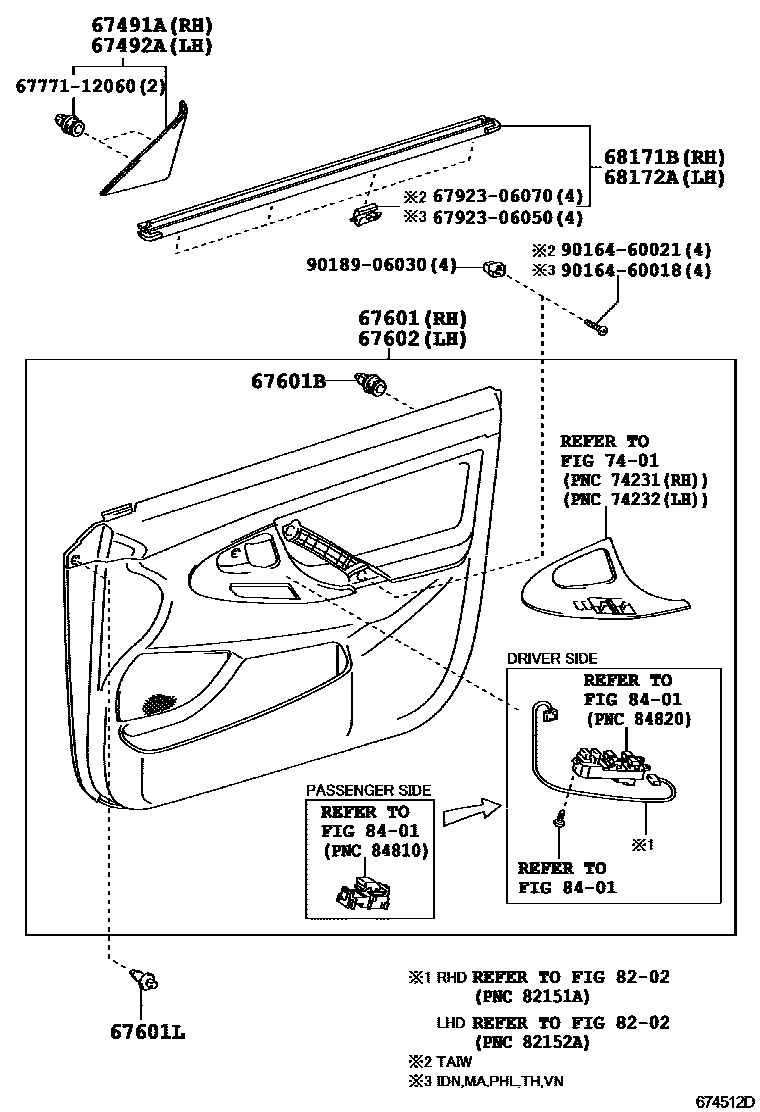

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 674512D
前门板和前门玻璃 — 674512D (200605 – 999999)

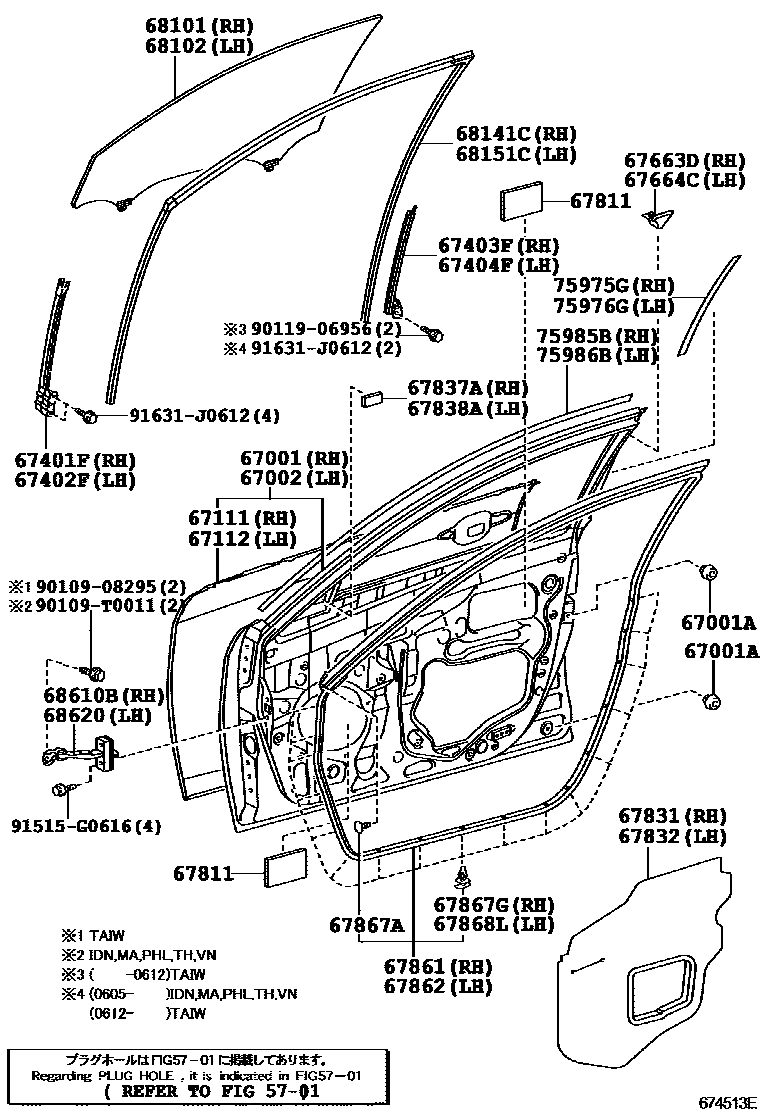

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 674513E
前门板和前门玻璃 — 674513E (200605 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-06110 · 67001-06120
67001AFront door panel cushion90541-09117
67002Left front door panel sub-assembly67002-06110 · 67002-06120
67111Outer right front door panel67111-06050 · 67111-06070
67112Outer left front door panel67112-06060 · 67112-06070
67401FRight front door front lower door frame sub-assembly67401-06060 · 67401-06070
67402FLeft front door front lower door frame sub-assembly67402-06060 · 67402-06070
67403FRight front door rear lower door frame sub-assembly67403-06040 · 67403-06050
67404FLeft front door rear lower door frame sub-assembly67404-06040 · 67404-06050
67491ARight front door lower door frame bracket decorative strip67491-06050 · 67491-06060
67492ALeft front door lower door frame bracket decorative strip67492-06050 · 67492-06060
67601BCatch (for front door trim panel)90467-09206 · 90467-T0019
67663DRight door frame decorative strip67663-06020 · 67663-06030
67664CLeft door frame decorative strip67664-06020 · 67664-06030
67811Front door silencer pad67811-33040
67831Right front door access hole cover67831-06070 · 67831-06080
67832Left front door access hole cover67832-06070 · 67832-06080
67837ARight front door ventilator seal67837-51010
67838ALeft front door ventilator seal67837-51010
67861Right front door seal67861-06050 · 67861-06060
67862Left front door seal67862-06050 · 67862-06060
67867ADoor seal strip clip (for front door)67868-30030
67867GRight door sealing strip fixing67867-12150
67868LLeft door seal strip fixing67867-12150
68101Right front door glass sub-assembly68101-06090 · 68101-06110 · 68101-06111 · 68101-06120
68102Left front door glass sub-assembly68102-06090 · 68102-06110 · 68102-06111 · 68102-06120
68141CRight front door glass lift channel68141-06050 · 68141-06060
68151CLeft front door glass lift channel68151-06040 · 68151-06050
68171BRight front door glass inner sealing strip68171-06040 · 68171-06060
68172ALeft front door glass inner sealing strip68172-06040 · 68172-06060
68610BRight front door opening limiter assembly68610-06050 · 68610-06060
68620Left front door opening limiter assembly68620-06050 · 68620-06060
75975GRight front door trim strip No. 275975-06020 · 75975-06021
75976GLeft front door trim strip No. 275976-06020 · 75976-06021
75985BRight front door trim strip No. 375985-06020 · 75985-06021
75986BLeft front door No. 3 trim75986-06020 · 75986-06021
