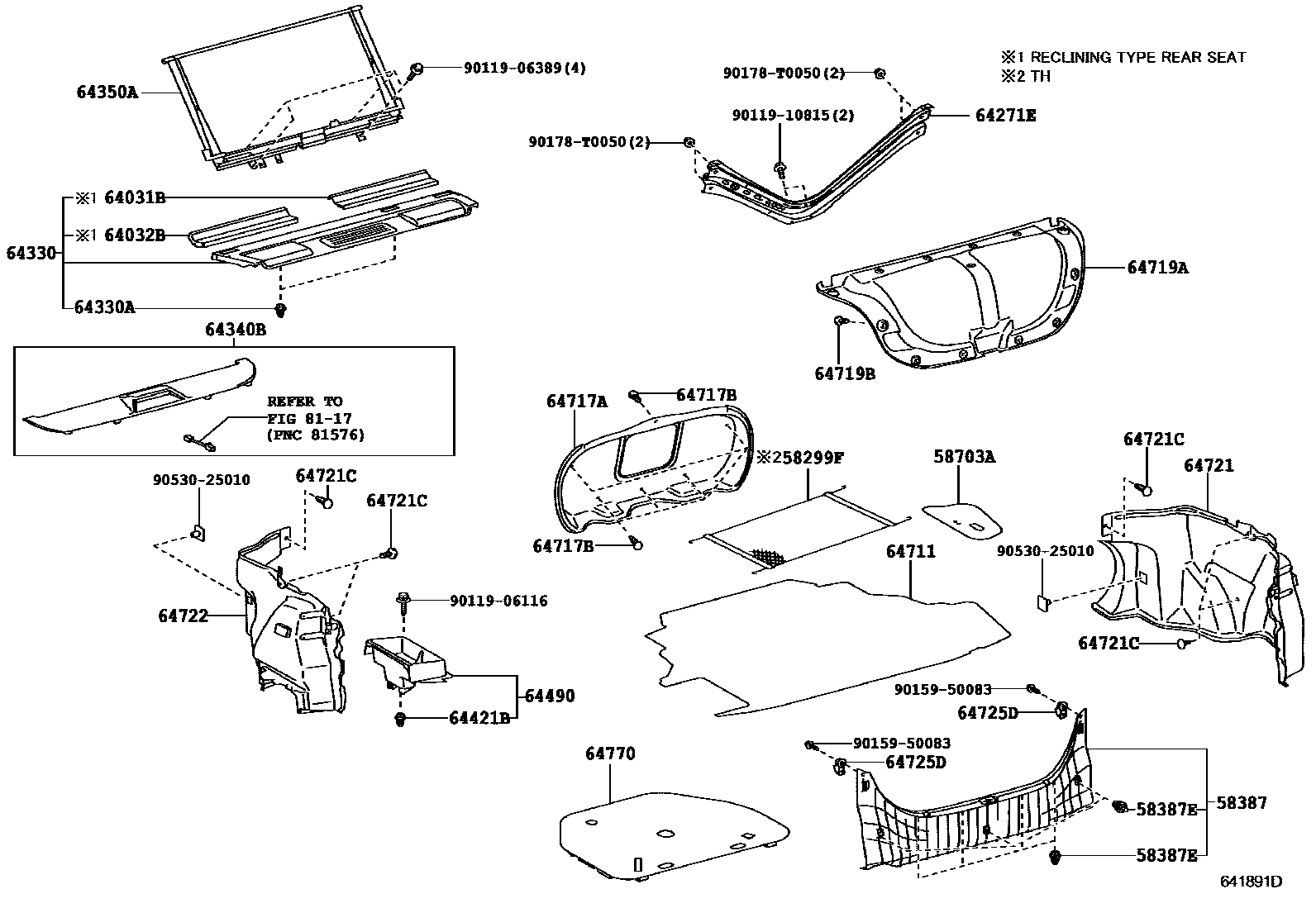

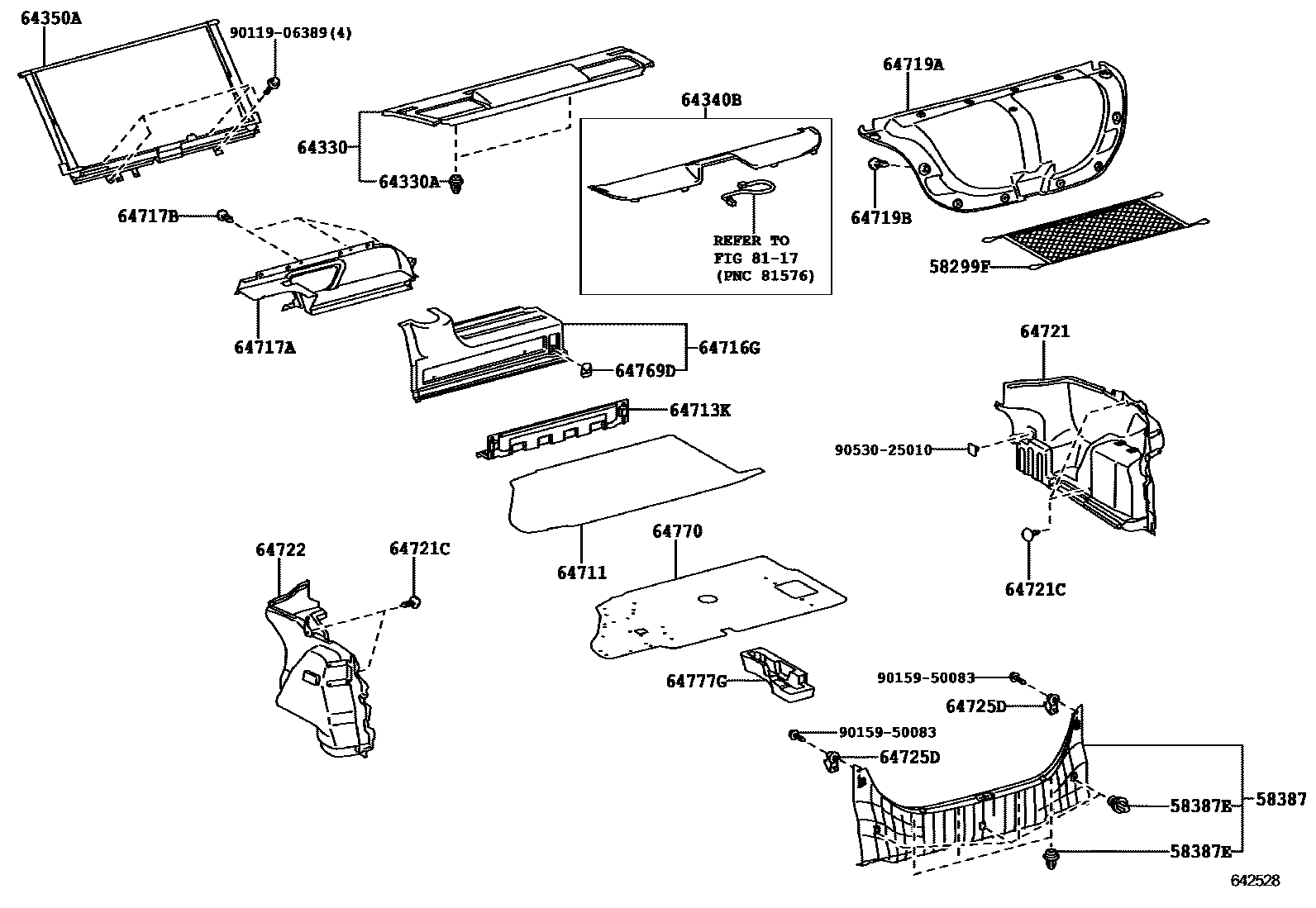

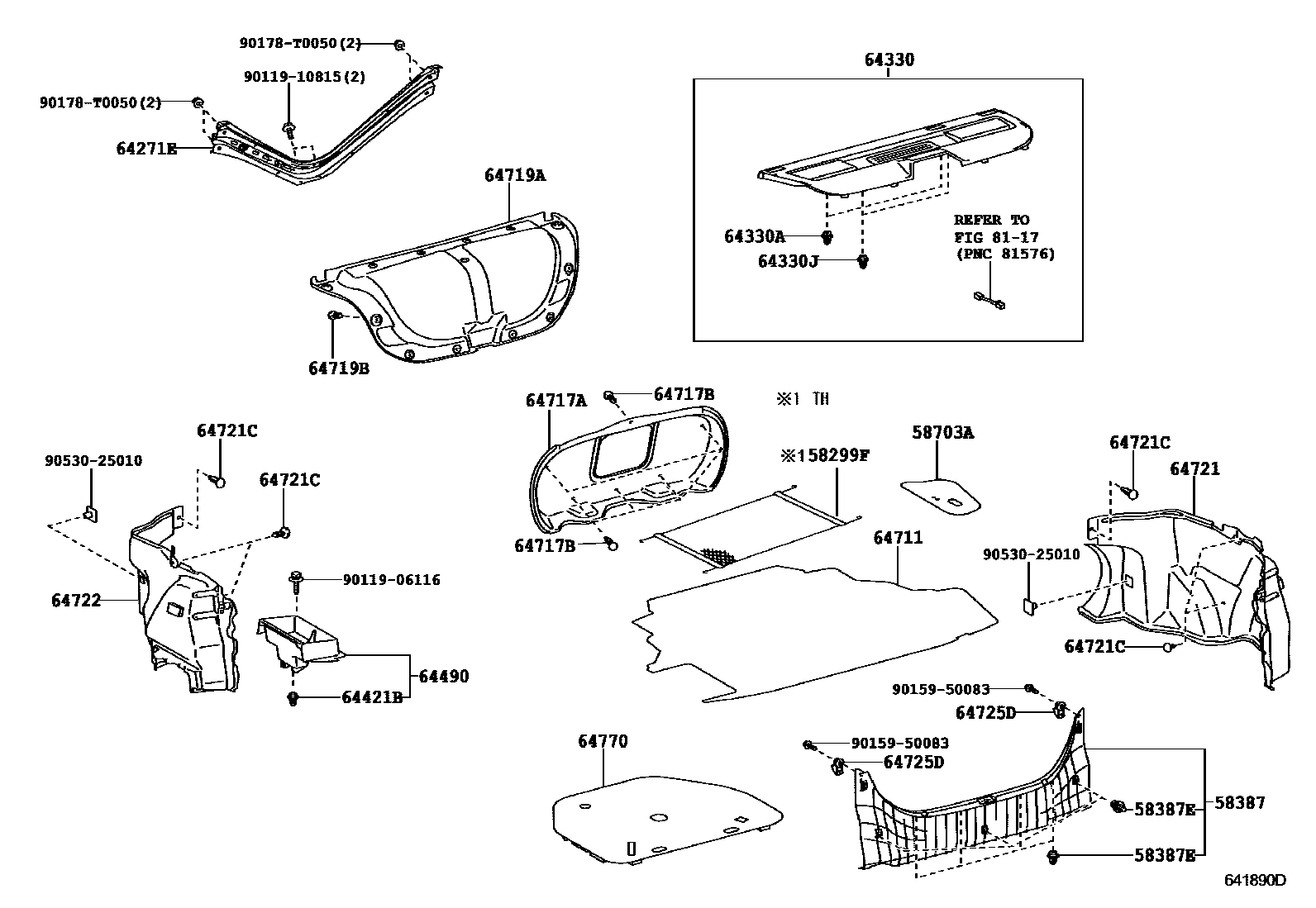

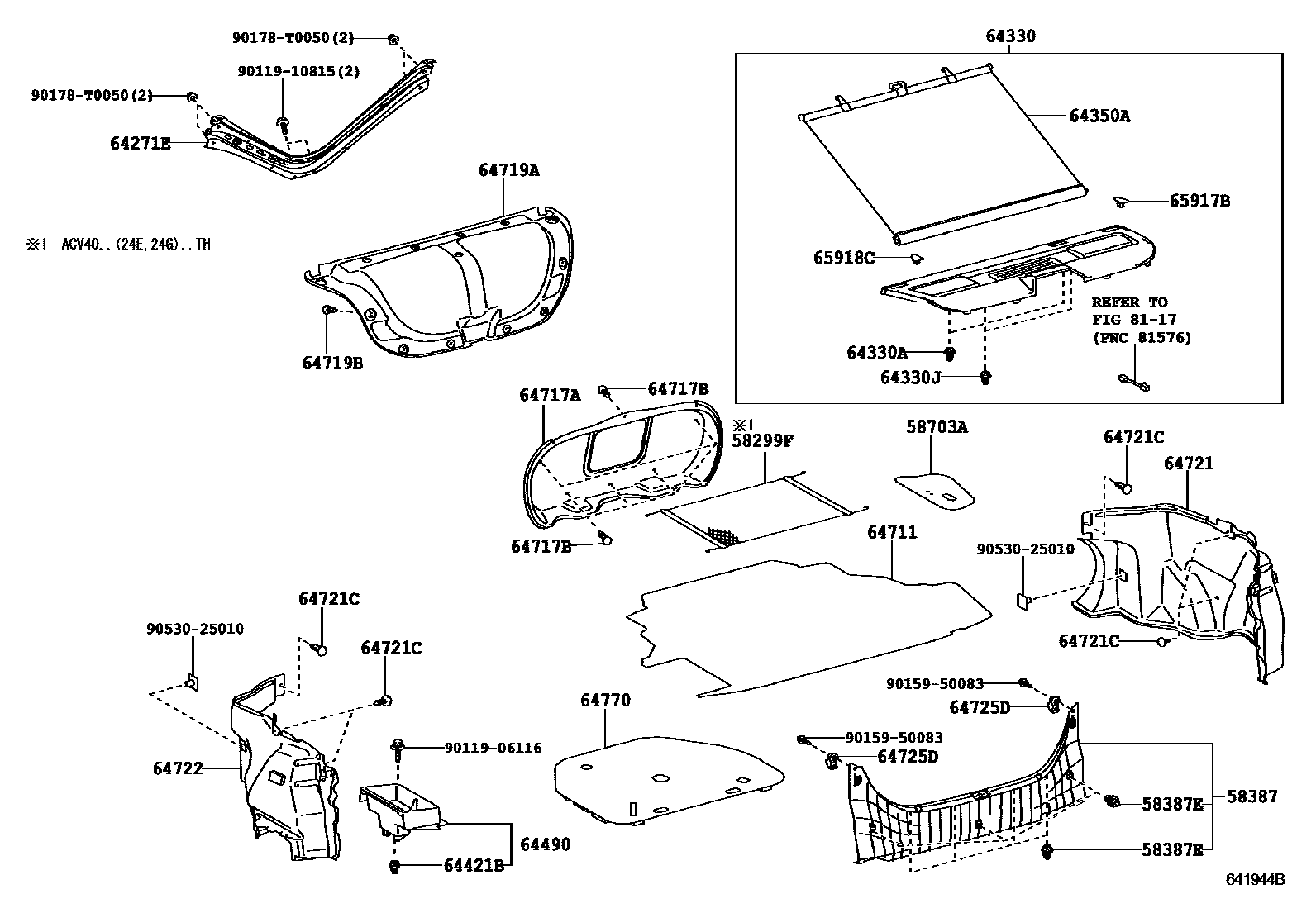

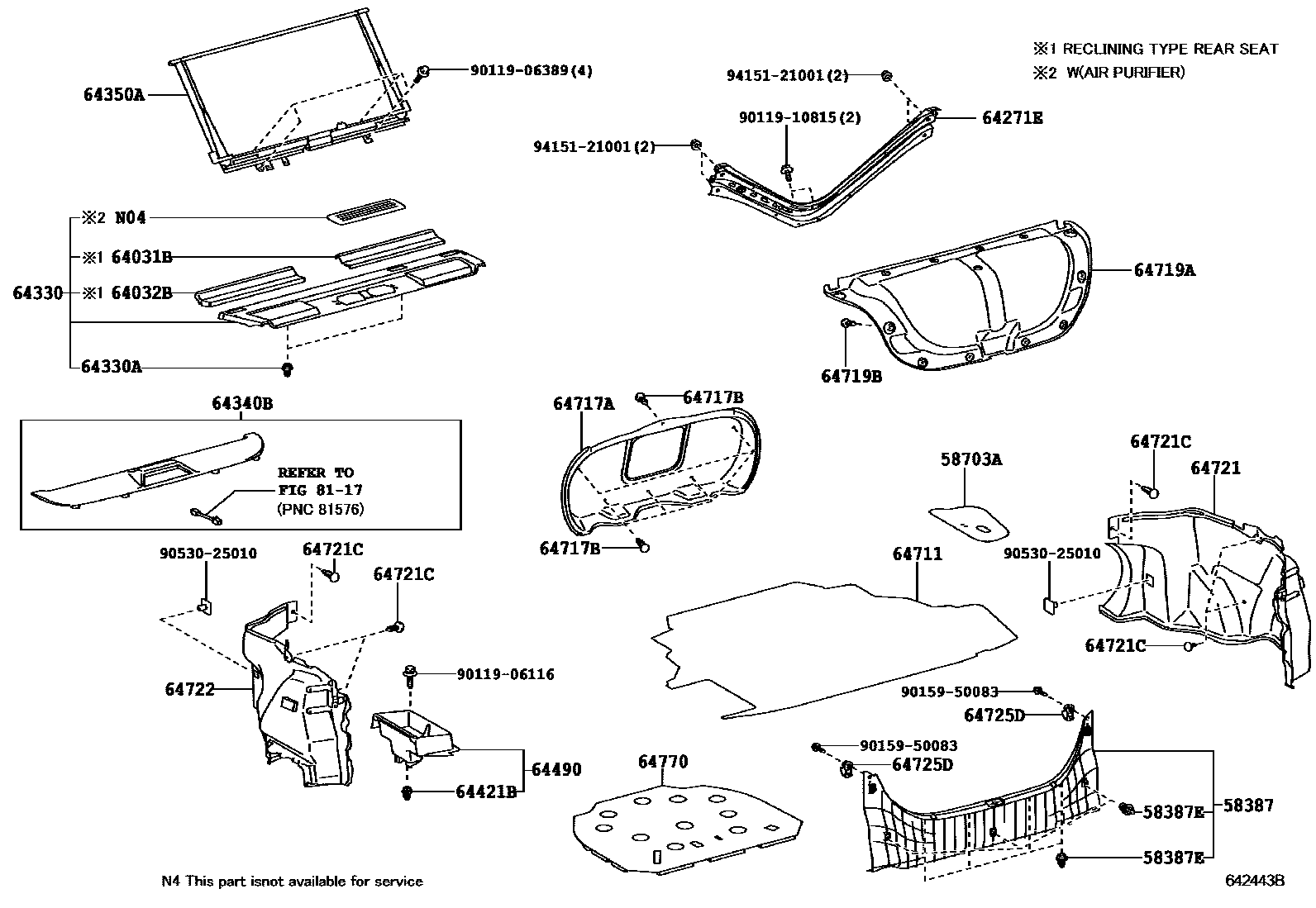

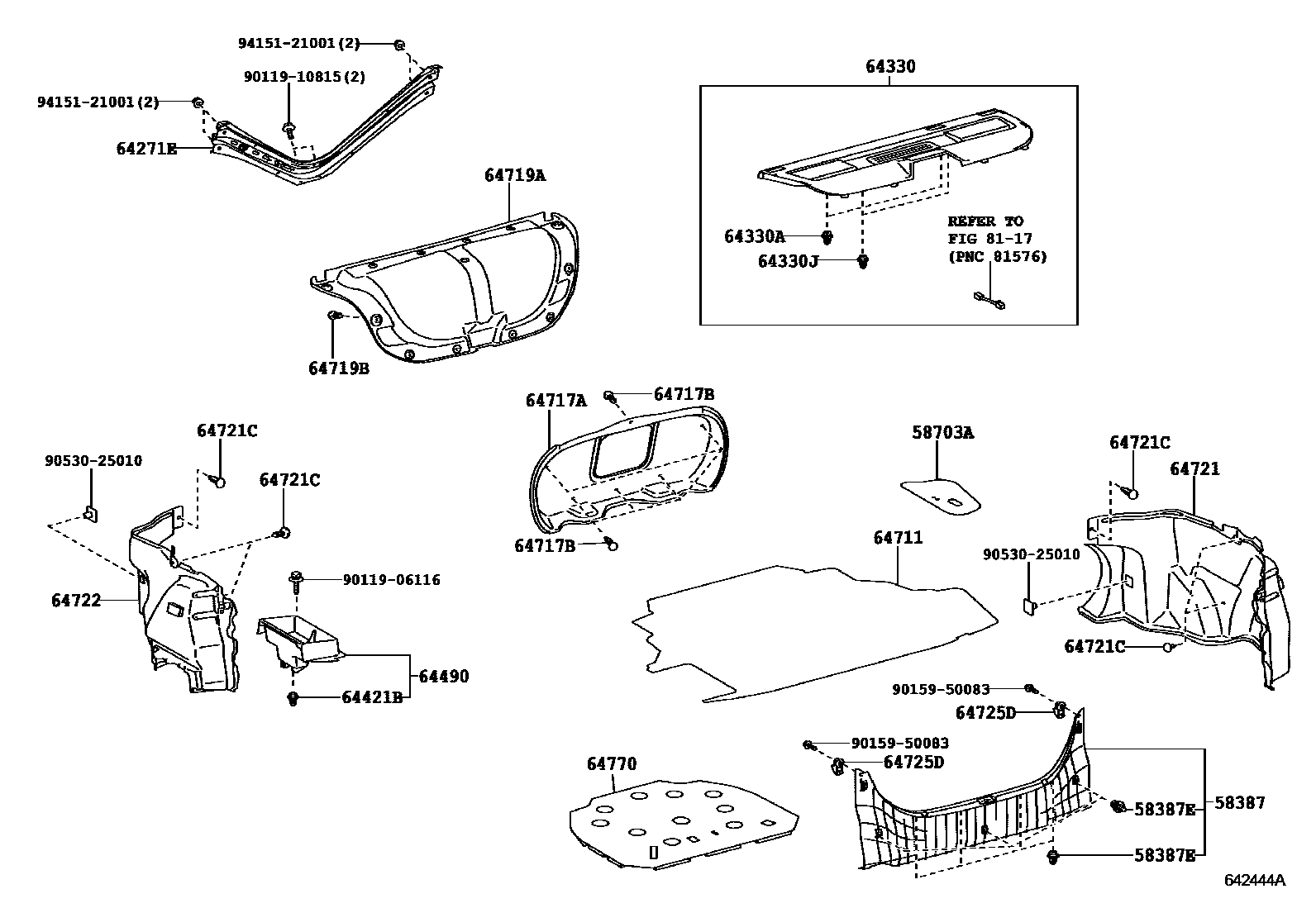

Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403
Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58299F | Luggage rack net | 58299-06010 |
| 58387 | Rear floor decorative panel | 58387-06080 · 58387-06090 |
| 58387E | Clip (for rear floor trim panel) | 90467-10161 · 90467-T0021 |
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-06080 · 58703-06090 |
| 64271E | compartment partition | 64241-06030 · 64241-06040 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 · 90467-T0021 |
| 64330J | Clip (for glove box decorative panel) | 90467-10167 |
| 64350A | Rear window sun visor assembly | 64350-06040 · 64350-06090 |
| 64421B | Clip (for luggage carrier) | 90467-10161 · 90467-T0021 |
| 64490 | Luggage side bracket assembly | 64490-06050 · 64490-06060 |
| 64725D | Luggage decorative hook No. 1 | 64725-06020 |
| 64770 | Spare tire cover assembly | 64770-06120 · 64770-06180 · 64770-06190 |
| 64777G | Spare tire cushion | 58798-06060 |
| 65917B | Curtain slide rail right end cap | 65917-06020 |
| 65918C | Curtain slide rail left end cap | 65918-06020 |
