Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

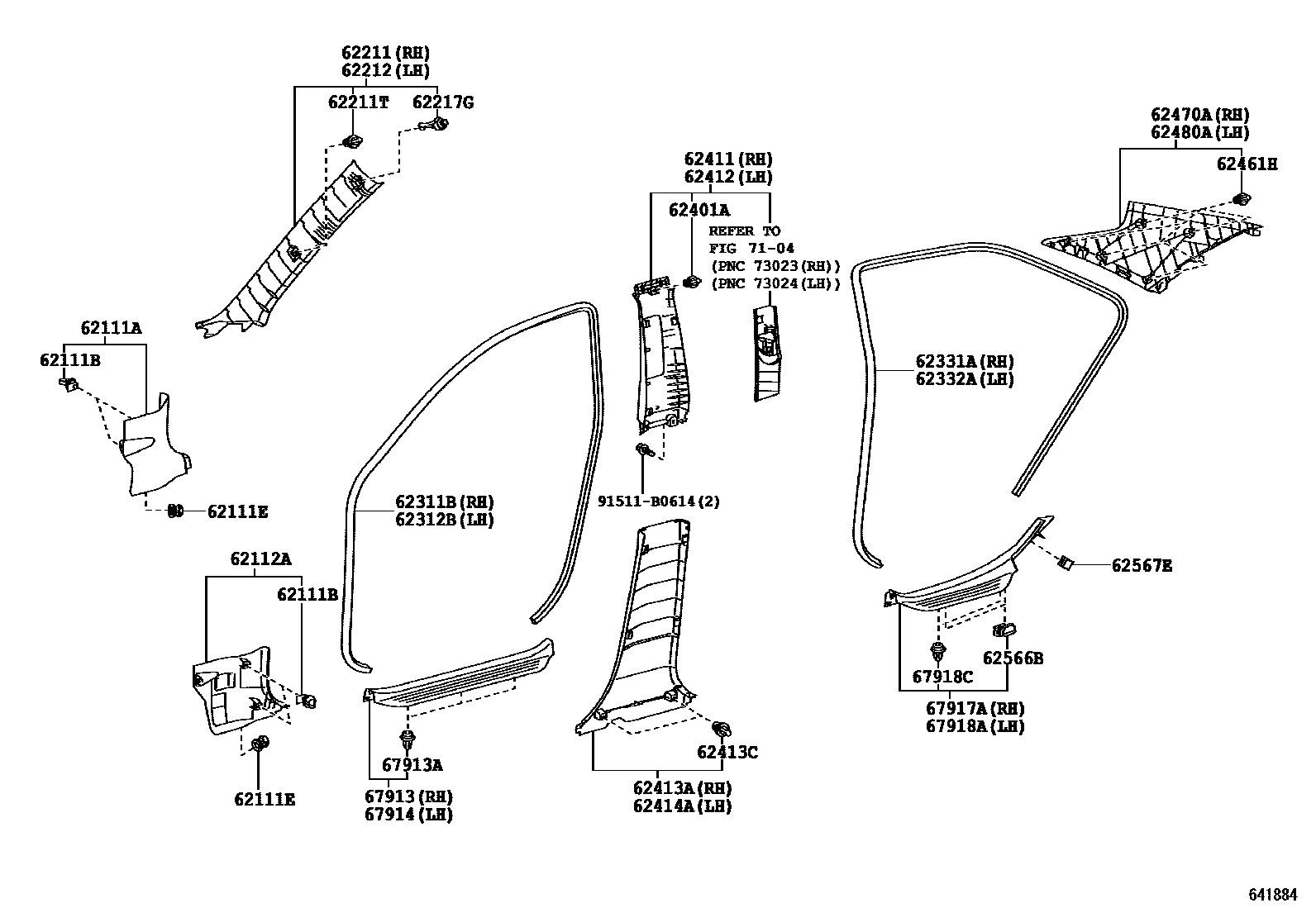

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-09212 |
| 62111E | Front wall side trim panel fixings | 90467-06147 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 · 90467-T0021 |
| 62217G | Front pillar decorative plate clip | 62217-33031 · 90950-08004 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 · 90467-T0021 |
| 62461H | Clips (for roof side interior panels) | 90467-10161 · 90467-T0021 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-06010 · 62566-32010 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-06020 · 62567-33040 |
| 67913A | Clip (for wear plate) | 90467-10161 · 90467-T0021 |
| 67918C | Catch (for rear door wear plate) | 90467-10161 · 90467-T0021 |
