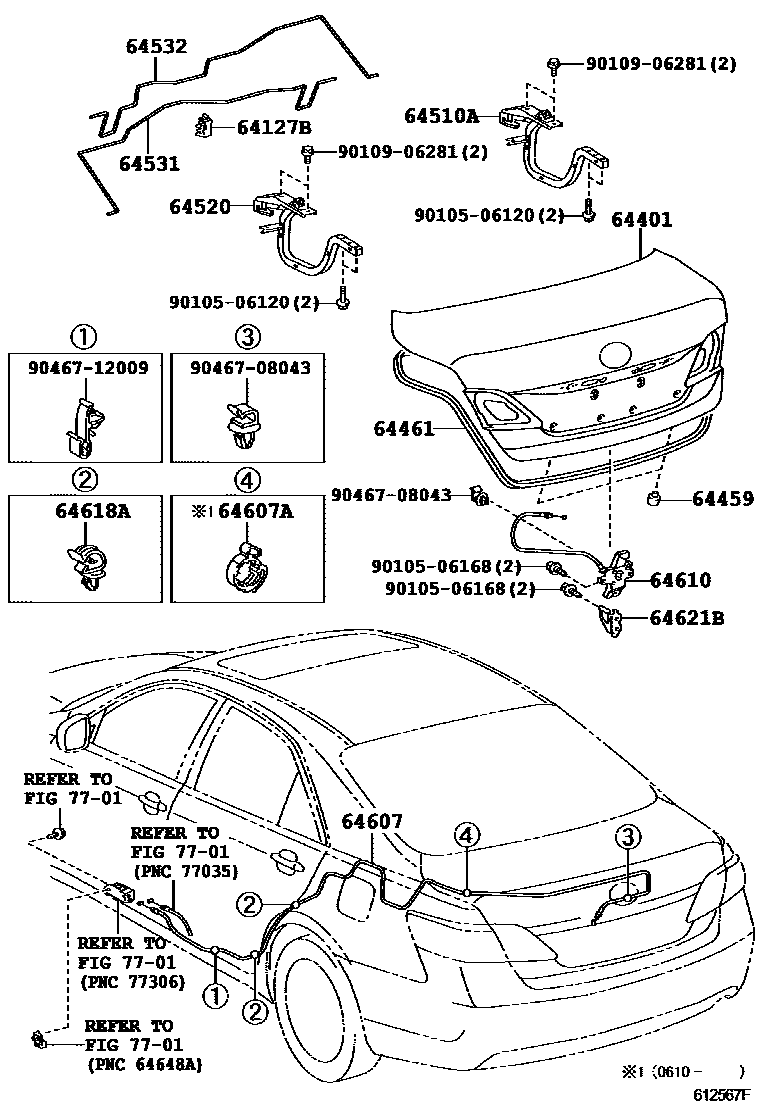

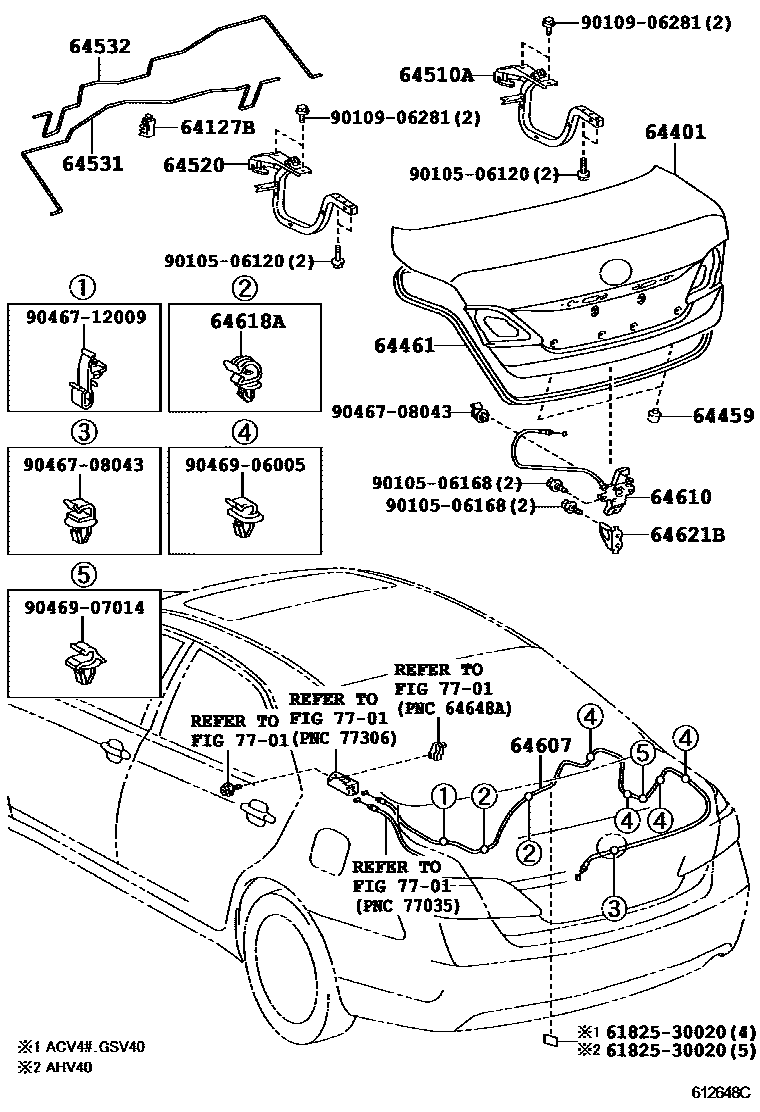

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06040 · 64127-33060 |
| 64401 | Trunk door panel sub-assembly | 64401-06300 · 64401-06320 · 64401-06330 · 64401-06350 |
| 64459 | Trunk door cushion | 90541-09116 |
| 64461 | Trunk door seal | 64461-06070 · 64461-06080 |
| 64510A | Trunk door right hinge assembly | 64510-06040 · 64510-06050 |
| 64520 | Trunk door left hinge assembly | 64510-06040 · 64510-06050 |
| 64531 | Trunk door right hinge torsion bar | 64531-06100 · 64531-06110 |
| 64532 | Trunk door left hinge torsion bar | 64532-06120 · 64532-06130 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06080 · 64607-06081 · 64607-06082 · 64607-06100 · 64607-06101 · 64607-06102 · 64607-06110 · 64607-06111 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 82711-35060 |
| 64610 | Trunk door lock assembly | 64600-06020 |
| 64618A | Trunk lock control cable clip | 82711-1E260 |
| 64621B | Trunk door latch | 64621-06050 |
