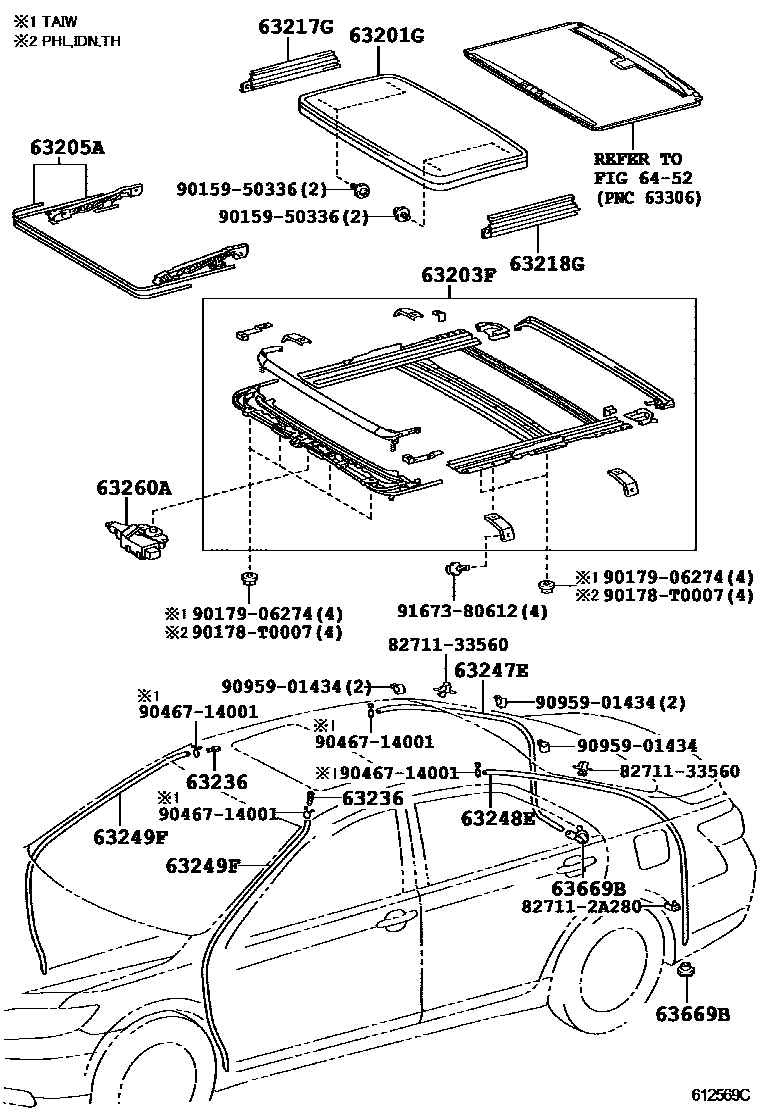

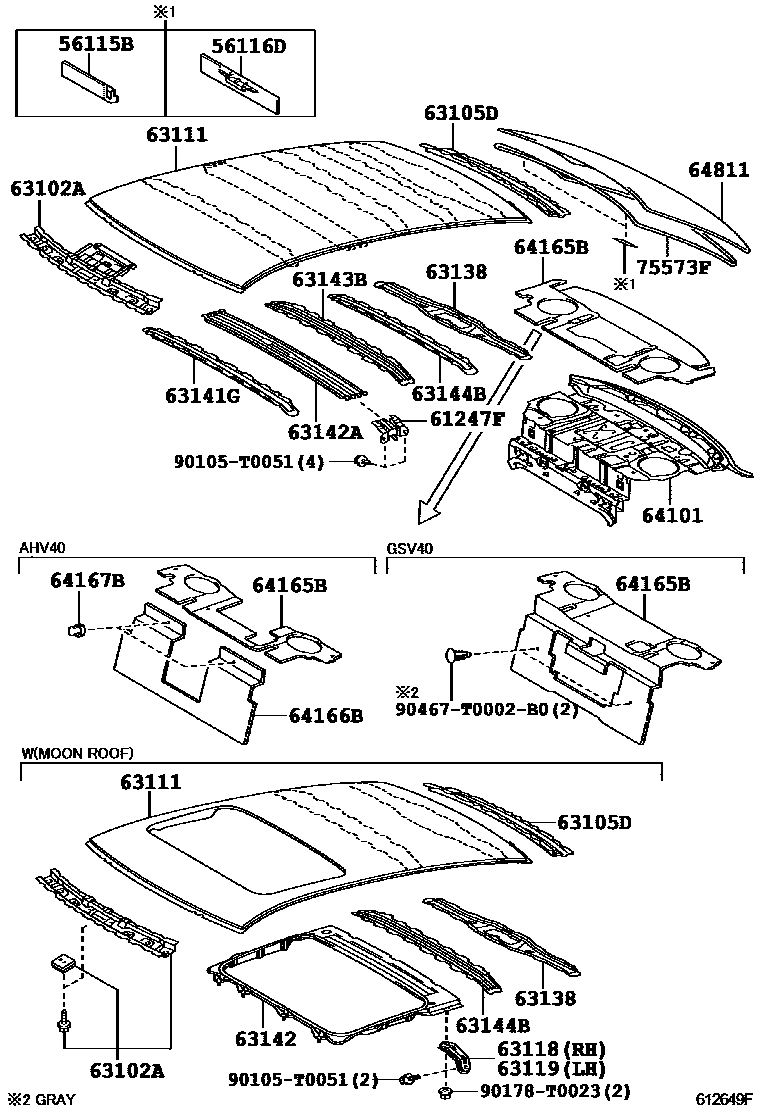

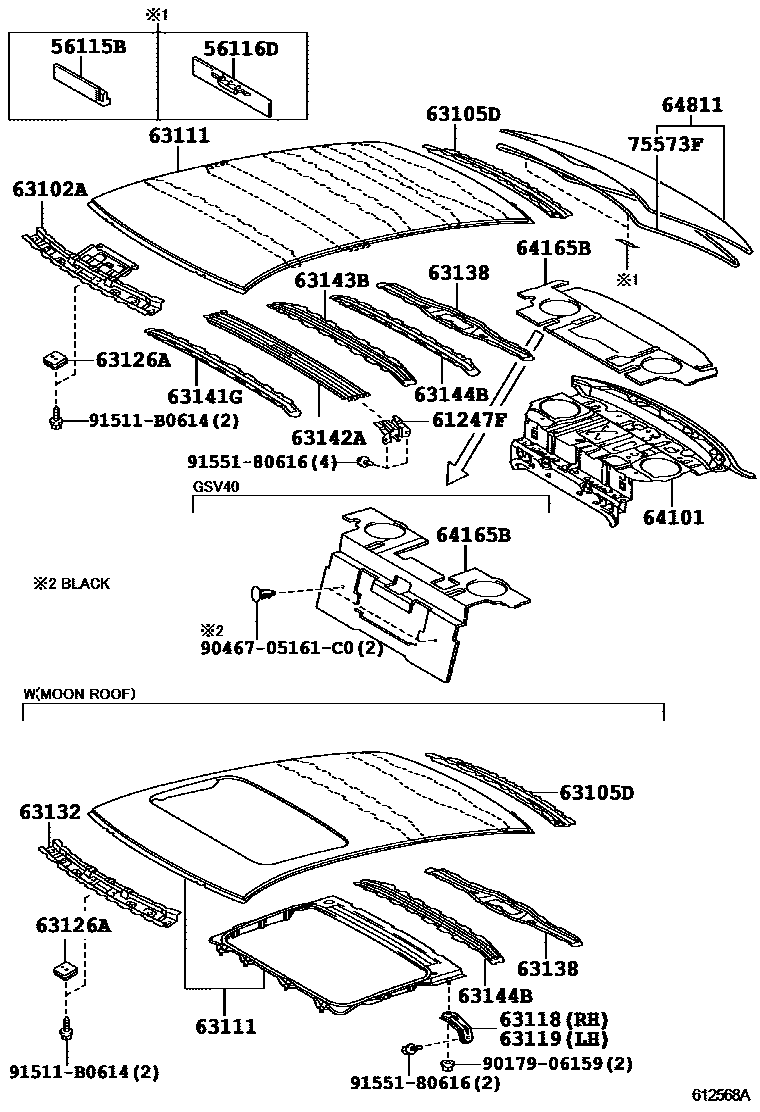

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-02020 · 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-06030 · 61247-06040 |
| 63102A | Windshield roof sub-assembly | 63102-06904 · 63102-06905 · 63102-06908 |
| 63105D | Rear window upper frame sub-assembly | 63105-06050 · 63105-06060 |
| 63111 | roof panel | 63111-06320 · 63111-06340 · 63111-06350 · 63111-06914 |
| 63118 | Right roof panel bracket | 63118-06030 · 63118-33030 |
| 63119 | Left roof panel bracket | 63118-06030 · 63118-33030 |
| 63126A | Windshield roof shock absorber | 63126-06020 |
| 63132 | Windshield inner roof panel | 63132-06050 |
| 63138 | No. 2 ceiling light bracket | 63138-06040 · 63138-06050 |
| 63141G | No. 1 roof panel reinforcement | 63143-06040 · 63143-06050 |
| 63142 | No. 2 roof panel reinforcement | 63142-33060 |
| 63142A | No. 2 roof panel reinforcement | 63103-06020 · 63103-06030 |
| 63143B | No. 3 roof panel reinforcement | 63148-06040 · 63148-06050 |
| 63144B | No. 4 roof panel reinforcement | 63144-06080 · 63144-06090 · 63144-06100 · 63144-33120 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-06080 · 63201-33100 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-06040 · 63203-33120 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-06010 · 63205-48010 |
| 63217G | Right sliding sunroof trim | 63217-48030 |
| 63218G | Sliding sunroof trim, left | 63218-48030 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-06030 · 63236-08010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-06040 · 63247-33020 |
| 63248E | Left rear sliding sunroof drain hose | 63248-06020 · 63248-33010 |
| 63249F | Sliding skylight drain hose | 63249-06080 · 63249-33120 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-06041 · 63260-06042 · 63260-33090 · 63260-33091 |
| 63669B | Sliding skylight drain seal | 63669-50010 · 90480-30035 |
| 64101 | Upper back panel sub-assembly | 64101-06160 · 64101-06170 · 64101-06171 · 64101-06230 · 64101-06250 |
| 64165B | No. 1 upper back panel hole cover | 64165-06070 · 64165-06080 · 64165-06090 · 64165-06160 · 64165-06170 · 64165-06210 |
| 64166B | No. 2 upper back panel hole cover | 64166-06010 |
| 64167B | No. 3 upper back panel hole cover | 64328-06010 |
| 64811 | back window glass | 64801-06030 · 64801-06901 · 64801-06902 · 64801-06903 · 64801-06904 |
| 75573F | Protective strip for rear window | 75573-06030 · 75573-06040 |
