Toyota CAMRY 侧梁 — Figure 6101

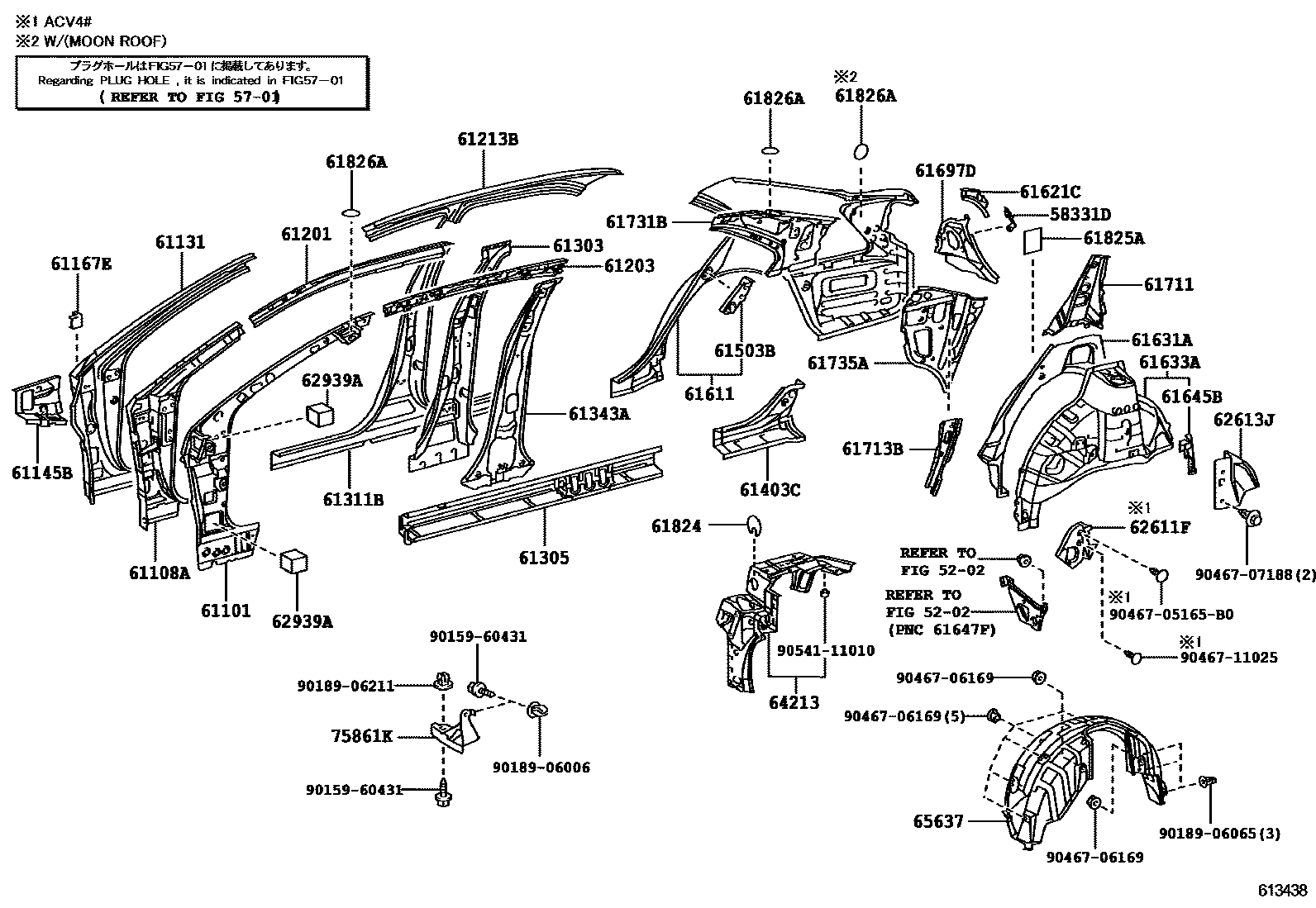

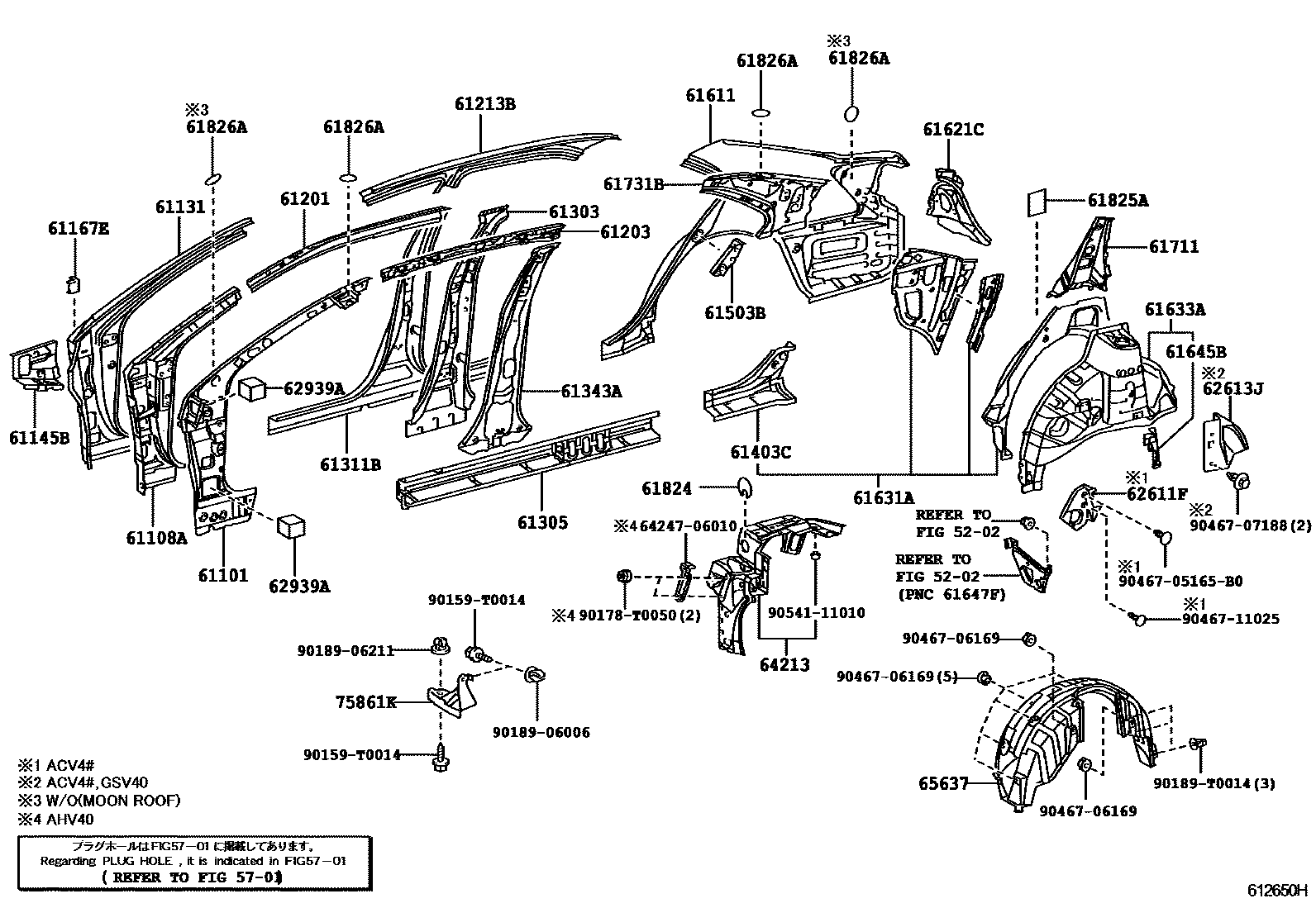

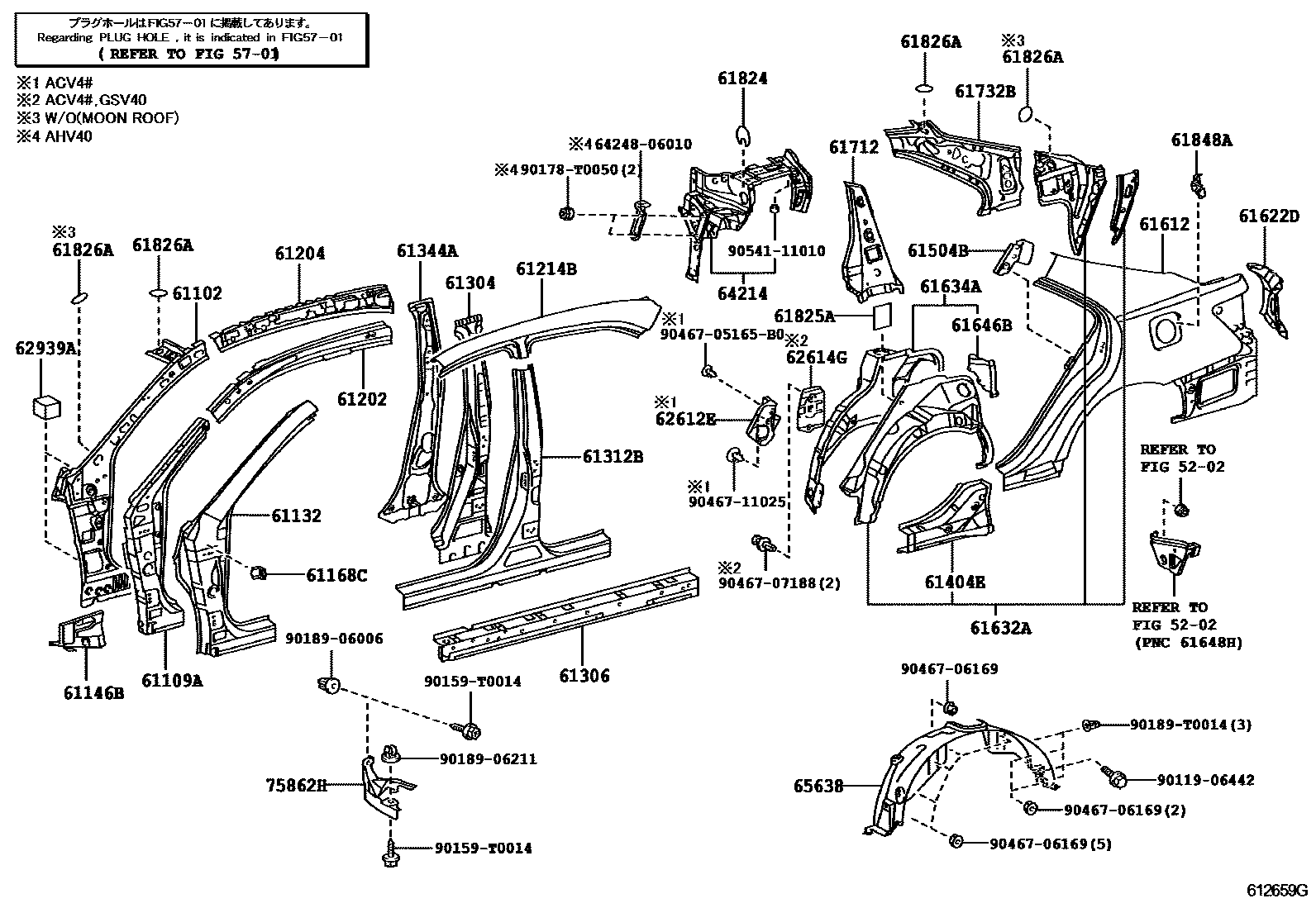

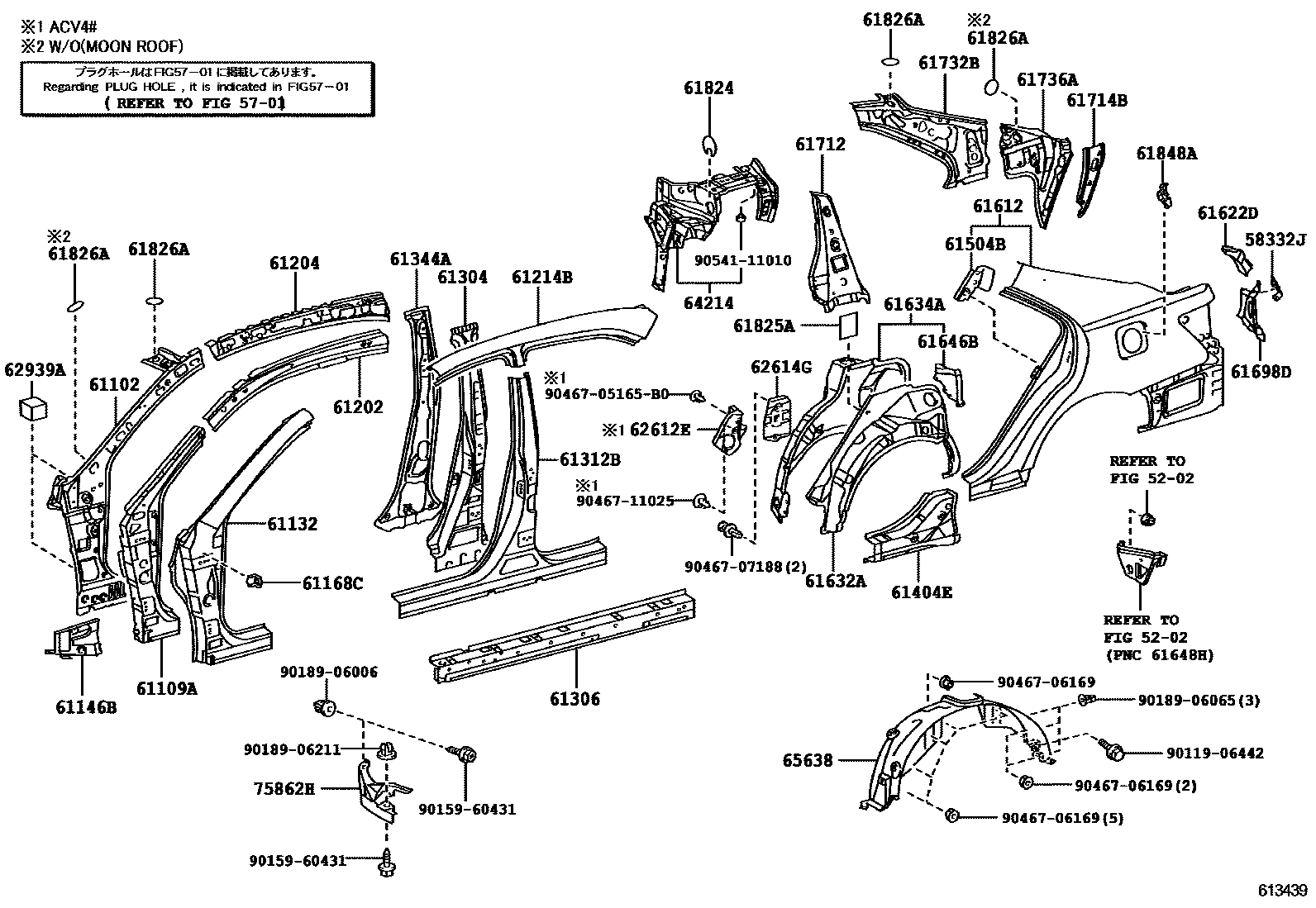

Toyota CAMRY EPC diagram 6101, 侧梁, with 4 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331D | No. 1 suitcase decorative panel bracket | 58331-06020 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-06020 |
| 61101 | Right front wall side panel sub-assembly | 61101-06090 · 61101-06100 |
| 61102 | Left front wall side panel sub-assembly | 61102-06110 · 61102-06120 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06060 · 61108-06070 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-06060 · 61109-06070 |
| 61131 | Right body outer front upper pillar | 61131-06070 · 61131-06080 |
| 61132 | Left body outer front upper pillar | 61132-06060 · 61132-06070 |
| 61145B | Right body front pillar lower corner panel | 61145-06040 · 61145-06050 |
| 61146B | Left body front pillar lower corner panel | 61146-06040 · 61146-06050 |
| 61167E | No. 6 outer column bracket | 61168-44010 |
| 61168C | No. 6 outer column bracket | 61168-44010 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-06020 · 61201-06030 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-06020 · 61202-06030 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06080 · 61203-06090 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06080 · 61204-06090 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06050 · 61213-06060 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06040 · 61214-06050 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-06030 · 61303-06040 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-06030 · 61304-06040 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-06040 · 61305-06050 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-06040 · 61306-06050 |
| 61311B | Right body outer center pillar | 61311-06040 · 61311-06050 |
| 61312B | Left body outer center pillar | 61312-06040 · 61312-06050 |
| 61343A | Right body inner center pillar | 61307-06040 · 61307-06050 |
| 61344A | Left body inner center pillar | 61308-06040 · 61308-06050 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-06030 · 61403-06040 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-06030 · 61404-06040 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-06060 · 61503-06070 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-06060 · 61504-06070 |
| 61611 | Right side hoarding | 61601-06140 · 61601-06150 |
| 61612 | left side panel | 61602-06130 · 61602-06140 |
| 61621C | Luggage right opening slot | 61621-06040 · 61621-06908 |
| 61622D | Rear door left opening slot | 61622-06040 · 61622-06908 |
| 61631A | Right wheel cover outer panel | 61631-06070 · 61631-06901 |
| 61632A | Left side wheel cover outer panel | 61632-06070 · 61632-06901 |
| 61633A | Right wheel housing lining panel | 61633-06901 · 61633-06902 |
| 61634A | Left side wheel housing lining panel | 61634-06901 · 61634-06902 |
| 61645B | Right rear side wheel housing corner panel | 61645-06050 · 61645-06060 · 61645-33030 |
| 61646B | Left rear side wheel housing corner panel | 61646-06050 · 61646-06060 · 61646-33030 |
| 61697D | Right side enclosure end cover | 61697-06070 |
| 61698D | Left side enclosure end cover | 61698-06070 |
| 61711 | Roof right side outer panel | 61711-06060 · 61711-06070 |
| 61712 | Roof left outer panel | 61712-06060 · 61712-06070 |
| 61713B | Roof right outer reinforcement | 61713-06050 |
| 61714B | Roof left outer reinforcement | 61714-06050 |
| 61731B | Roof right inner panel | 61731-06090 · 61731-06100 |
| 61732B | Roof left inner panel | 61732-06080 · 61732-06081 · 61732-06090 |
| 61735A | Right rear roof inner panel | 61735-06060 · 61735-06061 |
| 61736A | Left rear roof inner panel | 61736-06060 · 61736-06061 |
| 61824 | Noise Control Panel No. 1 | 61824-33020 |
| 61825A | Noise Control Panel No. 2 | 61825-30020 |
| 61826A | Noise Control Panel No. 3 | 61824-12050 |
| 61848A | Left side panel fixing | 61848-06050 |
| 62611F | Right wheel cover vibration isolation pad | 62611-06040 · 62611-06060 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-06040 · 62612-06060 |
| 62613J | No. 2 right wheel cover vibration isolation pad | 62613-06010 · 62613-06030 |
| 62614G | No. 2 left wheel cover vibration isolation pad | 62614-06010 · 62614-06030 |
| 62939A | Side ventilation silencers | 62939-32030 |
| 64213 | Glove box filter right extension | 64201-06080 · 64201-06090 |
| 64214 | Glove box filter left extension | 64202-06080 · 64202-06090 |
| 65637 | Right rear wheel house lining | 65637-06020 · 65637-06030 |
| 65638 | Left rear wheel house lining | 65638-06020 · 65638-06030 |
| 75861K | Right side door sill panel protective strip protective cover | 75861-06030 · 75861-06040 |
| 75862H | Left side door sill panel protective strip protective cover | 75862-06040 · 75862-06050 |
