Toyota CAMRY 中央扶手箱和支架 — Figure 5806

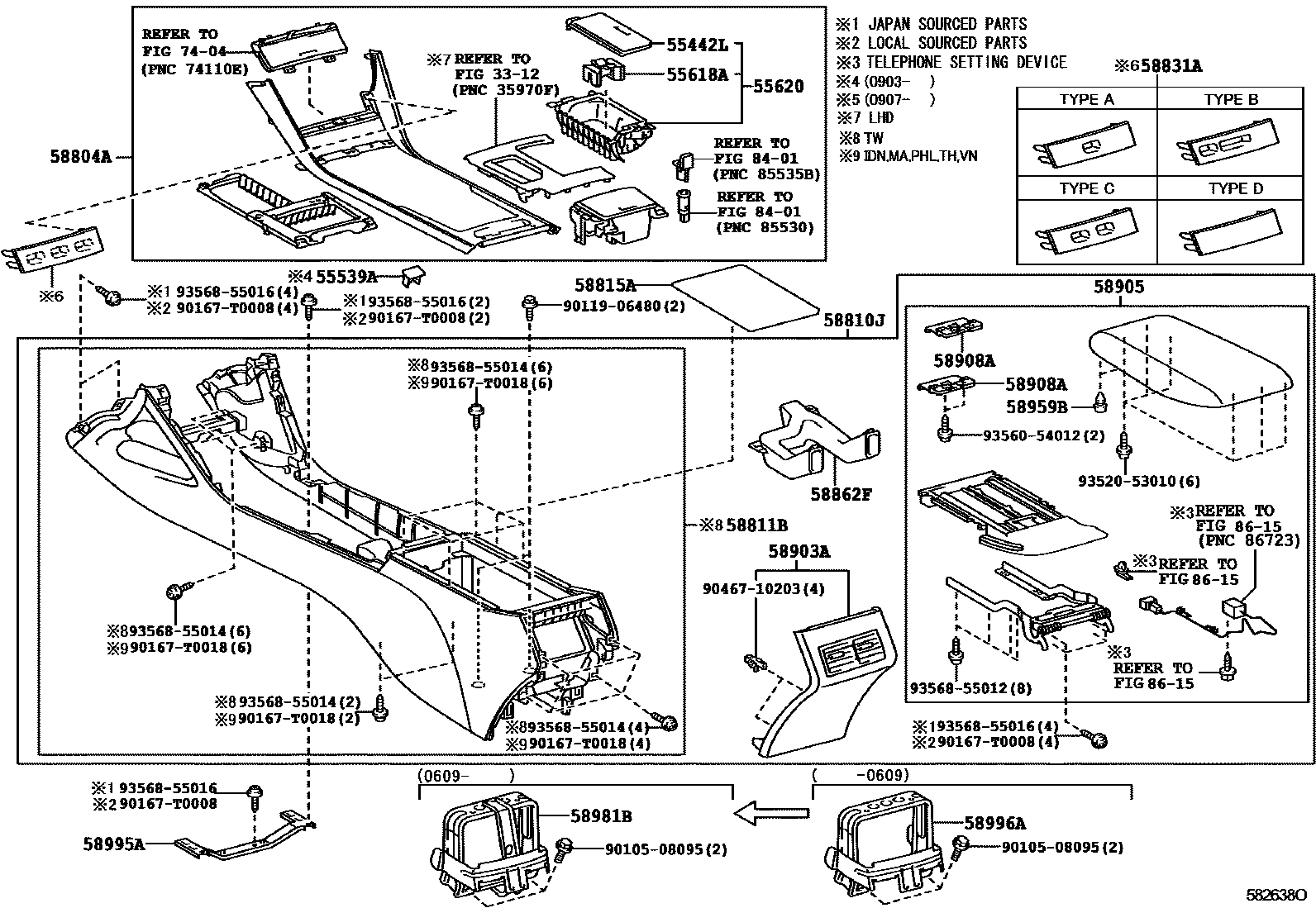

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55442L | Dashboard storage box cover | 55442-06080 · 55442-06090 · 55442-06100 · 55442-06110 · 55442-06220 |
| 55618A | Armrest box cup holder | 55618-06070 · 55618-06080 |
| 55620 | Dashboard cup holder assembly | 55620-06120 · 55620-06130 · 55620-06140 · 55620-06150 · 55620-06260 |
| 58815A | Armrest box felt pad | 58815-06060 · 58815-06070 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06250 · 58831-06260 · 58831-06270 · 58831-06280 · 58831-06350 · 58831-06360 · 58831-06430 · 58831-06440 |
| 58862F | Air duct No. 2 for armrest box | 58862-06070 · 58862-06080 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-33010 |
| 58981B | Armrest Box No. 1 Installation Fixing Bracket | 58981-06010 · 58981-06020 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06080 · 58995-06090 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06040 · 58996-06050 |
