Toyota CAMRY 地板垫和地毯 — Figure 5804

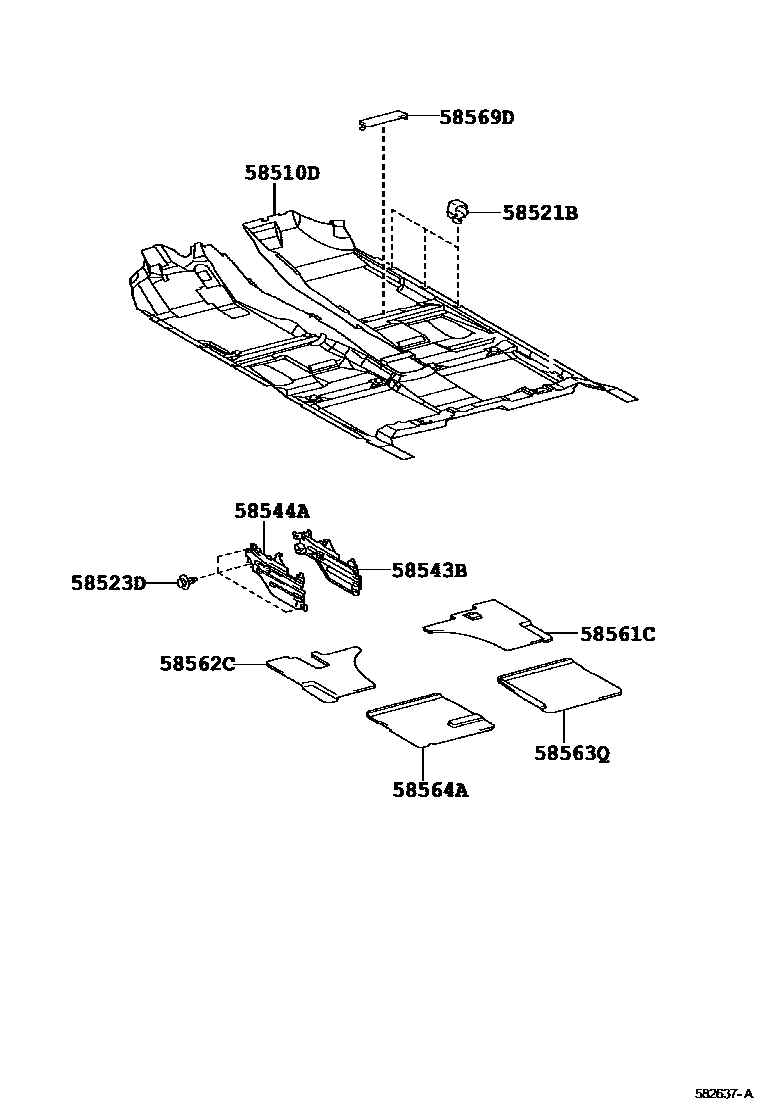

Toyota CAMRY EPC diagram 5804, 地板垫和地毯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58510D | front carpet assembly | 58510-06291 |
| 58521B | carpet hook | 58521-06040 · 58521-33040 |
| 58543B | Right carpet bracket | 58543-06030 · 58543-06050 |
| 58544A | left carpet bracket | 58544-06030 · 58544-06050 |
| 58561C | Front floor silencer No. 1 | 58561-06050 · 58561-06070 |
| 58562C | Front floor silencer No. 2 | 58562-06050 · 58562-06070 |
| 58563Q | Front floor silencer No. 3 | 58563-06040 · 58563-06060 |
| 58564A | Front floor silencer No. 4 | 58564-06040 · 58564-06060 |
