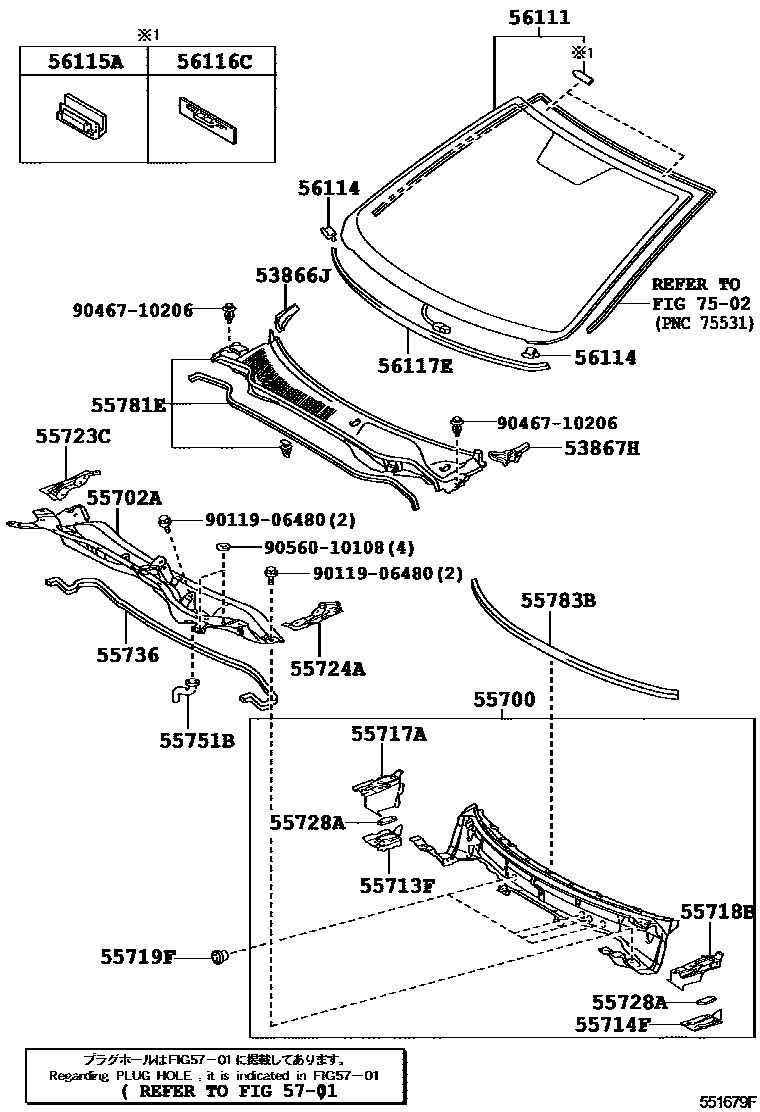

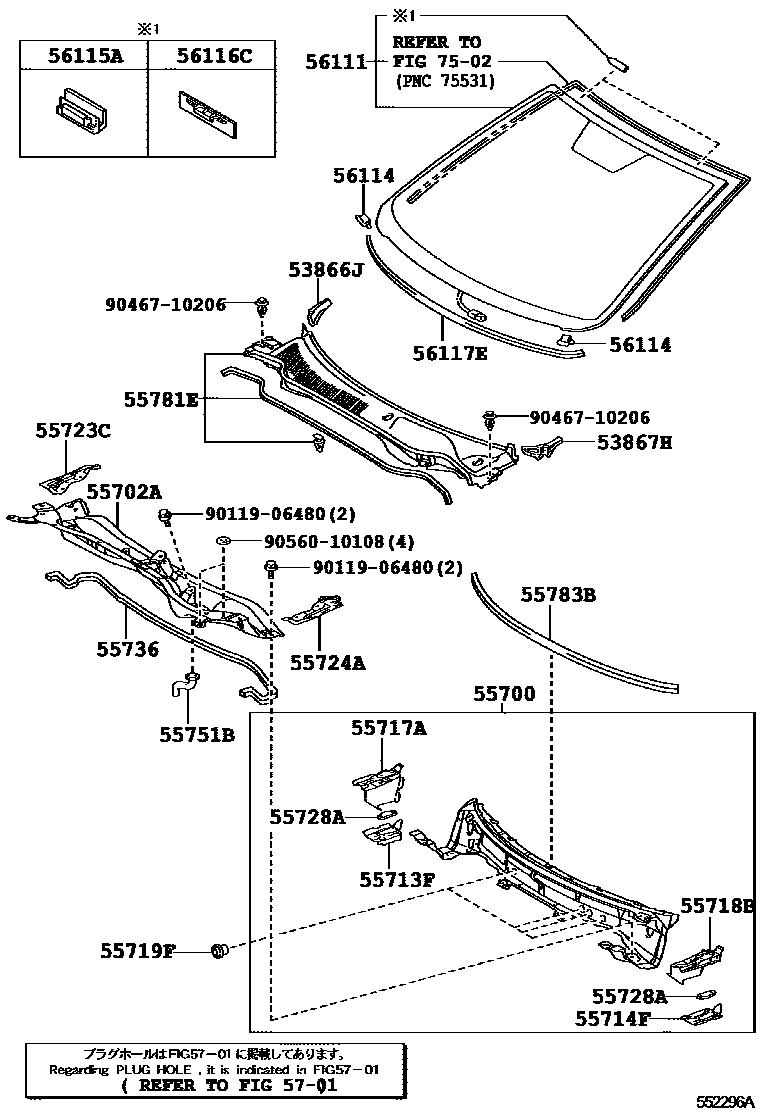

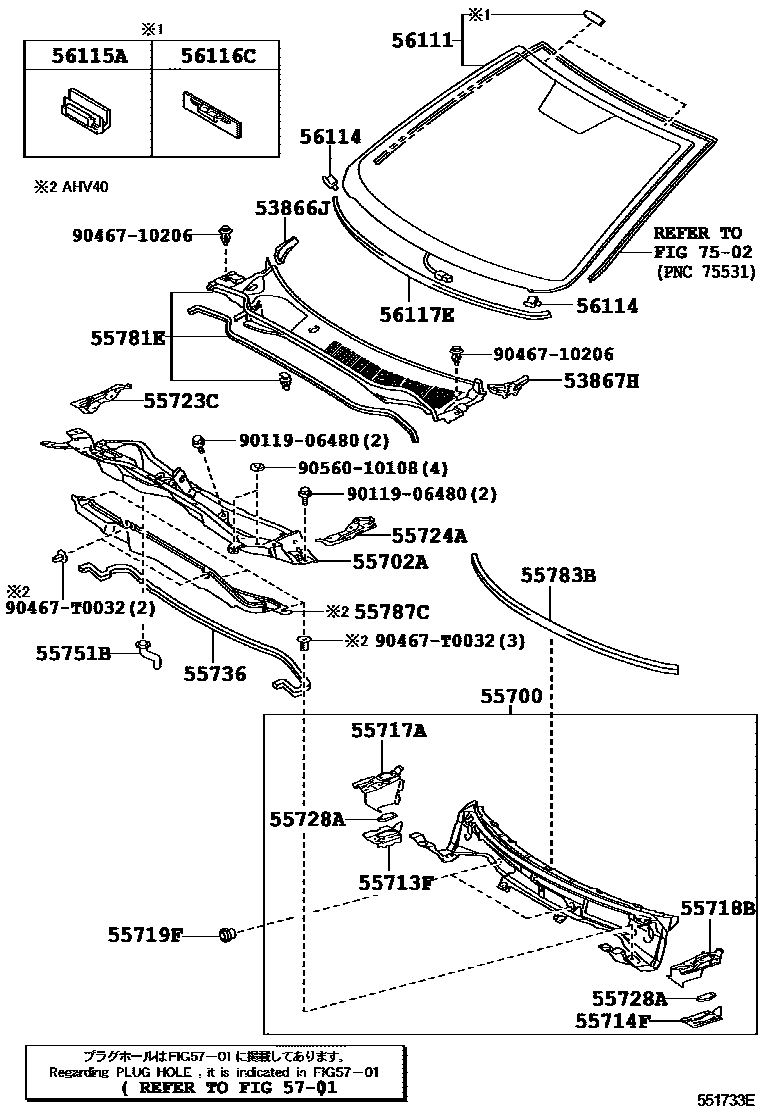

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-06030 · 53866-33060 |
| 53867H | Left front fender to cowl side seal | 53867-06030 · 53867-33060 |
| 55700 | Front panel assembly | 55701-06130 · 55701-06140 · 55701-06150 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-06020 · 55702-06030 · 55702-06040 · 55702-06041 · 55702-06050 |
| 55713F | Right front wall upper side reinforcement | 55713-06060 · 55713-06070 |
| 55714F | Left front wall upper side reinforcement | 55714-06060 · 55714-06070 |
| 55717A | Upper right inner panel of cowl | 55717-06070 · 55717-06080 |
| 55718B | Upper left inner panel of front wall | 55718-06070 · 55718-06080 |
| 55719F | Front lower panel seal | 55719-06030 · 55719-06040 |
| 55723C | Right front wall upper side reinforcement | 55723-06060 · 55723-06070 |
| 55724A | Left front wall upper side reinforcement | 55724-06070 · 55724-06080 |
| 55728A | Engine cover block reinforcement | 55728-06040 · 55728-06050 |
| 55736 | Waterproof cover plate seal | 55736-06020 · 55736-06030 · 55736-06080 |
| 55751B | Front no. 1 water hose | 55751-06020 · 55751-06030 · 55751-33010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06090 · 55708-06100 · 55708-33100 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-06040 · 55783-06050 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-06020 |
| 56111 | windshield | 56101-06190 · 56101-06191 · 56101-06200 · 56101-06201 · 56101-06909 · 56101-06910 · 56101-06911 · 56101-06912 · 56101-06913 · 56101-06914 · 56101-06915 · 56101-06916 · 56101-06917 · 56101-06918 · 56101-06919 · 56101-06920 · 56101-06921 · 56101-06922 · 56101-06923 · 56101-06924 · 56101-06925 · 56101-06934 · 56101-06935 · 56101-06936 · 56101-06937 · 56101-06938 · 56101-06939 · 56101-06940 · 56101-06941 · 56101-06942 |
| 56114 | windshield stopper | 56114-22050 · 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-02020 · 56116-22050 |
| 56117E | Window glass adhesive seals | 56117-33100 |
