Toyota CAMRY 仪表板和手套箱 — Figure 5501

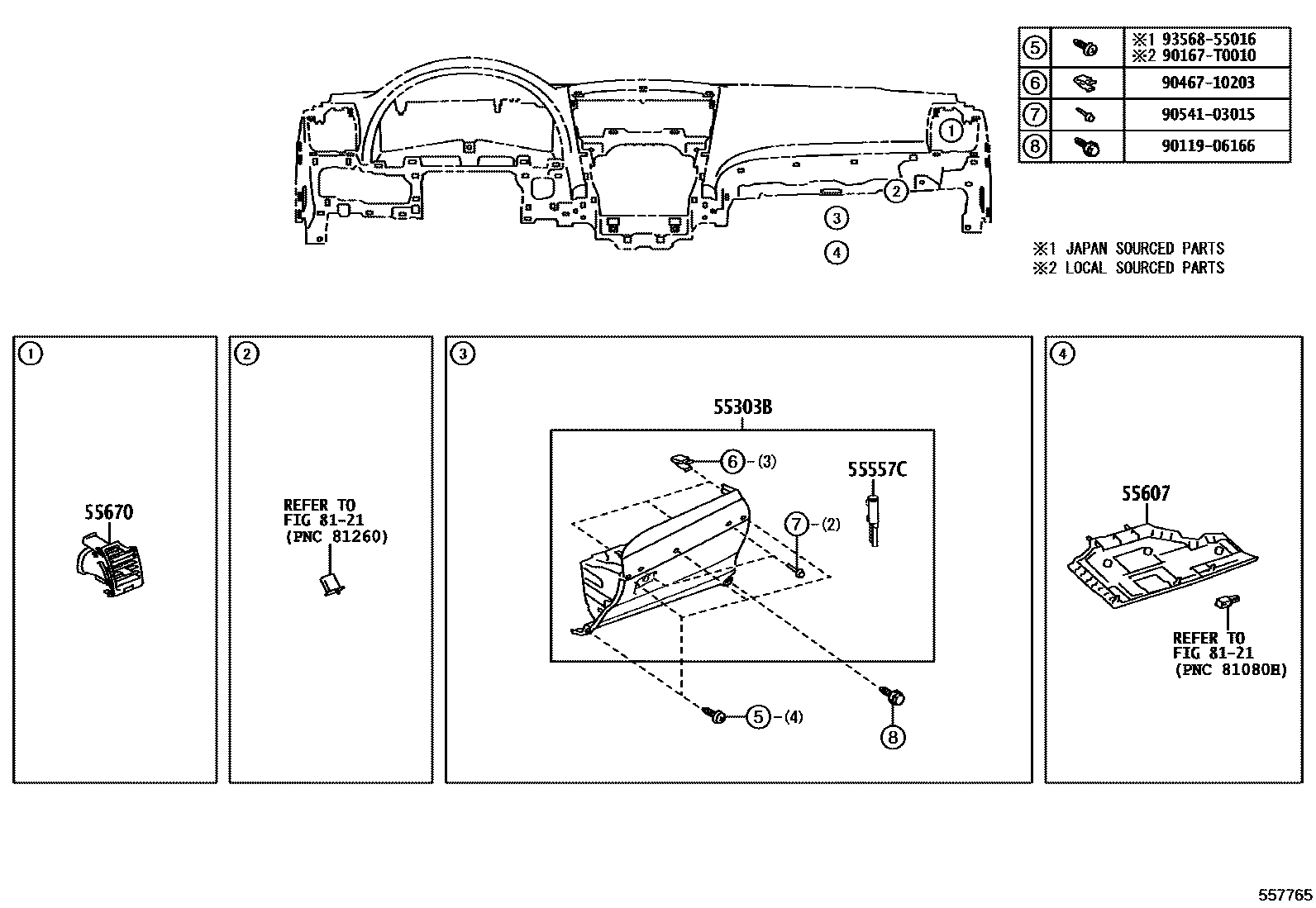

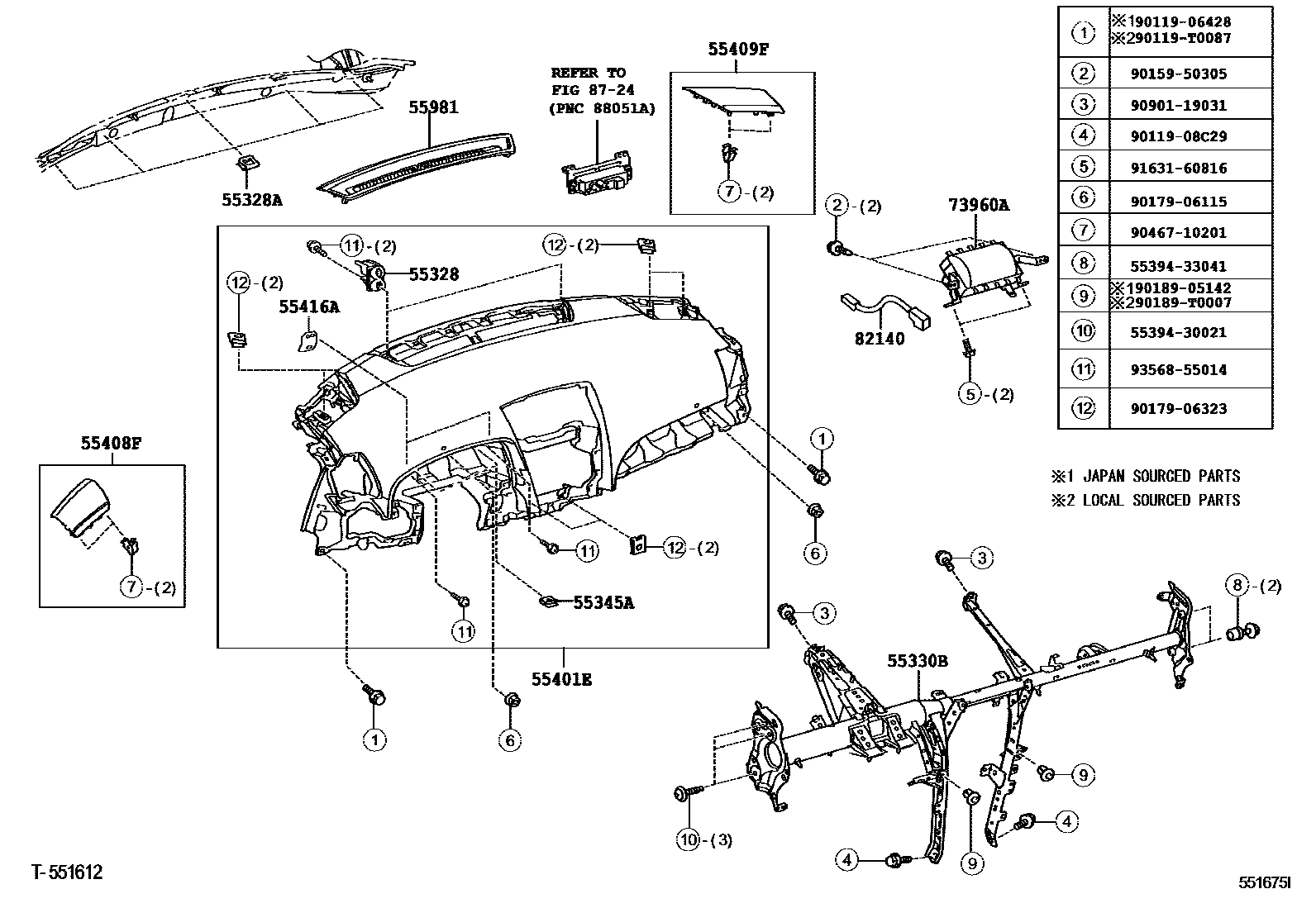

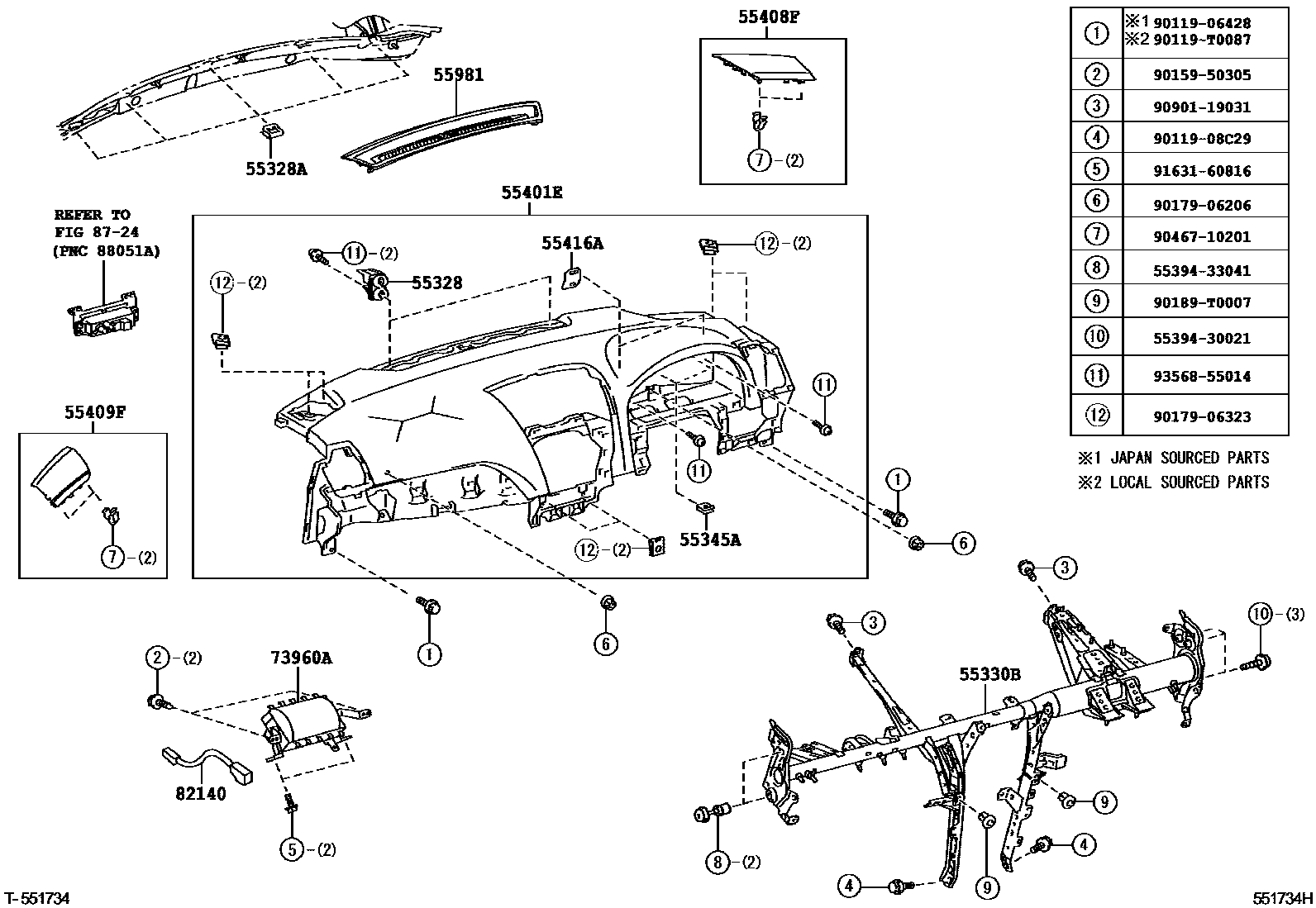

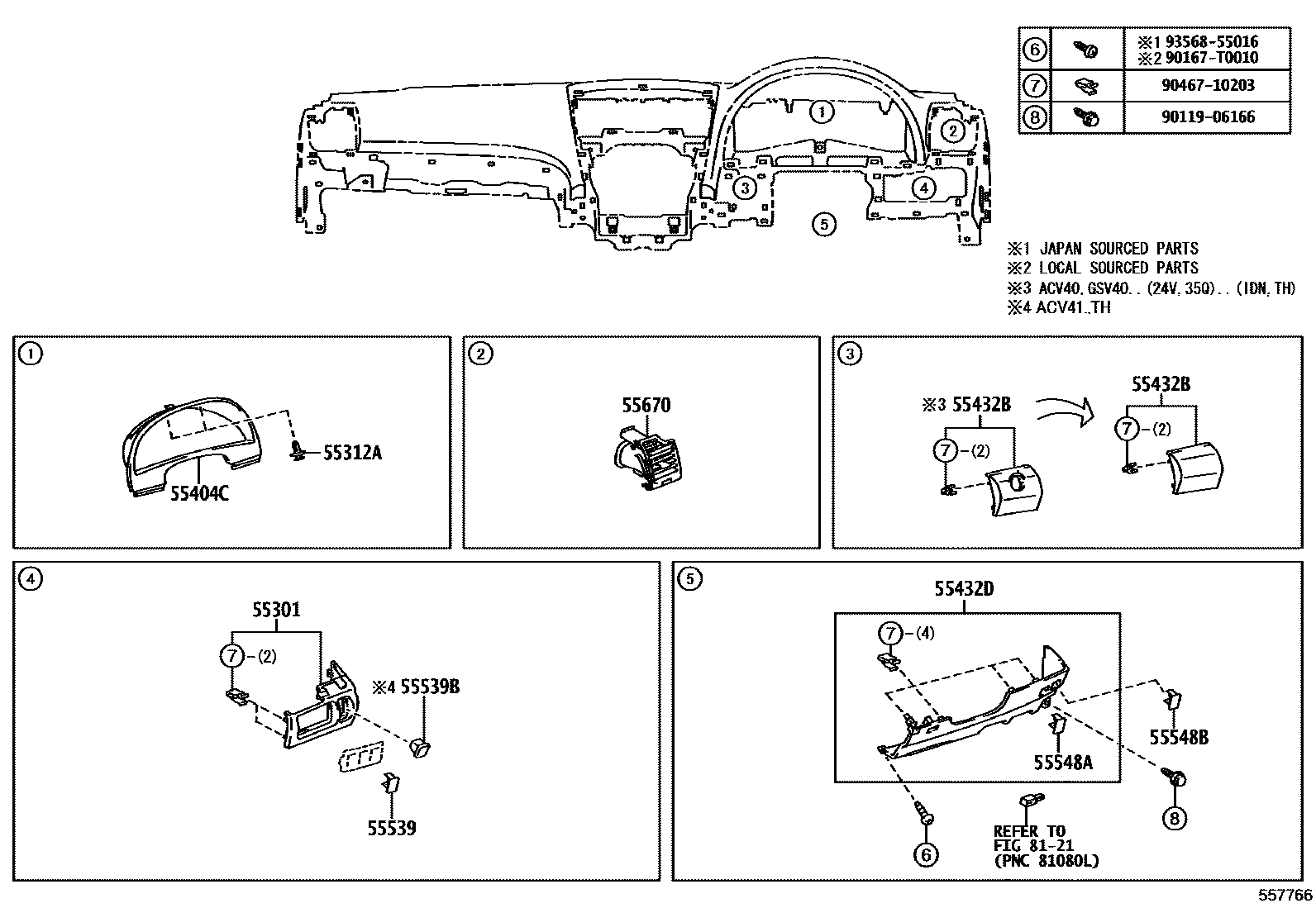

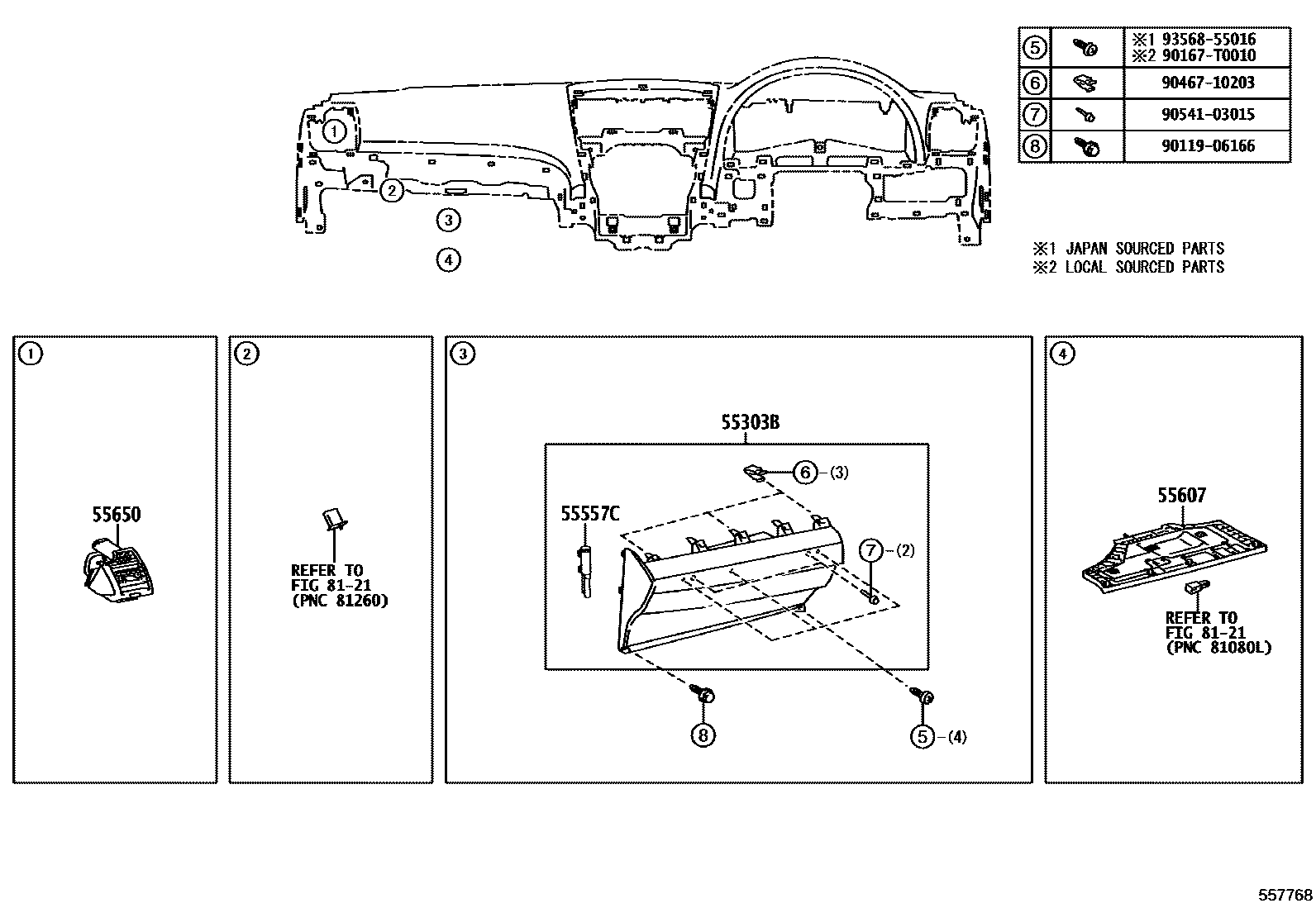

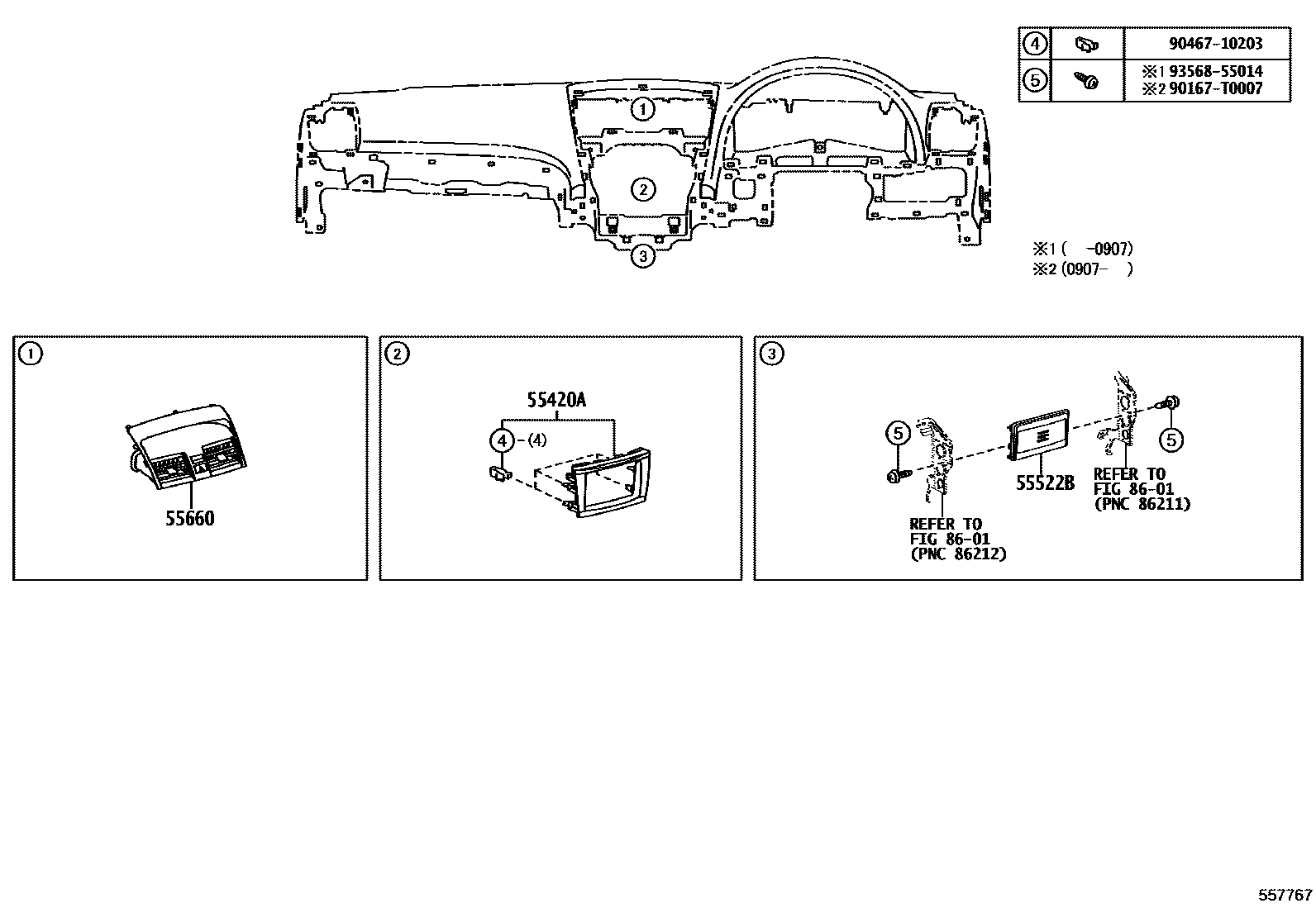

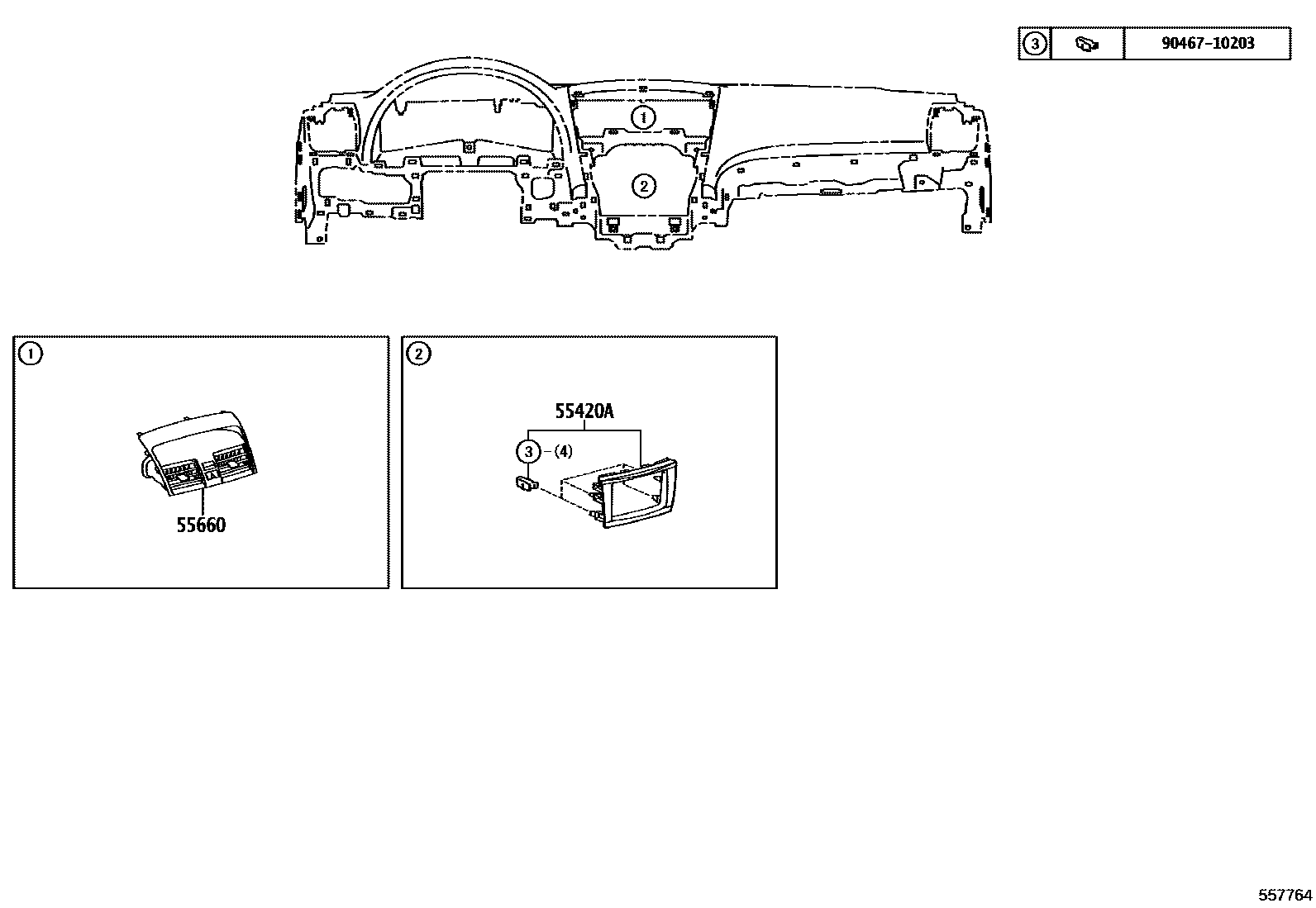

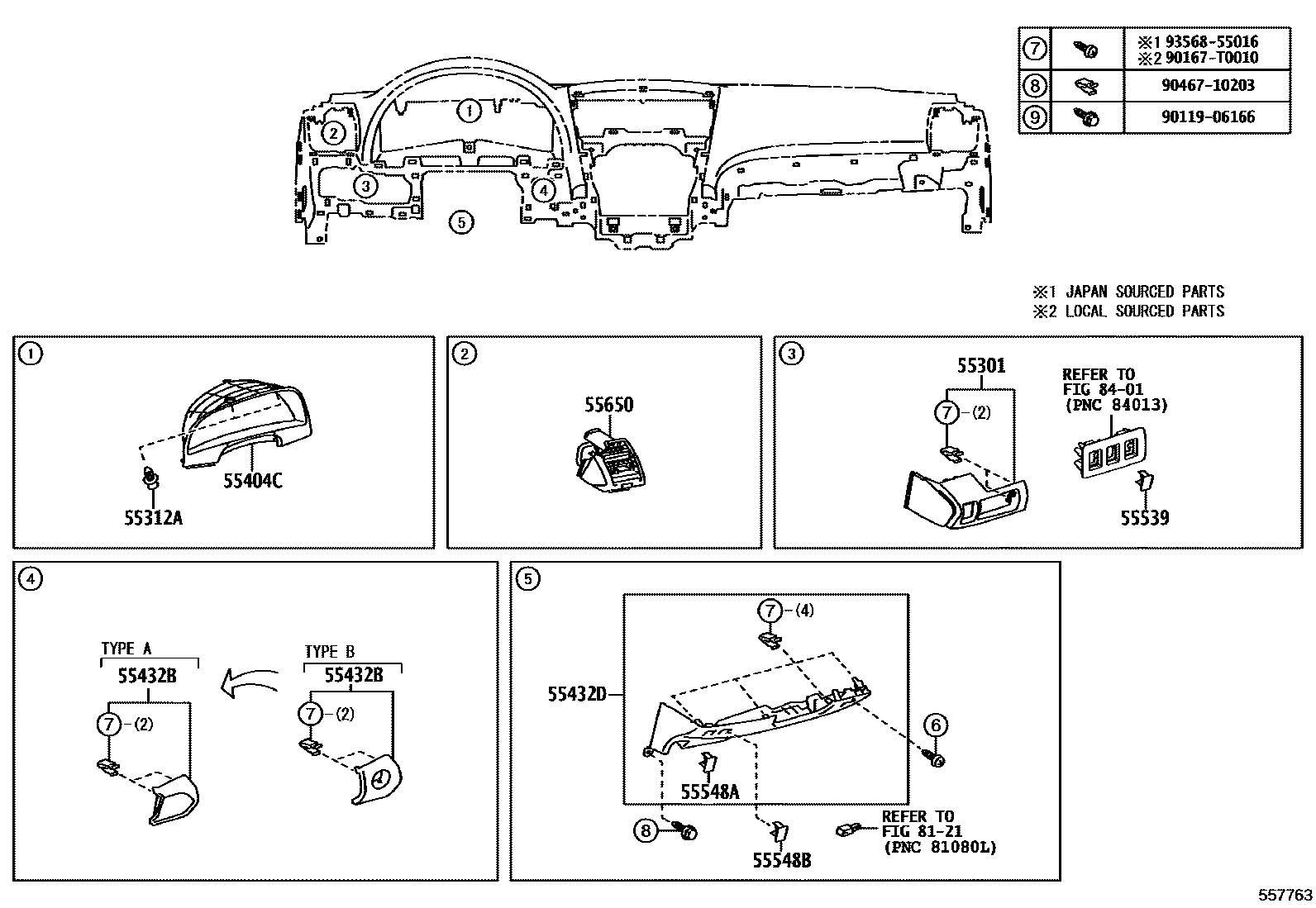

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55328 | Instrument panel pin 1 | 55328-30140 |
| 55328A | Dashboard No. 3 stay | 55328-30160 · 55328-33120 · 55328-50170 |
| 55330B | Instrument panel reinforcement assembly | 55330-06170 · 55330-06171 · 55330-06180 · 55330-06181 · 55330-06190 · 55330-06191 · 55330-06200 · 55330-06201 · 55330-06210 · 55330-06211 · 55330-06220 · 55330-06221 · 55330-06250 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-06060 · 55404-06070 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-30140 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-06010 · 55420-06020 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55539B | No. 2 spare switch hole cover | 55539-48020 |
| 55557C | Glovebox lid damper | 55557-33030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06070 · 55607-06080 · 55607-06110 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06130 |
| 82140 | Instrument panel wiring harness assembly | 82143-06110 · 82143-06220 · 82143-06230 |
