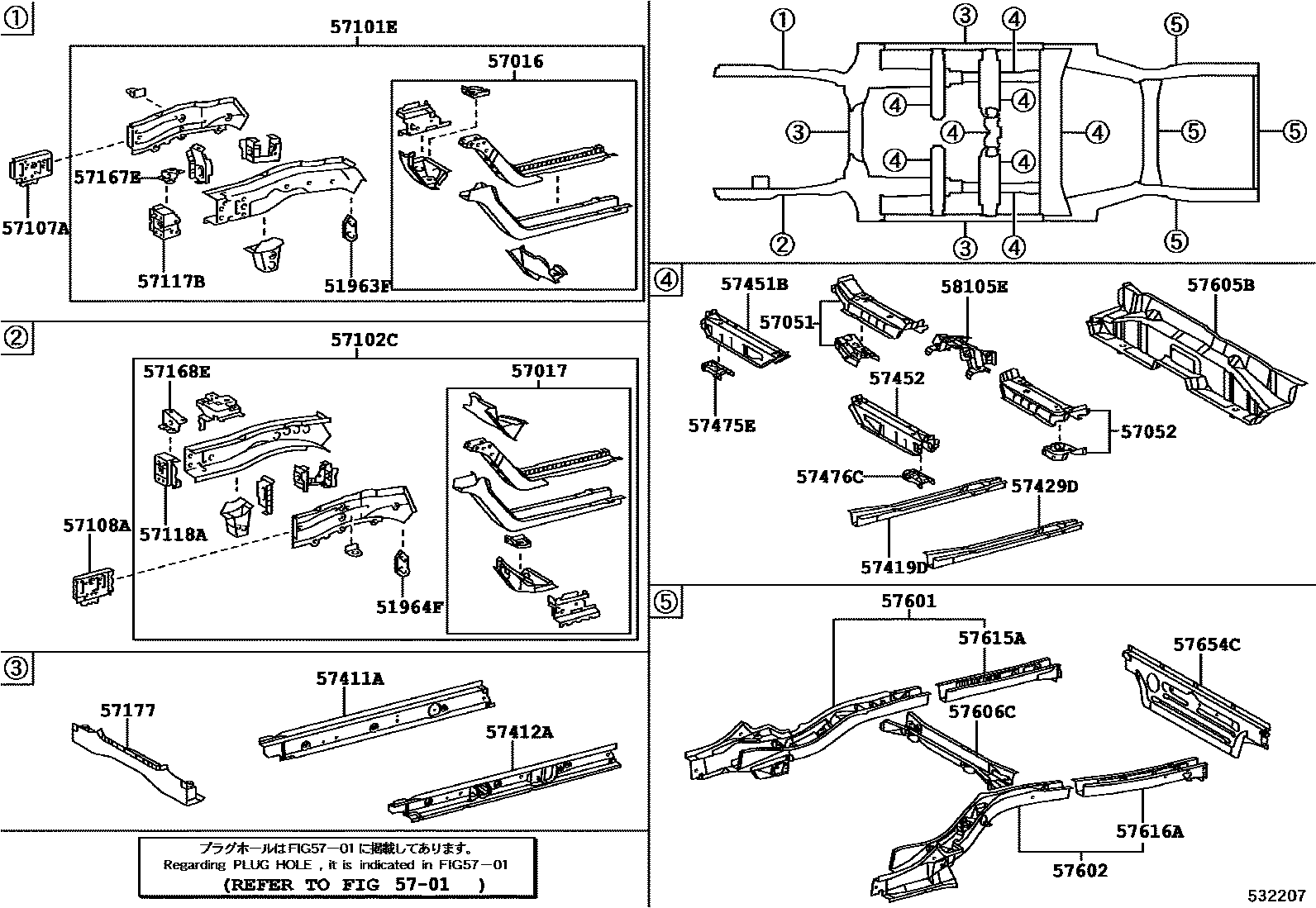

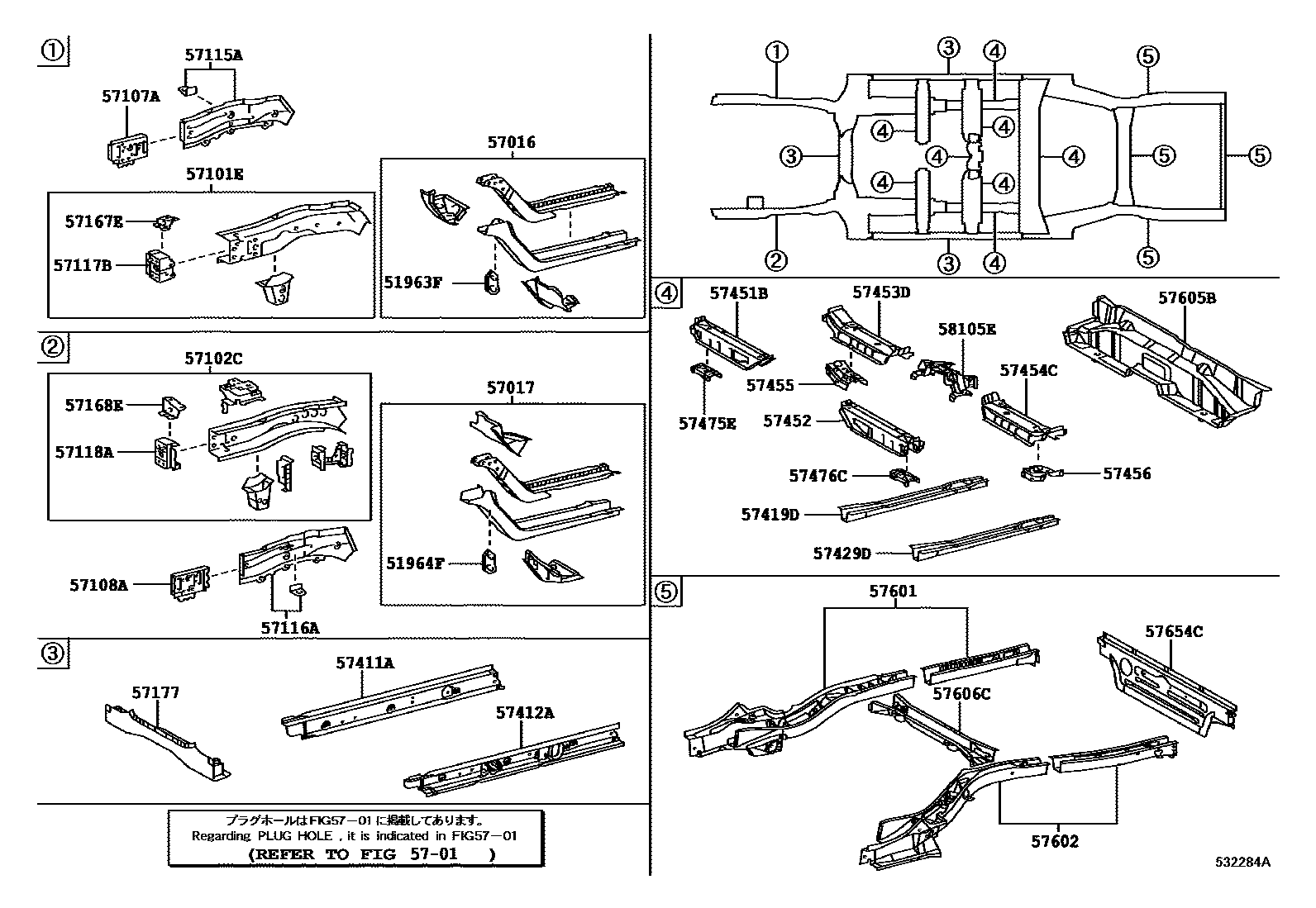

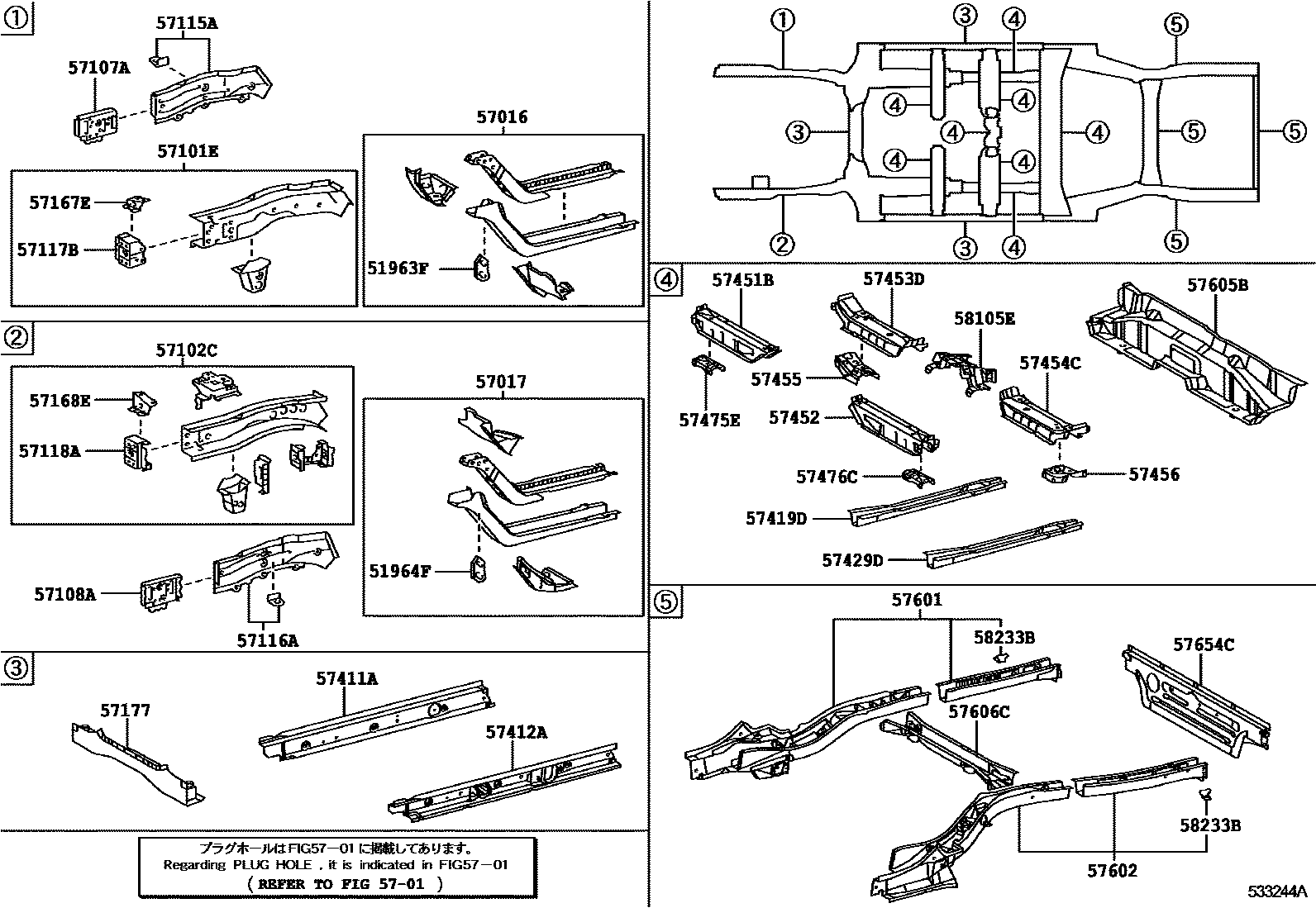

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51963F | transport hook | 51963-06030 · 51963-33020 |
| 51964F | left transport hook | 51964-06030 · 51964-33010 |
| 57016 | Right front longitudinal beam reinforcement sub-assembly | 57016-06080 · 57016-06090 · 57016-06100 |
| 57017 | Left front longitudinal beam reinforcement sub-assembly | 57017-06080 · 57017-06090 |
| 57051 | Front floor right cross member sub-assembly | 57051-06020 |
| 57052 | Front floor left cross member sub-assembly | 57052-06020 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57027-06060 · 57027-06061 · 57027-06901 · 57027-06902 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57028-06040 · 57028-06070 · 57028-06071 · 57028-06901 · 57028-06902 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-06050 · 57107-06051 · 57107-06060 · 57107-06061 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-06050 · 57108-06051 · 57108-06060 · 57108-06061 |
| 57115A | Right front longitudinal beam outer panel | 57025-06030 |
| 57116A | Left front longitudinal beam outer panel | 57026-06040 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-06070 · 57117-33050 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-06070 · 57118-33050 |
| 57167E | Front cross member right corner panel | 57167-33020 |
| 57168E | Front cross member left corner panel | 57168-33020 |
| 57177 | Front longitudinal beam to dash panel cross member | 57103-06040 · 57103-06041 · 57103-06050 · 57103-06100 |
| 57411A | Floor right inner longitudinal beam | 57401-06160 · 57401-06161 · 57401-06170 · 57401-06171 |
| 57412A | Floor left inner longitudinal beam | 57402-06160 · 57402-06161 · 57402-06170 · 57402-06171 |
| 57419D | Front floor right rear lower reinforcement | 57419-06060 · 57419-06070 |
| 57429D | Left rear reinforcement under front floor | 57429-06030 · 57429-06040 |
| 57451B | Front floor right cross member | 57451-06090 · 57451-06100 |
| 57452 | Front floor left cross member | 57452-06060 · 57452-06061 · 57452-06070 · 57452-06071 |
| 57453D | Front floor right cross member | 57453-06030 |
| 57454C | Front floor left longitudinal beam | 57454-06030 |
| 57455 | Front right seat outer mounting bracket | 57455-06030 |
| 57456 | Front left seat outer mounting bracket | 57456-06030 |
| 57475E | Front floor right cross member panel | 57475-06050 · 57475-33010 |
| 57476C | Front floor left cross member panel | 57476-06040 · 57476-33010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06210 · 57601-06212 · 57601-06220 · 57601-06270 · 57601-06271 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06160 · 57602-06170 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-06080 · 57605-06081 · 57605-06090 · 57605-06130 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06070 · 57606-06080 · 57606-06130 · 57606-06160 |
| 57615A | Rear floor right rear longitudinal member | 57615-06913 · 57615-06925 |
| 57616A | Rear floor left rear longitudinal member | 57616-06920 |
| 57654C | Rear floor beam No. 3 | 57654-06030 · 57654-06040 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-06020 · 58105-06030 |
| 58233B | Exhaust pipe mounting bracket | 58233-06020 |
