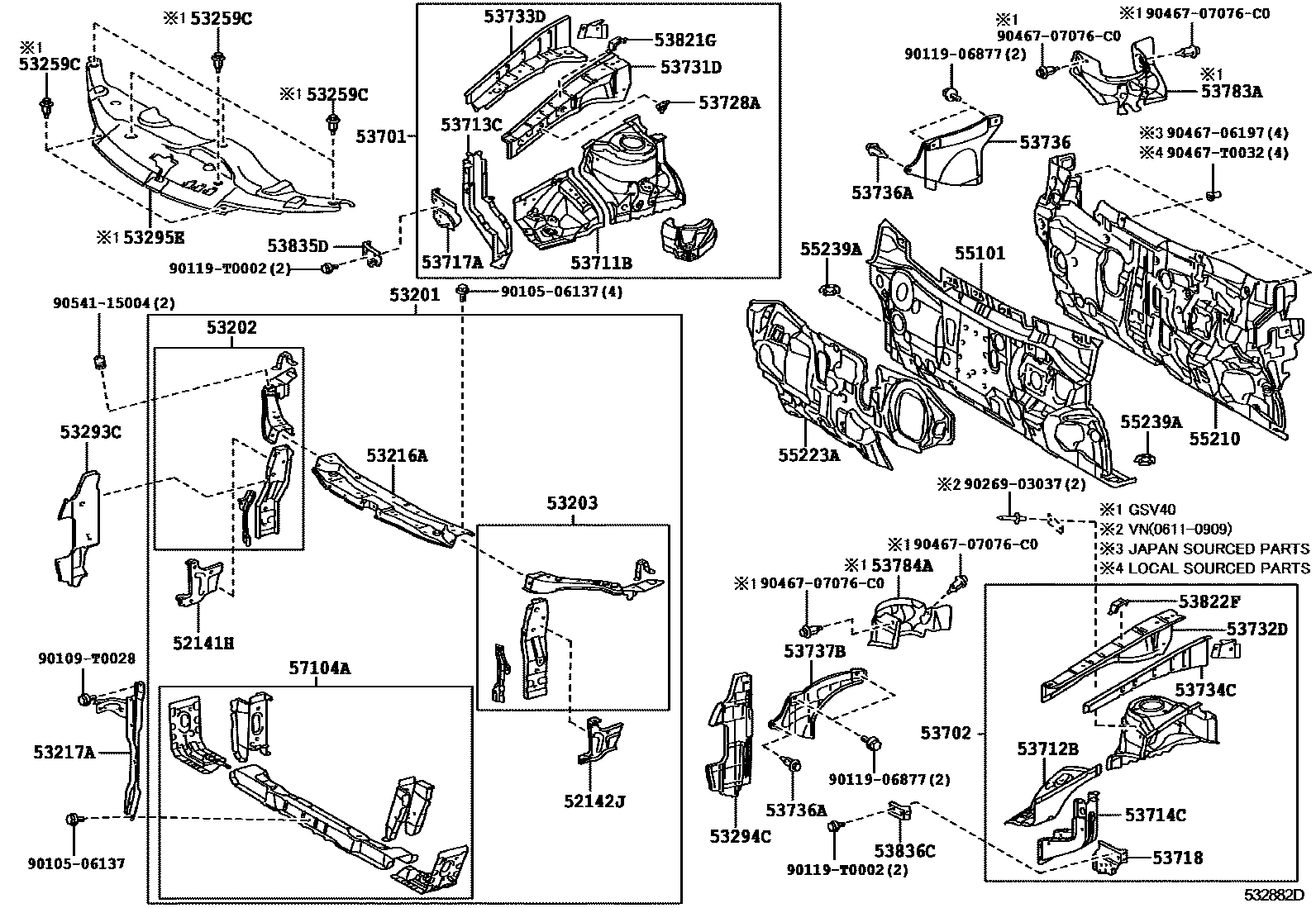

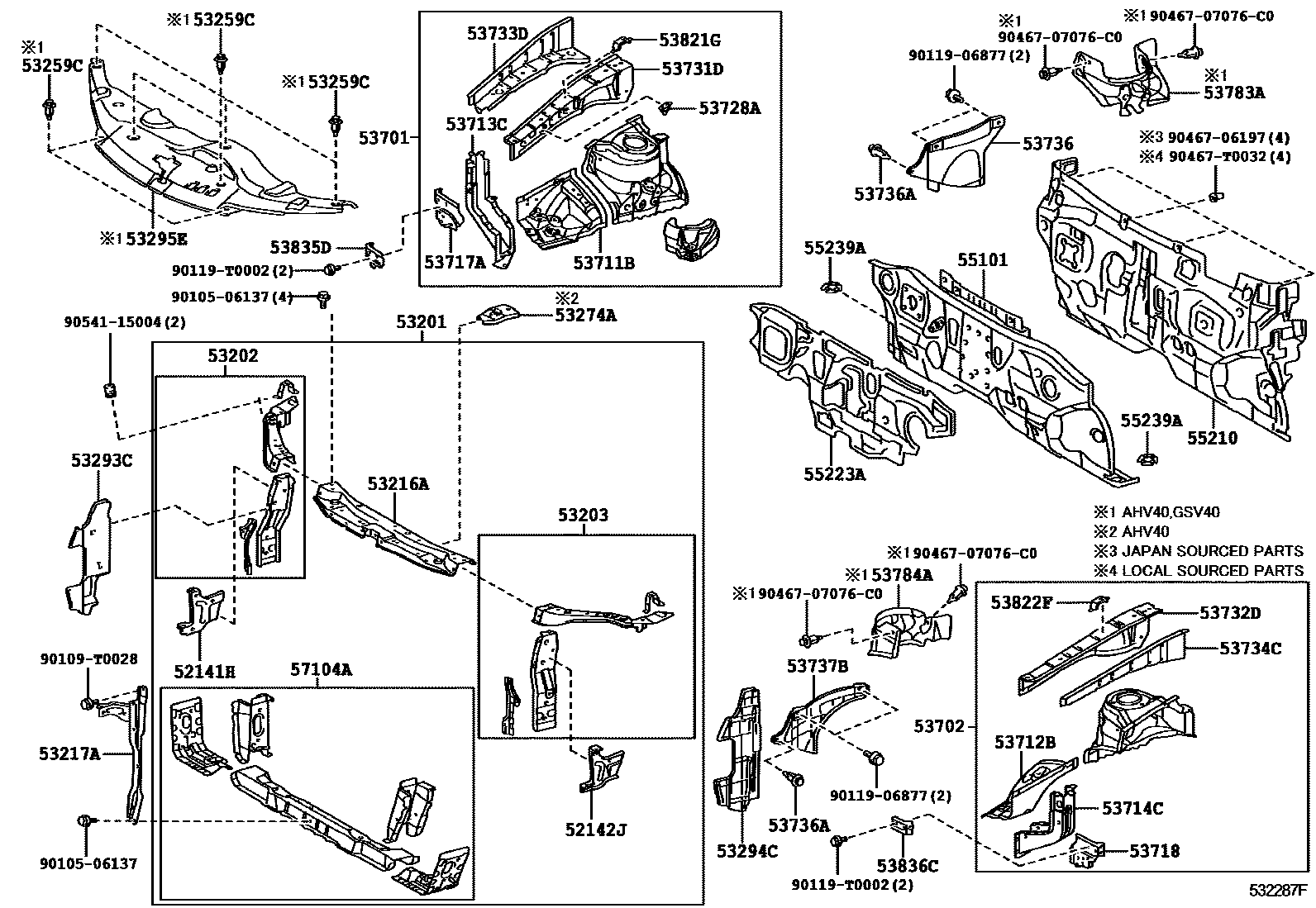

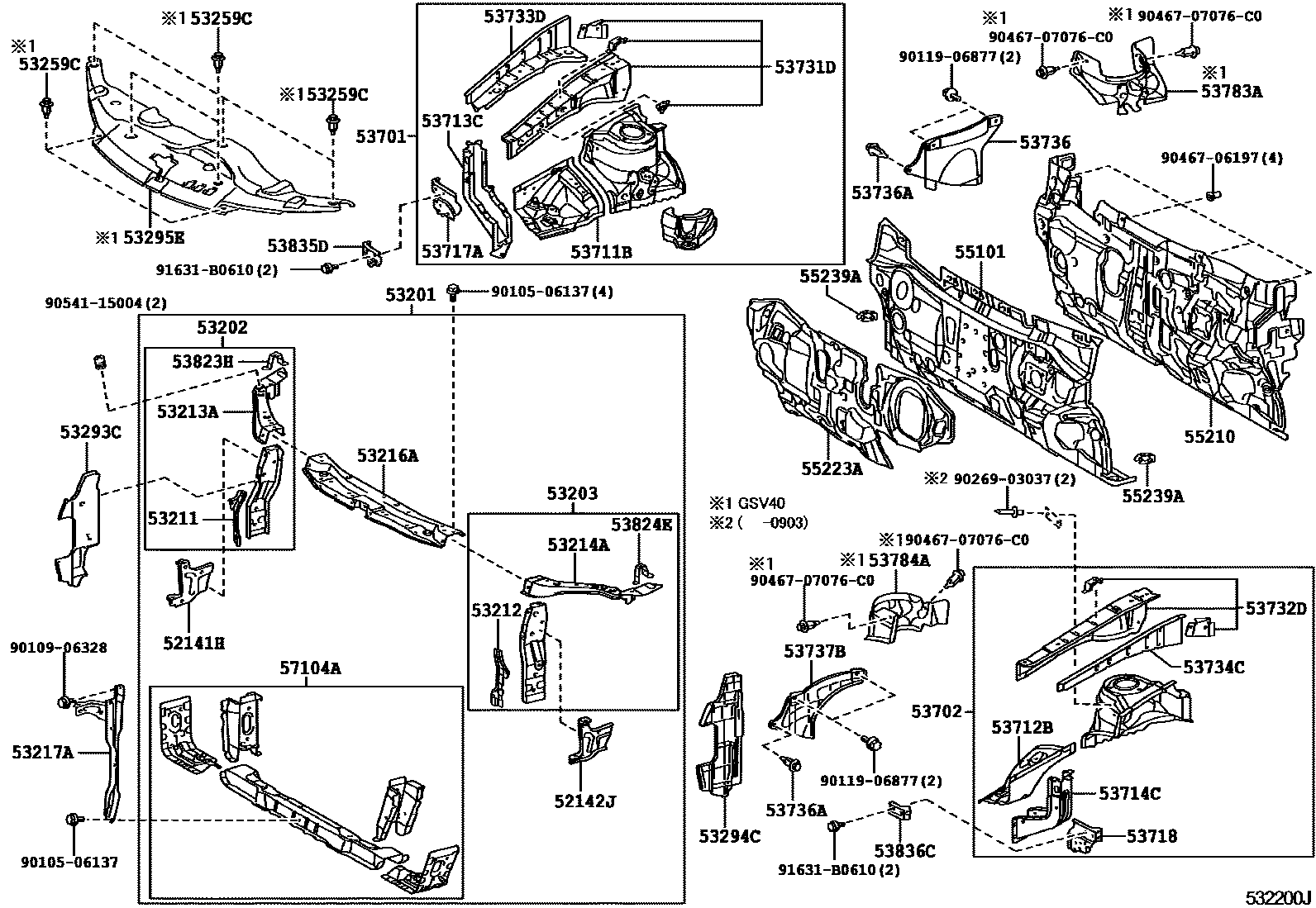

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-06040 · 52141-06050 |
| 52142J | Front bumper left upper arm | 52142-06030 · 52142-06040 |
| 53201 | Radiator bracket sub-assembly | 53201-06120 · 53201-06122 · 53201-06130 · 53201-06170 · 53201-06172 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06070 · 53202-06071 · 53202-06080 · 53202-06110 · 53202-06111 |
| 53203 | Radiator left bracket sub-assembly | 53203-06100 · 53203-06101 · 53203-06110 · 53203-06140 · 53203-06141 |
| 53211 | Radiator right side support | 53211-06060 · 53211-06061 |
| 53212 | Radiator left support | 53212-06060 · 53212-06061 |
| 53213A | Radiator upper right bracket | 53213-06050 |
| 53214A | Radiator upper left bracket | 53214-06050 |
| 53216A | Radiator upper bracket | 53216-06090 · 53216-06100 |
| 53217A | engine cover lock bracket | 53208-06030 · 53208-06040 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 |
| 53274A | Radiator left bracket reinforcement | 53274-33030 |
| 53293C | Radiator right baffle | 53293-06050 · 53293-06060 · 53293-06100 · 53293-06110 · 53293-06170 |
| 53294C | Radiator left baffle | 53294-06040 · 53294-06050 · 53294-06090 · 53294-06100 · 53294-06160 |
| 53295E | Cold air intake pipe seal | 53295-06020 · 53295-06030 · 53295-06060 |
| 53701 | Right front fender fender sub-assembly | 53701-06120 · 53701-06130 |
| 53702 | Left front fender fender sub-assembly | 53702-06110 · 53702-06120 |
| 53711B | Right front fender front fender | 53711-06070 · 53711-06080 |
| 53712B | Left front fender front fender | 53712-06040 · 53712-06050 |
| 53713C | Right front fender fender front extension | 53713-06050 · 53713-06060 |
| 53714C | Left front fender fender front extension | 53714-06050 · 53714-06060 |
| 53717A | fender fender | 53717-06040 · 53717-06050 |
| 53718 | Left fender fender side panel | 53718-06040 · 53718-06050 |
| 53728A | Right fender fender bracket | 53729-06030 |
| 53731D | Right front fender to cowl side upper beam | 53731-06100 · 53731-06901 |
| 53732D | Left front fender to cowl side upper beam | 53732-06090 · 53732-06901 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06050 · 53733-06060 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06050 · 53734-06060 |
| 53736 | Right front fender fender seal | 53736-06080 · 53736-06090 |
| 53736A | Clip (for front fender fender seal) | 90467-08180 |
| 53737B | Left front fender fender seal | 53737-06090 · 53737-06100 · 53737-06110 · 53737-06120 |
| 53783A | Right front fender fender vibration isolation pad | 53783-06020 · 53783-06060 |
| 53784A | Left front fender fender vibration isolation pad | 53784-06020 · 53784-06050 · 53784-06070 |
| 53821G | Right front fender rear support | 53821-06030 |
| 53822F | Left front fender rear support | 53822-06030 |
| 53823H | Right front fender corner panel | 53823-06020 |
| 53824E | Left front fender corner panel | 53824-06020 |
| 53835D | Right front side panel bracket | 53835-06040 · 53835-06050 |
| 53836C | Left front side panel bracket | 53836-06040 · 53836-06050 |
| 55101 | Front apron sub-assembly | 55101-06300 · 55101-06330 · 55101-06340 · 55101-06410 |
| 55210 | Front wall insulation pad assembly | 55210-06140 · 55210-06170 · 55210-06171 · 55210-06180 · 55210-06190 · 55210-06191 |
| 55223A | Front wall outer heat insulation pad | 55223-06110 · 55223-06120 · 55223-06130 · 55223-06131 · 55223-06140 · 55223-06141 · 55223-06150 · 55223-06160 · 55223-06260 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06040 · 55239-33020 |
| 57104A | Front cross member sub-assembly | 57104-06020 · 57104-06021 · 57104-06030 · 57104-06031 |
