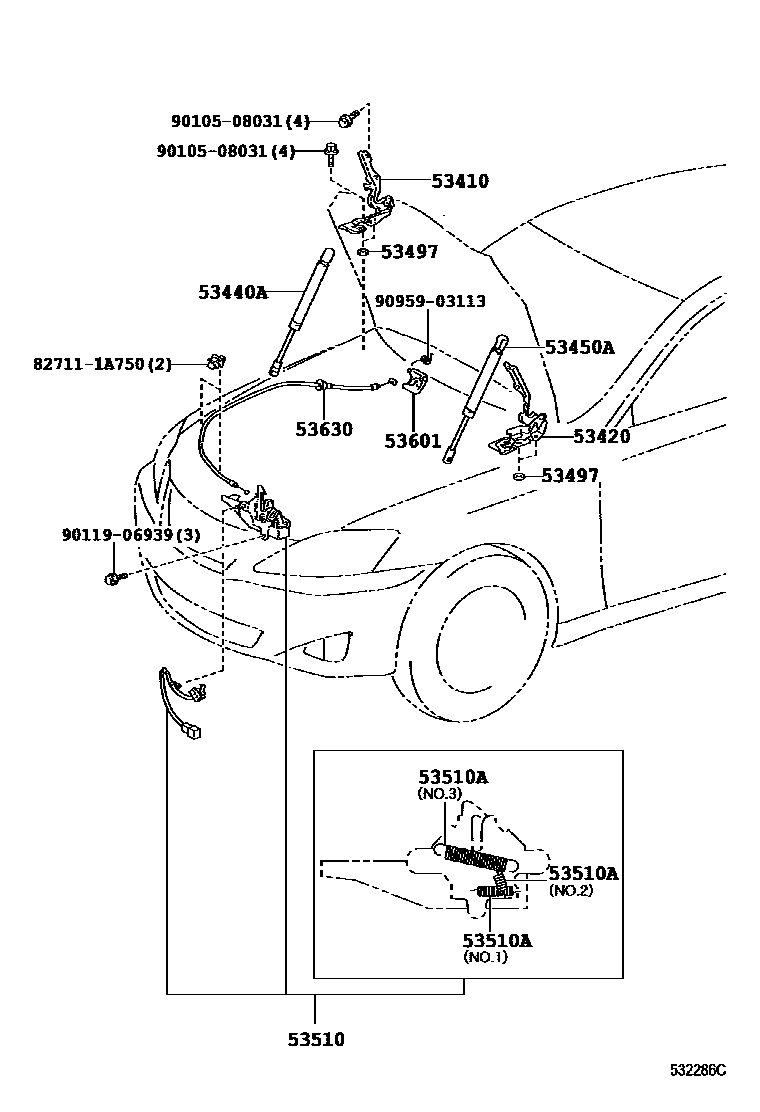

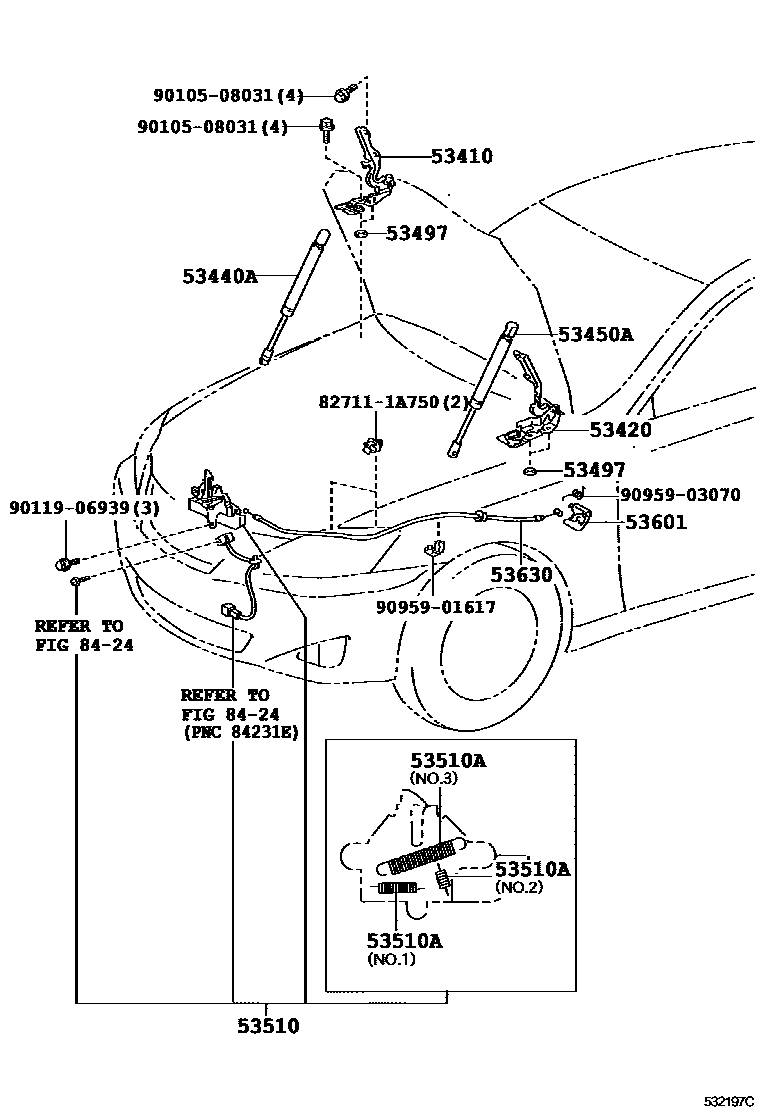

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-06100 · 53410-06130 |
| 53420 | Engine cover left hinge assembly | 53420-06070 · 53420-06130 |
| 53440A | Engine cover right support rod assembly | 53440-0W110 |
| 53450A | Engine cover left support rod assembly | 53450-0W090 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-06100 · 53510-06101 · 53510-06110 · 53510-06111 |
| 53510A | Tension spring (for hood lock) | 90506-T0003 · 90506-T0004 · 90506-T0005 |
| 53630 | Engine hood lock control cable assembly | 53630-06110 · 53630-06130 |
