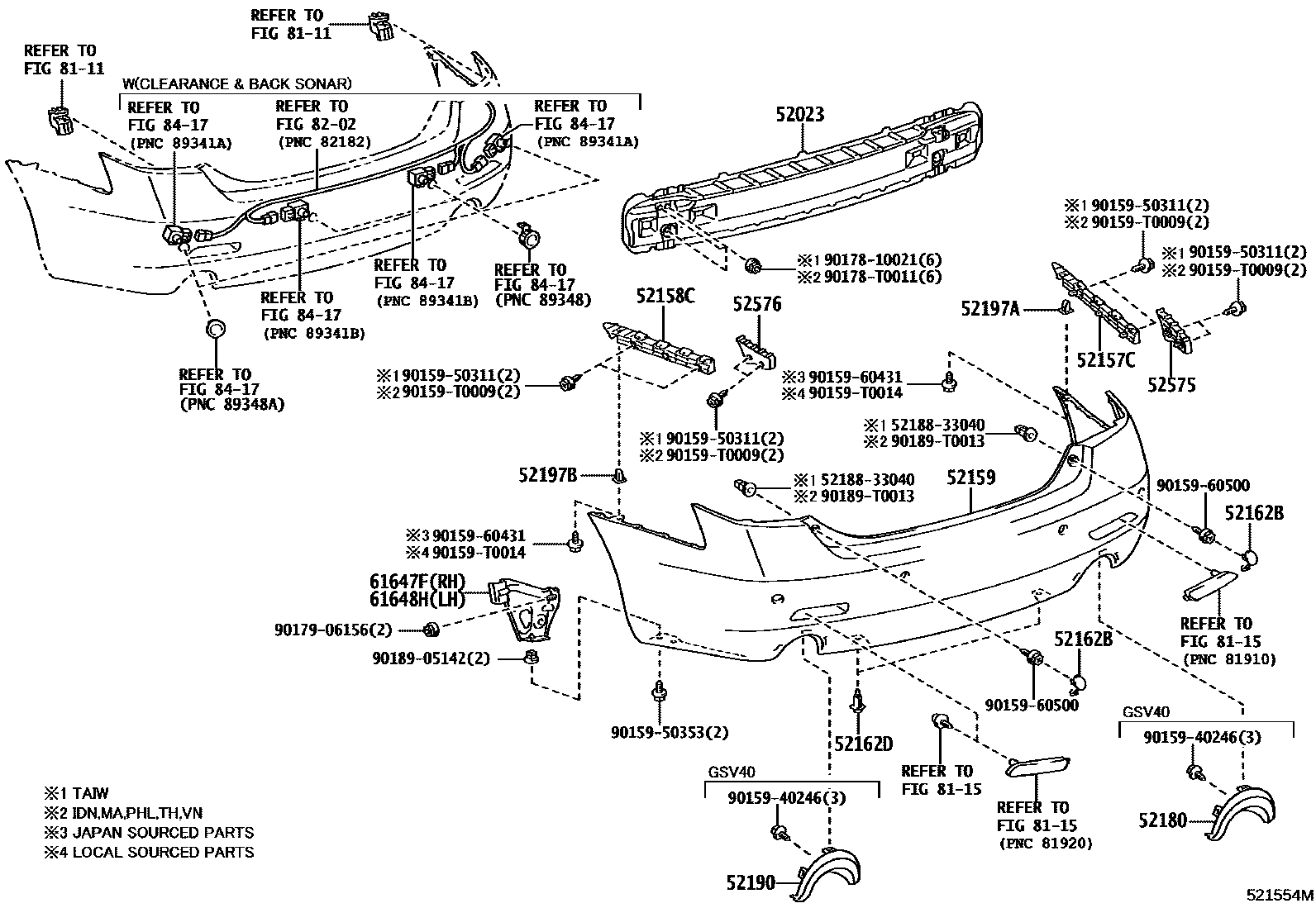

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-06070 · 52023-06080 · 52023-06081 · 52023-06120 · 52023-06121 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-06020 · 52157-06050 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-06020 · 52158-06050 |
| 52159 | rear bumper cover | 52159-06913 · 52159-06915 · 52159-06916 · 52159-06920 · 52159-06938 · 52159-06939 · 52159-06940 · 52159-06941 · 52159-06942 · 52159-06943 · 52159-06954 |
| 52162B | Rear bumper No. 1 fender | 52163-06901 · 52163-06908 · 52164-06901 · 52164-06908 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52180 | Rear bumper right side mounting bracket assembly | 52180-06010 · 52180-06020 |
| 52190 | Rear bumper left side mounting bracket assembly | 52190-06010 · 52190-06020 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52197B | Rear bumper left seal support | 52197-22020 |
| 52575 | Rear bumper right side fixing bracket | 52575-06040 · 52575-06080 |
| 52576 | Rear bumper left side fixing bracket | 52576-06040 · 52576-06080 |
| 61647F | Right wheel arch reinforcement | 61647-06020 · 61647-06050 |
| 61648H | Left wheel arch reinforcement | 61648-06020 · 61648-06050 |
