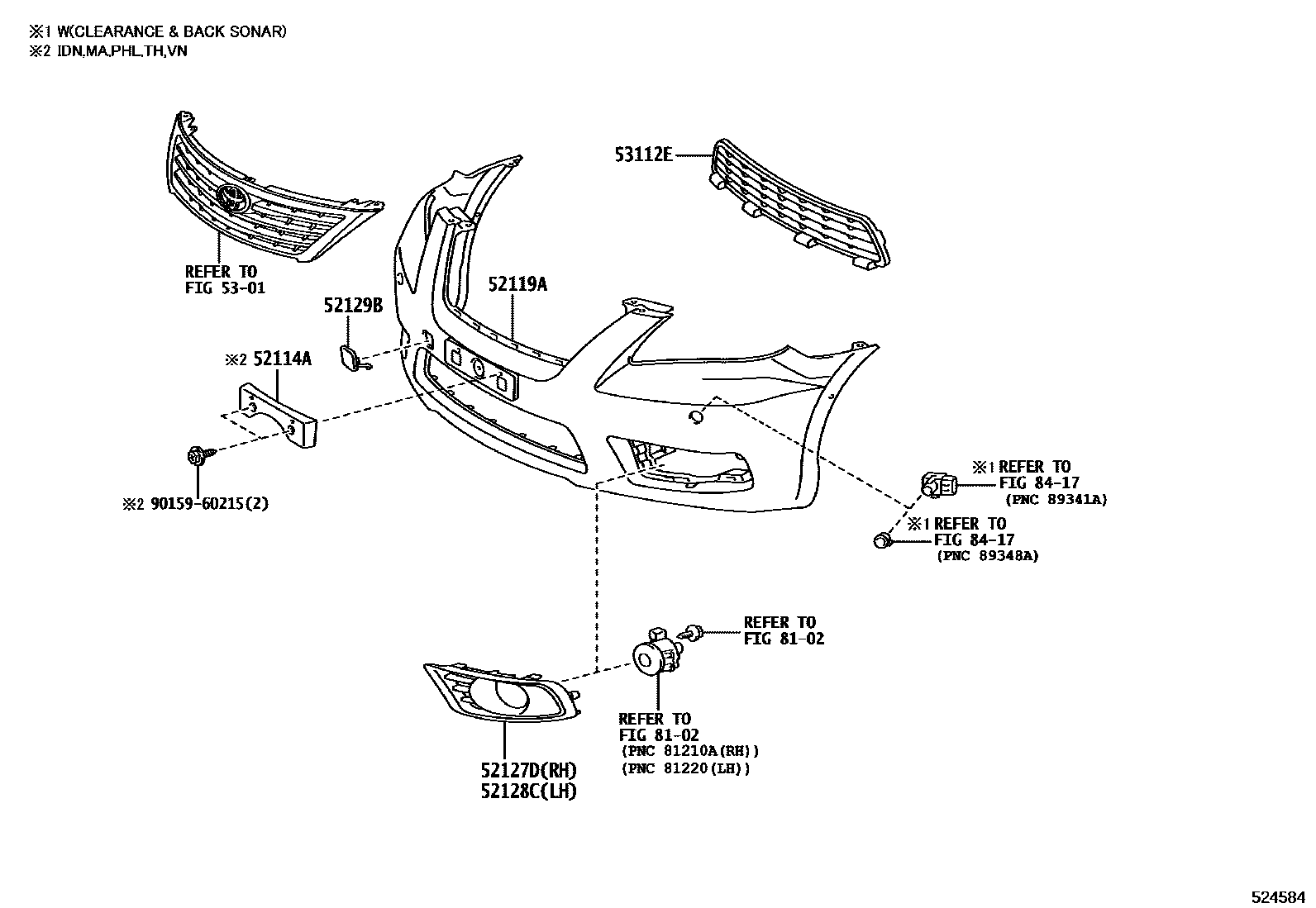

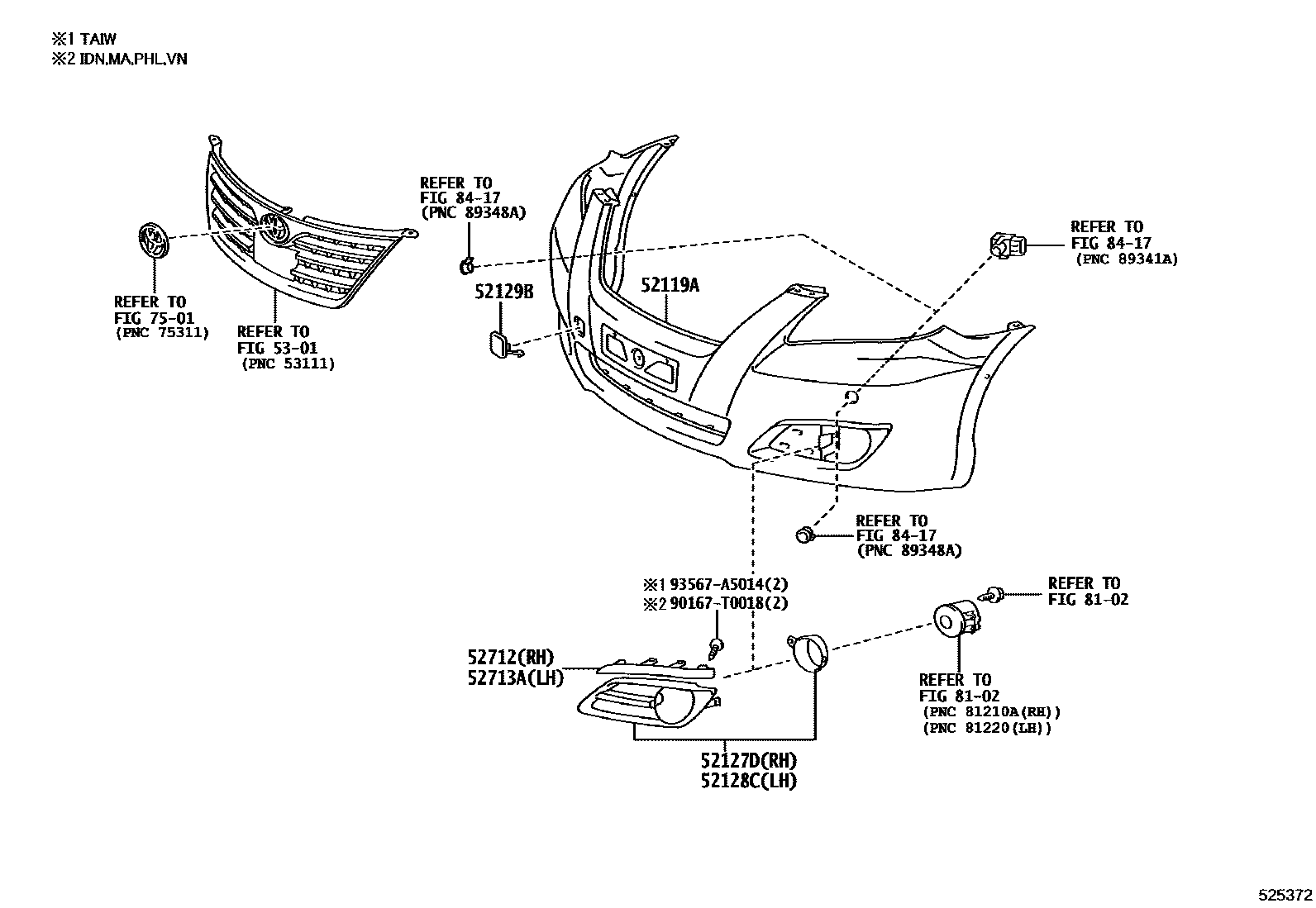

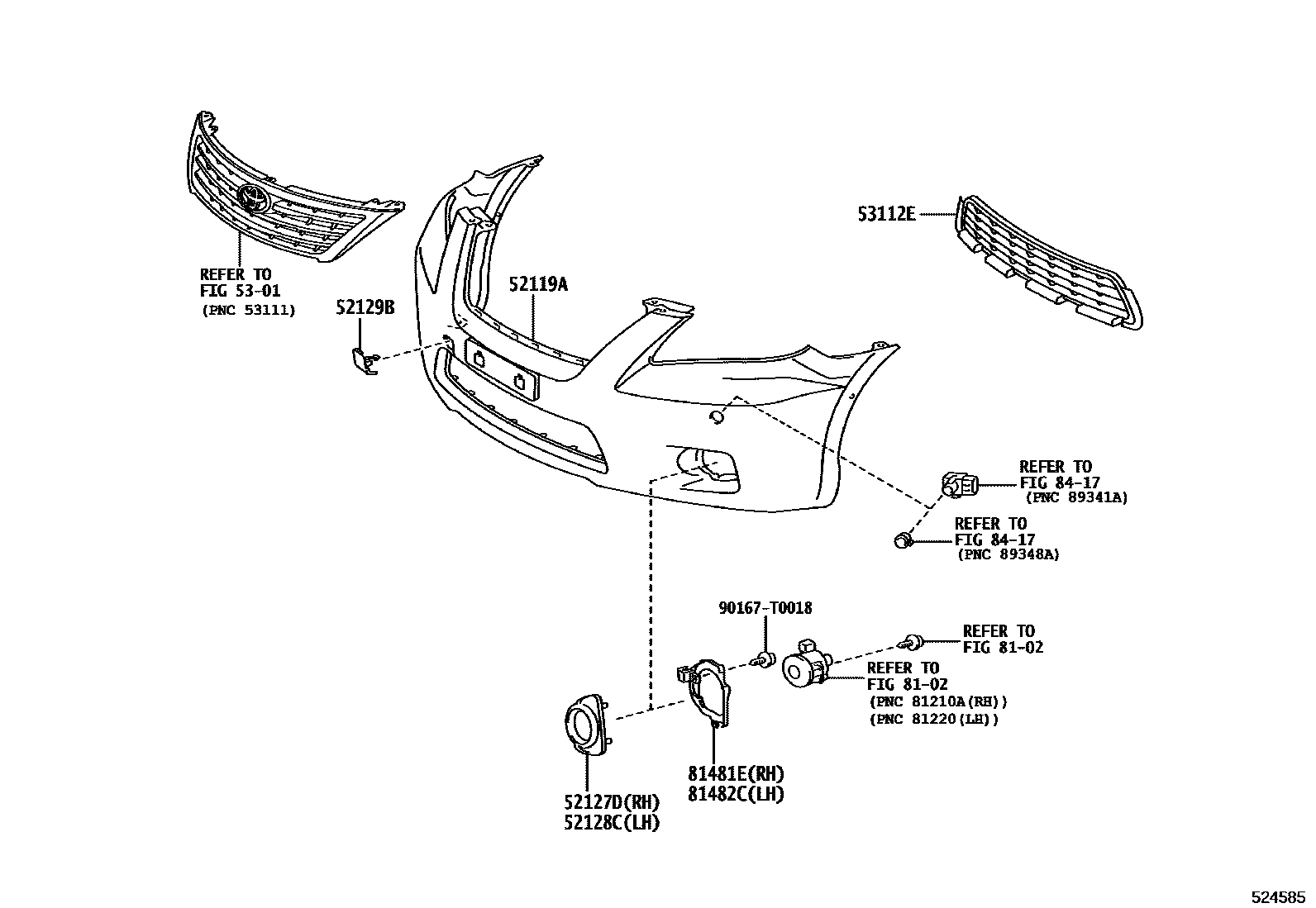

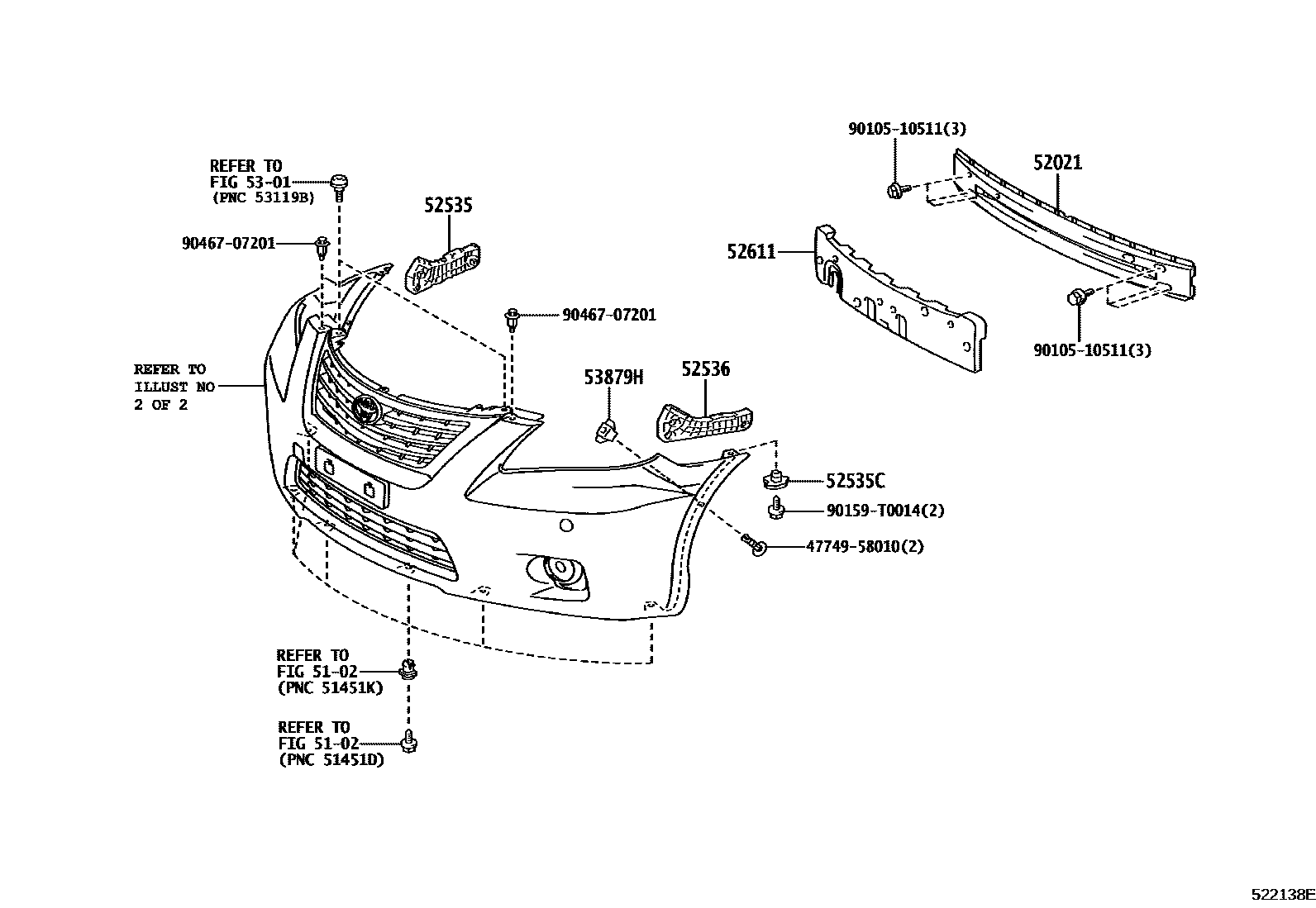

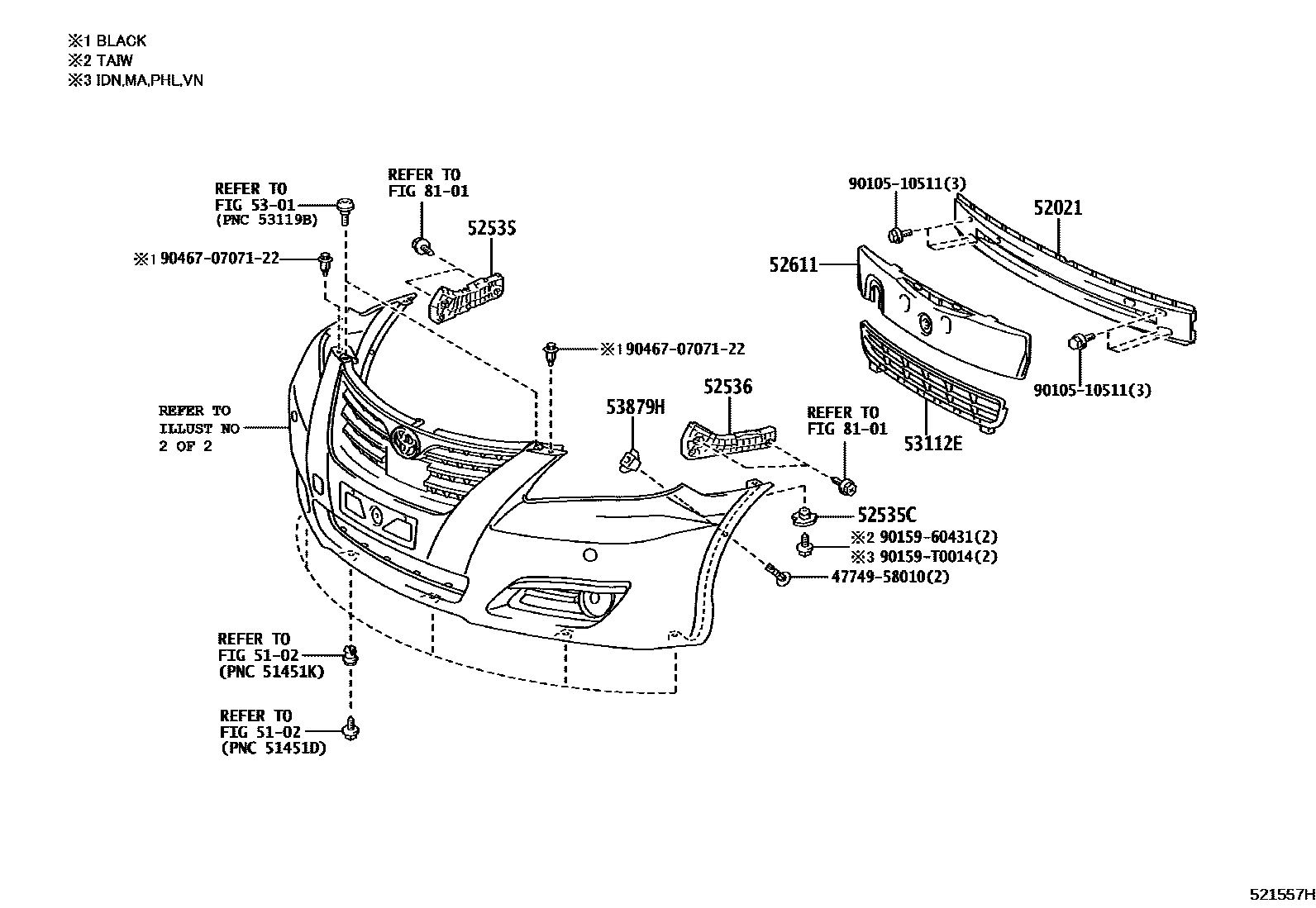

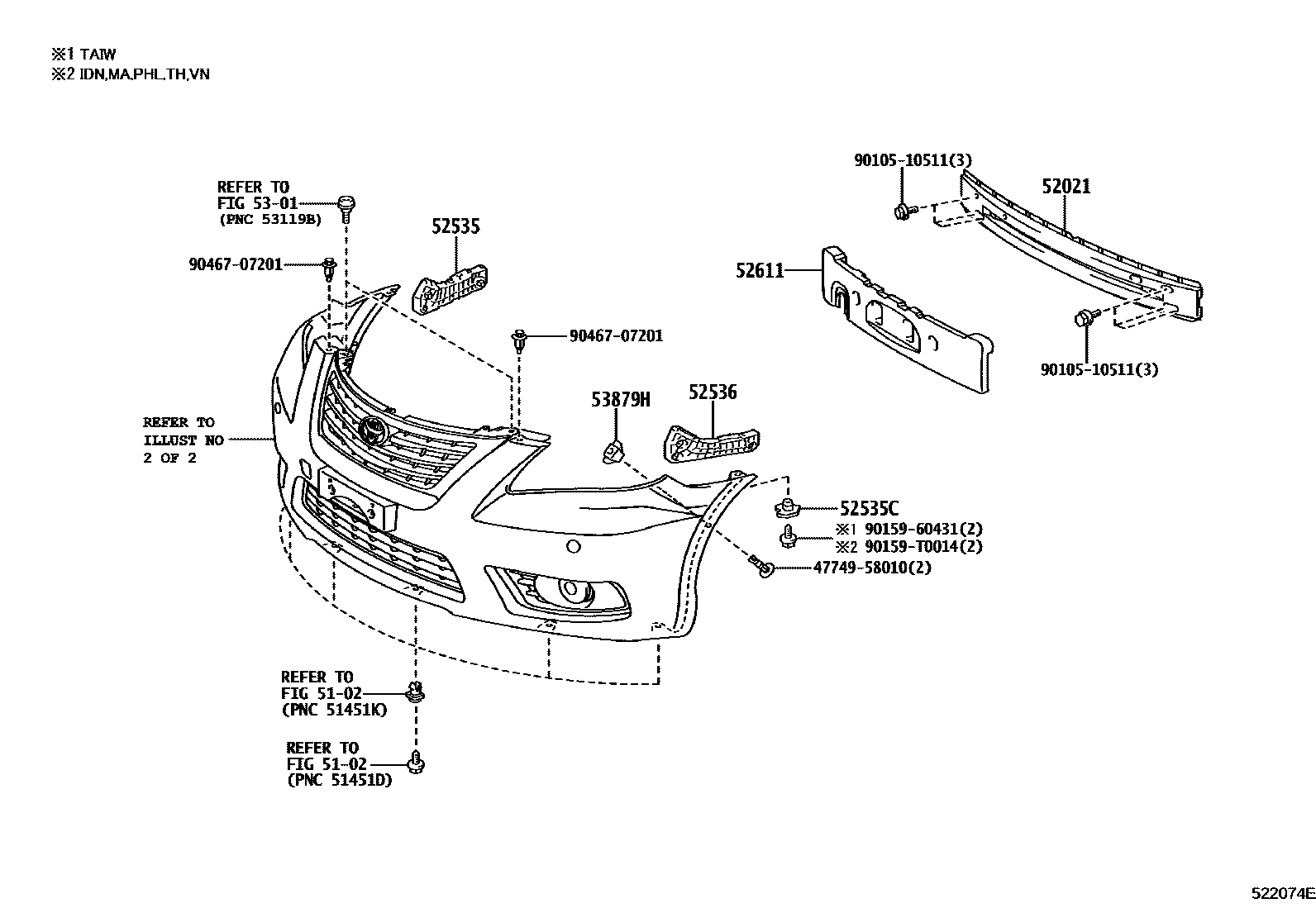

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-06050 · 52021-06060 |
| 52114A | Front bumper extension mounting bracket | 52114-06100 |
| 52119A | front bumper cover | 52119-06922 · 52119-06923 · 52119-06940 · 52119-06941 · 52119-06956 · 52119-06960 · 52119-06961 · 52119-06970 · 52119-06971 |
| 52127D | Front bumper right hole cover | 52030-06010 · 52030-06080 · 52030-06100 |
| 52128C | Front bumper left hole cover | 52040-06010 · 52040-06080 · 52040-06100 |
| 52129B | Front bumper lower cover | 52129-06914 · 52129-06917 · 52129-06927 · 52129-06928 · 52129-06929 · 52129-06935 |
| 52535 | Front bumper right side fixing bracket | 52535-06040 · 52535-06080 · 52535-06090 · 52535-06100 |
| 52535C | Front bumper side fixing bracket | 52535-50060 |
| 52536 | Front bumper left fixed bracket | 52536-06030 · 52536-06070 · 52536-06080 · 52536-06090 |
| 52611 | front bumper energy absorber | 52611-06080 · 52611-06110 · 52611-06150 · 52611-06160 · 52611-06190 |
| 52712 | Front bumper right side protective strip | 52712-06010 |
| 52713A | Front bumper left protective strip | 52713-06010 |
| 53112E | No. 1 radiator lower grille | 53112-06030 · 53112-06070 · 53112-06110 · 53112-06120 · 53112-06150 |
| 53879H | Front fender lining fixing parts | 53879-0K010 · 53879-58010 |
| 81481E | Right fog light cover | 81481-06020 |
| 81482C | Left fog light cover | 81482-06020 |
