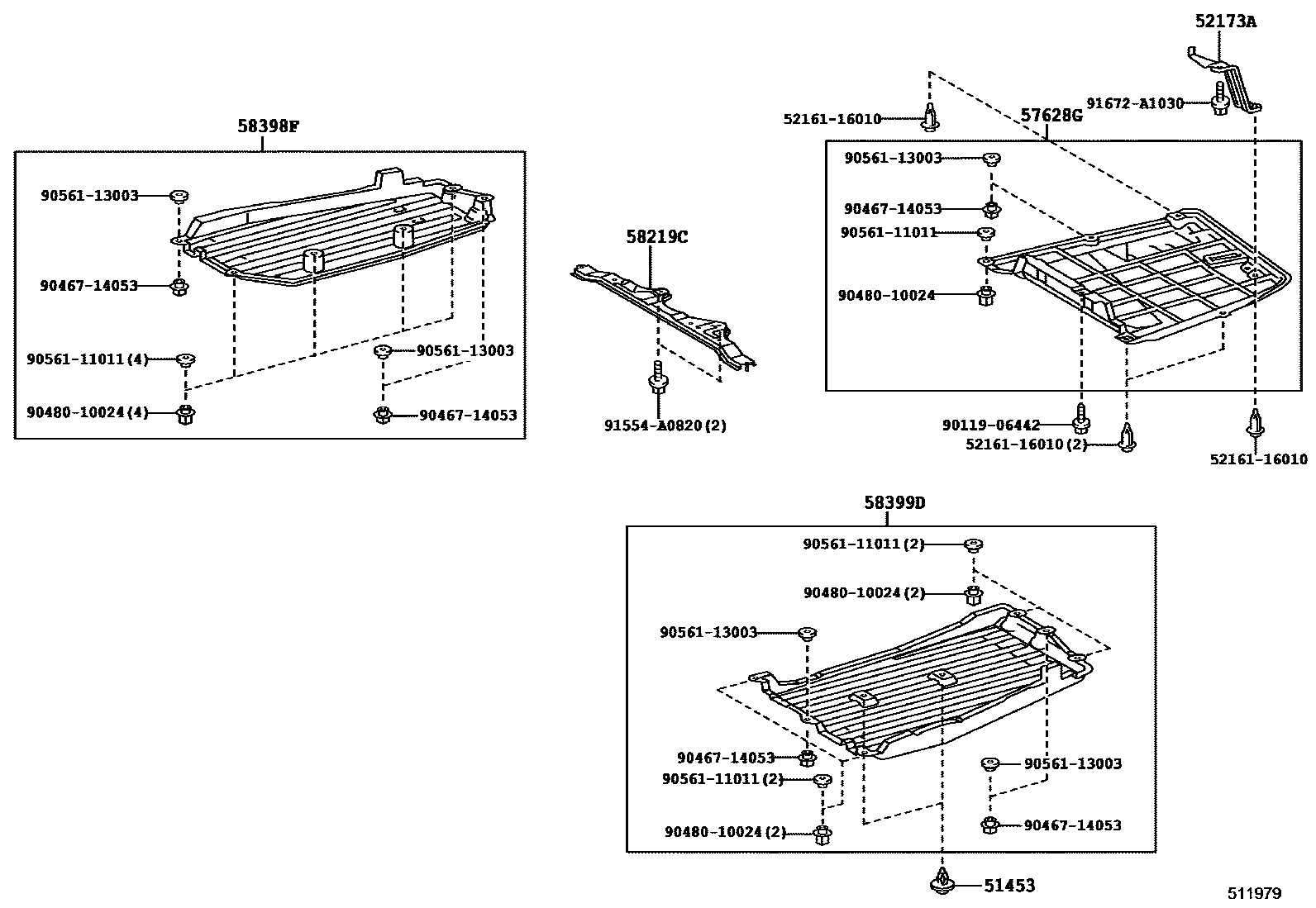

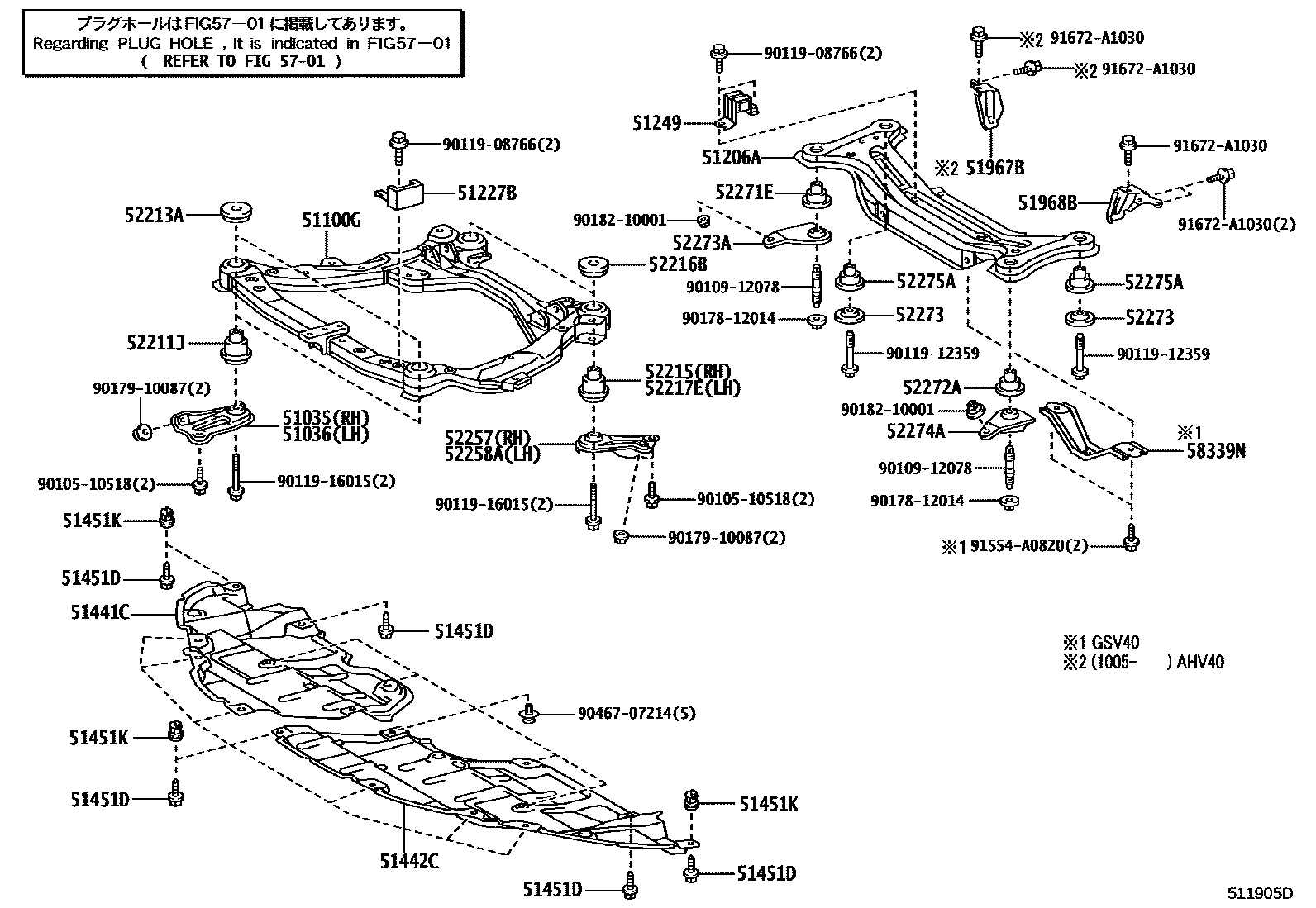

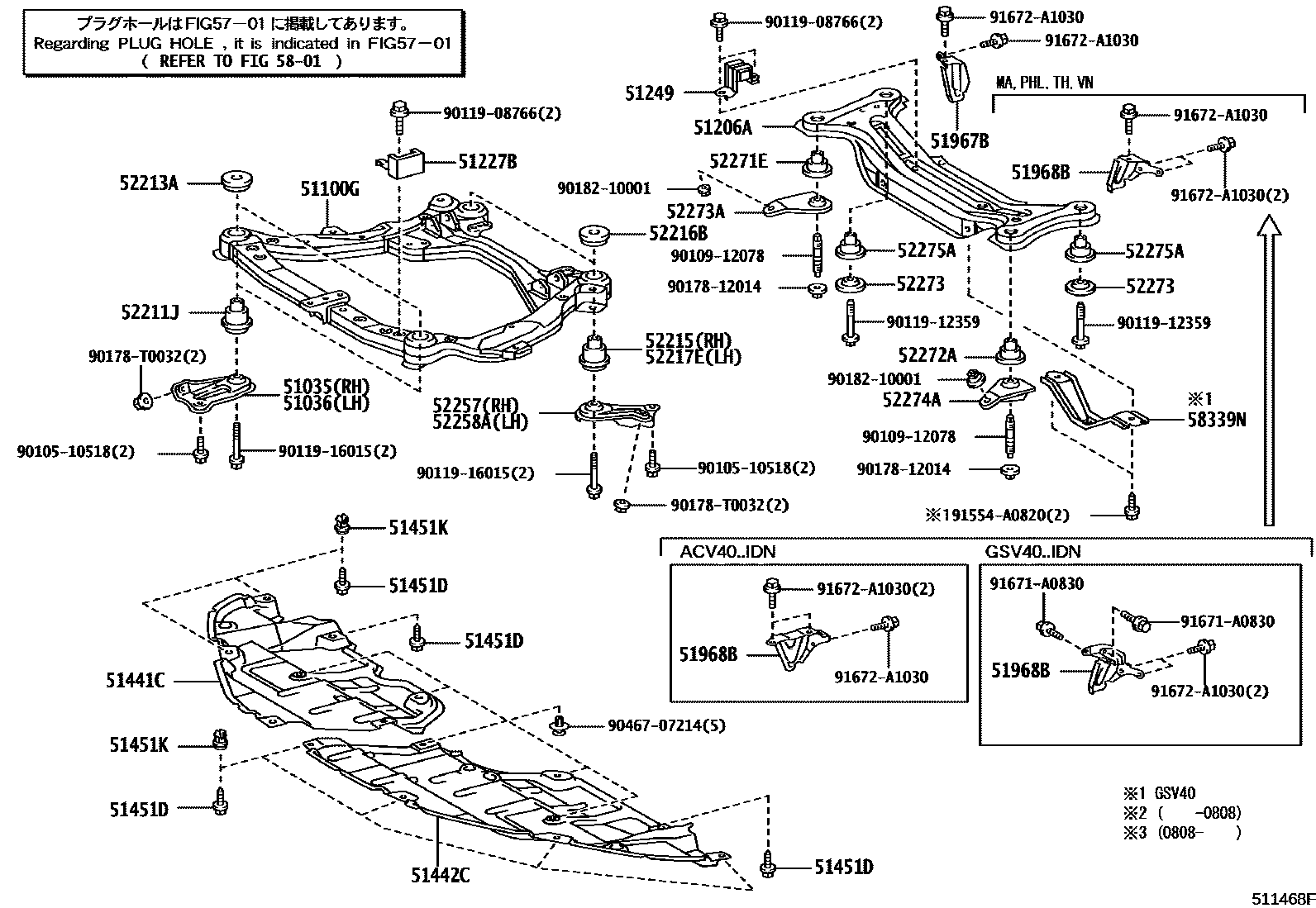

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-06010 · 51035-06020 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-06010 · 51036-06020 |
| 51100G | Front frame assembly | 51100-06140 · 51100-33070 |
| 51206A | Rear suspension cross member sub-assembly | 51206-33061 |
| 51227B | Front suspension beam dynamic damper | 51227-06050 · 51227-06060 |
| 51249 | Rear suspension cross member shock absorber | 51249-06020 · 51249-06030 |
| 51441C | Engine right bottom cover | 51441-06070 · 51441-06071 · 51441-06080 · 51441-06120 |
| 51442C | Engine left bottom cover | 51442-06060 · 51442-06061 · 51442-06070 · 51442-06110 |
| 51451D | Screw No. 1 | 90159-60525 · 90159-T0008 |
| 51451K | No. 1 screw seal | 90189-06193 |
| 51453 | Engine front bottom cover silencer panel | 51453-33010 |
| 51967B | right rear transport hook | 51967-06030 |
| 51968B | Left rear transport hook | 51096-06010 · 51968-06030 · 51968-06040 · 51968-06050 |
| 52173A | rear bumper bezel | 52179-06060 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06090 · 52211-06100 · 52211-06140 · 52211-06150 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06090 · 52213-06100 · 52213-06140 · 52213-06150 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06070 · 52215-06080 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06070 · 52216-06080 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-06050 · 52217-06060 |
| 52257 | Right front suspension cross member rear bracket | 51023-06010 · 51023-06020 |
| 52258A | Left front suspension cross member rear bracket | 51024-06010 · 51024-06020 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-06060 · 52271-06070 · 52271-33050 |
| 52272A | Rear suspension cross member left front body fixed cushion | 52272-06050 · 52272-06060 · 52272-33050 |
| 52273 | Rear suspension cross member lower block | 52273-33010 |
| 52273A | Rear suspension cross member right lower stop | 52203-33030 |
| 52274A | Rear suspension cross member left lower stop | 52204-33030 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06060 · 52275-06110 · 52275-33050 |
| 57628G | Rear floor left longitudinal member cover | 57628-06050 |
| 58219C | Center floor rear end panel | 58219-33010 |
| 58339N | Lift the bracket | 58339-33020 · 58339-33021 |
| 58398F | No. 1 floor under cover | 58398-06010 |
| 58399D | Floor No. 2 lower cover | 58399-06010 |
