Toyota CAMRY 制动配管和卡箍 — Figure 4708

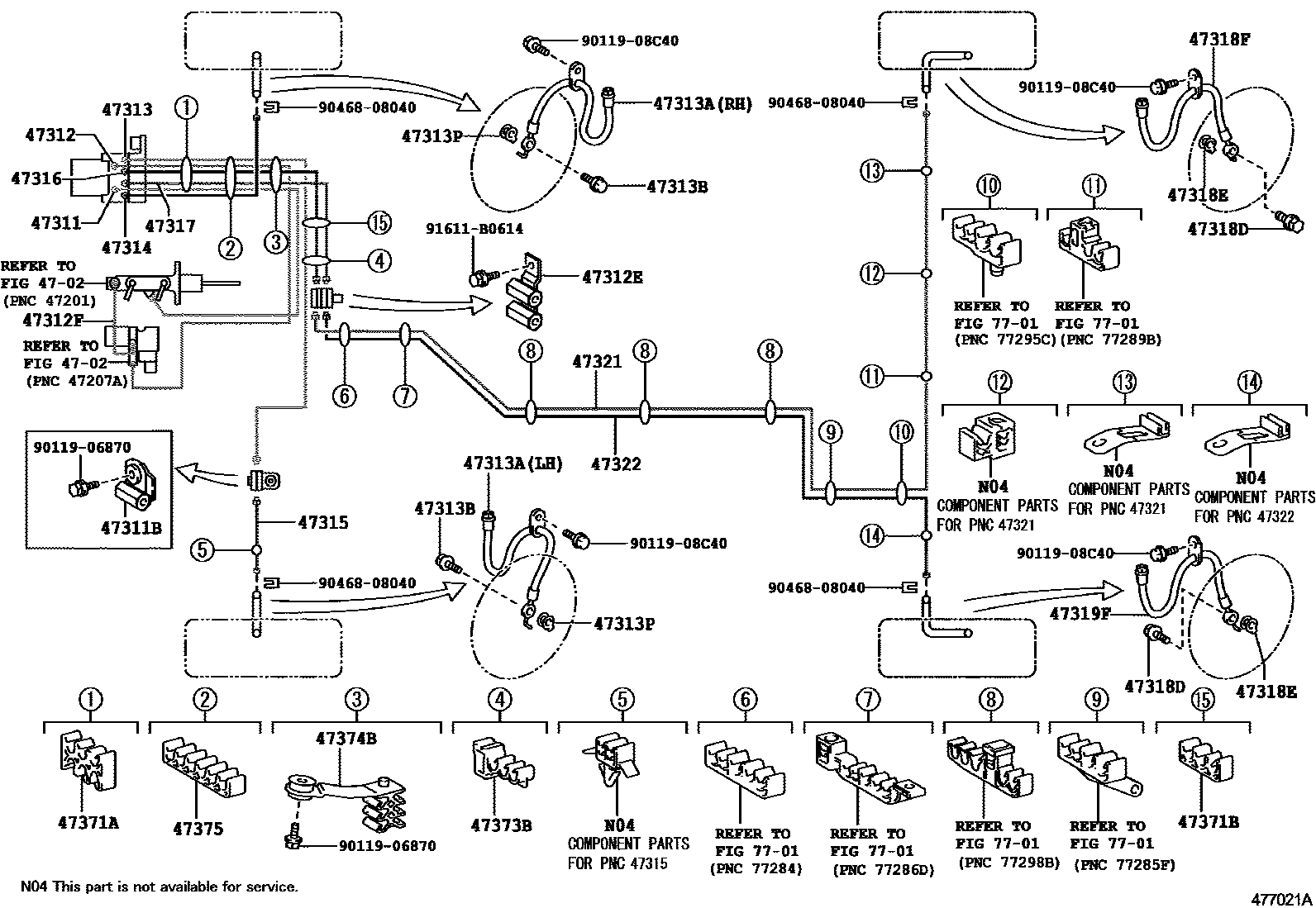

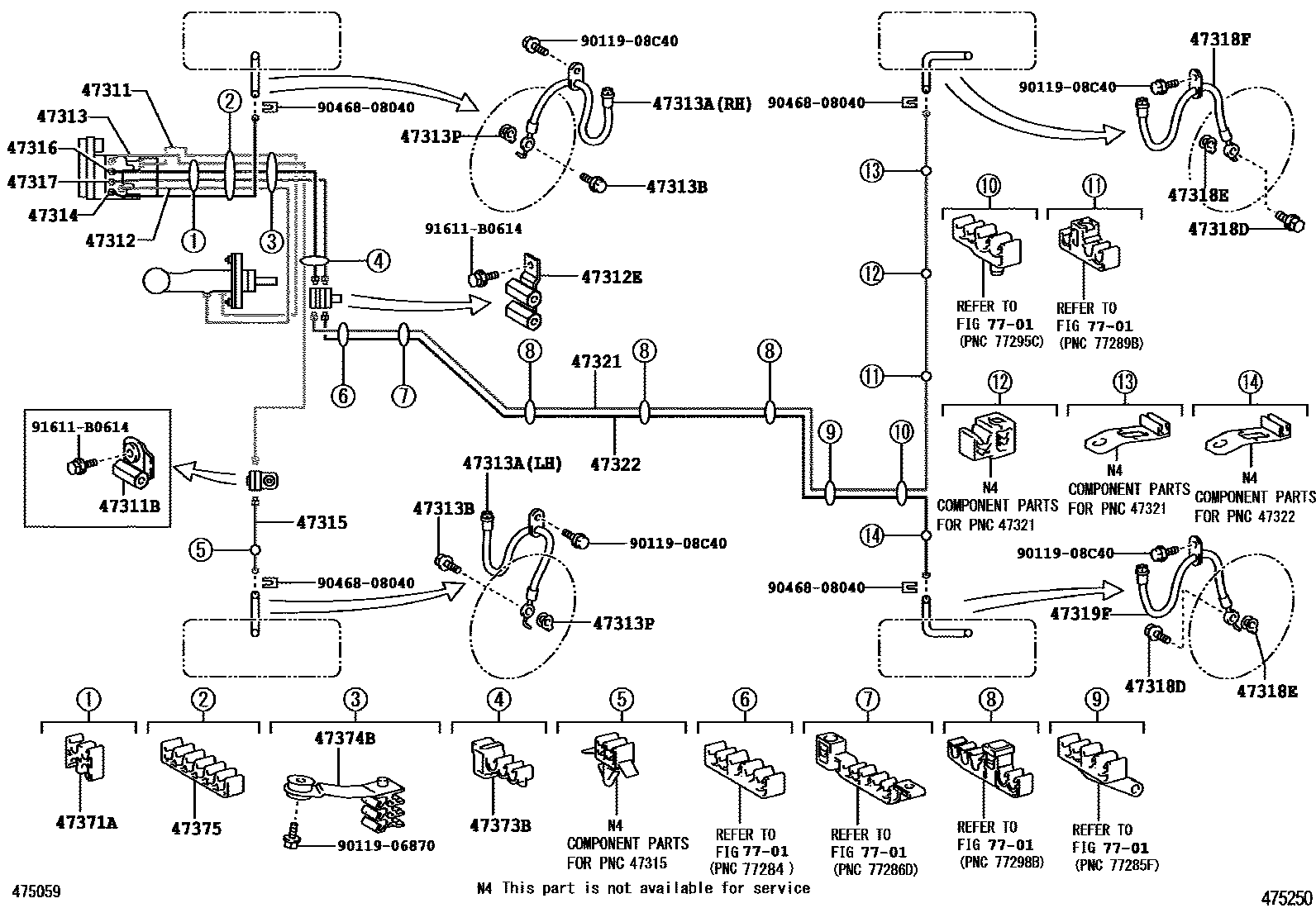

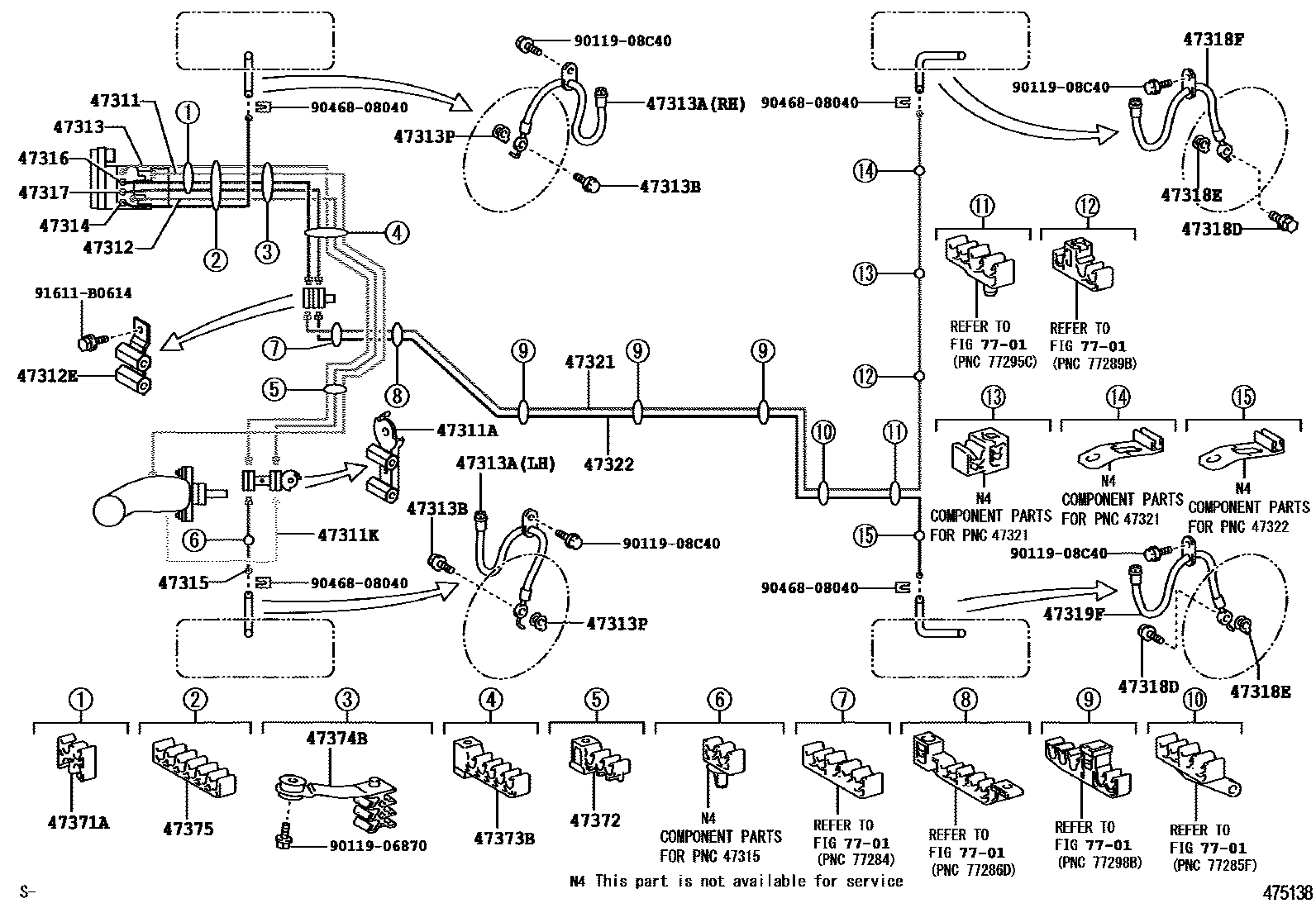

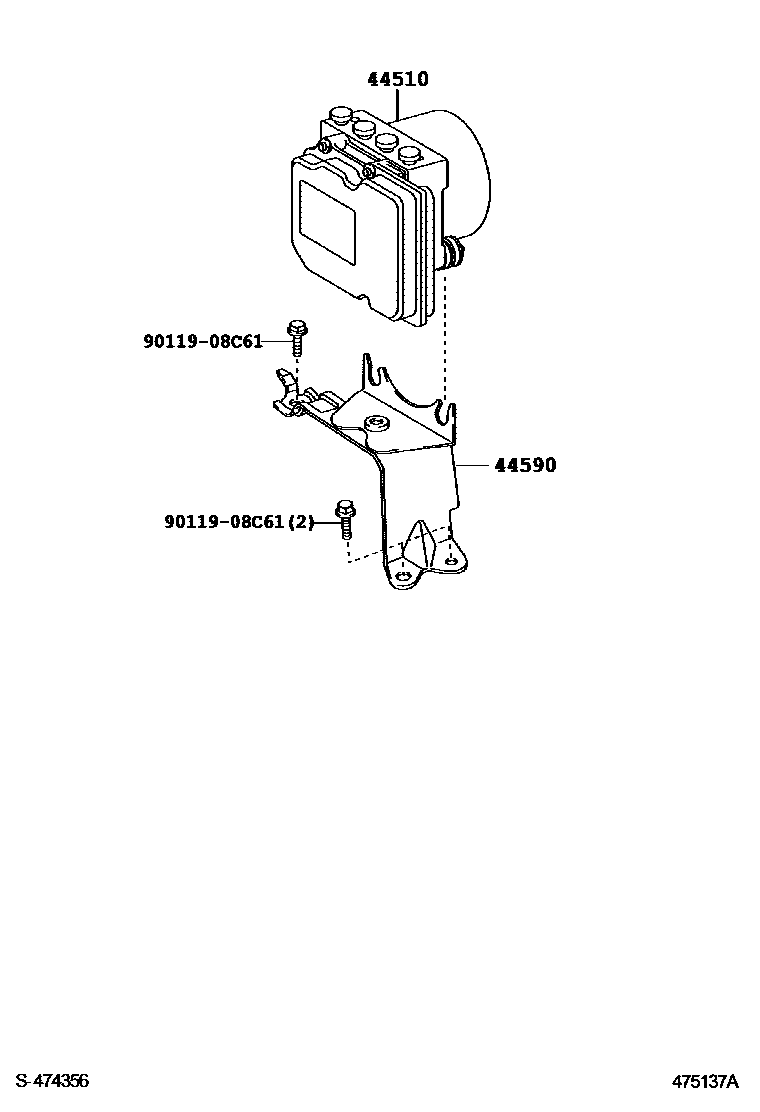

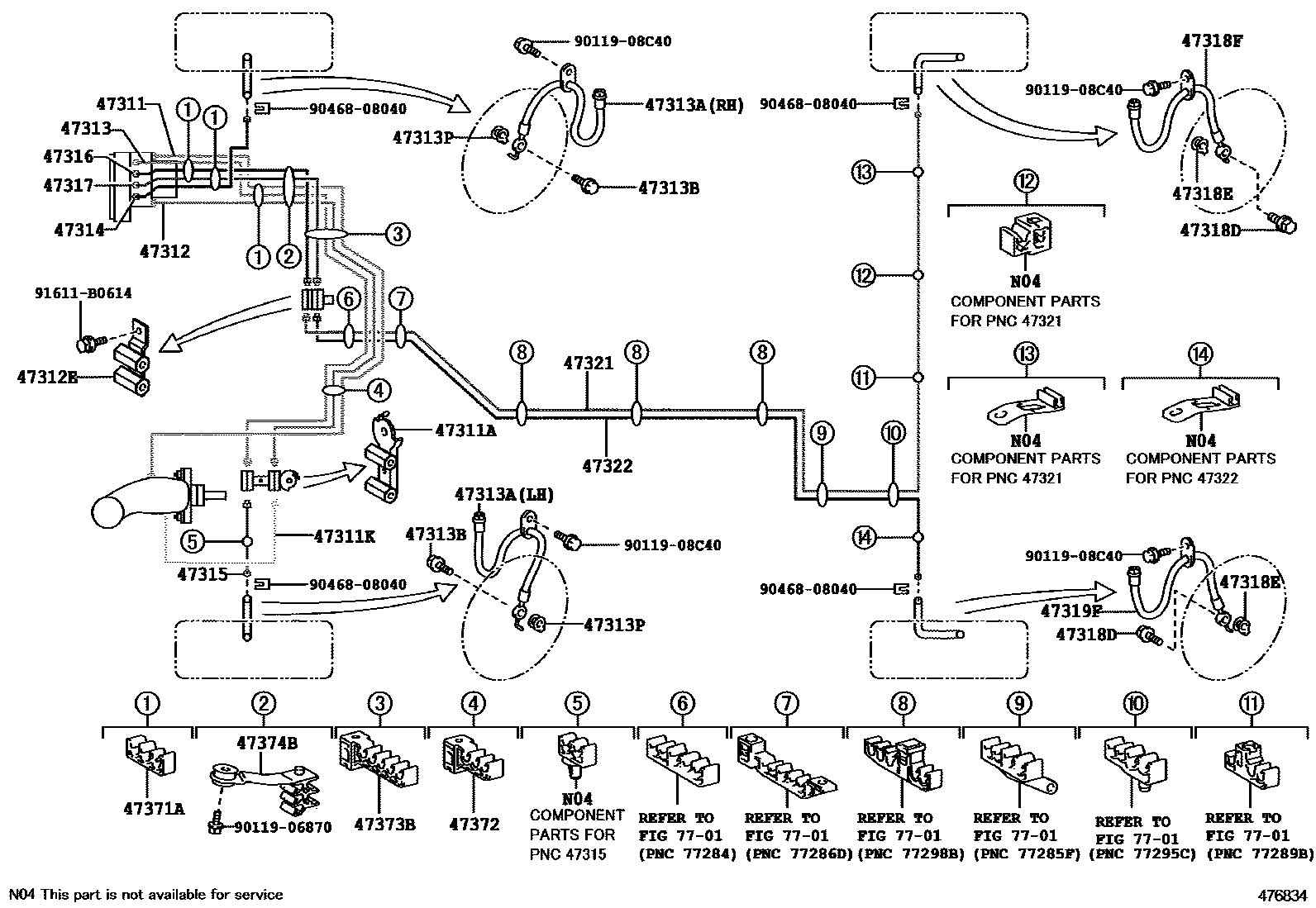

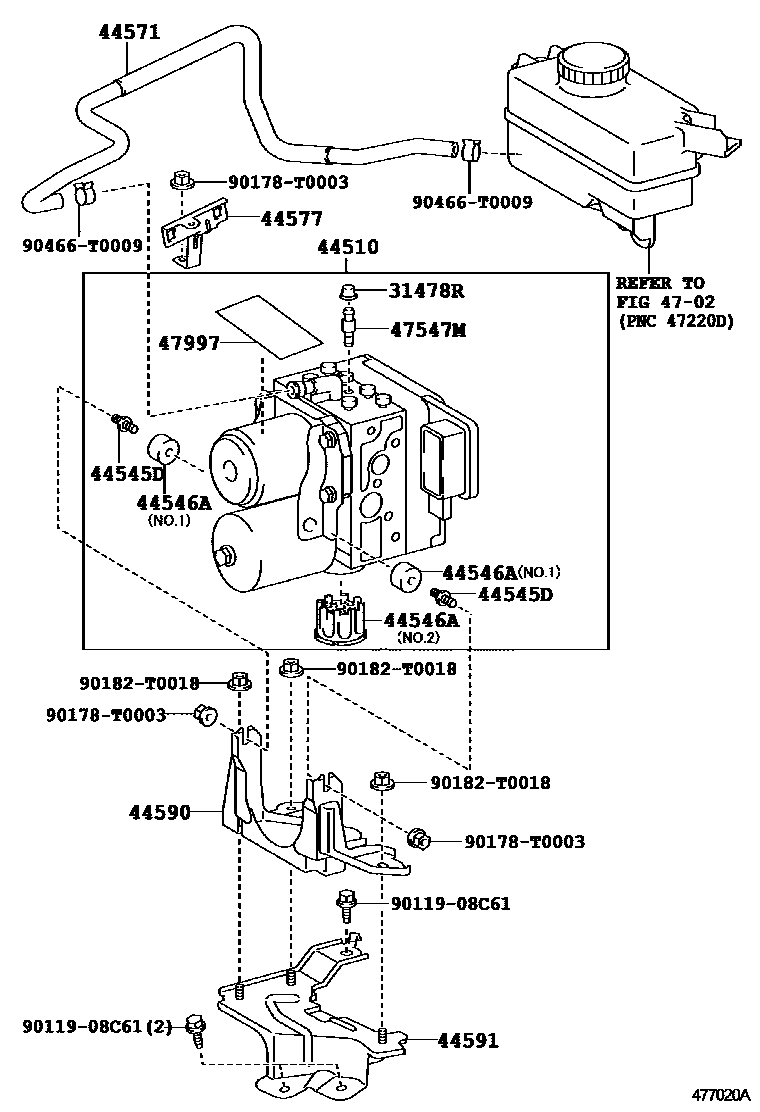

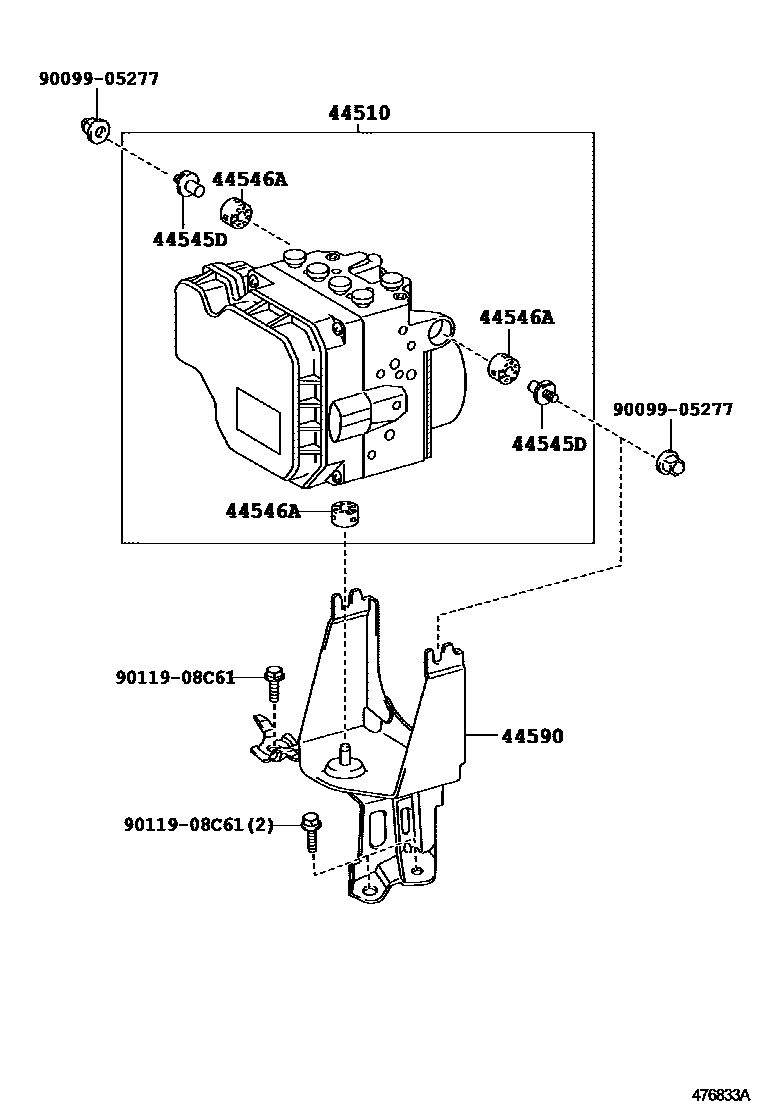

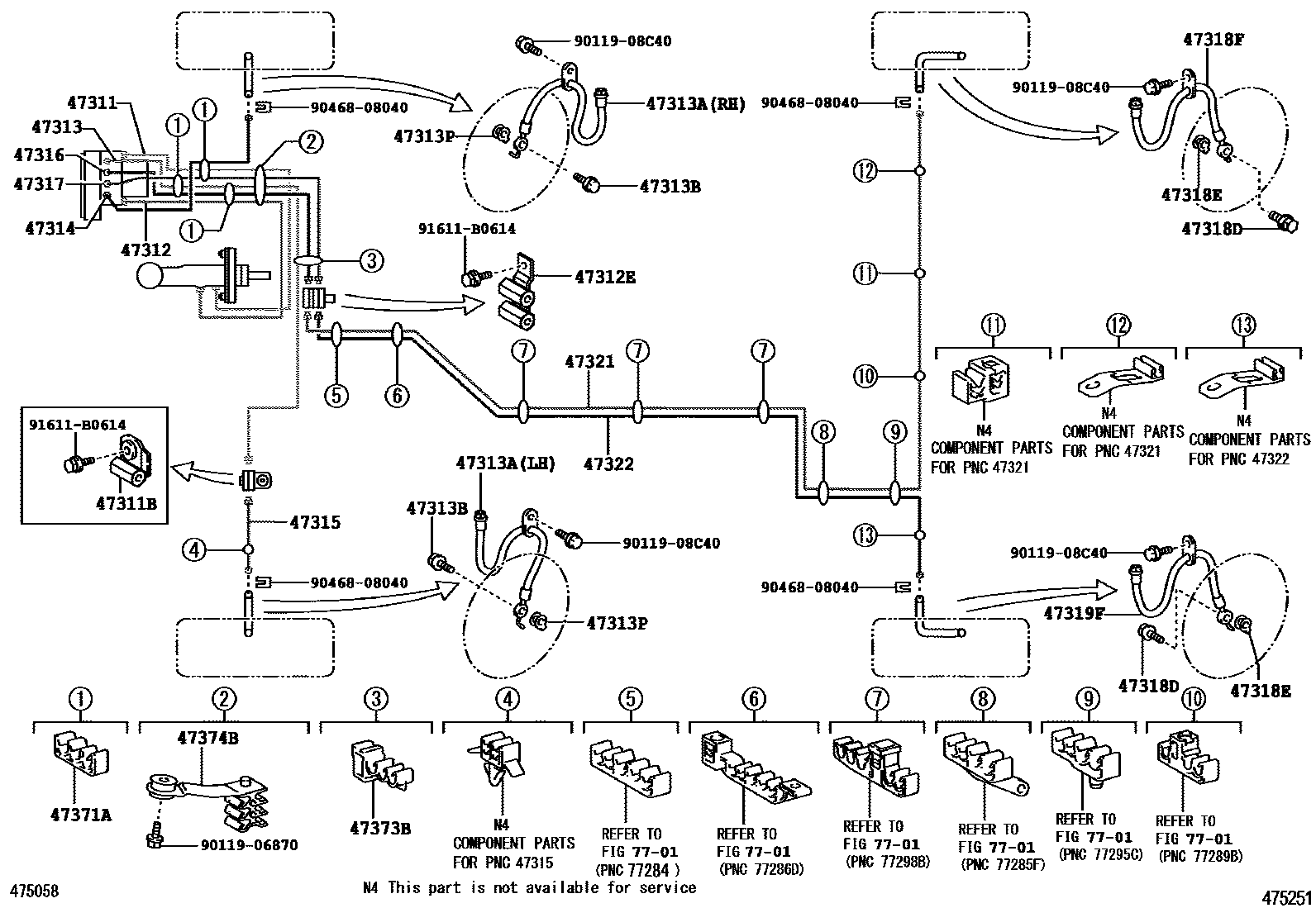

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 8 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478R | Bleed plug cap (for brake actuator) | 31478-30010 |
| 44510 | brake actuator assembly | 44050-30300 · 44050-33140 · 44050-33160 · 44050-33170 · 44050-33220 · 44050-33230 · 44050-33250 · 44050-33260 · 44050-33280 · 44050-33320 |
| 44545D | Brake actuator bolt mount | 44545-42090 · 44545-63010 |
| 44546A | Brake actuator bolt cushion | 44546-42090 · 44546-58010 · 44546-58020 |
| 44571 | brake actuator hose | 44571-33110 |
| 44577 | Brake actuator mounting bracket | 44781-33010 |
| 44590 | Brake actuator bracket assembly | 44590-06160 · 44590-06170 · 44590-06190 · 44590-06200 · 44590-33120 |
| 44591 | No. 1 brake actuator bracket | 44590-33130 |
| 47311 | No. 1 front brake pipe | 47311-06170 · 47311-06190 · 47311-06200 · 47311-06210 · 47311-06320 · 47311-06330 · 47311-06370 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10263 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10213 · 90412-10280 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-33160 |
| 47312 | No. 2 front brake pipe | 47312-06140 · 47312-06160 · 47312-06170 · 47312-06180 · 47312-06240 · 47312-06250 · 47312-06280 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10246 |
| 47312F | No. 2 frame front brake pipe | 47312-06300 |
| 47313 | No. 3 front brake pipe | 47313-06130 · 47313-06150 · 47313-06160 · 47313-06170 · 47313-06230 · 47313-06240 · 47313-06270 |
| 47313A | No. 1 front flexible hose | 90947-T2029 · 90947-T2030 · 90947-T2037 · 90947-T2038 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06130 · 47314-06150 · 47314-06160 · 47314-06170 · 47314-06220 · 47314-06230 · 47314-06260 |
| 47315 | No. 5 front brake pipe | 47315-06150 · 47315-06200 · 47315-06210 · 47315-06250 |
| 47316 | No. 6 front brake pipe | 47316-06200 · 47316-06220 · 47316-06230 · 47316-06240 · 47316-06290 · 47316-06300 · 47316-06320 |
| 47317 | No. 7 front brake pipe | 47317-06180 · 47317-06200 · 47317-06210 · 47317-06220 · 47317-06280 · 47317-06290 · 47317-06310 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 47389-50021 |
| 47318F | Right rear flexible hose | 90080-94141 · 90947-T2018 |
| 47319F | Left rear flexible hose | 90080-94144 · 90947-T2019 |
| 47321 | No. 1 rear brake pipe | 47321-06120 · 47321-06130 |
| 47322 | No. 2 rear brake pipe | 47322-06120 · 47322-06130 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00876 · 90464-00880 |
| 47371B | No. 6 brake pipe clamp | 90464-00857 |
| 47372 | No. 2 brake pipe clamp | 90949-01C95 |
| 47373B | No. 3 brake pipe clamp | 90949-01D05 · 90949-01D06 · 90949-01D08 · 90949-01D28 |
| 47374B | No. 4 brake pipe clamp | 90949-04035 |
| 47375 | No. 5 brake pipe clamp | 90949-01C85 |
| 47547M | Bleed plug (for brake actuator) | 47547-22020 |
| 47997 | No. 1 Brake Booster Accumulator Warning Label | 47997-48010 |
