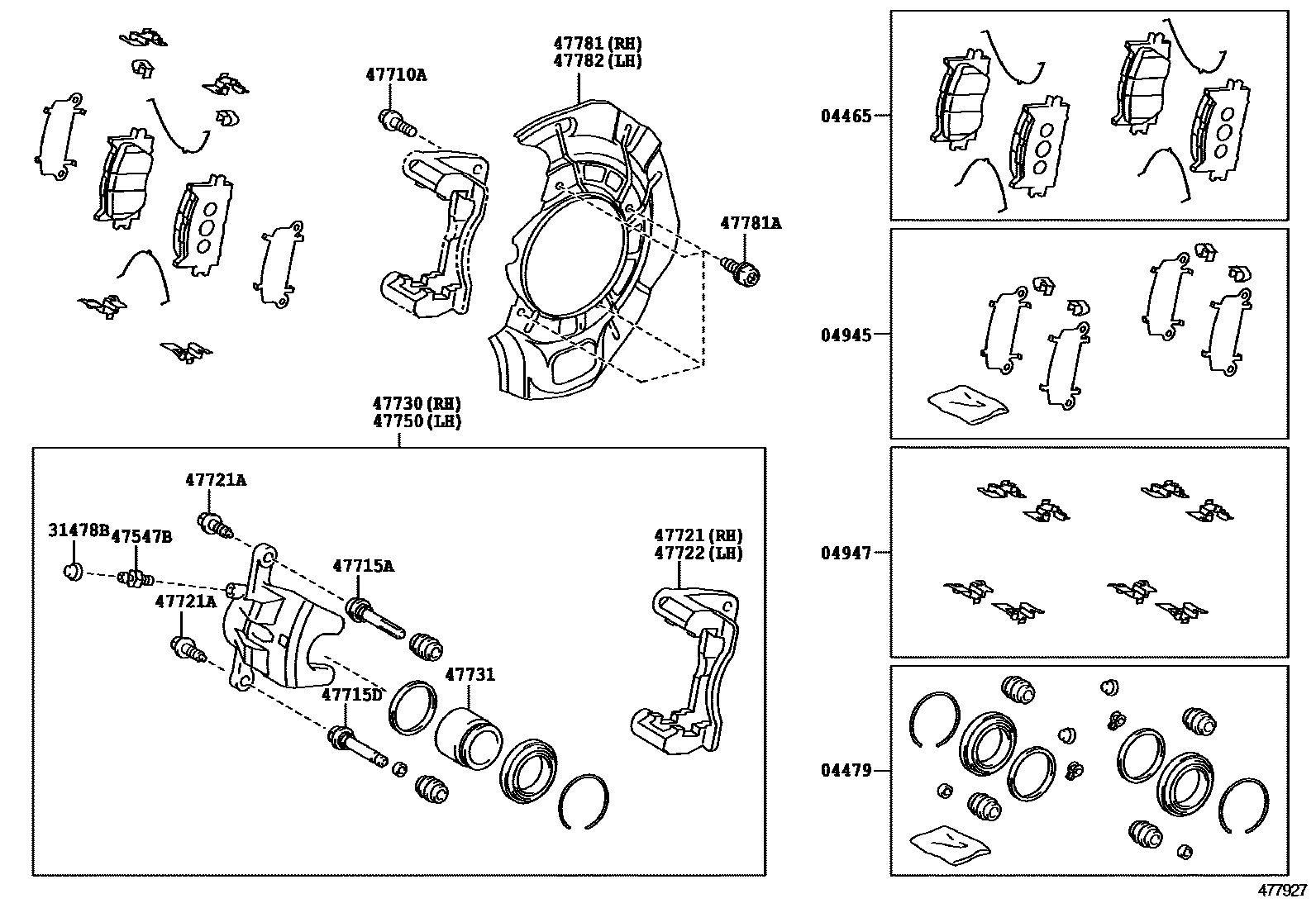

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-06110 · 04465-06130 · 04465-06131 · 04465-33450 · 04465-33470 |
| 04479 | Front disc brake cylinder assembly | 04478-06160 · 04478-06170 · 04478-06240 · 04478-06250 · 04478-06251 · 04478-06252 · 04478-06270 |
| 04945 | Front silencer gasket assembly | 04945-06110 · 04945-33260 |
| 04947 | Front disc brake mounting kit | 04947-06070 · 04947-33220 · 04947-33240 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 · 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-0D030 · 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47714-33361 · 47715-06250 · 47715-52190 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47714-06250 · 47715-33340 |
| 47721 | Right front disc brake cylinder retainer | 47721-06250 · 47721-06260 · 47721-06281 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90016-AA603 · 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47722-06250 · 47722-06260 · 47722-06281 |
| 47730 | Right front disc brake cylinder assembly | 47730-06250 · 47730-06260 · 47730-06281 |
| 47731 | Front disc brake piston | 47731-06260 · 47731-33340 |
| 47750 | Left disc brake cylinder assembly | 47750-06250 · 47750-06260 · 47750-06281 |
| 47781 | Right front disc brake dust cover | 47781-06090 · 47781-06120 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 · 90119-T0005 |
| 47782 | Left front disc brake dust cover | 47782-06090 · 47782-06120 |
