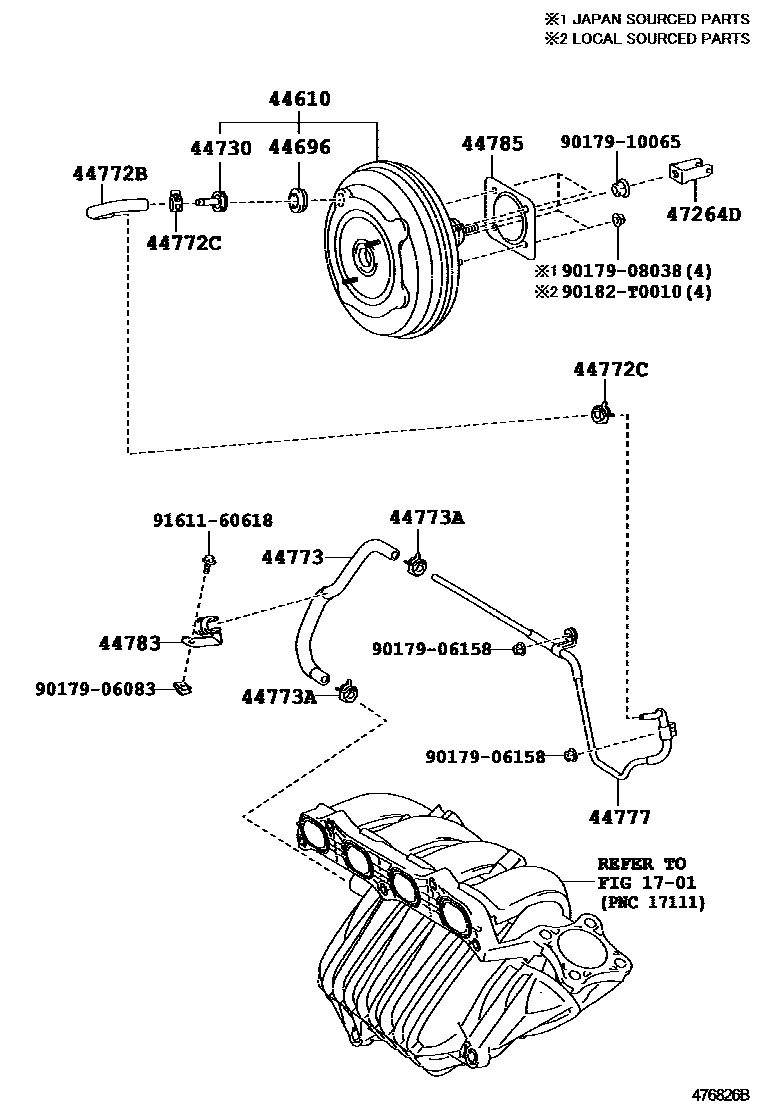

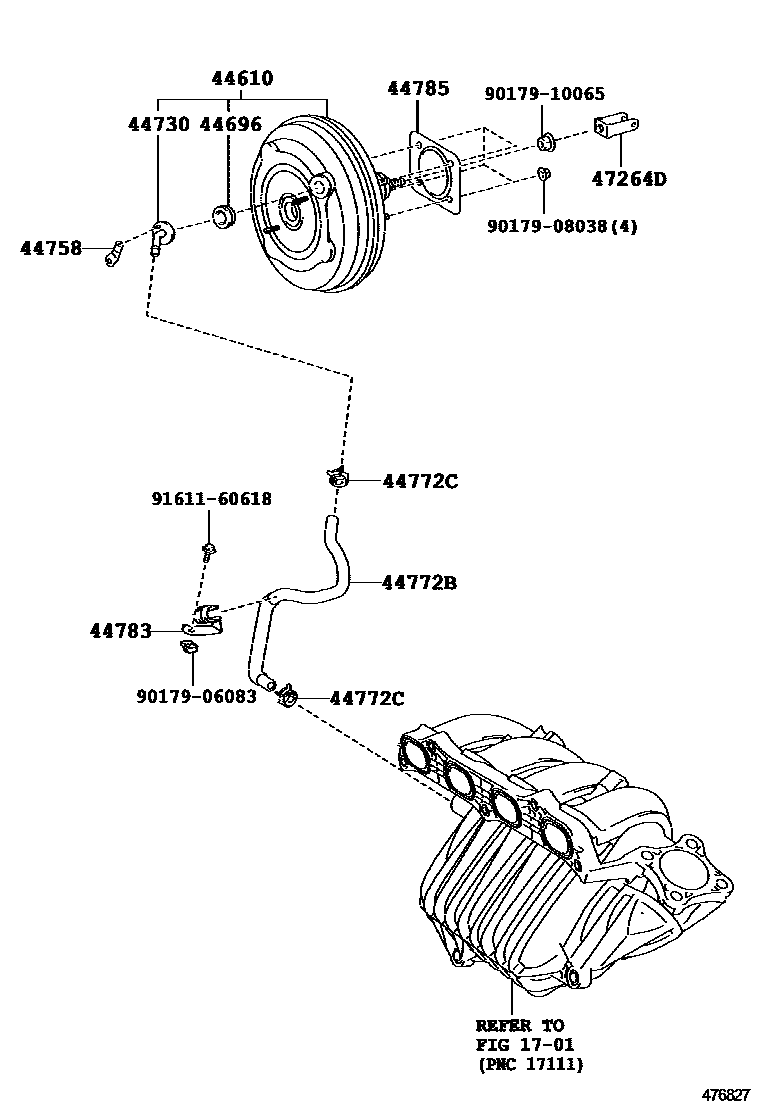

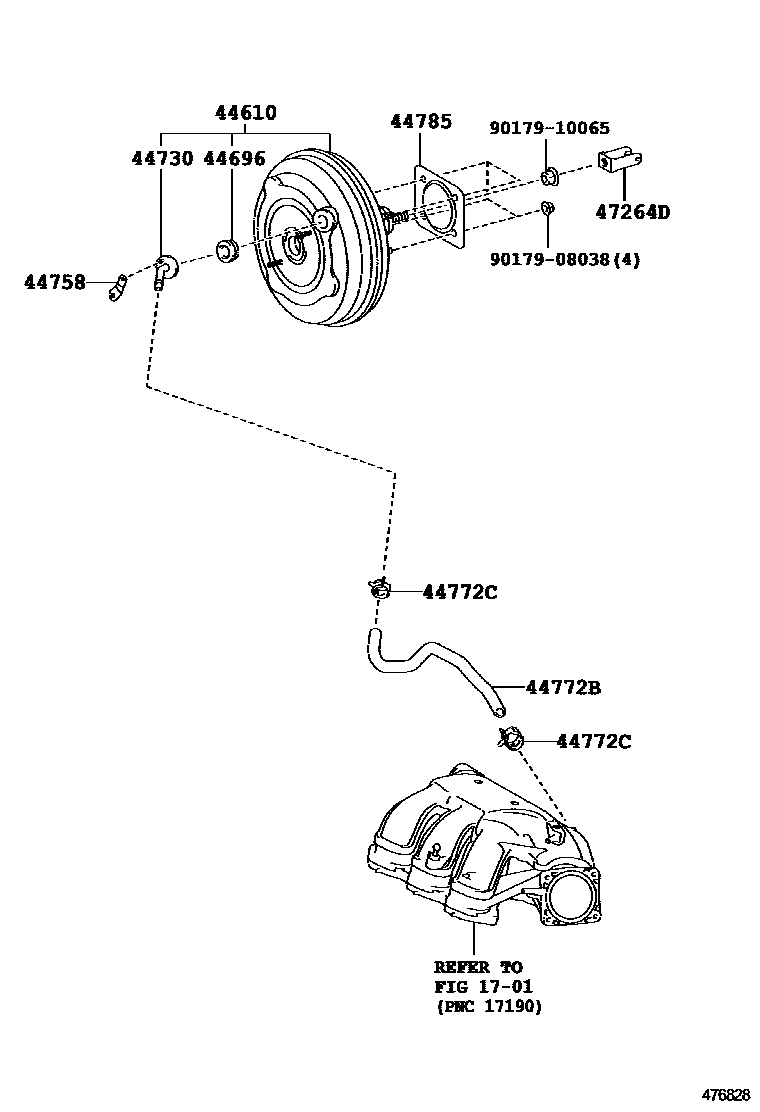

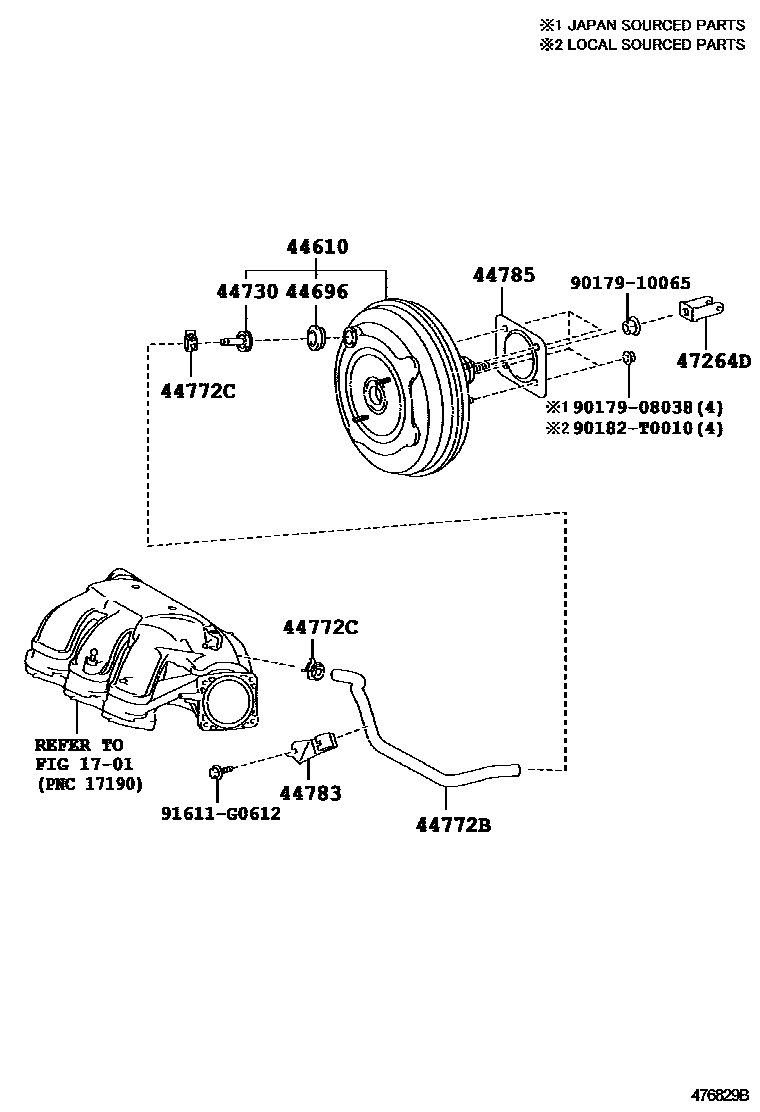

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06390 · 44610-06391 · 44610-06392 · 44610-06400 · 44610-06401 · 44610-06402 · 44610-06410 · 44610-06411 · 44610-06412 · 44610-06420 · 44610-06421 · 44610-06422 · 44610-33670 · 44610-33680 |
| 44696 | One-way valve seal | 90480-24015 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10020 · 44730-28030 |
| 44758 | Vacuum check valve bracket | 44758-32070 |
| 44772B | Hoses (check valve to brake booster) | 44772-06210 · 44772-06230 · 44772-33120 · 44772-33130 · 44772-33150 · 44772-33170 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 |
| 44773 | No. 2 vacuum hose | 44772-06220 · 44772-33160 · 44772-33161 |
| 44773A | Clamp No. 1 (for vacuum hose No. 2) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44770-06160 · 44770-33090 |
| 44783 | Vacuum hose clamp | 44783-28010 · 44783-33010 |
| 44785 | brake booster pad | 44785-0D020 · 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-06020 · 47264-63020 |
