Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 3 images and 6 PNC and OE references.

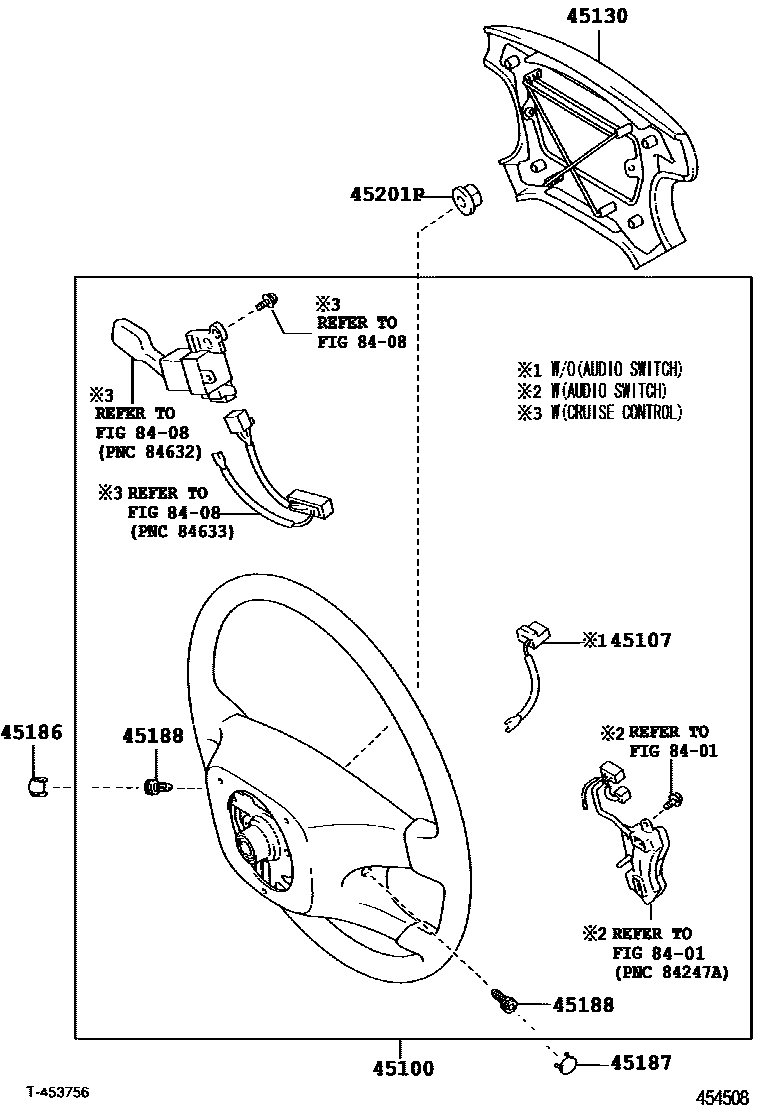

Toyota CAMRY Steering Wheel EPC diagram — 454508
Steering Wheel — 454508 (200605 – 200710)

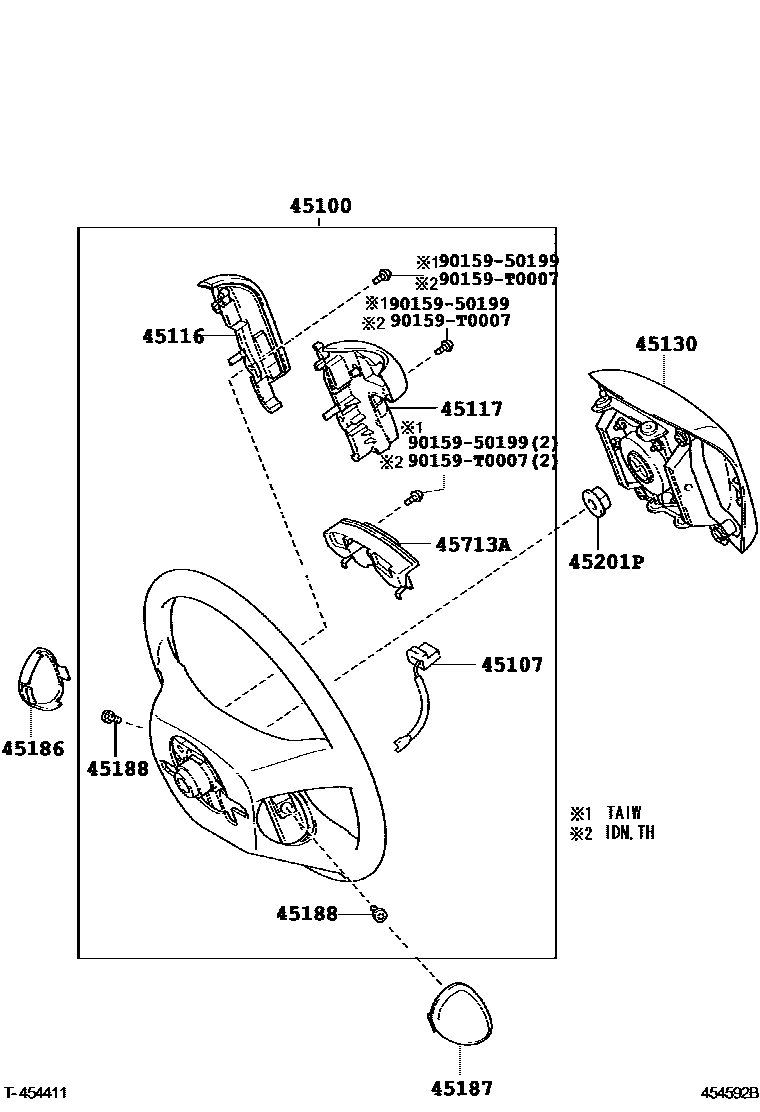

Toyota CAMRY Steering Wheel EPC diagram — 454592B
Steering Wheel — 454592B (200608 – 999999)

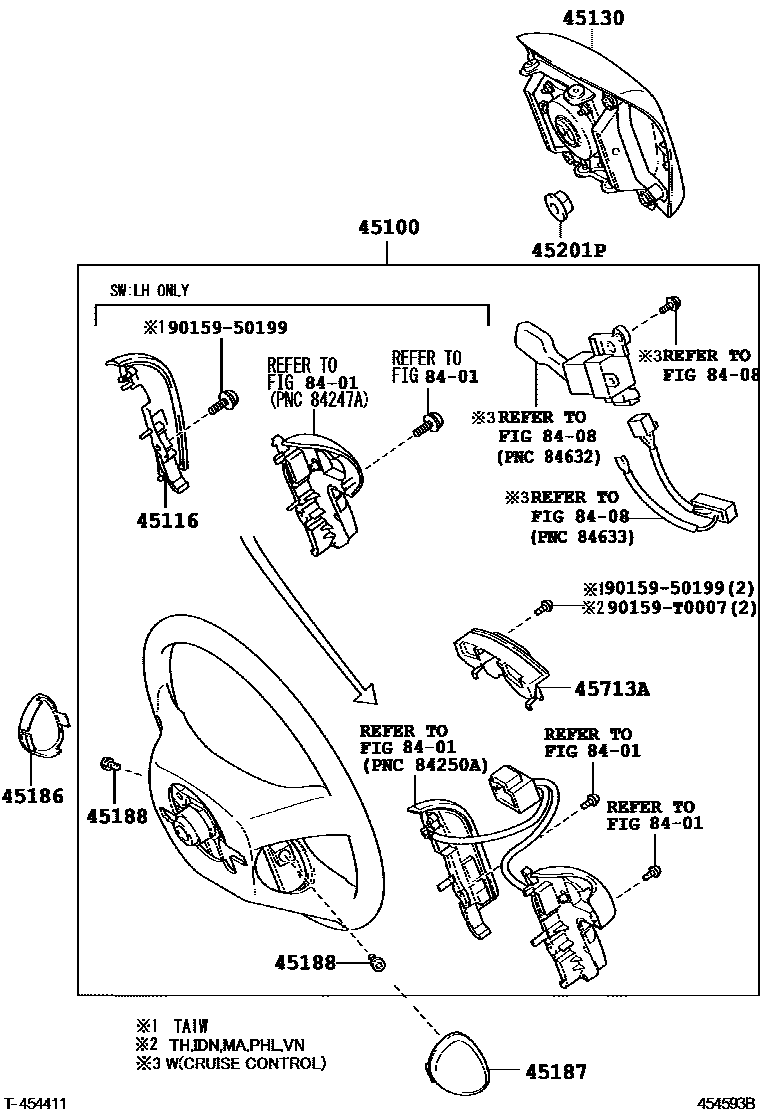

Toyota CAMRY Steering Wheel EPC diagram — 454593B
Steering Wheel — 454593B (200605 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-06031 · 45107-06040 · 45107-28030
45116No. 1 steering wheel decorative parts45116-33010
45117No. 2 steering wheel decorative parts45117-33020
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
45713Asteering damper45713-33170 · 45713-33180
