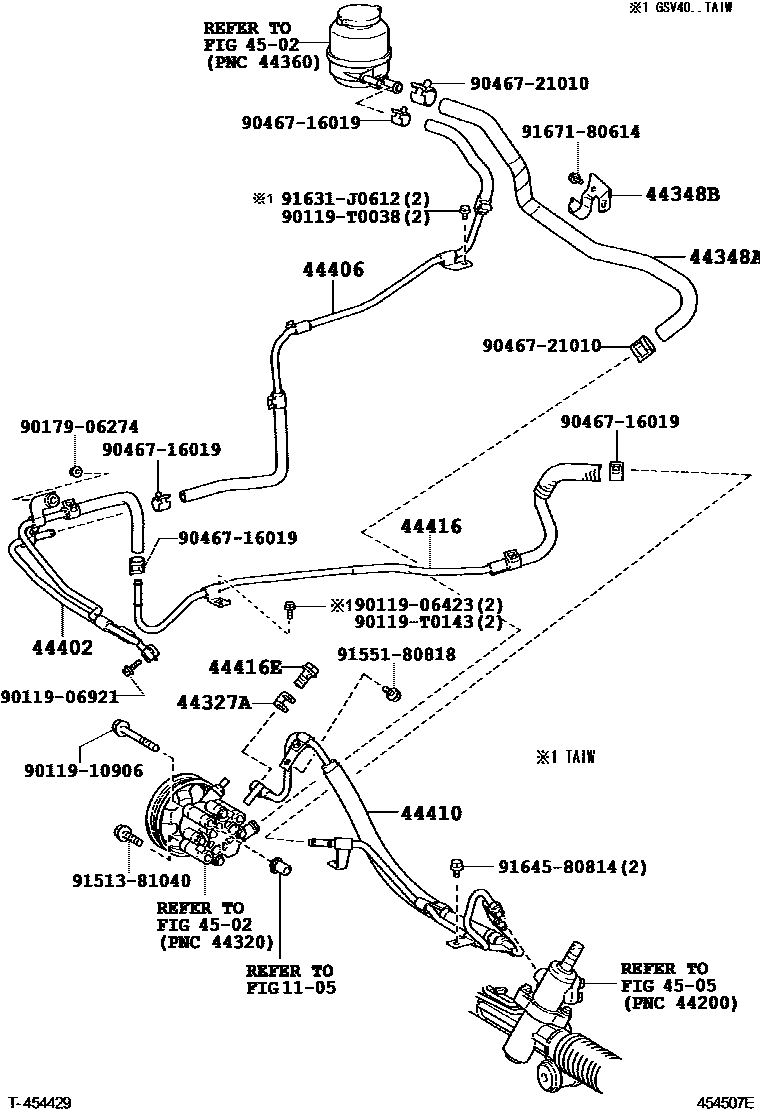

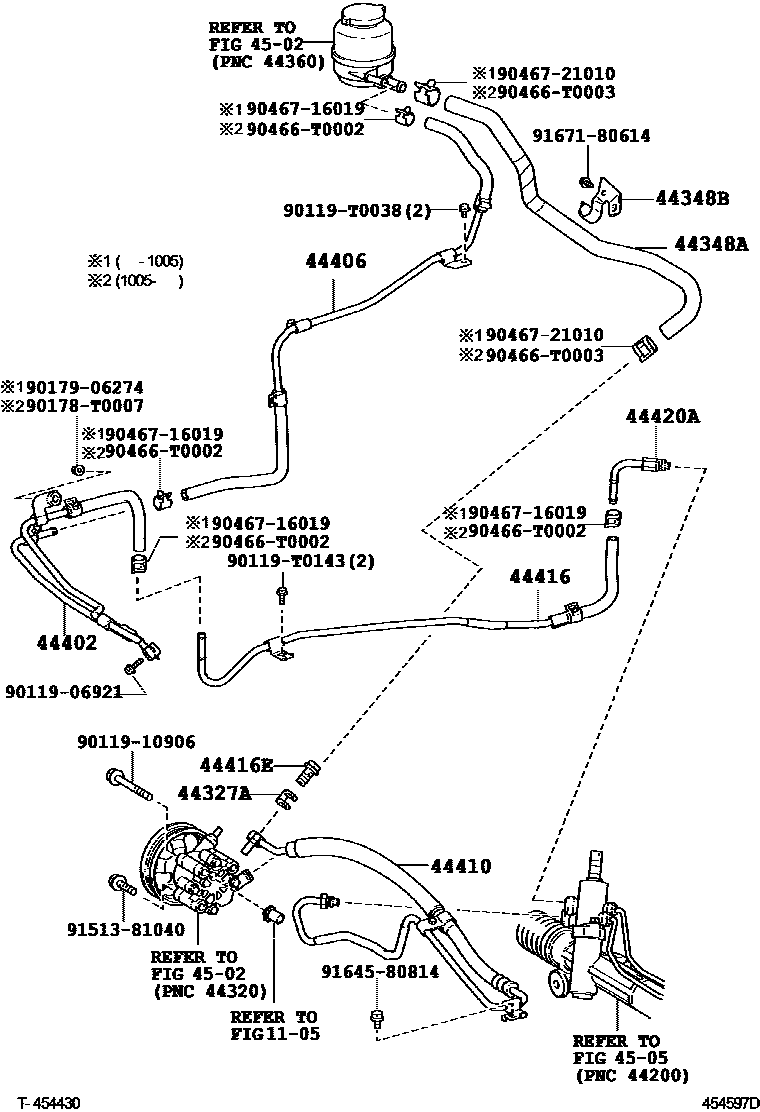

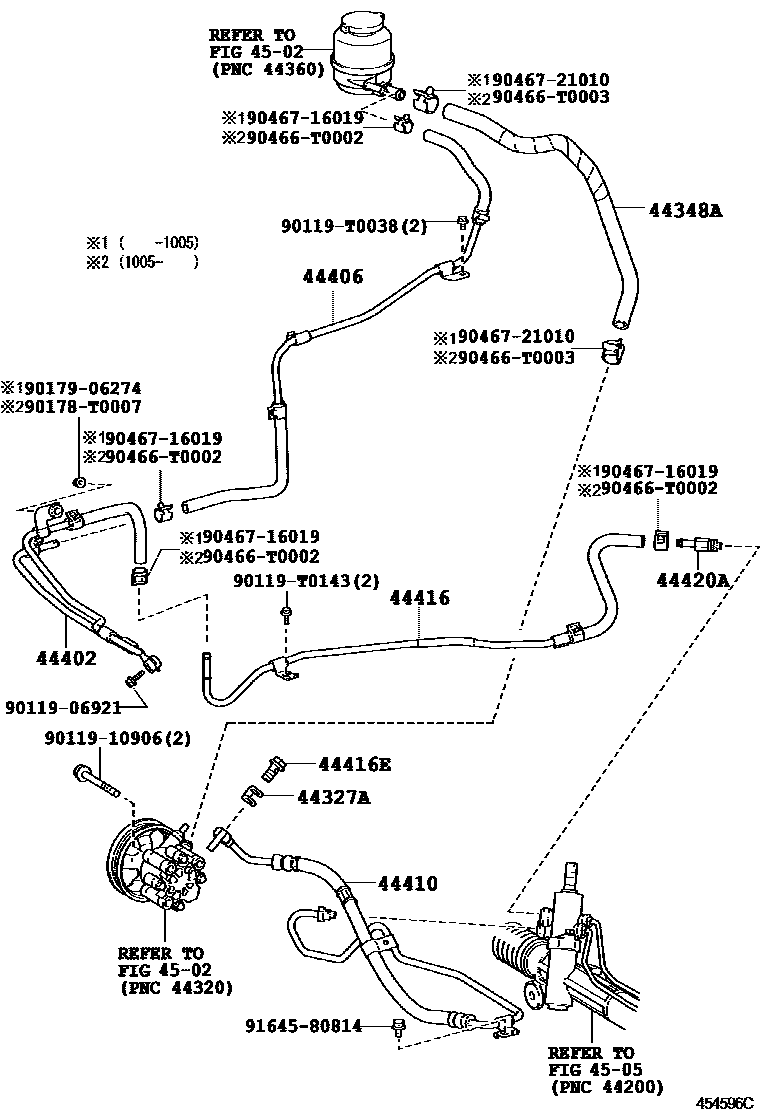

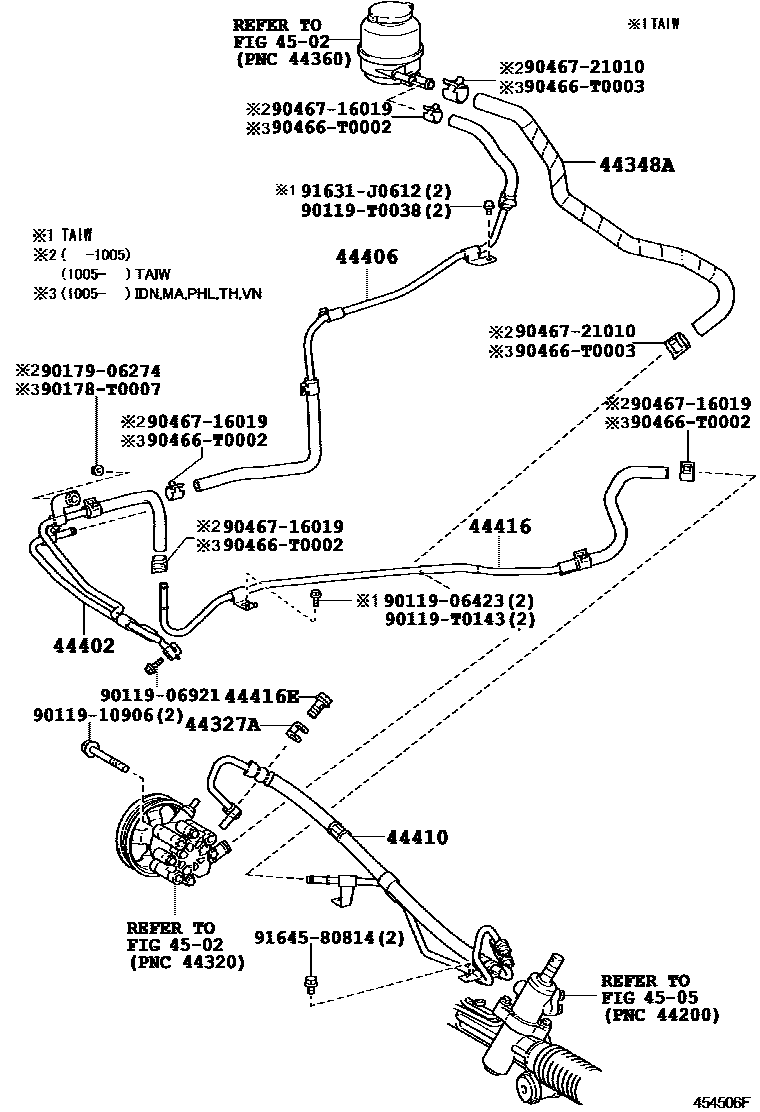

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-06310 · 44348-06320 · 44348-06330 · 44348-33240 · 44348-33250 |
| 44348B | Clamp (for reservoir to pump hose) | 44349-41010 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-06101 · 44402-06111 |
| 44406 | Oil return pipe sub-assembly | 44406-06200 · 44406-06210 |
| 44410 | Pressure supply pipe assembly | 44410-06170 · 44410-06290 · 44410-06340 · 44410-33180 · 44410-33181 · 44410-33182 · 44410-33240 · 44410-33241 · 44410-33242 · 44410-33250 · 44410-33251 · 44410-33252 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-06221 · 44416-06231 · 44416-06241 · 44416-33171 · 44416-33191 · 44416-33201 |
| 44416E | Joint bolt (for oil return pipe) | 96341-41603 |
| 44420A | Oil return pipe assembly | 44420-06050 · 44420-33020 |
