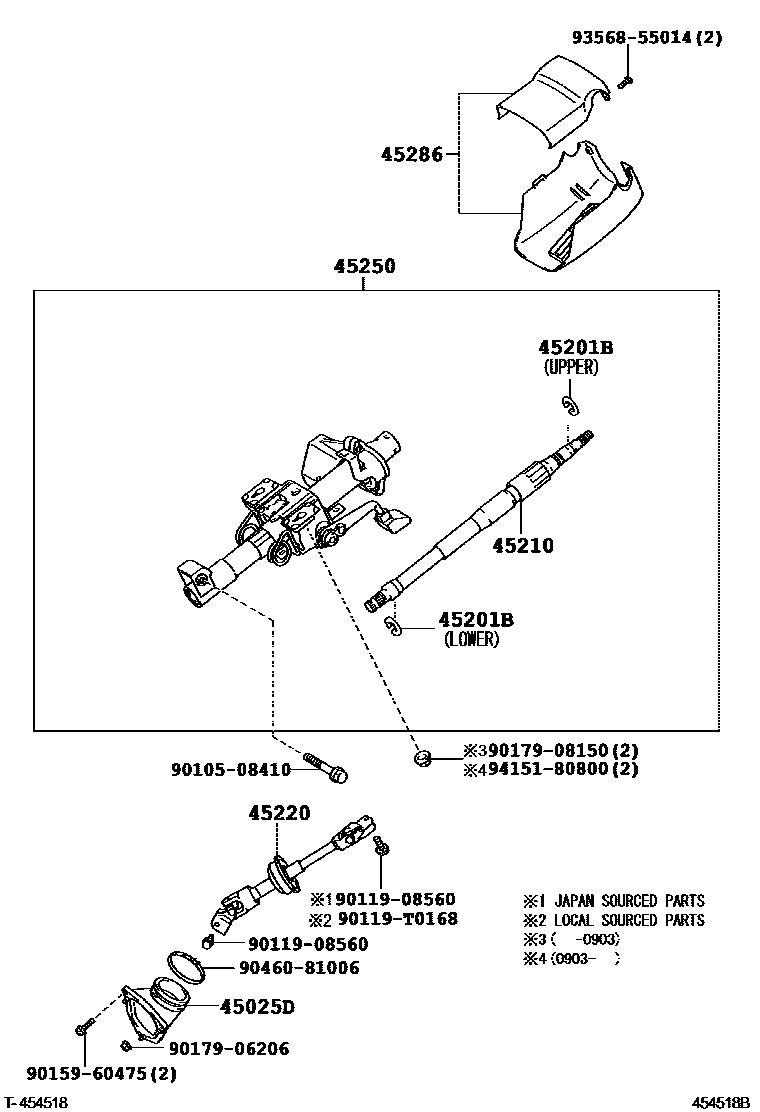

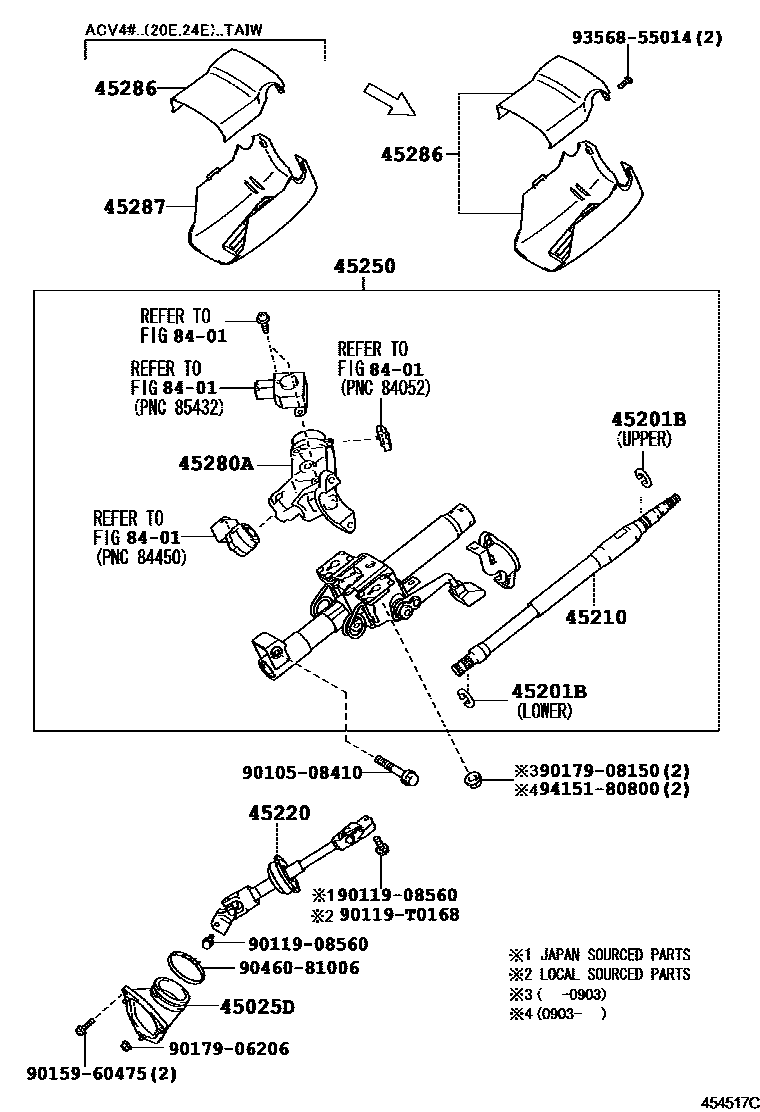

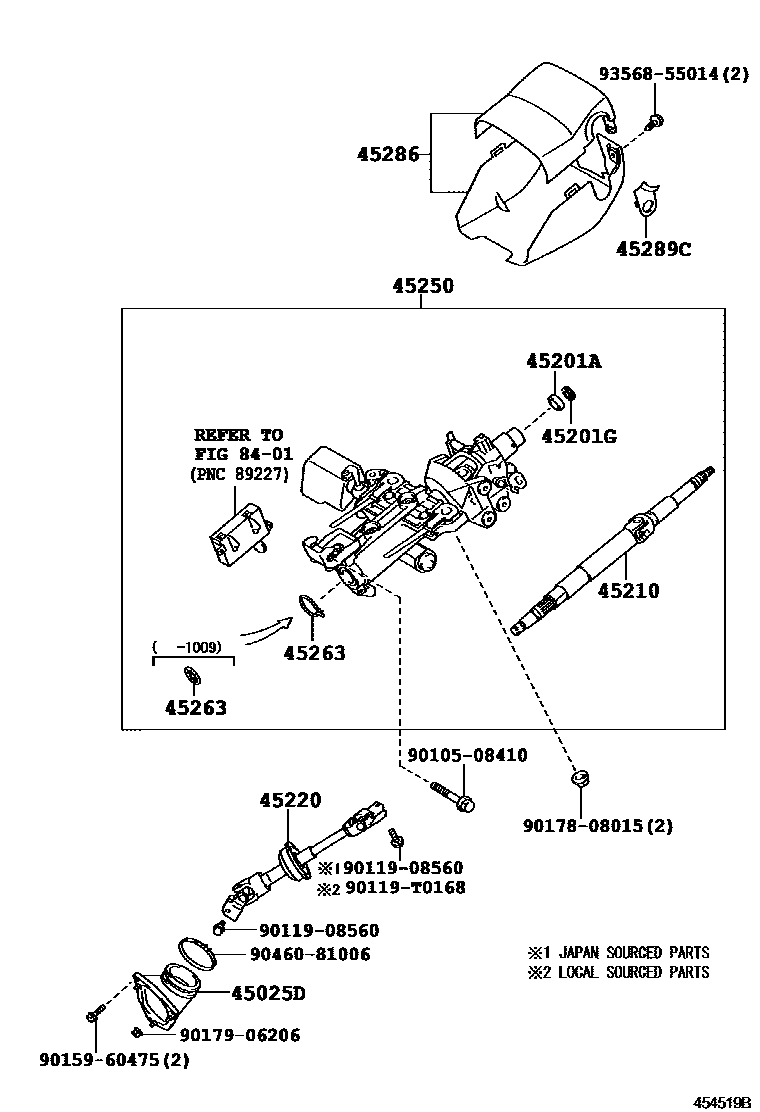

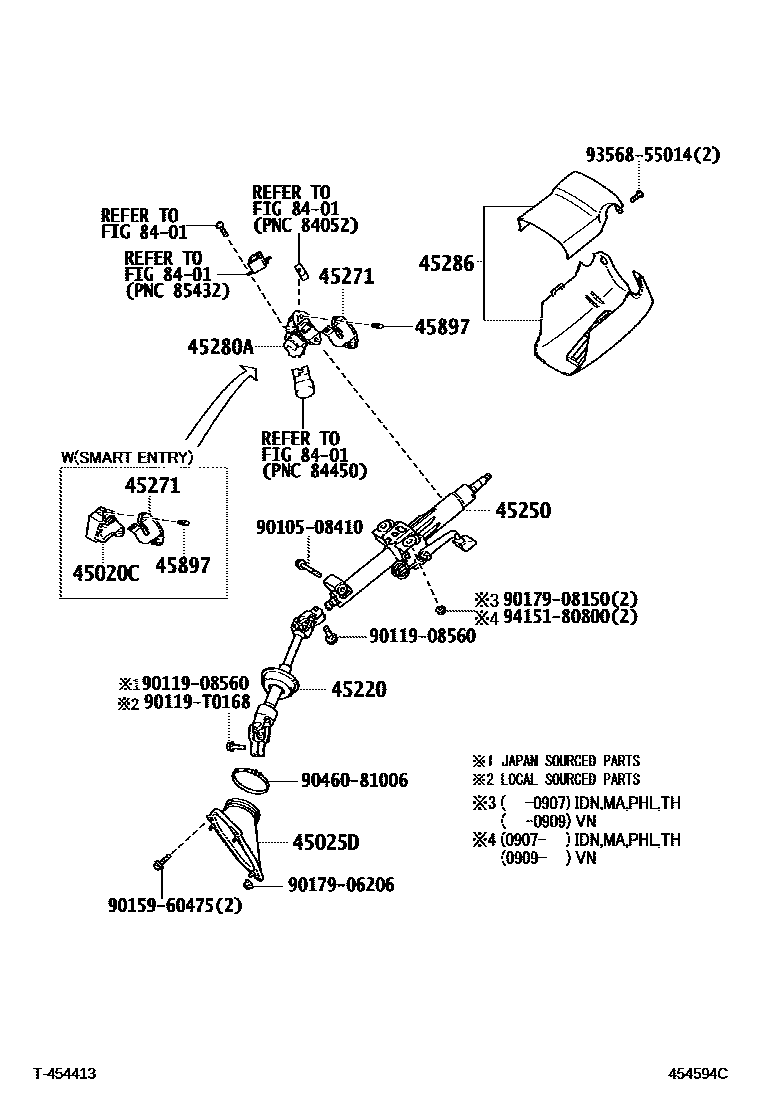

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-52140 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06120 · 45025-06130 · 45025-06140 |
| 45201A | Bearings (for steering spindle) | 90363-25077 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17269 · 90520-21023 |
| 45201G | Compression spring (for steering spindle) | 45820-50010 |
| 45210 | Steering spindle assembly | 45210-06040 · 45210-06050 · 45210-33170 |
| 45220 | Steering intermediate shaft assembly | 45220-06120 · 45220-06121 · 45220-06122 · 45220-06130 · 45220-06131 · 45220-06132 · 45220-06160 · 45220-06161 |
| 45250 | Steering column assembly | 45250-06430 · 45250-06440 · 45250-06490 · 45250-06500 · 45250-33681 |
| 45263 | No. 1 steering column ring | 45263-30010 · 45263-60020 |
| 45271 | Clamp on steering column | 45271-22020 |
| 45280A | Steering column upper bracket assembly | 45280-06070 · 45280-06080 |
| 45286 | steering column cover | 45286-06160 |
| 45287 | Steering column lower cover | 45287-06170 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
