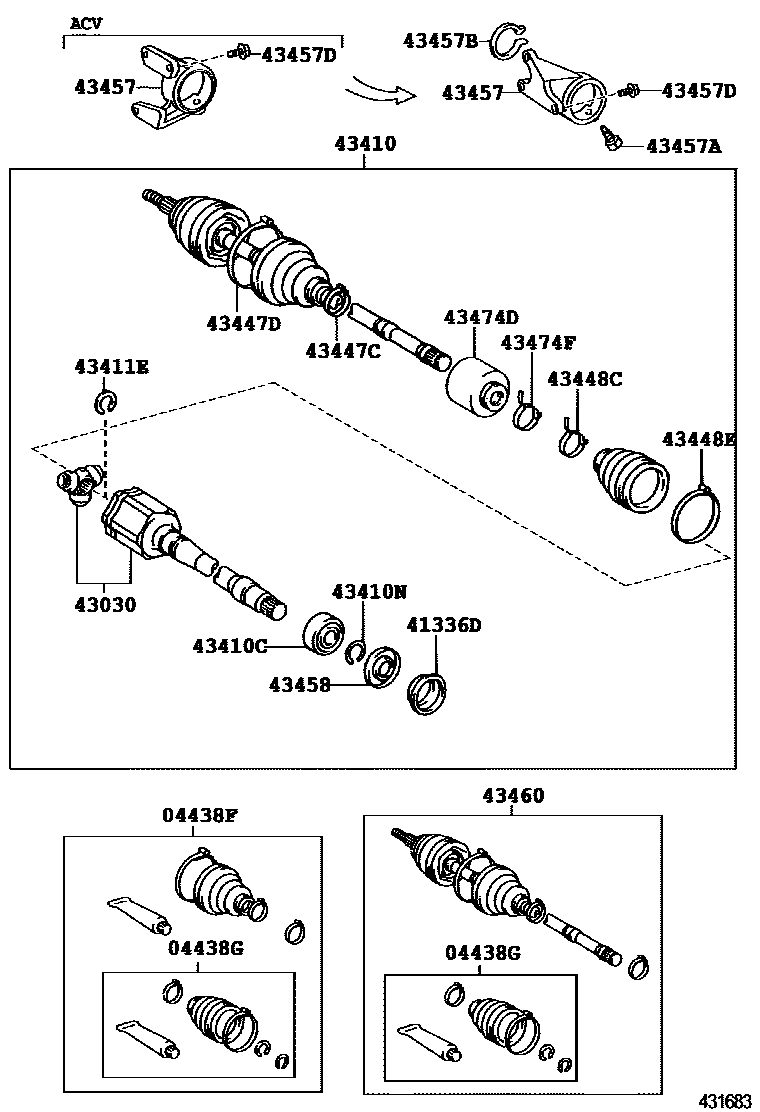

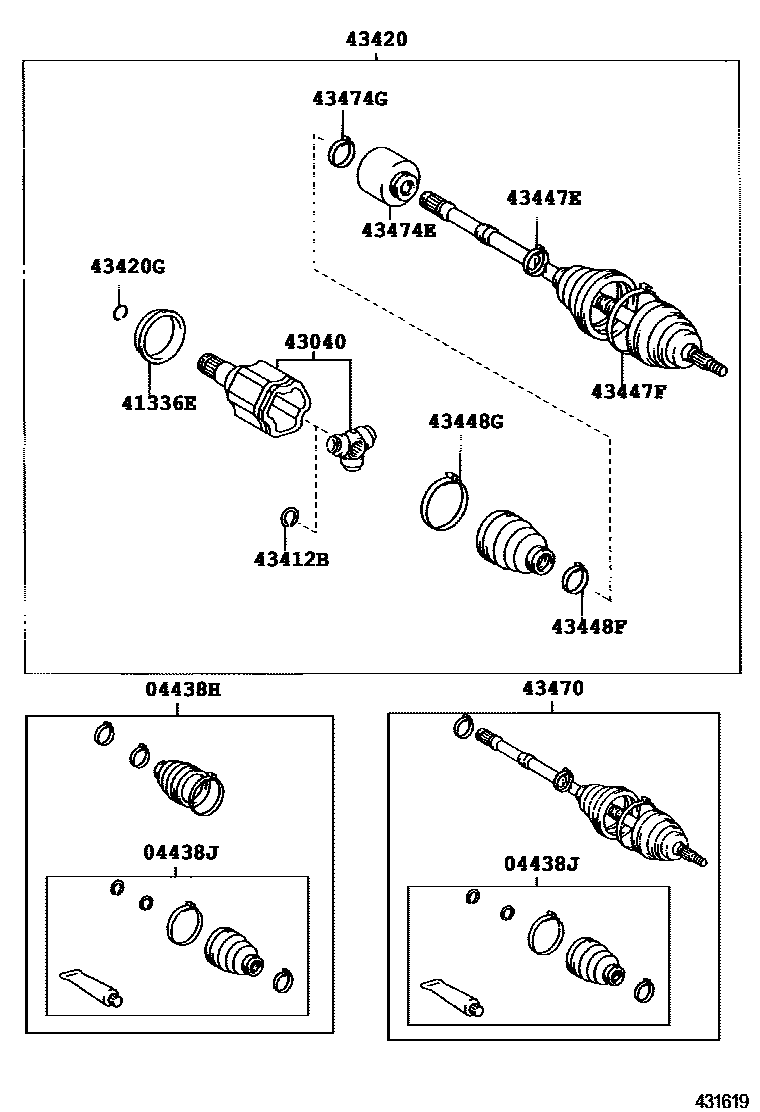

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06310 · 04427-06320 · 04427-06330 · 04427-06340 · 04427-33030 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06120 · 04437-06130 · 04437-06140 · 04437-06150 · 04437-33040 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06350 · 04428-06360 · 04428-06370 · 04428-06380 · 04428-33030 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06540 · 04438-06550 · 04438-06560 · 04438-06570 · 04438-33120 |
| 41336D | Right front driveshaft dust cover | 41336-06100 · 41336-06150 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-06110 · 41336-06180 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06170 · 43030-06180 · 43030-06240 · 43030-06250 · 43030-33041 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06170 · 43040-06180 · 43040-06230 · 43040-06240 · 43040-28021 |
| 43410 | Right front driveshaft assembly | 43410-06590 · 43410-06610 · 43410-06620 · 43410-06630 · 43410-33310 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 · 90363-T0025 · 90363-T0026 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-06160 · 43425-06180 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-06190 · 43425-06210 · 43425-06250 · 43425-06260 · 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06190 · 43425-06210 · 43425-06250 · 43425-06260 · 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-06620 · 43420-06640 · 43420-06650 · 43420-06660 · 43420-06720 · 43420-06760 · 43420-33270 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-06220 · 43425-06240 · 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06300 · 42345-06330 · 42345-06340 · 42345-06660 · 42345-06690 · 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06290 · 42345-06330 · 42345-06340 · 42345-06650 · 42345-06700 · 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06300 · 42345-06330 · 42345-06660 · 42345-06690 · 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06290 · 42345-06340 · 42345-06650 · 42345-06700 · 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06280 · 42345-06320 · 42345-06640 · 42345-06680 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06270 · 42345-06310 · 42345-06630 · 42345-06670 · 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06280 · 42345-06320 · 42345-06640 · 42345-06680 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06270 · 42345-06310 · 42345-06630 · 42345-06670 · 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-06050 · 43457-06060 · 43457-06080 · 43457-33020 · 43457-33030 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06040 · 43458-06080 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09P80 · 43460-09P90 · 43460-39285 · 43470-09P40 · 43470-09P50 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09P40 · 43470-09P50 · 43470-09P60 · 43470-09P70 · 43470-39515 |
| 43474D | Right front driveshaft shock absorber | 43474-06100 · 43474-06110 · 43474-48020 |
| 43474E | Left front driveshaft shock absorber | 43474-06120 · 43474-06130 · 43474-06240 · 43474-06250 · 43474-48030 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06260 · 42345-06620 · 42345-42010 · 90949-01559 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06260 · 42345-06620 · 42345-14010 |
