Toyota CAMRY 前桥壳和差速器 — Figure 4301

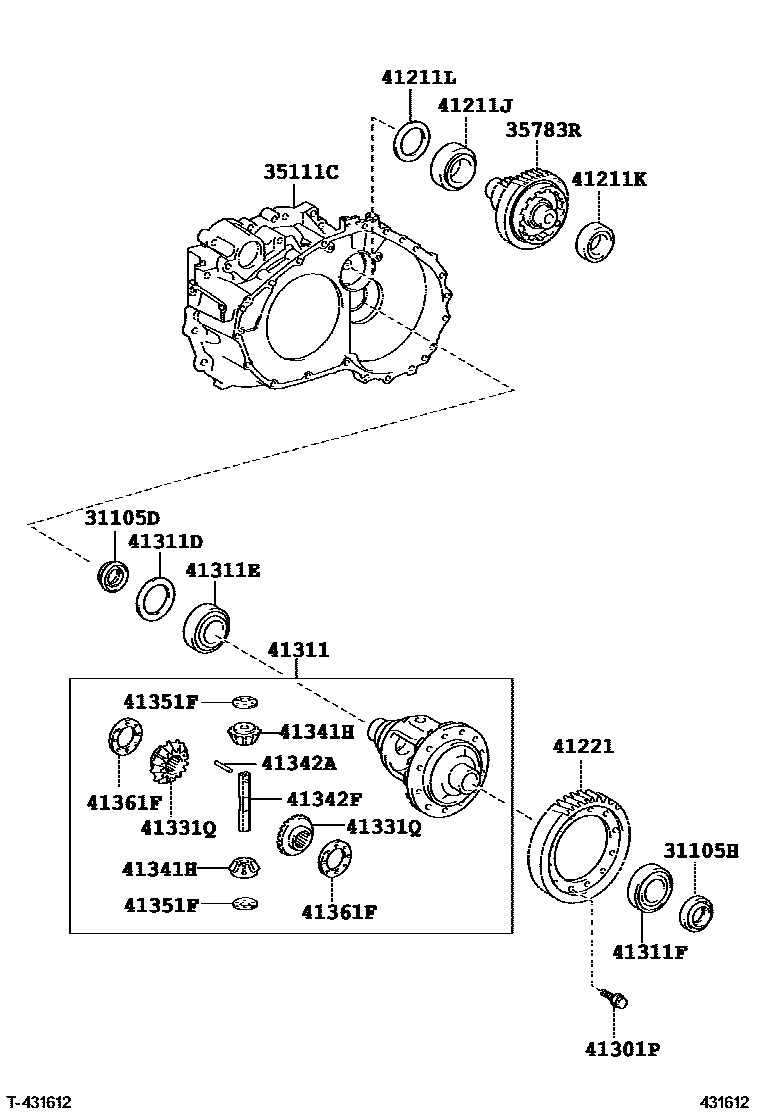

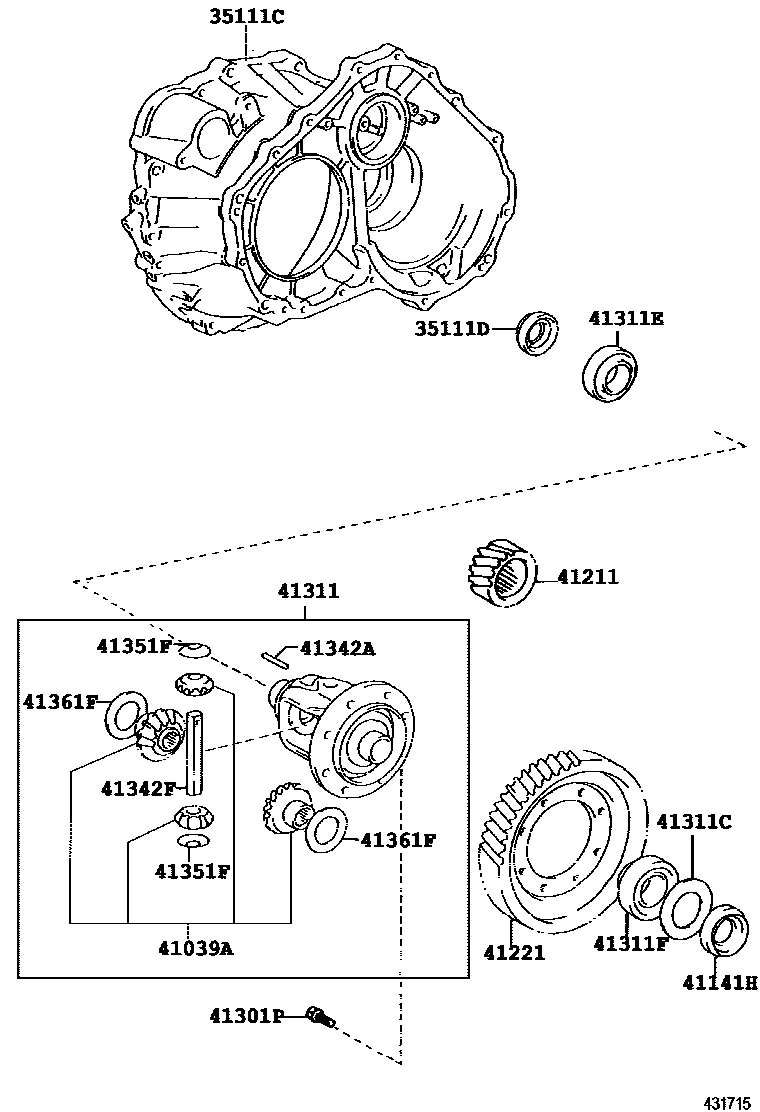

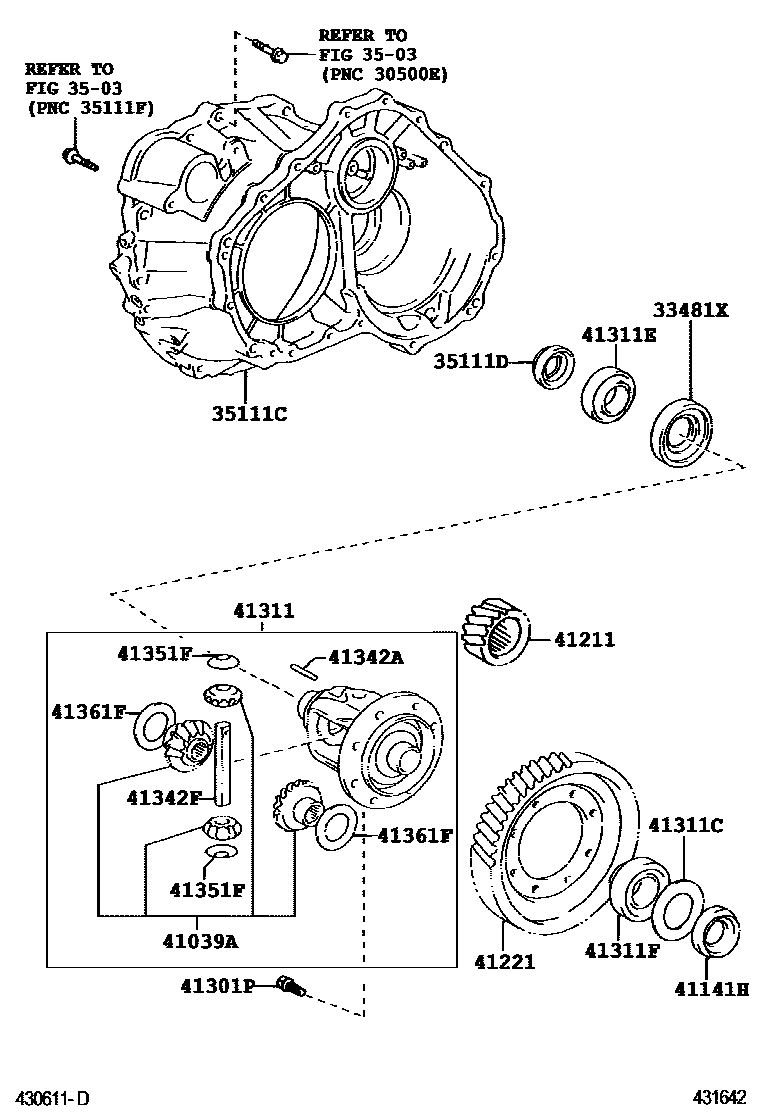

Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-40029 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-50033 · 90311-50045 |
| 33481X | speedometer drive gear | 33481-28060 |
| 35111C | Transmission axle housing | 35105-33010 · 35105-33011 · 35105-44011 · 35105-44060 · 35105-44061 |
| 35111D | Oil seal (for transaxle housing) | 90311-40031 |
| 35783R | countershaft driven gear | 35705-33020 |
| 41039A | Differential gear assembly | 41039-28020 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50033 · 90311-50045 |
| 41211 | Differential drive pinion | 41211-12220 · 41211-32150 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-42006 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-35142 · 90366-35160 |
| 41211L | Spacer (for differential drive pinion) | 90564-71014 · 90564-71015 · 90564-71016 · 90564-71017 · 90564-71018 · 90564-71019 · 90564-71020 · 90564-71021 · 90564-71022 · 90564-71023 · 90564-71024 · 90564-71025 · 90564-71026 · 90564-71027 · 90564-71028 · 90564-71029 · 90564-71030 · 90564-71031 · 90564-71032 · 90564-71033 · 90564-71034 · 90564-71035 · 90564-71036 · 90564-71037 · 90564-71038 · 90564-71039 · 90564-71040 · 90564-71041 · 90564-71042 · 90564-71043 · 90564-71044 · 90564-71045 · 90564-71046 · 90564-71047 · 90564-71048 · 90564-71049 · 90564-71050 · 90564-71051 · 90564-71052 · 90564-71053 · 90564-71054 |
| 41221 | Front differential ring gear | 41221-32160 · 41221-33140 · 41221-33160 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-33110 · 41301-33120 |
| 41311C | Rear gasket (for front differential case) | 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311D | Front gasket (for front differential case) | 90564-79054 · 90564-79055 · 90564-79056 · 90564-79057 · 90564-79058 · 90564-79059 · 90564-79060 · 90564-79061 · 90564-79062 · 90564-79063 · 90564-79064 · 90564-79065 · 90564-79066 · 90564-79067 · 90564-79068 · 90564-79069 · 90564-79070 · 90564-79071 · 90564-79072 · 90564-79073 · 90564-79074 · 90564-79075 · 90564-79076 · 90564-79077 · 90564-79078 · 90564-79079 · 90564-79080 · 90564-79081 · 90564-79082 · 90564-79083 · 90564-79084 · 90564-79085 · 90564-79086 · 90564-79087 · 90564-79088 · 90564-79089 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50084 · 90366-50092 · 90366-50136 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50078 · 90366-55065 · 90366-55074 |
| 41331Q | Differential side gear | 41331-33040 |
| 41341H | differential planetary gear | 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-33040 · 41342-33050 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-33030 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33020 · 41361-33030 · 41361-33040 · 41361-33050 · 41361-33060 · 41361-33070 · 41361-33080 · 41361-33090 · 41361-33100 |
