Toyota CAMRY 车轮和车轮盖 — Figure 4103

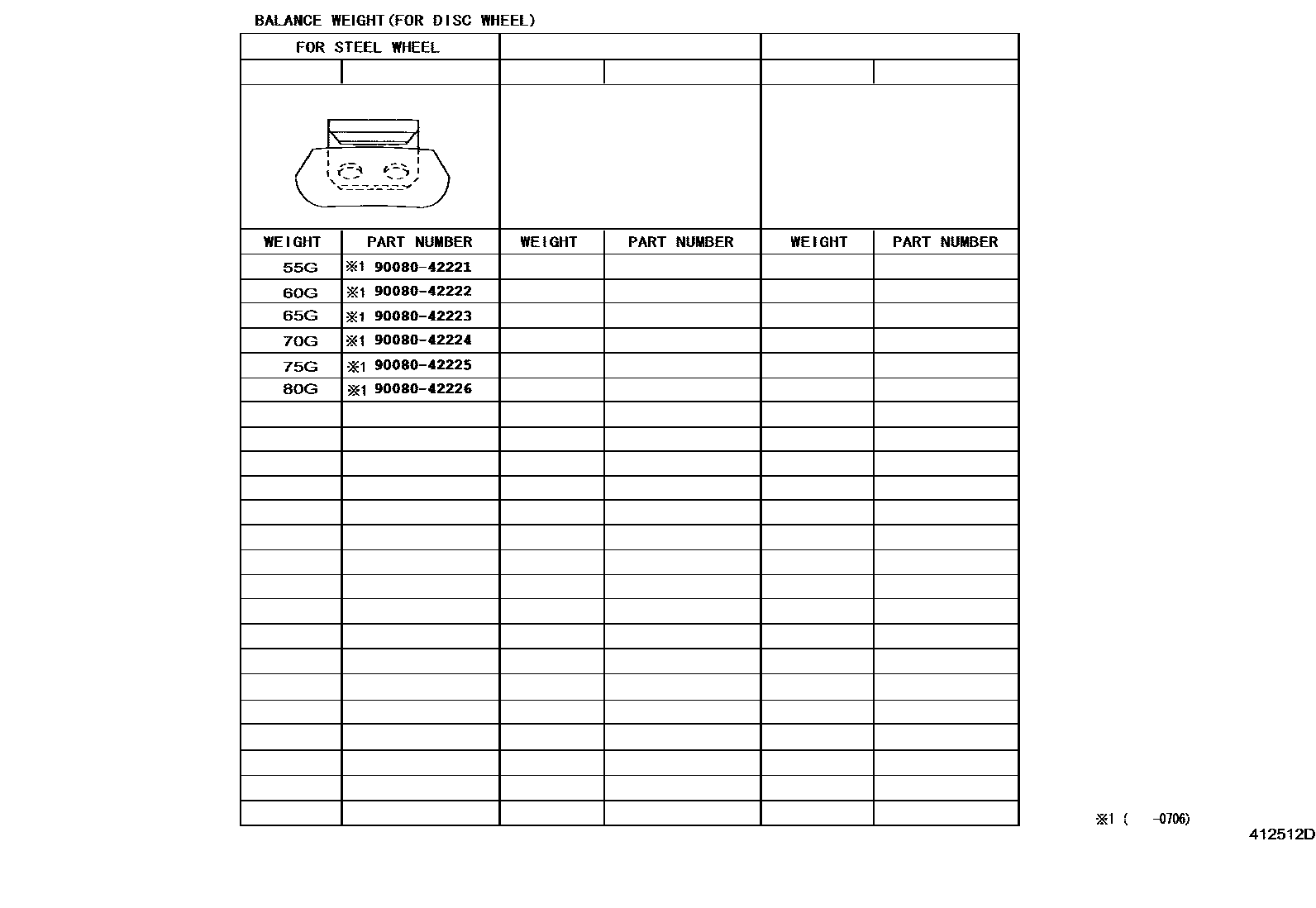

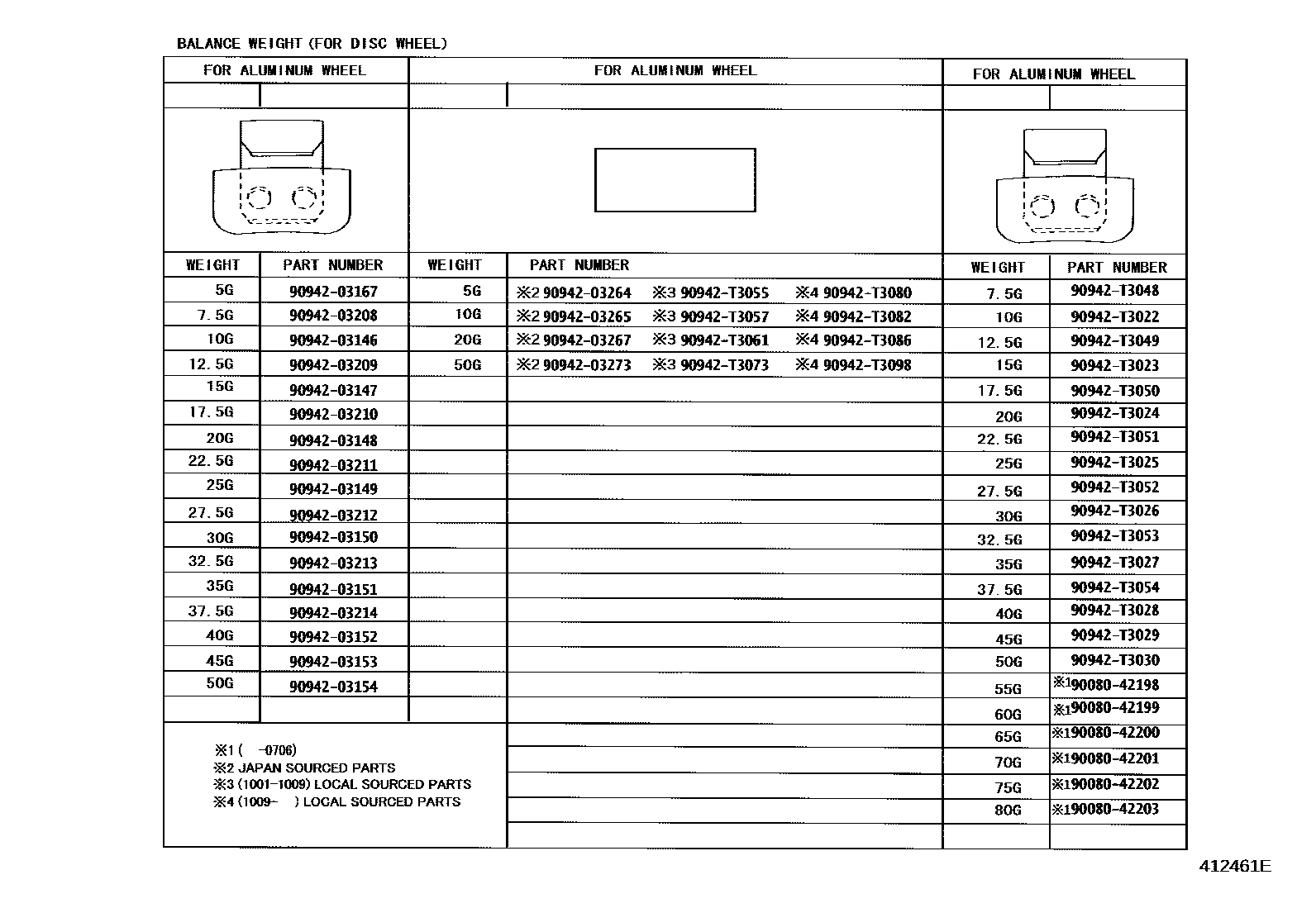

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

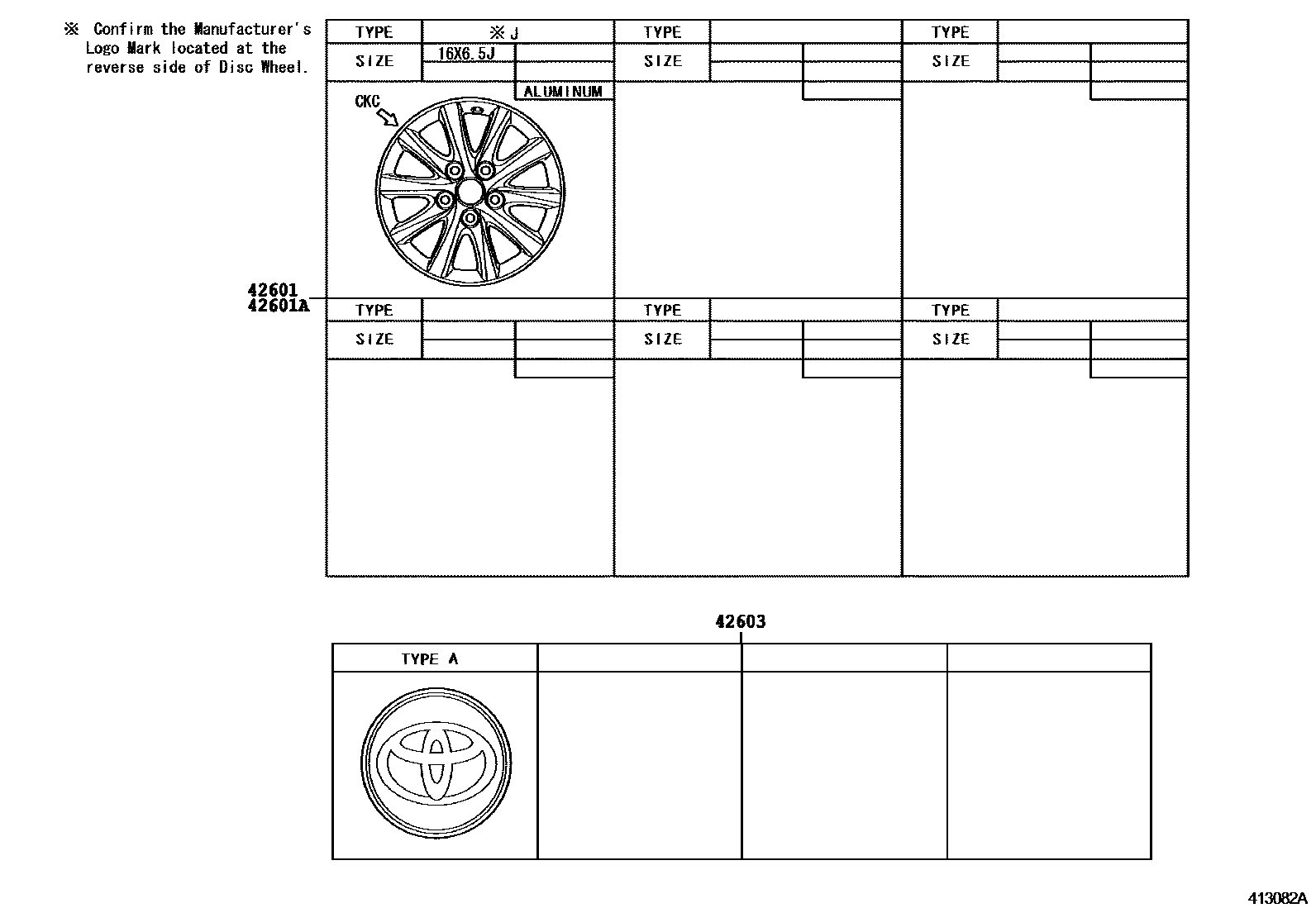

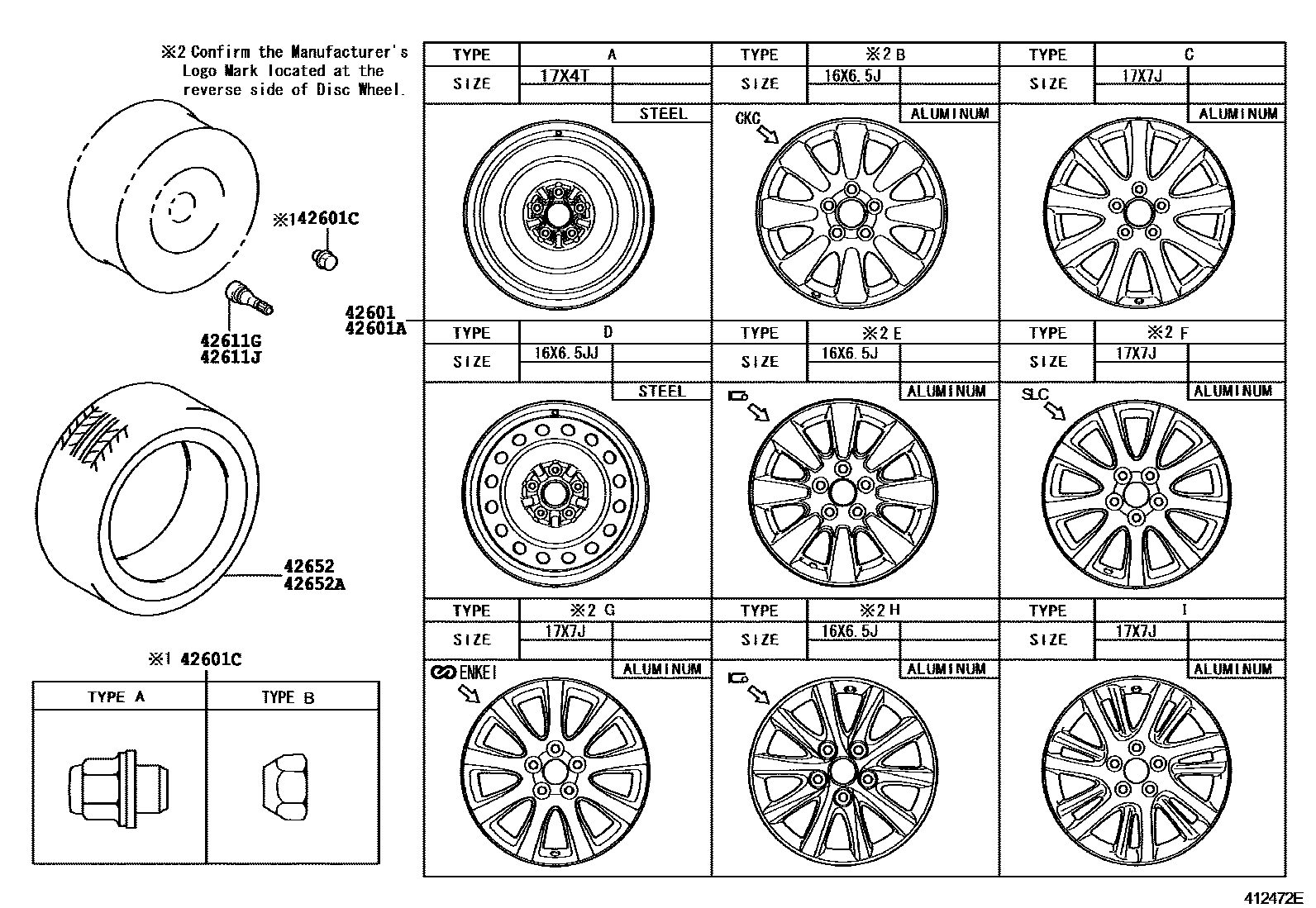

| 42601 | spoke wheel | 42611-06410 · 42611-06420 · 42611-06430 · 42611-06440 · 42611-06550 · 42611-06560 · 42611-06570 · 42611-06571 · 42611-06580 · 42611-06600 · 42611-06610 |
| 42601A | Spoke wheel (for spare tire) | 42611-06400 · 42611-06410 · 42611-06430 · 42611-06550 · 42611-06570 · 42611-06571 · 42611-06580 · 42611-06600 · 42611-06610 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06090 · 42603-06100 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90083-45001 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90083-45001 · 90942-05009 |
| 42652 | tires | 42652-06460 · 42652-06501 · 42652-06510 · 42652-06650 · 42652-06670 · 42652-06700 · 42652-06711 · 42652-33502 |
| 42652A | Tire (for Spare Wheel) | 42652-06501 · 42652-06510 · 42652-06670 · 42652-06711 · 42652-06830 · 42652-33502 |
