Toyota CAMRY 变速器油冷却器和配管(ATM) — Figure 3514

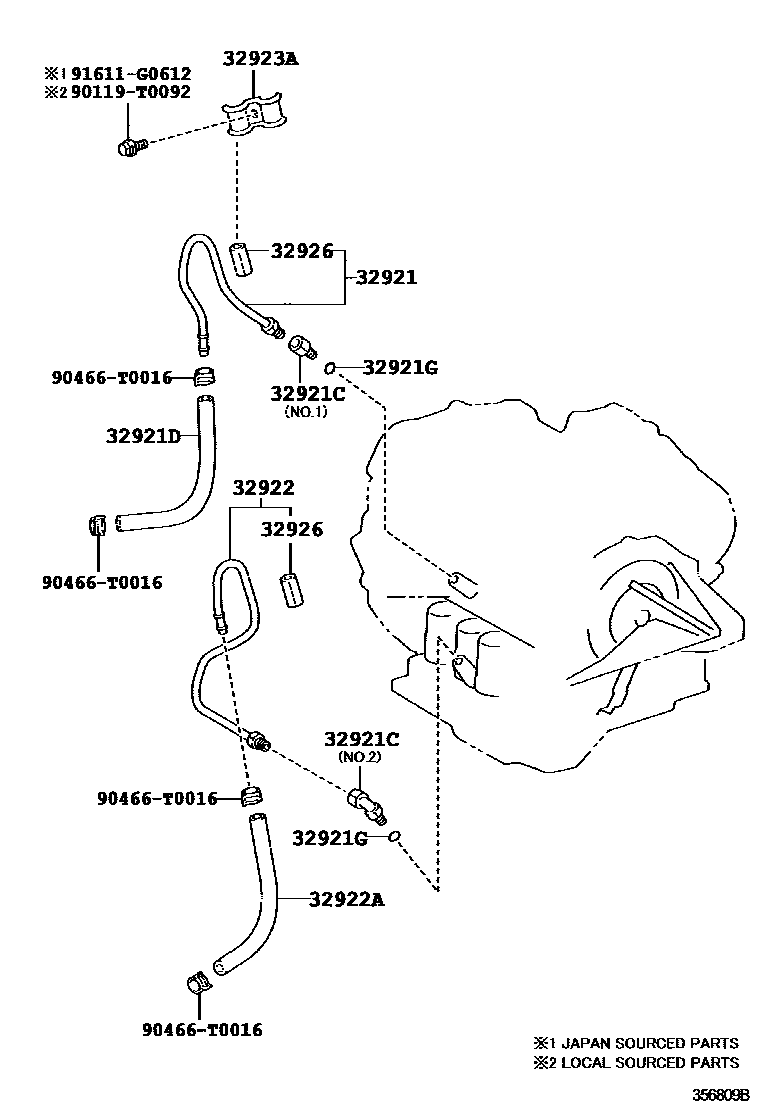

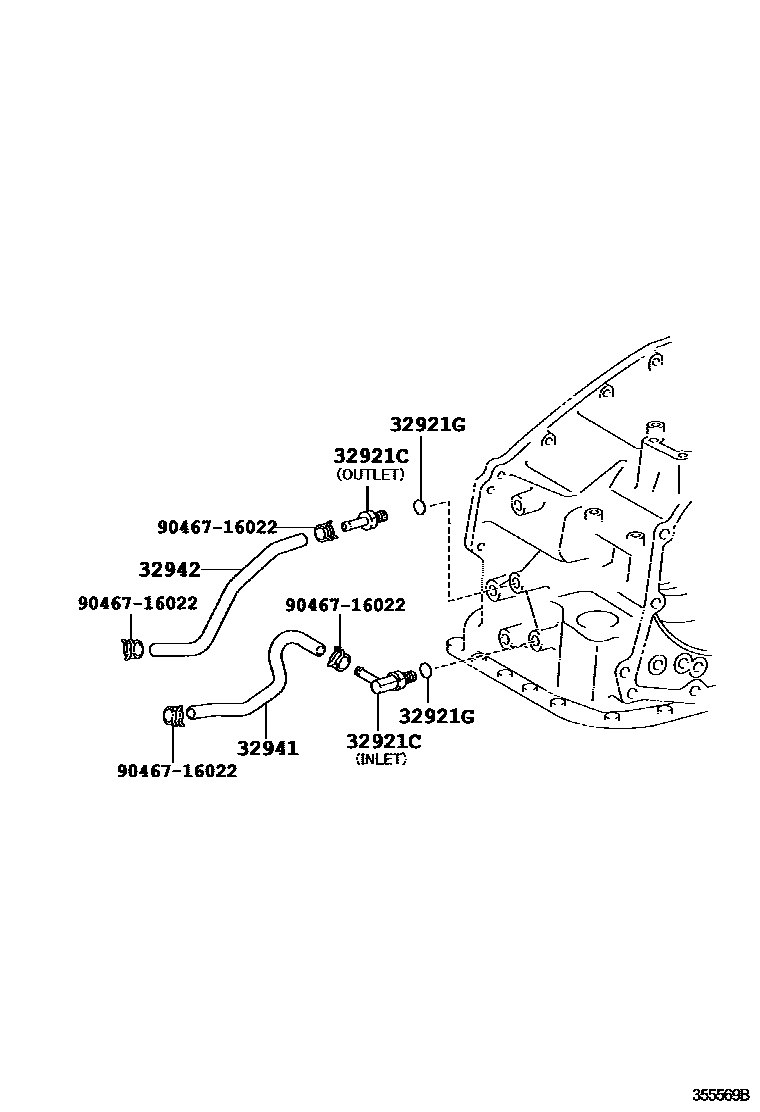

Toyota CAMRY EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-06190 · 32921-06200 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14027 · 90404-16031 · 90407-14032 · 90407-16010 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32943-06070 · 32943-06160 · 32943-33260 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 · 90301-11031 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-06170 · 32922-06180 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32943-06080 · 90445-17128 · 90445-T0016 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12074 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-06040 · 32926-30020 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-33070 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-33050 · 32942-33150 |
