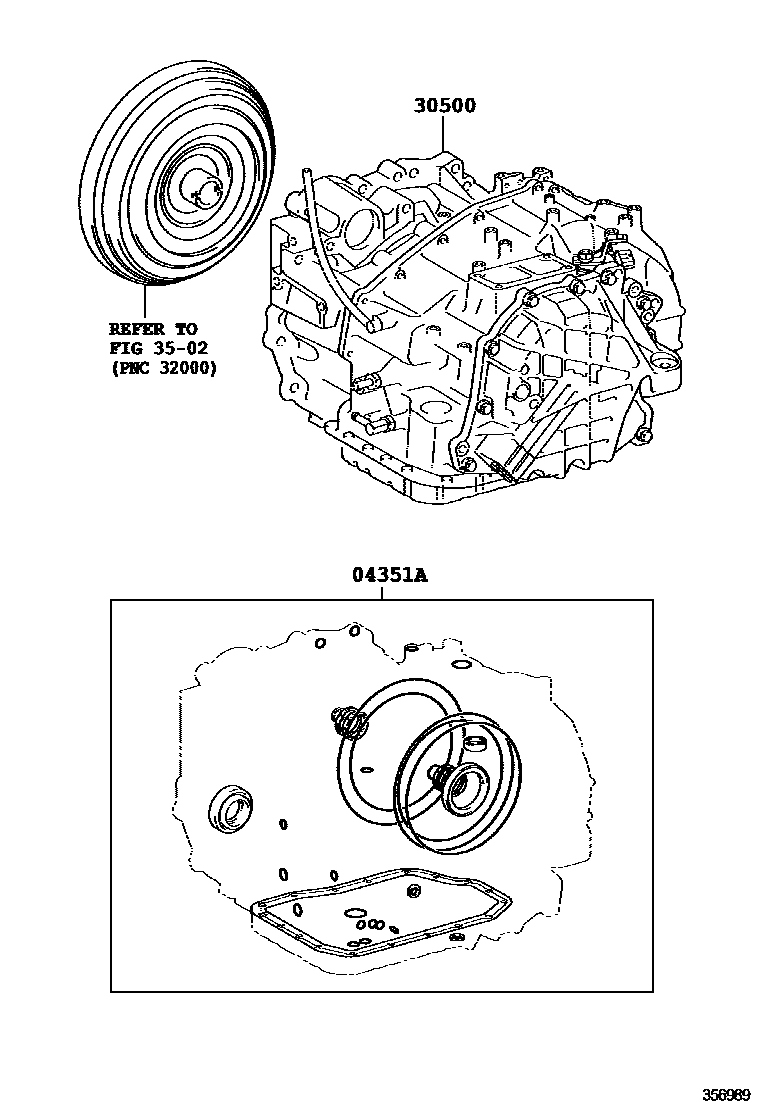

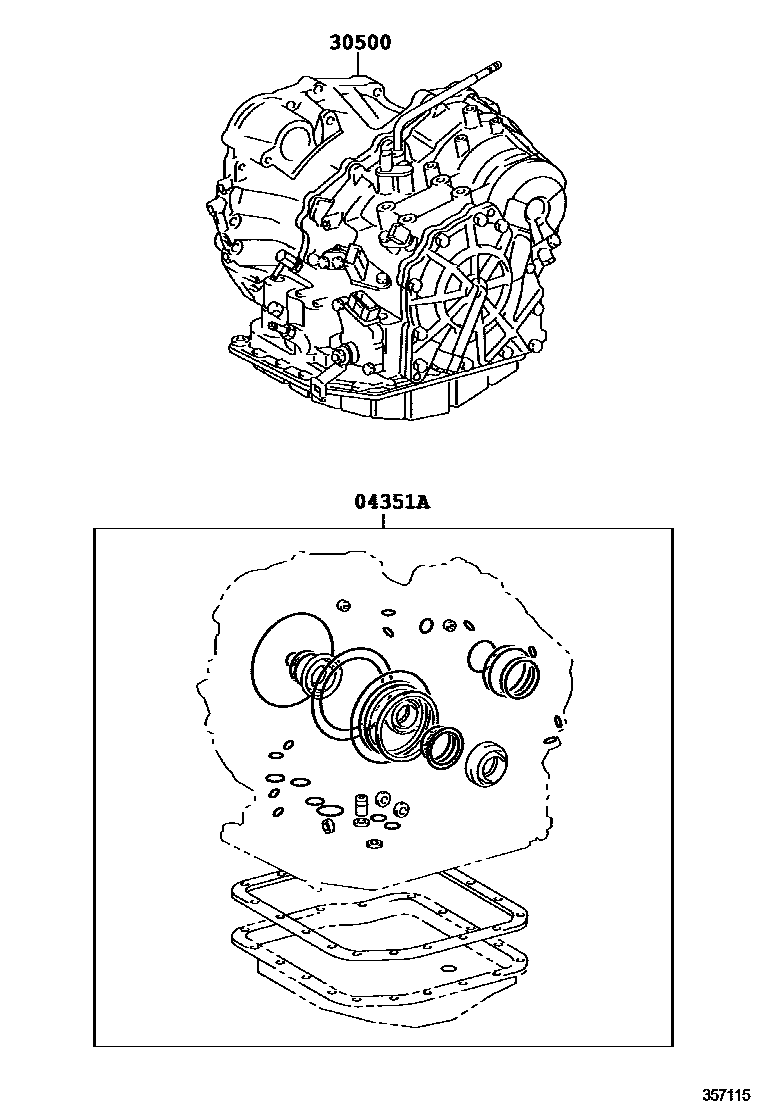

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-33400 · 04351-33401 · 04351-33430 · 04351-33431 · 04351-33432 · 04351-33450 · 04351-48060 · 04351-48150 · 04351-48151 · 04351-48152 |
| 30500 | Automatic transmission axle assembly | 30500-33460 · 30500-33470 · 30500-33490 · 30500-33491 · 30500-33520 |
