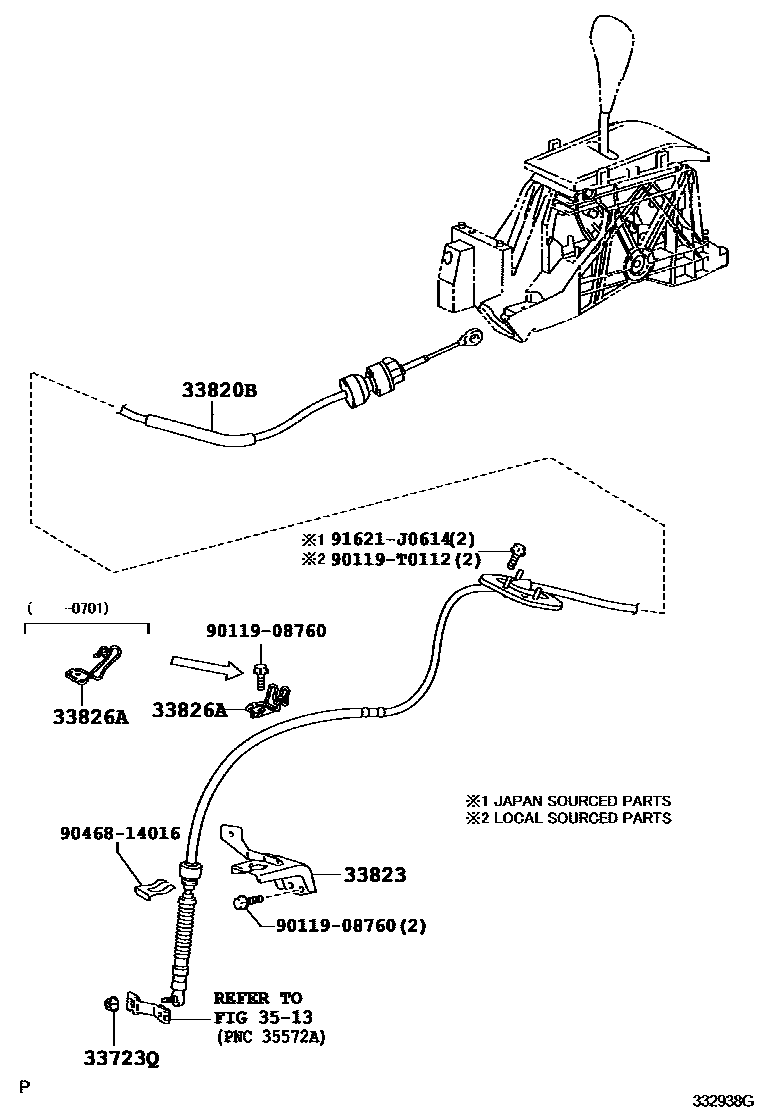

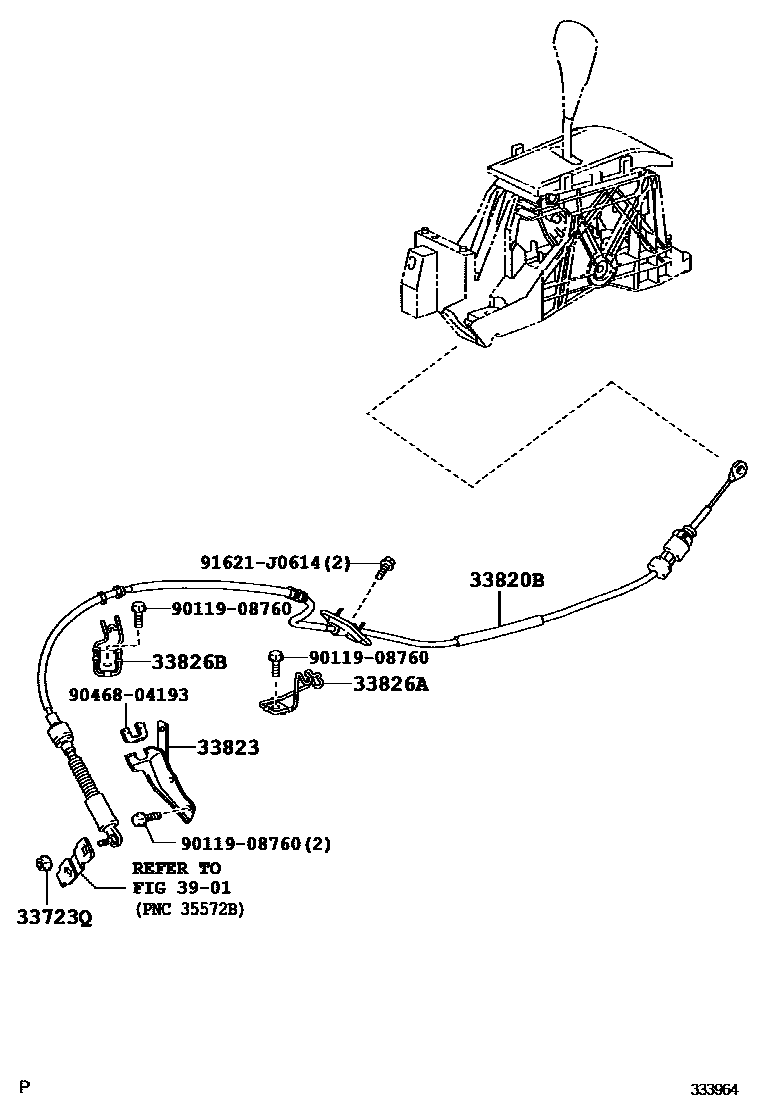

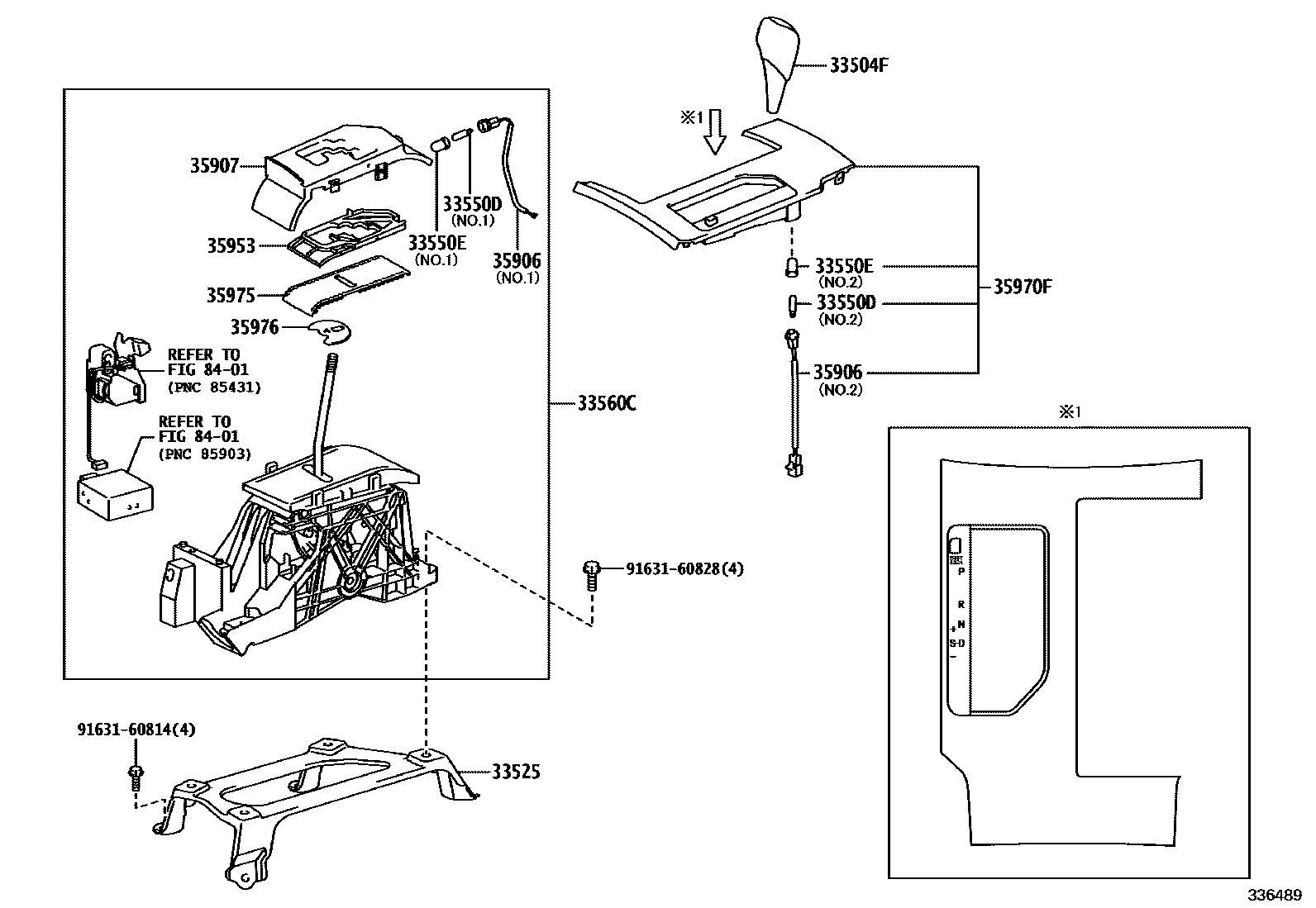

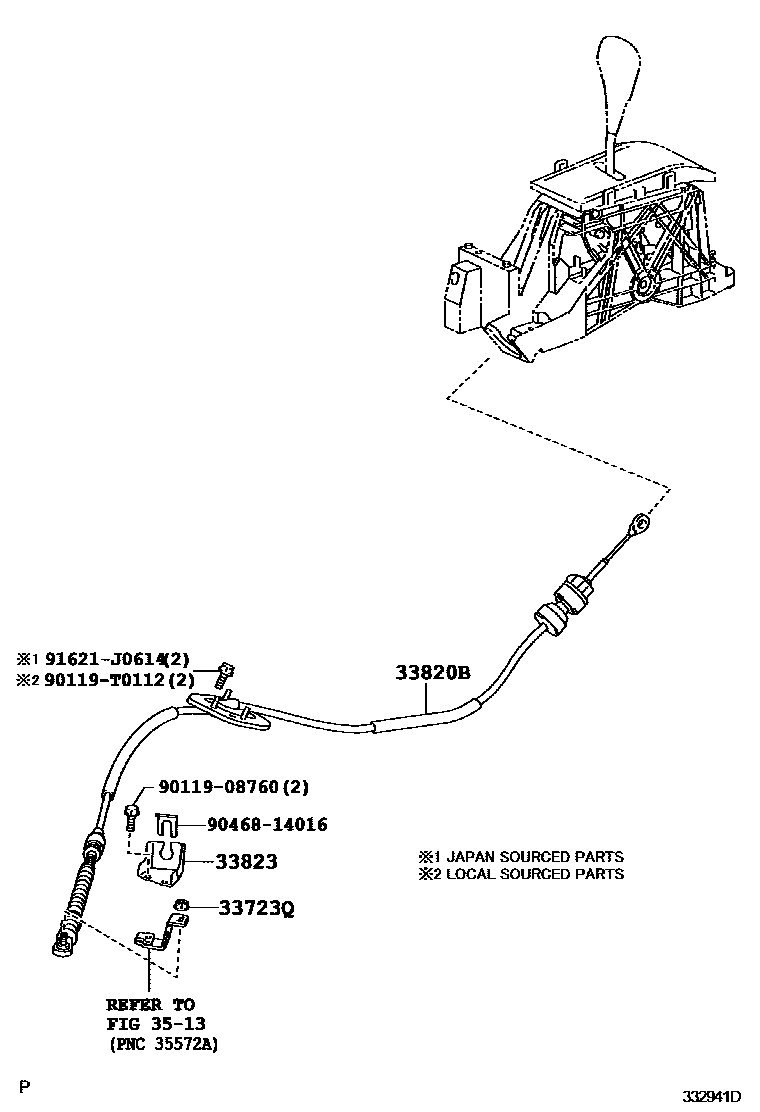

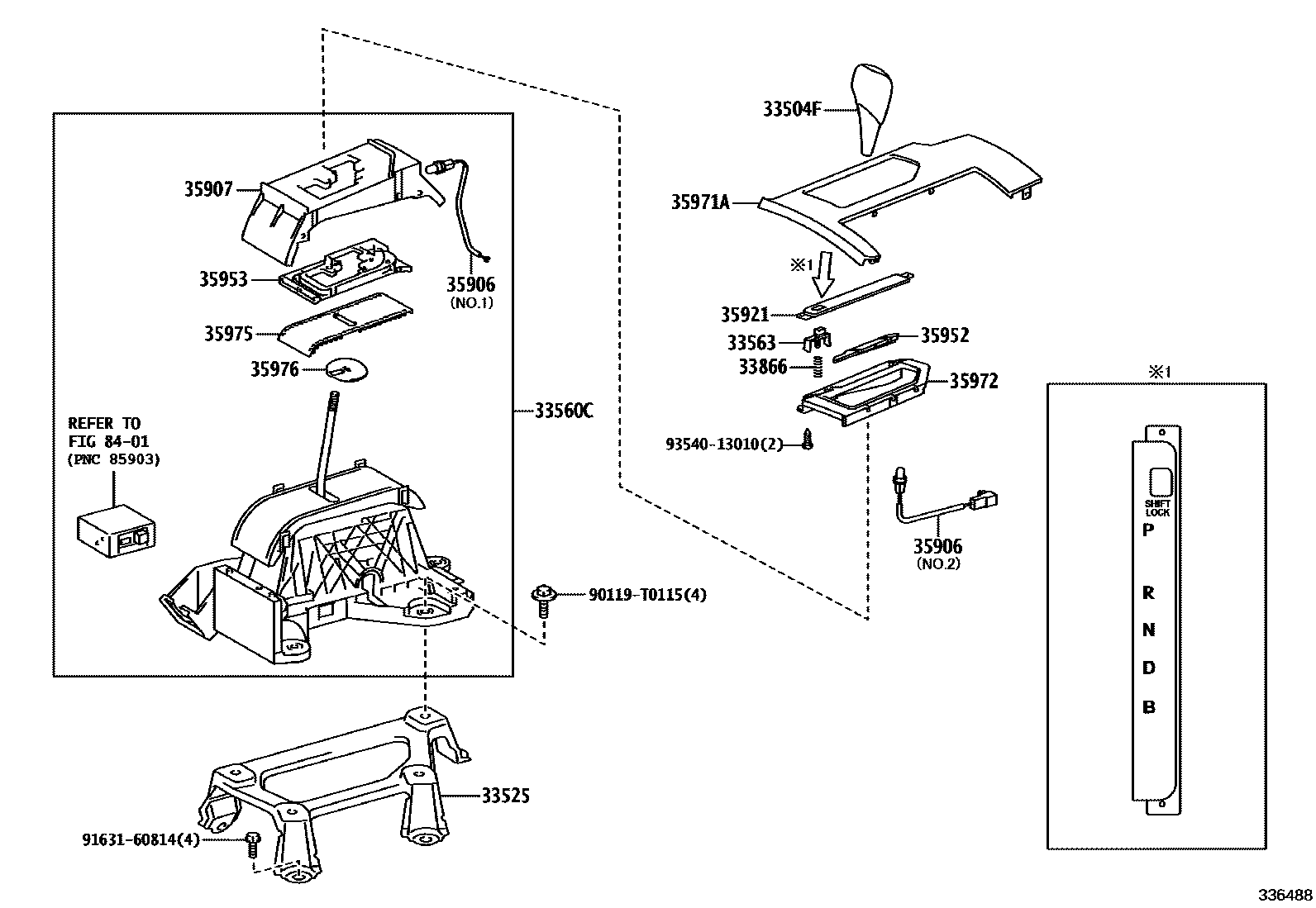

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33525 | shift lever bracket | 58123-06030 · 58123-06040 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 · 90339-04077 |
| 33560C | Lower shift lever assembly | 33560-06080 · 33560-06090 · 33560-06100 · 33560-06110 · 33560-06120 · 33560-06130 · 33560-06140 · 33560-06190 · 33560-06210 · 33560-06220 |
| 33563 | Shift lock release button | 33563-06120 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-06290 · 33820-06300 · 33820-06310 · 33820-33180 · 33820-33270 |
| 33823 | No. 1 transmission control cable bracket | 33823-33050 · 33823-33060 · 33823-33090 |
| 33826A | No. 2 transmission control cable bracket | 33826-33040 · 33826-33041 · 33826-33050 |
| 33826B | No. 3 transmission control cable bracket | 33827-33040 |
| 33866 | Shift lock release spring | 33866-06030 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06070 · 35906-06090 · 35906-06091 · 35906-06100 · 35906-06170 · 35906-33160 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-06020 · 35907-06030 · 35907-06040 · 35907-06050 · 35907-06080 |
| 35921 | control position indicator board | 35921-06040 · 35921-06050 · 35921-06140 |
| 35952 | Position indicator lampshade | 35952-06010 · 35952-06040 |
| 35953 | Position indicator light guide | 35953-06030 · 35953-06040 · 35953-06050 · 35953-06051 · 35953-06080 |
| 35970F | Position indicator light housing assembly | 35970-06040 · 35970-06050 · 35970-06060 · 35970-06290 |
| 35971A | Position indicator light upper shell | 35971-06070 · 35971-06080 |
| 35972 | Position indicator light housing cover | 35972-06050 |
| 35975 | Slide cover (for position indicator light) | 35975-06060 · 35975-06070 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06070 · 35976-06080 |
