Toyota CAMRY Alternator — Figure 1903

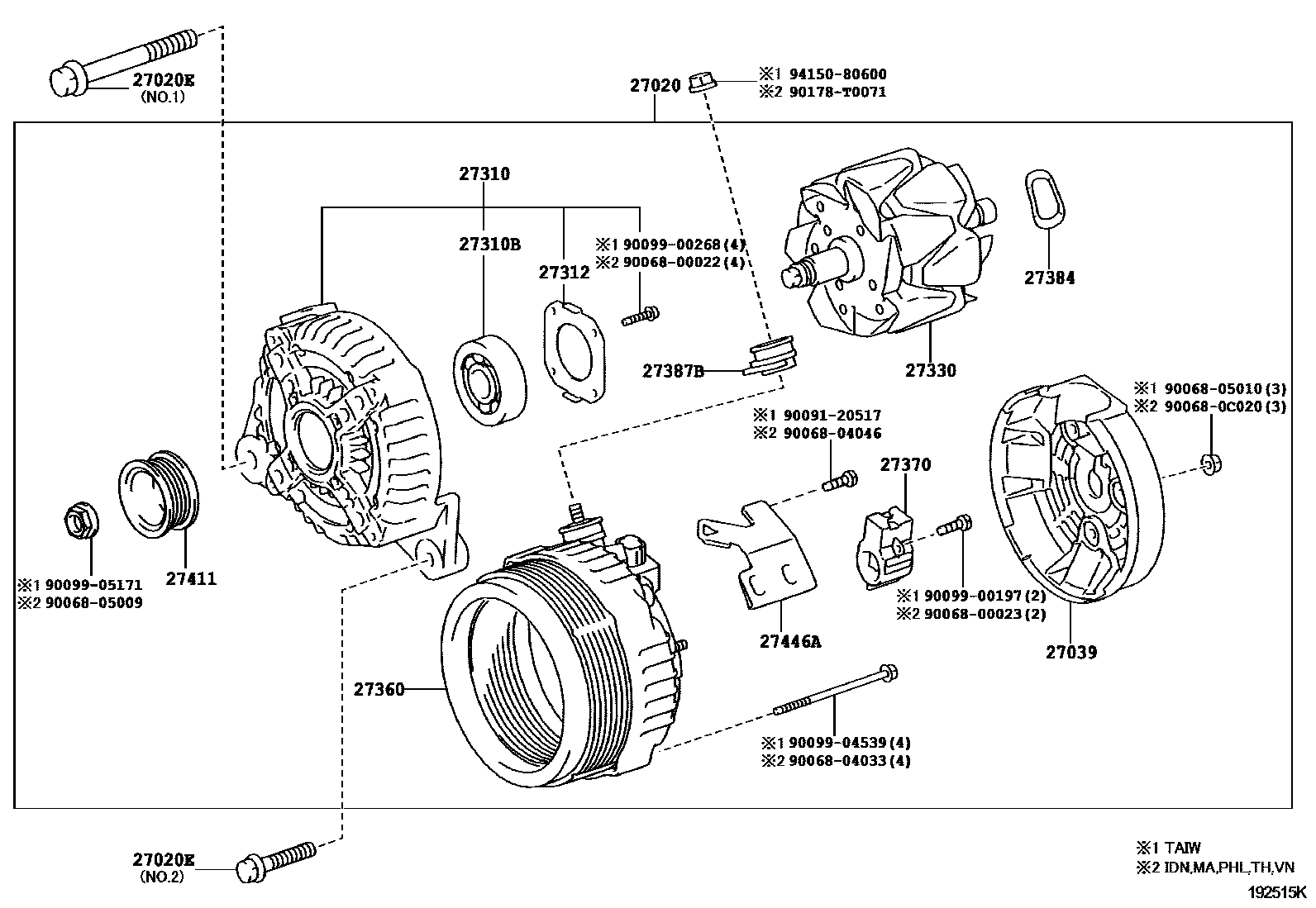

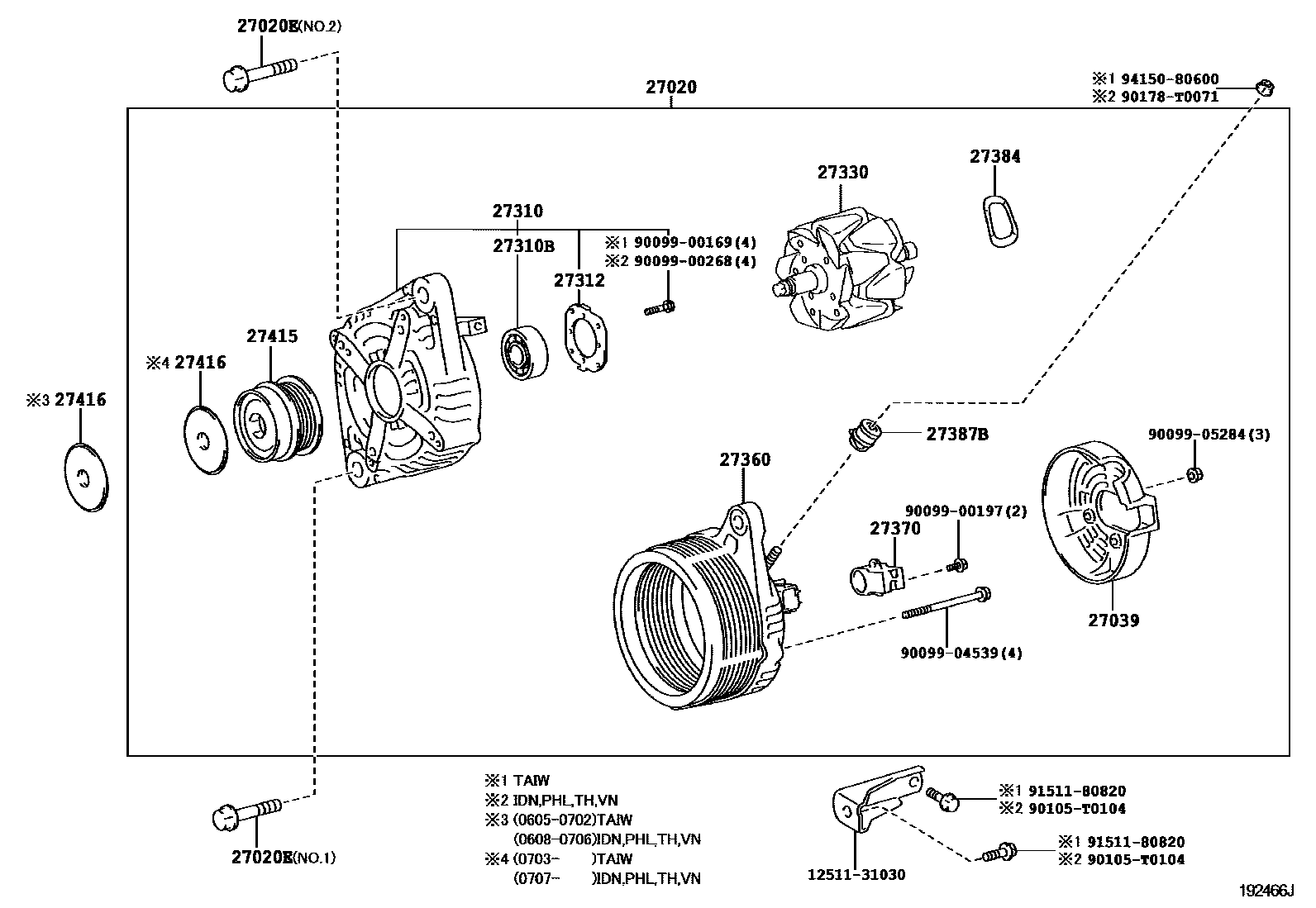

Toyota CAMRY EPC diagram 1903, Alternator, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H090 · 27060-0H091 · 27060-0H120 · 27060-0H121 · 27060-0P230 · 27060-0P231 · 27060-0P232 · 27060-31080 · 27060-31081 · 27060-31082 |
| 27020E | Bolts (for generator) | 90105-T0125 · 91512-81085 · 91551-80840 · 91552-81040 · 91552-81070 |
| 27039 | Alternator Rear End Cover | 27039-0A110 · 27039-0C020 · 27039-0H080 · 27039-27060 · 27039-31390 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0H080 · 27310-0H100 · 27310-0H120 · 27310-0P050 · 27310-31290 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 · 90068-10033 · 90068-10036 · 90099-10142 · 90099-10223 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0H080 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0F060 · 27330-0H080 · 27330-0H090 · 27330-0M040 · 27330-30070 |
| 27360 | Alternator Stator Coil Assembly | 27360-0H080 · 27360-0H081 · 27360-0H090 · 27360-0H091 · 27360-0P050 · 27360-31330 |
| 27370 | Alternator Brush Holder Assembly | 27370-0C020 · 27370-31220 · 27370-58460 |
| 27384 | Washer | 27384-0C020 · 27384-16380 · 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0H110 · 27387-20130 |
| 27411 | Alternator Pulley | 27411-0H080 · 27411-0H090 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W010 · 27415-0W130 |
| 27416 | Generator pulley cover | 27416-0W010 · 27416-0W050 |
| 27446A | card holder | 27446-0H080 · 27446-0H090 |
